Citroen C3 2013 2.G User Guide

.Familiarisation
9
1. Steering lock and ignition. 2.Audio equipment steering wheel controls.3.Wiper / screenwash / trip computer controlstalk.4.
Microphone.
5. Scented air freshener.
6.Central locking switch.
7. Multifunction screen.
8.Hazard warning lamps switch. 9.
Central adjustable air vents.10.Sunshine sensor
Hi-Fi audio system central speaker.11. Passenger's airbag.12 .
Side adjustable air vent.13.Glove box / Passenger's airbag deactivation / Audio/video sockets.14.Parking brake.15.Central armrest with storage. 16.
Upper and lower storage.17.Audio system or eMyWay. 18.Heating / air conditioning controls.
Instruments and controls

Familiarisation
10
Front seats
1. Forwards-backwards adjustment. 2. Height adjustment. 3. Seat back angle adjustment.

Sitting comfortably
61

.Familiarisation
11
4. Head restraint height adjustment.
Steering wheel adjustment
1.Release the adjustment mechanism.2.
Adjust the wheel for height and reach.3.
Lock the adjustment mechanism.

Sitting comfortably
For reasons of safety, these operationsmust only be carried out with the vehicle stationary.
Other functions...
Heated seats.
62

65

Familiarisation
12
Door mirrors
Adjustment
A.Selecting the mirror. B.Adjusting the position of the mirror. C. De-selecting the mirror.


Rear view mirror


Manual day/night type
1.Selecting the "day" position of the mirror.
2. Adjusting the mirror.


Automatic day/night type


Front seat belts
1.
Fitting the belt. 2.Fastening.3.Check that the belt is correctly fastened by pulling on the belt webbing.
1
.Automatic detection of day/night mode.
2. Adjusting the mirror.

Sitting comfortably
Other functions...
64
65

65
109
Folding / Unfolding.

.Familiarisation
13

Lighting

Ring A


Ring B
Lighting off.
Automatic illumination o
f headlamps.
Sidelamps.
Dipped
/ main beam headlamps.
Rear
foglamps.
or
Front and rear
foglamps.
Wipers
2.
Fast wipe.
1.Normal wipe.
Int.Intermittent wipe.0.Park. AUTO

Familiarisation
14
Advice on interior settings
Digital air conditioning:
use of the fully automatic mode by pressing the "AUTO"button is recommended. I re
quire...
Heating or Manual air conditioning
Air distributionAir flowAir recirculation/ Exterior air intakeTemperatureManual A/C
HEAT
COOL
DEMISTINGDEFROSTING

Vent ilat ion

.Familiarisation
15

Instrument panel
A.With the ignition on, the fuel gauge bars for
the fuel remaining should come on. B.With the engine running, the associatedlow level warning lamp should go off.C.With the ignition on, the oil level indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the level
whi
ch is low.
Warning lamps
1.With the ignition on, the orange and red
warn
ing lamps come on. 2. With the engine running, these warning lamps should go off.
If a warning lamp remains on, refer to the pageconcerned.

Switch panel

Illumination of the indicator lamp indicates the state of the corresponding system.A.ESP/ASR system deactivation.
B.
Stop & Start system deactivation.

Monitoring
23

25, 3012
5
108

Familiarisation
16

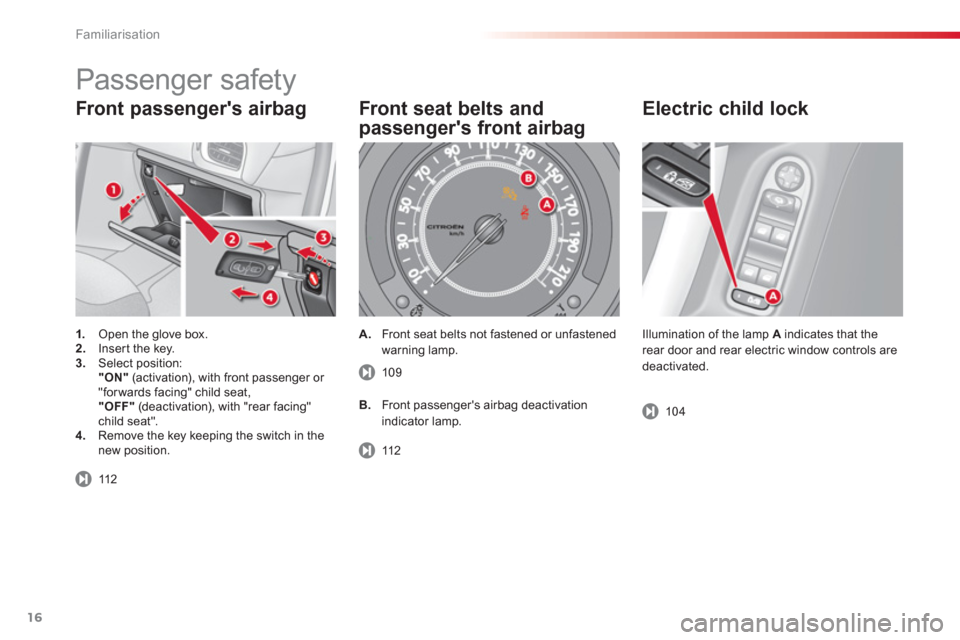

Front passenger's airbag
1. Open the glove box.2.
Inser t the key.3.
Select position:
"ON"
(activation), with front passenger or "forwards facing" child seat,
"OFF"
(deactivation), with "rear facing" child seat".4.
Remove the key keeping the switch in the new position.


Front seat belts and
passenger's front airbag
A.
Front seat belts not fastened or unfastenedwarning lamp.


Electric child lock

Illumination of the lamp A
indicates that therear door and rear electric window controls are deactivated.
B.
Front passenger's airbag deactivation indicator lamp.

Passenger safety
112
109
1121
04

.Familiarisation
17

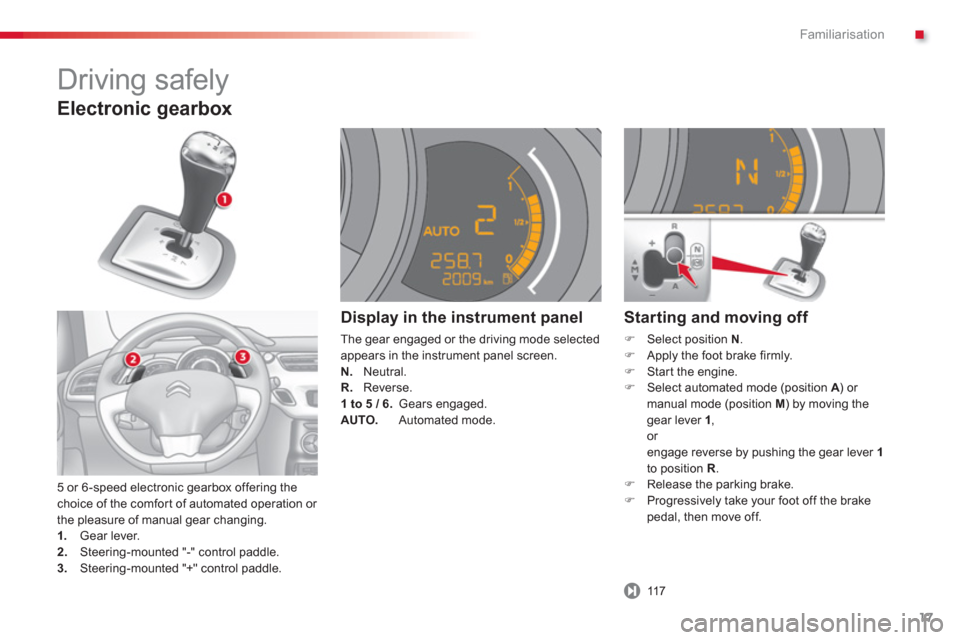

Electronic gearbox

5 or 6 -speed electronic gearbox offering the choice of the comfor t of automated operation or
the pleasure of manual gear changing.1. Gear lever. 2.Steering-mounted "-" control paddle.3.Steering-mounted "+" control paddle.
Display in the instrument panel
The gear engaged or the driving mode selected appears in the instrument panel screen.
N.Neutral.
R. Reverse.
1 to 5 / 6.Gears engaged.AUTO.Automated mode.


Starting and moving off
)
Select position N.)
Apply the foot brake firmly. )
Start the engine.)
Select automated mode (position A) or Amanual mode (position M) by moving thegear lever 1 ,


or
engage reverse by pushing the gear lever 1to position R.) Release the parking brake. )
Progressively take your foot off the brake pedal, then move off.

Driving safely
117

Familiarisation
18

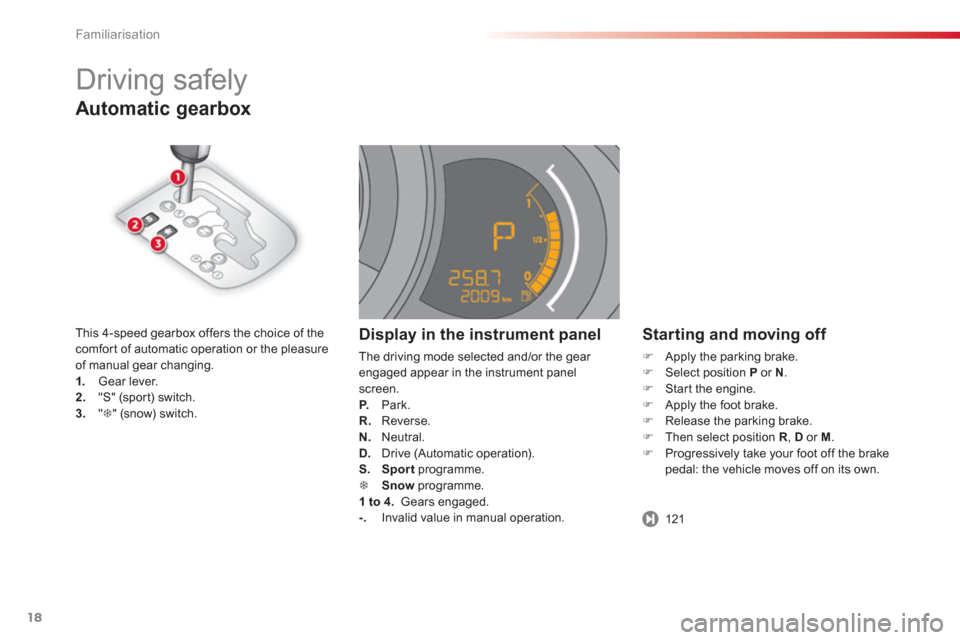

Automatic gearbox

Starting and moving off
)Apply the parking brake. )Select position P
or N
. )Start the engine.)Apply the foot brake. )Release the parking brake. )Then select position R , D
or M . )Progressively take your foot off the brake pedal: the vehicle moves off on its own. This 4-speed
gearbox offers the choice of thecomfor t of automatic operation or the pleasure
of manual gear changing.1. Gear lever.2.
"S" (sport) switch. 3." 7" (snow) switch.

Display in the instrument panel

The driving mode selected and/or the gear engaged appear in the instrument panelscreen.
P.Park.
R. Reverse.
N.Neutral.D.Drive (Automatic operation).
S.Sportprogramme. 7Snow programme.
1 to 4. Gears engaged.-.
Invalid value in manual operation.

Driving safely
121
