Multifunction screens
49

"Telephone" Menu
With Audio system on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the Audio system par t of the"Audio and telematics" section.
Choice of language
Once this menu has been selected, you canchange the language used by the display
(Deutsch, English, Espanol, Français, Italiano,
Nederlands, Portu
gues, Portugues-Brasil,
Türkçe * ).

For safety reasons, configuration by the
driver of the multifunction screen mustonly be done when stationary.

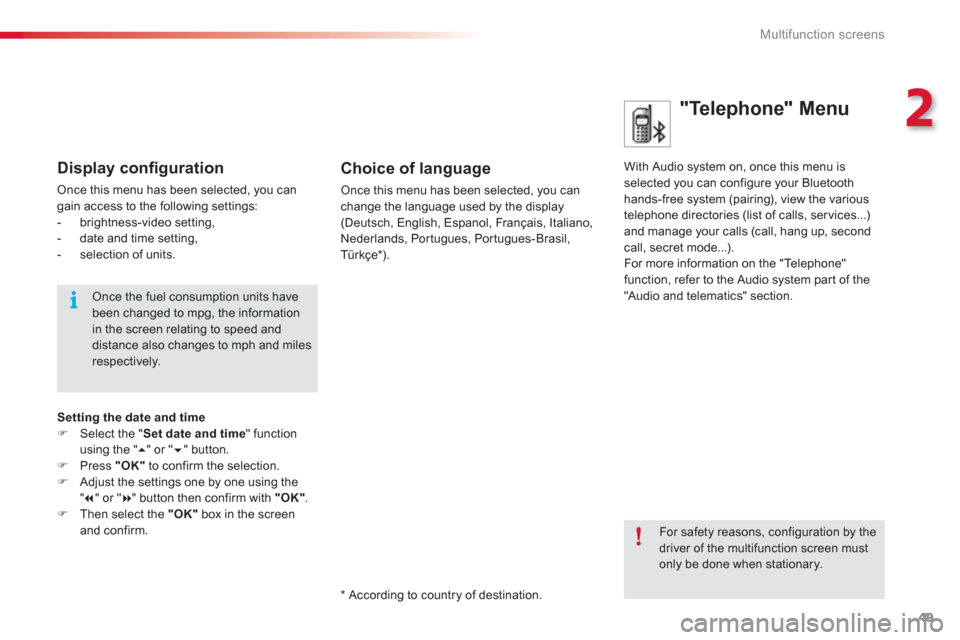

Display confi guration

Once this menu has been selected, you can gain access to the following settings:


- brightness-video setting,

-
date and time setting,

- selection of units.
Once the fuel consumption units havebeen changed to mpg, the informationin the screen relating to speed and distance also changes to mph and miles respectively.
*
Accordin
g to country of destination. Settin
g the date and time)Select the " Set date and time" function
using the " " or " " button. )Press "OK"
to confirm the selection. )Adjust the settings one by one using the " " or "
" button then confirm with "OK".)Then select the "OK"
box in the screenand confirm.

Multifunction screens
50

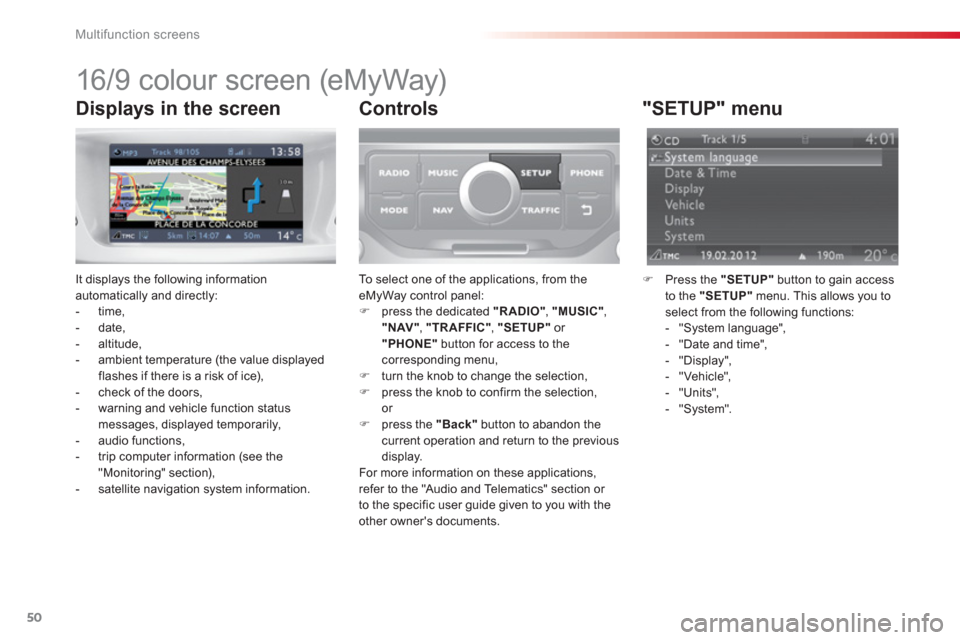

16/9 colour screen (eMyWay)
It displays the following information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature
(the value displayed
flashes if there is a risk of ice),
- check of the doors,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information (see the "Monitoring" section),
- satellite navigation system information.


Controls

To select one of the applications, from theeMyWay control panel:)
press the dedicated "RADIO"
, "MUSIC","NAV"
, "TRAFFIC", "SETUP"
or "PHONE"
button for access to thecorresponding menu, )
turn the knob to change the selection, )
press the knob to confirm the selection,
or ) press the "Back"button to abandon thecurrent operation and return to the previous
display.
For more in
formation on these applications, refer to the "Audio and Telematics" section or
to the specific user guide given to you with the other owner's documents.


"SETUP" menu
)Press the "SETUP"button to gain access
to the "SETUP"
menu. This allows you to select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",
- "Units",
- "S
ystem".


Displays in the screen

2
Multifunction screens
51

*
According to country.

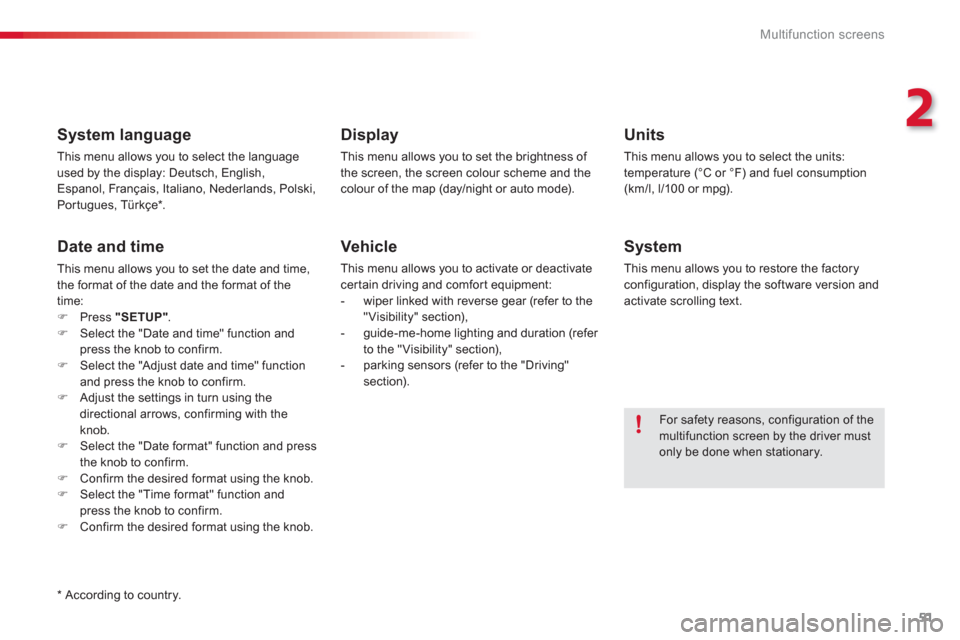

System language

This menu allows you to select the language
used by the display: Deutsch, English,Espanol, Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * .

Date and time
This menu allows you to set the date and time,
the format of the date and the format of the
time:)Press "SETUP"

. )Select the "Date and time" function andpress the knob to confirm. )Select the "Adjust date and time" function and press the knob to confirm. )Adjust the settings in turn using the
directional arrows, confirming with the knob.)Select the "Date format" function and press
the knob to confirm.)Confirm the desired format using the knob. )Select the "Time format" function andpress the knob to confirm. )Confirm the desired format using the knob.

Display
This menu allows you to set the brightness of
the screen, the screen colour scheme and the colour of the map (day/night or auto mode).
Vehicle
This menu allows you to activate or deactivate cer tain driving and comfort equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home lighting and duration (refer
to the "Visibility" section),
- parking sensors (refer to the "Driving"section).


Units

This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.

Comfort
52

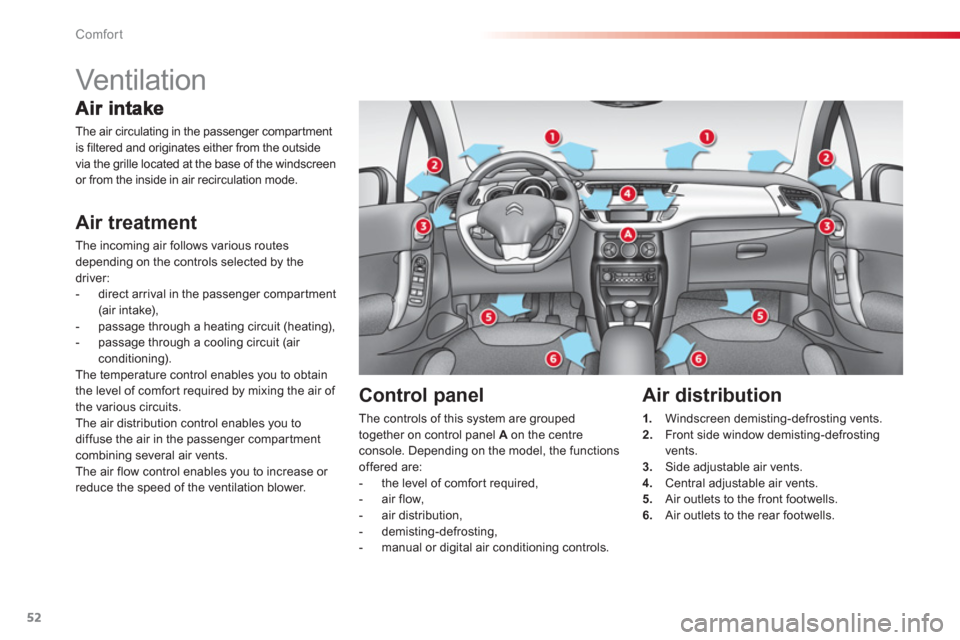

Vent ilat ion
The air circulating in the passenger compartment
is filtered and originates either from the outside
via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routes
depending on the controls selected by thedriver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to obtain
the level of comfor t required by mixing the air of
the various circuits.
The air distribution control enables you to
diffuse the air in the passenger compar tment combining several air vents.
The air flow control enables you to increase or reduce the speed of the ventilation blower.


Control panel

The controls of this system are grouped
together on control panel
Aon the centre console. Depending on the model, the functionsoffered are:


- the level of comfor t required,

- air flow
,

- air distribution,

- demisting-defrosting,

- manual or digital air conditioning controls.


Air distribution
1.
Windscreen demisting-defrosting vents.
2.Front side window demisting-defrosting
vents.3.Side adjustable air vents. 4. Central adjustable air vents.
5. Air outlets to the front footwells.
6.Air outlets to the rear footwells.

3
Comfort
53

If after an extended stop in sunshine, the interior temperature is veryhigh, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

The condensation created by the air conditioning results in a dischargeof water under the vehicle which is perfectly normal.

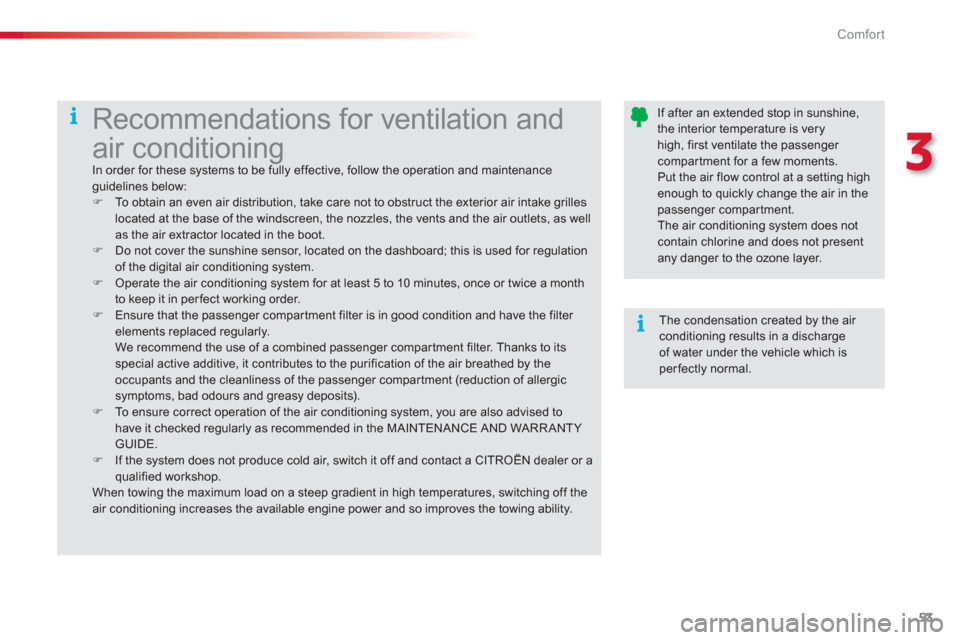

Recommendations for ventilation and
air conditioning
In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in perfect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly. We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the MAINTENANCE AND WARR ANT Y
GUIDE. )
If the system does not produce cold air, switch it off and contact a CITRO

Comfort
54

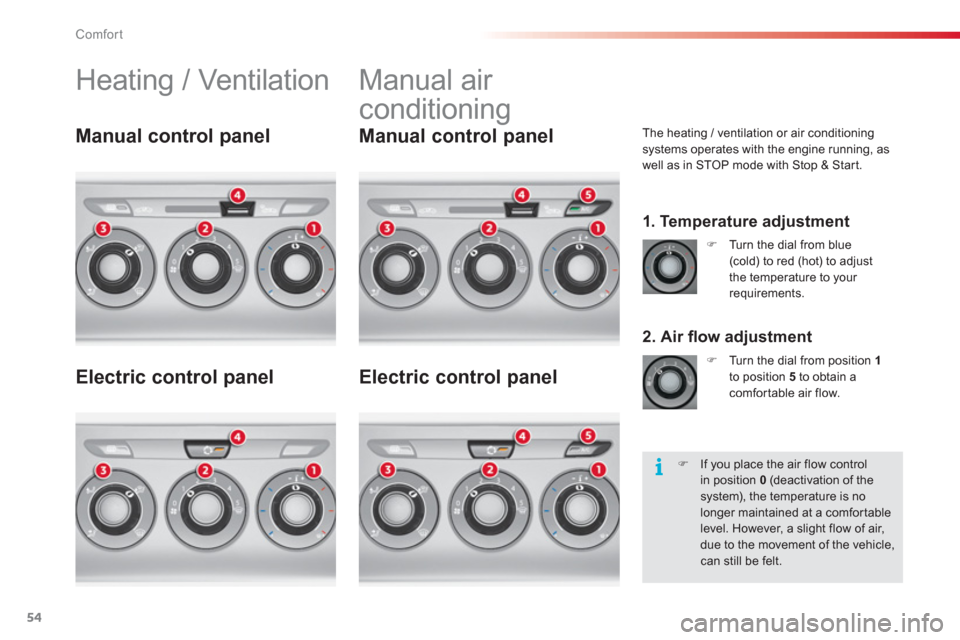

Heating / Ventilation Manual air
conditioning
The heating / ventilation or air conditioning systems operates with the engine running, as
well as in STOP mode with Stop & Star t.

1. Temperature adjustment

2. Air fl ow ad
justment
)
Turn the dial from blue(cold) to red (hot) to adjust
the temperature to your
requirements.
) Turn the dial from position 1to position 5
to obtain a comfortable air flow.
Manual control panel
Electric control
panel
Manual control
panel
Electric control
panel
)
If you place the air flow control in position 0
(deactivation of the system), the temperature is nolonger maintained at a comfor table level. However, a slight flow of air,
due to the movement of the vehicle, can still be felt.

3
Comfort
55

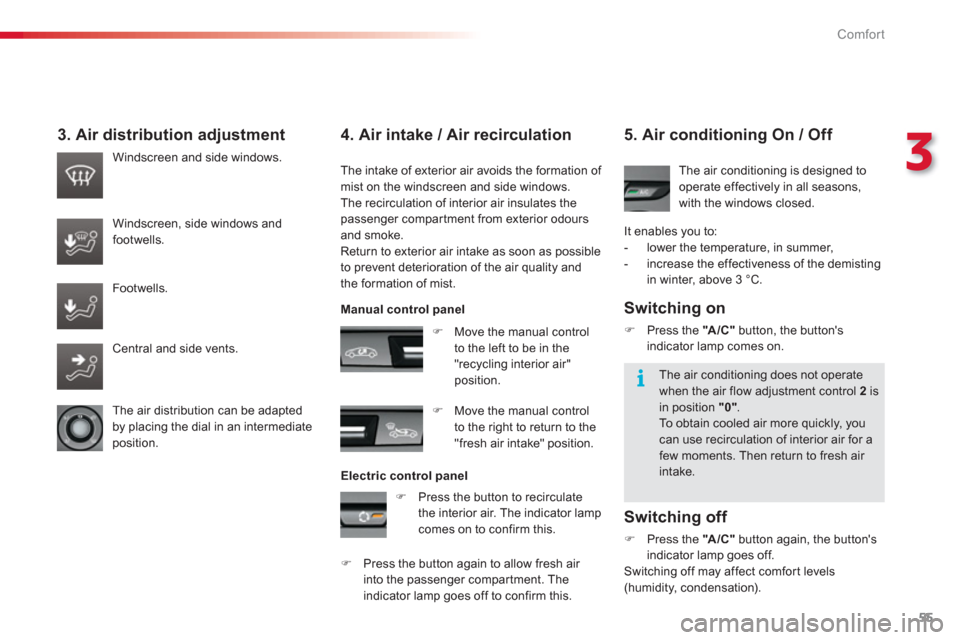

3. Air distribution adjustment
The intake of exterior air avoids the formation of
mist on the windscreen and side windows.
The recirculation of interior air insulates thepassenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the air quality and
the formation of mist. Win
dscreen and side windows.

Windscreen, side windows and footwells.

Footwells.

Central and side vents.

The air distribution can be adapted
by placing the dial in an intermediate
position.
)Move the manual control
to the left to be in the
"recycling interior air"
position.
)Move the manual control
to the right to return to the
"fresh air intake" position.
Manual control panel
Electric control panel
)
Press the button to recirculatethe interior air. The indicator lampcomes on to confirm this.
)
Press the button again to allow fresh air into the passenger compartment. The
indicator lamp goes off to confirm this.


5. Air conditioning On / Off

Switchin
g off
)
Press the "A/C"button again, the button's
indicator lamp goes off.
Switching off may affect comfor t levels (humidity, condensation). The air conditionin
g is designed to
operate effectively in all seasons,
with the windows closed.
It enables
you to:


- lower the temperature, in summer,

- increase the effectiveness of the demistin
g
in winter, above 3 °C.

Switching on
)
Press the "A/C"button, the button's
indicator lamp comes on.

The air conditioning does not operate when the air flow adjustment control 2isin position "
0 ".
To obtain cooled air more quickly, you
can use recirculation of interior air for a few moments. Then return to fresh air intake.
4. Air intake / Air recirculation

Comfort
56
With the heating /
ventilation s
ystem
)Put the temperature and air flow controls to
t
he dedicated marked position. )Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off). )Put the air distribution control to the"Windscreen" position.

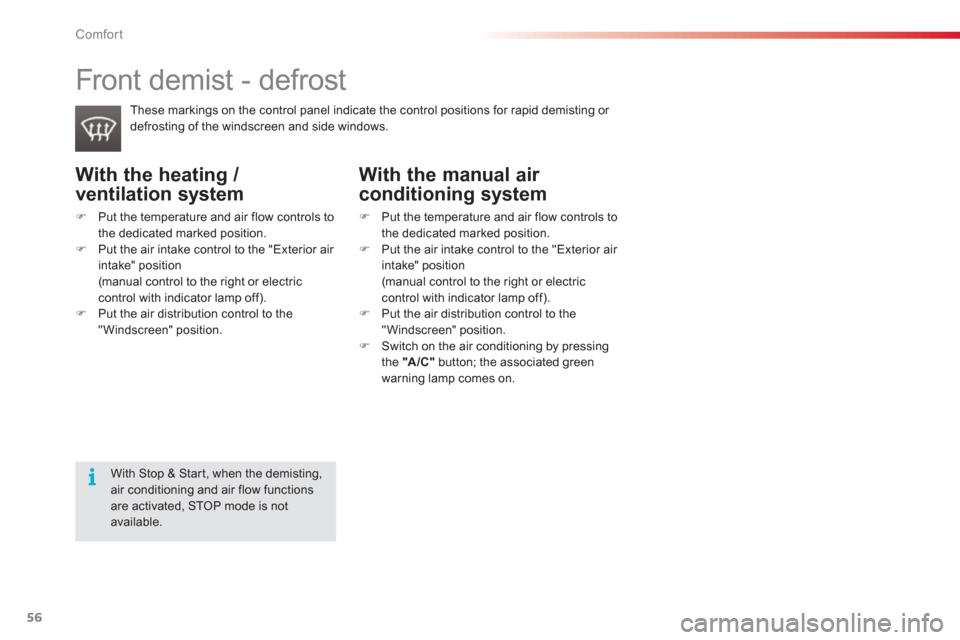

Front demist - defrost


These markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.

With the manual air
conditioning system
)
Put the temperature and air flow controls to
t
he dedicated marked position.) Put the air intake control to the "Exterior air
intake" position
(manual control to the right or electriccontrol with indicator lamp off).) Put the air distribution control to the "Windscreen" position. )
Switch on the air conditioning by pressingthe "A/C"
button; the associated green
warning lamp comes on.

With Stop & Star t, when the demisting, air conditioning and air flow functionsare activated, STOP mode is not available.

3
Comfort
57

















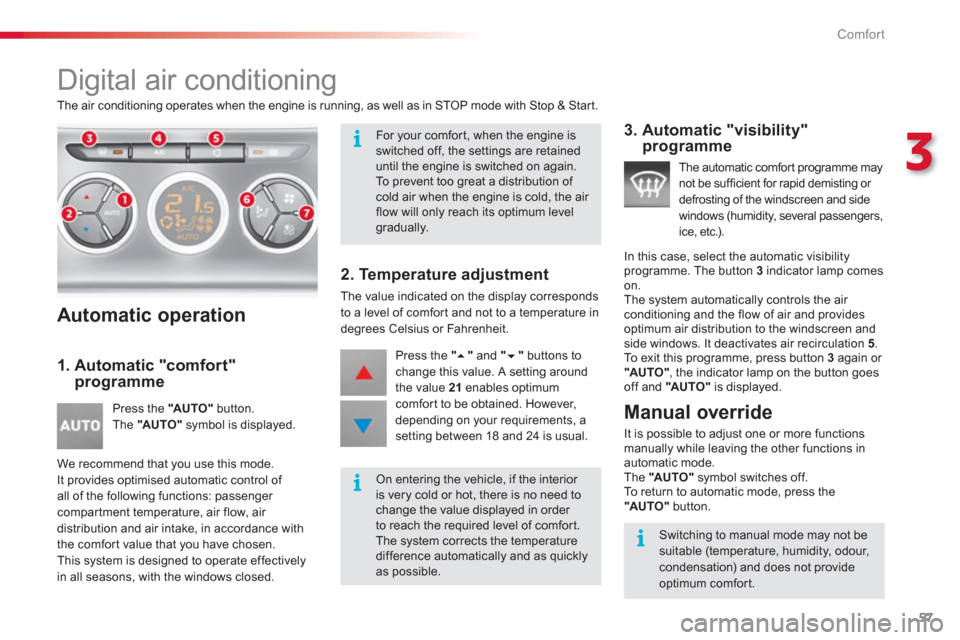

Digital air conditioning

The air conditioning operates when the engine is running, as well as in STOP mode with Stop & Star t.


Automatic operation


1. Automatic "comfort" programme
Press the "AUTO"
button.
The "AUTO"symbol is displayed.
We recommend that
you use this mode.
It provides optimised automatic control of
all of the following functions: passenger compartment temperature, air flow, air distribution and air intake, in accordance with
the comfort value that you have chosen.
This system is designed to operate effectivelyin all seasons, with the windows closed.
2. Temperature adjustment
The value indicated on the display corresponds
to a level of comfor t and not to a temperature in
de
grees Celsius or Fahrenheit.
Pr
ess the ""
and ""
buttons to change this value. A setting around
the value 21 enables optimum comfor t to be obtained. However,depending on your requirements, asetting between 18 and 24 is usual.


3. Automatic "visibility" programme
The automatic comfor t programme may not be sufficient for rapid demisting or
defrosting of the windscreen and side
windows (humidity, several passengers,
ice, etc.).
In this case, select the automatic visibility
programme. The button
3 indicator lamp comeson.
The system automatically controls the air conditioning and the flow of air and provides optimum air distribution to the windscreen andside windows. It deactivates air recirculation 5
.
To exit this programme, press button 3
again or "AUTO"
, the indicator lamp on the button goes off and "AUTO"
is displayed.



Manual override

It is possible to adjust one or more functions
manually while leaving the other functions in automatic mode.
The "AUTO"symbol switches off.
To return to automatic mode, press the
"AUTO"button.
For your comfor t, when the engine isswitched off, the settings are retained until the engine is switched on again. To prevent too great a distribution of cold air when the engine is cold, the air flow will only reach its optimum level gradually.
On entering the vehicle, if the interior is very cold or hot, there is no need to change the value displayed in order to reach the required level of comfort.The system corrects the temperaturedifference automatically and as quickly as possible.
Switching to manual mode may not besuitable (temperature, humidity, odour, condensation) and does not provideoptimum comfort.

Comfort
58
4. Air conditioning on/off
Press this button to switch off the air conditioning.
Stoppin
g the air conditioning may cause some problems (humidity, misting).
Automatic operation of the air conditioning is resumed when the button is pressed again.
The symbol
"A/C"is displayed.
5. Air intake / Air recirculation

Press this button for recirculation of
the interior air. The air recirculation
s
ymbol 5is displayed.
Air recirculation enables the passenger compartment

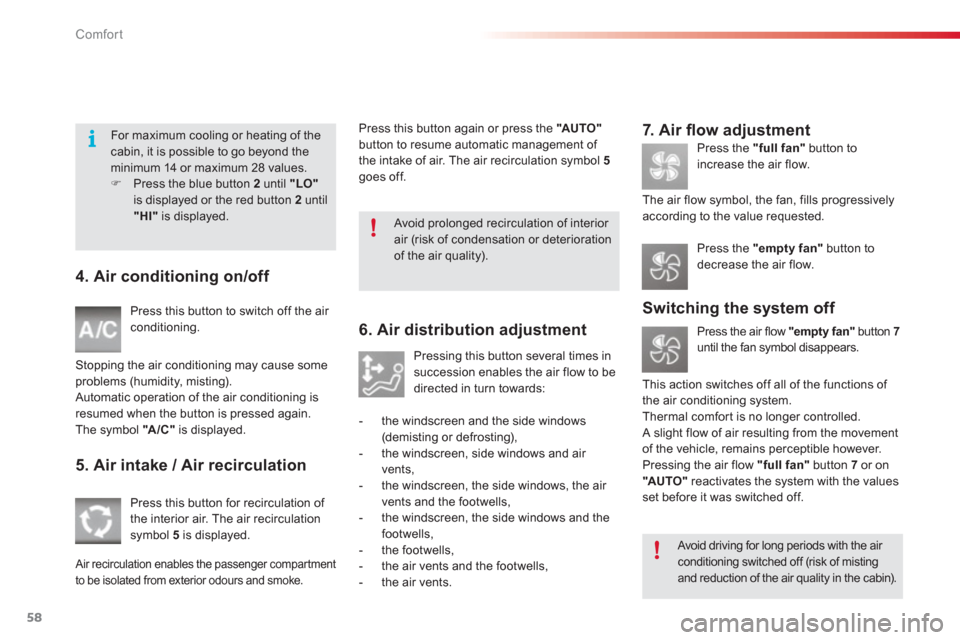

to be isolated from exterior odours and smoke.

6. Air distribution adjustment
Pressing this button several times in succession enables the air flow to bedirected in turn towards:


- t
he windscreen and the side windows (demisting or defrosting),

- the windscreen, side windows and air
vents,

- the windscreen, the side windows, the air
vents and the footwells,

- the windscreen
, the side windows and thefootwells,

- the footwells,

- the air vents and the footwells,

- the air vents.



7. Air fl ow adjustment

Press the "full fan"button to
in
crease the air flow.
The air
flow symbol, the fan, fills progressivelyaccording to the value requested.


Switching the system off

Press the air flow "empty fan"
button 7until the fan symbol disappears.
Thi
s action switches off all of the functions of
the air conditioning system.
Thermal com
for t is no longer controlled. A slight flow of air resulting from the movement
of the vehicle, remains perceptible however.
Pressin
g the air flow "full fan"
button 7or on "AUTO"
reactivates the system with the values set before it was switched off.
Press the "empty fan"button todecrease the air flow. Press this button again or press the
"AUTO"button to resume automatic management of
the intake of air. The air recirculation s
ymbol 5goes off.

Avoid driving for long periods with the air conditioning switched off (risk of mistingand reduction of the air quality in the cabin).

For maximum cooling or heating of the cabin, it is possible to go beyond the minimum 14 or maximum 28 values.)Press the blue button 2
until "LO"is displayed or the red button 2
until"HI"
is displayed.
Avoid prolonged recirculation of interior air (risk of condensation or deterioration of the air quality).
