CITROEN C3 DAG 2007 Owners Manual

IN
BRIEF
4
I
E X T E R I O R
Rear parking assistance signal
This function warns you if an obstacle is detected behind the vehicle whilst reversing.
Moduboard shelf
This shelf, located behind the rear seat backrests, allows the boot space to be confi gured in various ways.
Sunroof
The sunroof improves ventilation and brightness in the passenger compart-ment.
7798
100

A
C
BA
A
B
IN
BRIEF
5
IFuel tank
A. Opening of the fuel fl ap.
B. Opening of the fuel cap.
Tank capacity: approximately 47 litres.
A. Locking/unlocking of the vehi-cle from the interior.
Remote control key
A. Locking of the vehicle.
B. Unlocking of the vehicle.
C. Key release/storage.
Manual central locking
O P E N I N G
1912178

B
A
IN
BRIEF
6
ITailgateSpare wheel and tools
O P E N I N G
Closing
 Lower the tailgate, using the grip B, located in the interior tailgate trim. Press fi rmly to shut.
Access to the spare wheel
 Lift up the carpet, then remove the toolbox to access the wheel.
Access to the tools
The tools are located in the toolbox in the spare wheel. Pull the strap to access.
Opening
 After unlocking the vehicle with the remote control or they key, press upwards on handle Alocated between the number plate lights.
8012980

IN
BRIEF
7
IStop & Start system
This system, linked to a SensoDrive gearbox, allows the engine to switch off when the vehicle is stopped and avoid excessive fuel consumption.
Cruise control
This system allows you to automaticaly maintain the speed of the vehicle at the value programmed by the driver, with-out the need to press on the accelera-tor.
Automatic air conditioning
The automatic air conditioning system ensures your comfort and optimum cir-culation of air in the passenger com-partment.
SensoDrive gearbox
The automated 5-speed manual gear-box gives you the choice of the com-fort of automatic mode or the driving pleasure of a manual gearbox.
I N T E R I O R
7360
6585

123456789101112131415
34
IN
BRIEF
8
I

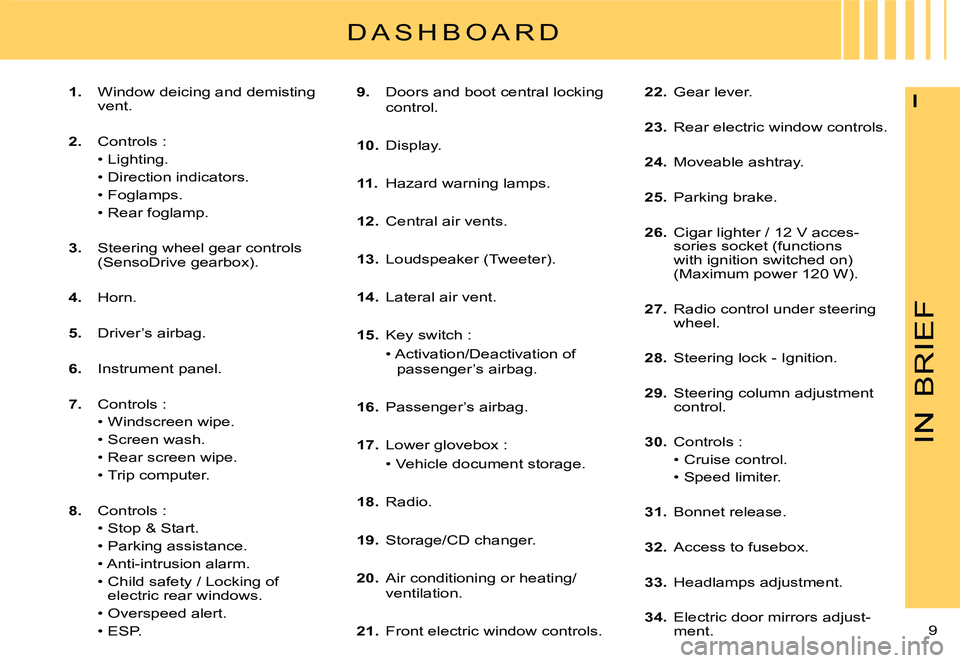

D A S H B O A R D

BRIEF
9
I
D A S H B O A R D
22. Gear lever.
23. Rear electric window controls.
24. Moveable ashtray.
25. Parking brake.
26. Cigar lighter / 12 V acces-sories socket (functions with ignition switched on) (Maximum power 120 W).
27. Radio control under steering wheel.
28. Steering lock - Ignition.
29. Steering column adjustment control.
30. Controls :

5
2
4
1
3
6
IN
BRIEF
10
I
G E T T I N G S T A R T E D
Front seats
1. Head restraint adjustment.
2. Backrest angle adjustment.
3. Seat height and angle.
4. Longitudinal adjustment.
5. Armrest.
6. Heated seats.
89

1
3
2
1
21
1
IN
BRIEF
11
I
1. Releasing by pulling lever.
2. Locking by pushing lever.
Manual adjustment of
steering wheel heightAdjustment of exterior rear
view mirrors
1. Selection of driver’s side mir-ror.
2. Selection of passenger’s side mirror.
3. Foldback / Deployment.
Adjustment of interior rear
view mirror
1.“Day / Night” mirror position control.
G E T T I N G S T A R T E D
Front seat belt
1. Height adjustment.
525253
53

1
3
2
IN
BRIEF
12
I
G E T T I N G S T A R T E D
Electric window controls
1. Driver’s electric window con-trol.
2. Passenger’s electric window control.
Ignition switch
S.Steering lock position.
M.Drive position.
D.Starting position.
Sunroof control
Turn the control to the left to slide the sunroof.
There are 9 opening positions.
3. Rear electric windows control.
2510054

AB
IN
BRIEF
13
ILighting
Ring A
Ring B
Front and rear foglamps.
Headlamps off.
Automatic lighting of head-lamps.
Sidelamps.
Dipped or main beams.
Front screen wipe
Screen wipe
Rear screen wipe
2 : Fast wipe.
1 : Normal wipe.
I : Intermittent wipe.
0 : Off.
Pressing downwards :
- AUTO : Automatic wipe.
- Single wipe.
Off.
V I S I B I L I T Y
Intermittent rear screen wipe.
Timed rear screen wash and wipe.
485150
To deactivate automatic wipe, put the control to position I, then return it to position 0.
