audio CITROEN C3 DAG 2007 Owners Manual

2314
B
C
A
EBD
II
41

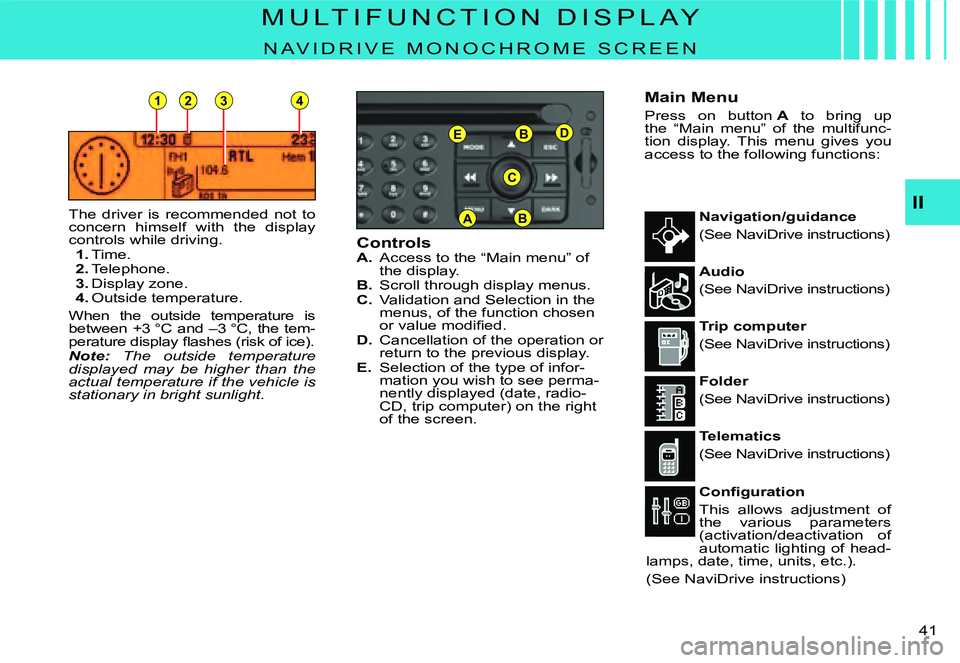

M U L T I F U N C T I O N D I S P L A Y
N A V I D R I V E M O N O C H R O M E S C R E E N
The driver is recommended not to concern himself with the display controls while driving.1. Time.2. Telephone.3. Display zone.4. Outside temperature.
When the outside temperature is between +3 °C and –3 °C, the tem-perature display fl ashes (risk of ice).Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
ControlsA. Access to the “Main menu” of the display.B. Scroll through display menus.C. Validation and Selection in the menus, of the function chosen or value modifi ed.D. Cancellation of the operation or return to the previous display.E. Selection of the type of infor-mation you wish to see perma-nently displayed (date, radio-CD, trip computer) on the right of the screen.
Main Menu
Press on button A to bring up the “Main menu” of the multifunc-tion display. This menu gives you access to the following functions:
Navigation/guidance
(See NaviDrive instructions)
Confi guration
This allows adjustment of the various parameters (activation/deactivation of automatic lighting of head-lamps, date, time, units, etc.).
(See NaviDrive instructions)
Audio
(See NaviDrive instructions)
Trip computer
(See NaviDrive instructions)
Folder
(See NaviDrive instructions)
Telematics
(See NaviDrive instructions)

B
C
A
EBD
12345
II
42

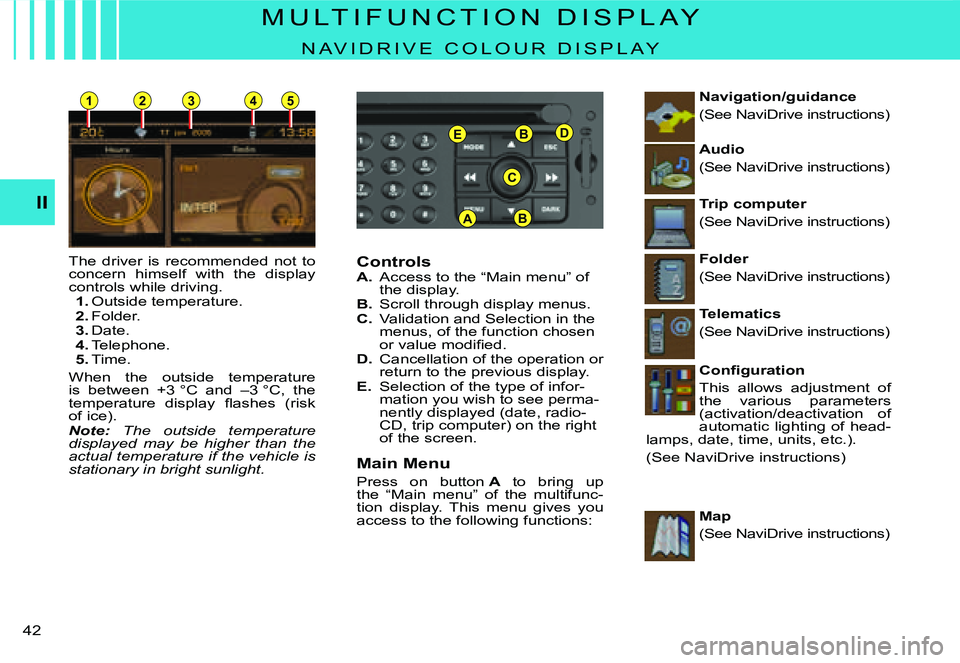

M U L T I F U N C T I O N D I S P L A Y
N A V I D R I V E C O L O U R D I S P L A Y
The driver is recommended not to concern himself with the display controls while driving.1. Outside temperature.2. Folder.3. Date.4. Telephone.5. Time.
When the outside temperature is between +3 °C and –3 °C, the temperature display fl ashes (risk of ice).Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
ControlsA. Access to the “Main menu” of the display.B. Scroll through display menus.C. Validation and Selection in the menus, of the function chosen or value modifi ed.D. Cancellation of the operation or return to the previous display.E. Selection of the type of infor-mation you wish to see perma-nently displayed (date, radio-CD, trip computer) on the right of the screen.
Main Menu
Press on button A to bring up the “Main menu” of the multifunc-tion display. This menu gives you access to the following functions:
Navigation/guidance
(See NaviDrive instructions)
Confi guration
This allows adjustment of the various parameters (activation/deactivation of automatic lighting of head-lamps, date, time, units, etc.).
(See NaviDrive instructions)
Audio
(See NaviDrive instructions)
Trip computer
(See NaviDrive instructions)
Folder
(See NaviDrive instructions)
Telematics
(See NaviDrive instructions)
Map
(See NaviDrive instructions)

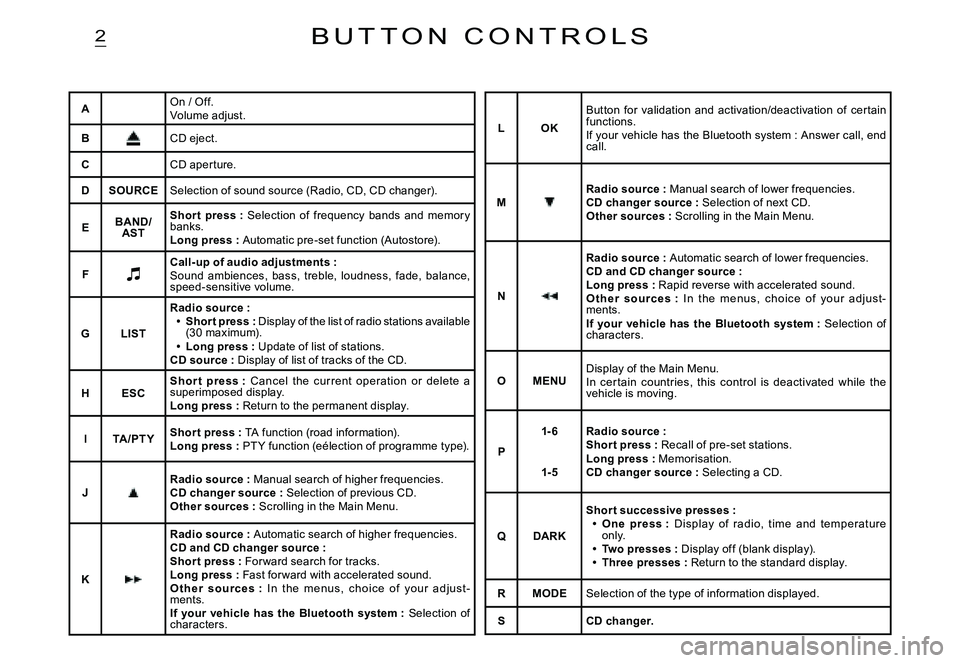

2
AOn / Off.Volume adjust.
BCD eject.
CCD aper ture.
DSOURCESelection of sound source (Radio, CD, CD changer).
EBAND/AST
Shor t press : Selection of frequency bands and memor y banks.Long press : Automatic pre-set function (Autostore).
FCall-up of audio adjustments :Sound ambiences, bass, treble, loudness, fade, balance, speed-sensitive volume.
GLIST
Radio source :Short press : Display of the list of radio stations available (30 maximum).Long press : Update of list of stations.CD source : Display of list of tracks of the CD.

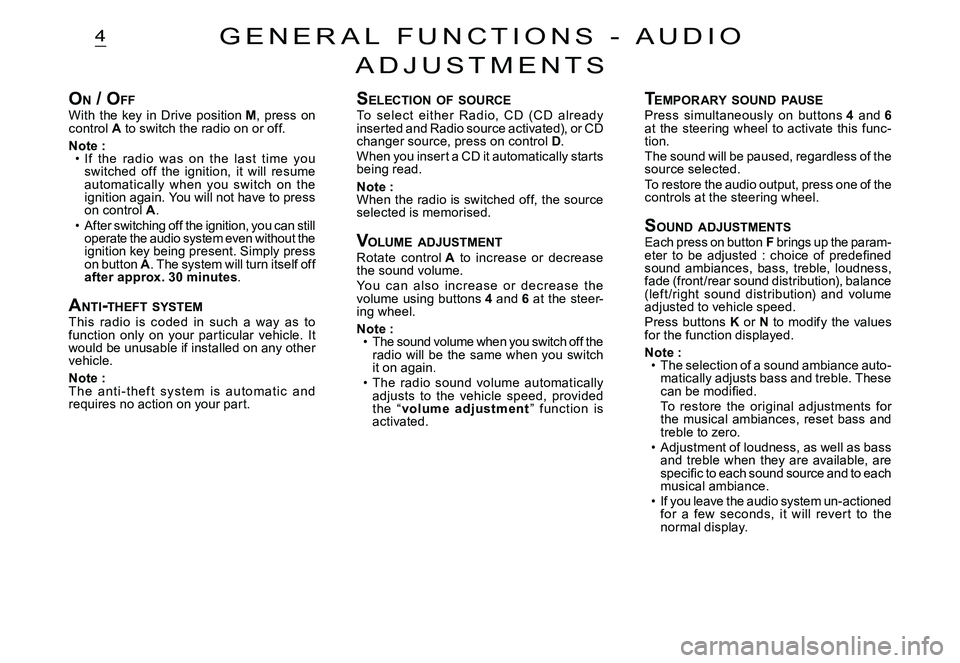

4
ON / O FFWith the key in Drive position M, press on control A to switch the radio on or off.
Note :If the radio was on the last time you switched of f the ignition, it will resume automatically when you switch on the ignition again. You will not have to press on control A.After switching off the ignition, you can still operate the audio system even without the ignition key being present. Simply press on button A. The system will turn itself off after approx.30minutes.
ANTI -THEFT SYSTEMThis radio is c oded in such a way as to function only on your par ticular vehicle. It would be unusable if installed on any other vehicle.
Note :T he ant i - t hef t system i s auto m at i c an d requires no action on your part.

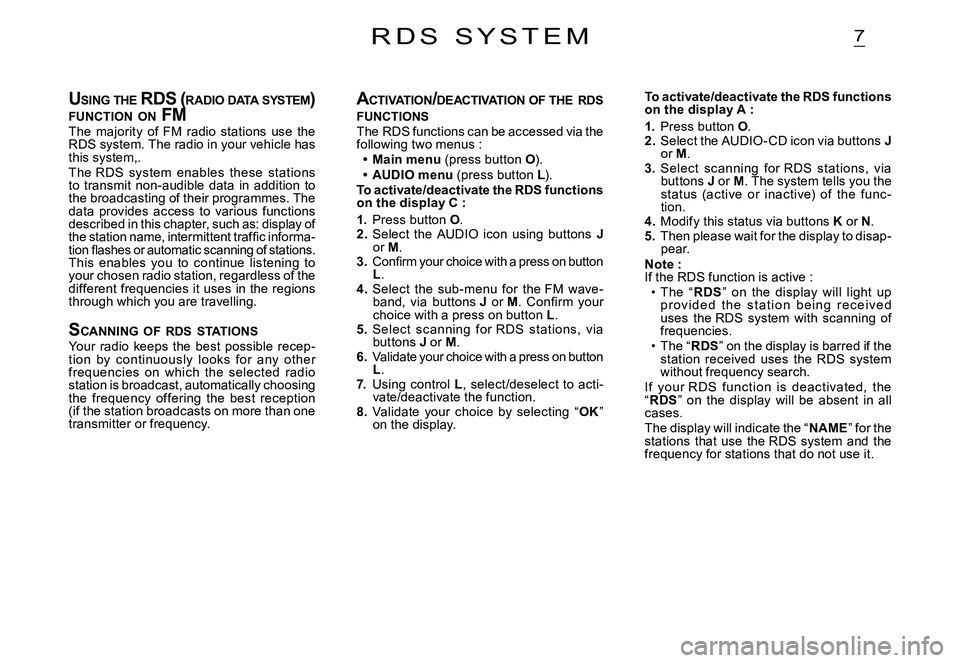

7
USING THE RDS ( RADIO DATA SYSTEM ) FUNCTION ON FMUSING THE RDS ( R RDS (R
The majority of FM radio stations use the RDS system. The radio in your vehicle has this system,.The RDS system enables these stations to transmit non-audible data in addition to the broadcasting of their programmes. The data provides access to various functions described in this chapter, such as: display of the station name, intermittent traffi c informa-tion fl ashes or automatic scanning of stations. This enables you to continue listening to your chosen radio station, regardless of the different frequencies it uses in the regions through which you are travelling.
SCANNING OF RDS STATIONSYour radio keeps the best possible recep-tion by c ontinuously looks for any other frequencies on which the selected radio station is broadcast, automatically choosing the frequency of fering the best reception (if the station broadcasts on more than one transmitter or frequency.
R D S S Y S T E M
A CTIVATION /DEACTIVATION OF THE RDS FUNCTIONSThe RDS functions can be accessed via the following two menus :Main menu (press button O).AUDIO menu (press button L).To activate/deactivate the RDS functions on the display C :
1. Press button O.2. Select the AUDIO icon using buttons Jor M.3. Confi rm your choice with a press on button L.4. Select the sub-menu for the FM wave-band, via buttons J or M. Confi rm your choice with a press on button L.5. Select scanning for RDS stations, via buttons J or M.6. Validate your choice with a press on button L.7. Using control L, select /deselect to acti-vate/deactivate the function.8. Validate your choice by selecting “OK” on the display.

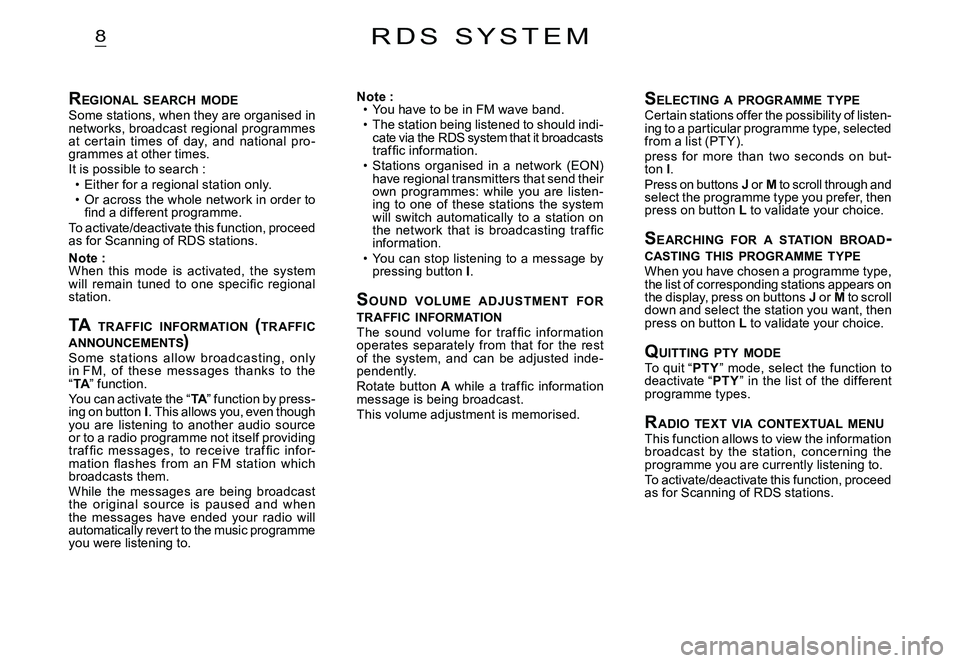

8
REGIONAL SEARCH MODESome stations, when they are organised in networks, broadcast regional programmes at cer tain times of day, and national pro-grammes at other times.It is possible to search :Either for a regional station only.Or across the whole network in order to fi nd a different programme.To activate/deactivate this function, proceed as for Scanning of RDS stations.
Note :When this mode is activated, the system will remain tuned to one specifi c regional station.
TA TR AFFIC INFORMATION (TR AFFIC ANNOUNCEMENTS )TA TR AFFIC INFOR INFOR
Some st ations allow broadc asting, only in FM, of these messages thanks to the “TA” function.TATAYou can activate the “TA” function by press-TATAing on button I. This allows you, even though you are listening to another audio source or to a radio programme not itself providing traf fi c messages, to receive traf fi c infor-mation fl ashes from an FM station which broadcasts them.While the messages are being broadcast the or iginal sourc e is paused and when the messages have ended your radio will automatically revert to the music programme you were listening to.

9
SELECTING CD SOURCEAfter inserting a CD, with the printed side facing upwards, the player will start playing the CD automatically.To c h a n g e m a n u a l l y t o C D s o u r c e (CD already inserted), press button D until you obtain the source you require.You can also do this by means of control 5at the steering wheel.
EJECTING A CDPress button B to eject the CD, the audio system will automatically switch to radio source.I f t h e C D i s n o t r e m o v e d w i t h i n 10 t o 15 seconds of being ejected, it will auto -matically be taken back into the CD player, although it will not be played.
S ELECTING A TRACKPress button K once to play the next track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip several tracks at a time.This can also be done via the control G. As the list of tracks is displayed on the screen, select the desired track using buttons J or M, then validate using button L.You can also do this via the controls 2 and 3at the steering wheel.
C D S O U R C E
F AST FORWARD AND RAPID REVERSE WITH ACCELERATED SOUNDTo move swiftly through the CD, press and keep pressed button K or KN, respectively for fast for ward or rapid reverse with acceler-ated sound.Play resumes as normal when the button is released.
M ENUThis menu allows activation/deactivation of two options :Playback of the fi rst 7 seconds (approx.) of each track of the CD.Random playback of the CD tracks.This can be accessed in two ways :Either by pressing button O and proceed-ing as for Search of Stations RDS – for screen C, the sub-menu corresponds to the Audio Preferences.Or, provided you are in CD source, by pressing onbutton L. You can then access the Audio menu (for screen C only).
Note :If one of these options is active, it remains active for CD changer source.

10C D C H A N G E R S O U R C E
SELECTING CD CHANGER SOURCEP r e s s o n b u t t o n D u n t i l y o u r e a c h C D changer.After the magazine engages, playback of the fi rst track of the fi rst CD will begin.You can also do this by means of control 5at the steering wheel.
S ELECTING A CDTo select a CD, either press one of the pre-selection buttons 1 to 5 on the keypad P, or scroll using buttons J or M.The CD will start to play automatically.You can also do this by means of control 1at the steering wheel.After each change of source, on return to CD changer source, playback will resume at the same point where it had been inter-rupted.
S ELECTING A TRACKPress button K once to play the next track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip sev-eral tracks at a time.You can also do this by means of the controls 2 and 3 at the steering wheel.
F AST FORWARD AND RAPID REVERSE WITH ACCELERATED SOUNDPress and keep pressed one of the but-tons K or N respectively for fast for ward or rapid reverse with accelerated sound. Play resumes as normal when the button is released.
M ENUThis menu is for activation/deactivation of three options :Playback of the fi rst 7 seconds (approx.) of each track of the CD.Repetition of the current CD.Random playback of tracks, CD by CD.This can be accessed in two ways :Either by pressing button O and proceed-ing as for Search of Stations RDS – for screen C, the sub-menu corresponds to the Audio Preferences.Or if you are in CD changer source by pressing button L. You then have access to the AUDIO menu (for screen C only).
Note :If one of these options is active, it remains active for CD source.

12
MAIN MENUPress on the Menu button O to access to Main menu, then select the “Telephone” icon using buttons J ou M), then validate the selection via button L.You have access :To the Directory.To Confi guration.To Communication Management.You access your choices via (J ou M), then you validate them with a press on L.This main menu can also be accessed by pressing button E then button L.
DIRECTORYThis menu lets you open :The telephone Directory of the telephone that is connected.The Calls List.
Telephone director yThe starting of a telephone call can be done independently of the telephone or of the audio system, thanks to the directory.The directory is displayed. Select the number via J or M, then validate with a press on L.

13B L U E T O O T H
VOICE RECOGNITIONA short press on the end of the control stalk 7starts telephone voice recognition.Voice recognition allows you to make a call to a number for which you have recorded a label on the mobile telephone that is twinned and connected.
Remark :It is possible to stop the call, provided the dialling has not yet c ommenc ed, with a short press on the end of the lighting control stalk 7.
Remarks :While you are on a call, the audio source currently being listened to is paused.Some ring tones on your mobile telephone may not be recognised by the Bluetooth system on your vehicle. A different ring tone will be chosen by the system.
