key Citroen C3 DAG 2008 1.G Owner's Manual

A
C
B
II
20
R E M O T E C O N T R O L
Changing the remote control battery
First, retract the key-carrier if necessary.
Unclip the housing by lifting at the rear (see diagram).
Battery: CR 0523 of 3 V.
Re-initialisation of the remote control
After a change of battery, it may be necessary to re-initialise the remote control. To do that, switch on the ignition and immediately action button Aon your remote control to trigger the action desired. This may ta ke some ten seconds.Note: Make a careful note of the numbers for the keys and for the remot e control on the ASSISTANCE card. Keep this in a safe place.
Do not throw away the old batteries. They should be returned to a CITROËN Do not throw Do not throw dealer or deposited at a recognised collection point (a camera shop, for example).
Except when reinitialising, the remote control cannot function while the key is in the ignition, even when switched off.
Warning: by inadvertently actioning the remote control, wh en for example it is in your pocket, you can unlock the vehicle without your realising it.
However, if none of the doors is opened within thirty seconds following an unlocking, the doors will automatically relock.
Warning: there is a risk of damage if the replacement batte ry is not the correct one.
Only use batteries that are identical or equivalent to those approved by CITROËN.Only use batteries that ies tha
Locating of the vehicle
To locate the vehicle on a carpark, press button A, the interior lamps come on and the direction indica-tors fl ash for a few seconds. The vehicle remains locked.
Folding and ejecting the key
Button C is for folding and eject-ing the key from its housing in the remote control.
If you do not press on button C, you could damage the key mecha-nism.

21
K E Y S
Electronic immobiliser key
The key operates all the vehicle’s locks as well as the ignition.Note: For safety reasons, a buzzer will sound if you have switched off the ignition and opened the driv-er’s door without having removed the ignition key.
The key can be used to deactivate the front passenger’s airbag. See "Airbags".
Central locking using the key
A brief action with the key locks the vehicle.
Deadlocking: Central locking using the key
A second action straightaway with the key deadlocks the vehicle. It is then impossible to open the doors from either inside or outside the vehicle.Note:With the vehicle stationary and the engine switched off, locking is sig-nalled by the fl ashing of the interior locking control warning lamp.If any of the doors, or the boot, is open or not properly clo sed, the central locking does not operate.
Electronic immobiliser
The ELECTRONIC IMMOBILISER device locks the engine supply system.
The system activates automatically as the key is removed from the igni tion.
All the vehicle’s keys contain an electronic immobiliser device.
After you switch on the ignition, a dialogue starts between the key and the electronic immobiliser device.
If the key is not recognised, you cannot start the vehicle .
If this occurs, leave your vehicle immobilised and contact a CITRO ËN dealer.

24
Operating the alarm
First make sure all the doors are closed.
The alarm is armed by pressing button A on the remote control.
With the alarm armed, the protections are active after 5 seconds (perimeter) and 45 seconds (volumetric).
When the alarm is armed (on standby), any intrusion will trigger the siren for 30 seconds, accompanied by the direction indicators lighting up.
The alarm then goes back on standby, but the trigger-ing remains memorised and is signalled by the rapid fl ashing of the warning lamp on control 1 after you have deactivated the alarm with a press on the unlocking button B. The fl ashing stops when you switch on the ignition.
The siren is also triggered if there is a cutting of the electrical supply. To stop it, restore the electrical supply then press on the unlocking button B.Note:If you want to lock your vehicle without arming the alarm, just lock with the key only.If you lock your vehicle and a door, or the boot, is still open, the central locking does not operate but the alarm will arm itself after approx. 45 seconds.Note: The siren is automatically deactivated (for exam-ple for disconnecting the battery) as soon as the vehicle is unlocked using the remote control.

II
25
S: Steering lock
To unlock the steering, gently move the steering wheel while turning the key, without exerting undue force.
When you remove the key, turn your steering wheel to lock the steering. The key can only be removed when in position S.
M: Drive position
The steering is unlocked (by turn-ing the key in position M, if neces-sary move the steering wheel).
Depending on your vehicle ver-sion, the following warning lamps are tested:Briefl y:

II
26
Manual gearboxEnsure that the gear lever is in the neutral position.
Do not touch the accelerator.For Diesel engines: Turn the key to the drive position. Wait for the preheater warning lamp to go off, if this has come on.
Turn the key to action the starter (not for more than ten seconds), until the engine starts.
In ambient temperatures lower than 0 °C, depress the clutch while actioning the starter to facilitate starting. Then release the clutch pedal slowly.

II
51

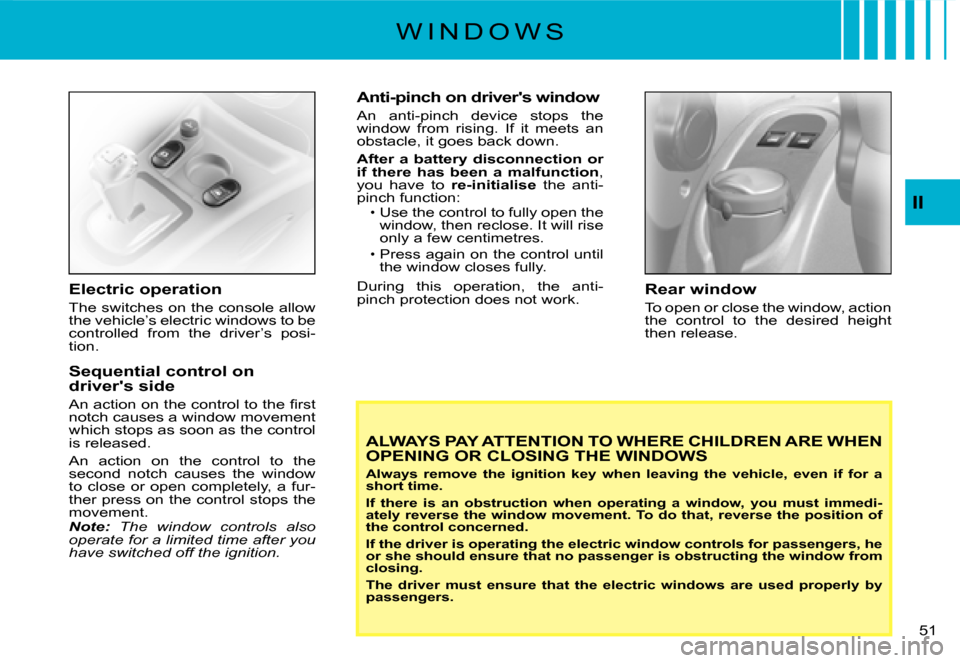

Electric operation
The switches on the console allow the vehicle’s electric windows to be controlled from the driver’s posi-tion.
Sequential control on driver's side
An action on the control to the fi rst notch causes a window movement which stops as soon as the control is released.
An action on the control to the second notch causes the window to close or open completely, a fur-ther press on the control stops the movement.Note: The window controls also operate for a limited time after you have switched off the ignition.
ALWAYS PAY ATTENTION TO WHERE CHILDREN ARE WHEN OPENING OR CLOSING THE WINDOWS
Always remove the ignition key when leaving the vehicle, even if for a short time.
If there is an obstruction when operating a window, you must immedi-ately reverse the window movement. To do that, reverse th e position of the control concerned.
If the driver is operating the electric window controls for passengers, he or she should ensure that no passenger is obstructing th e window from closing.
The driver must ensure that the electric windows are use d properly by passengers.
Anti-pinch on driver's window
An anti-pinch device stops the window from rising. If it meets an obstacle, it goes back down.
After a battery disconnection or if there has been a malfunction, you have to re-initialise the anti-pinch function:Use the control to fully open the window, then reclose. It will rise only a few centimetres.
Press again on the control until the window closes fully.
During this operation, the anti-pinch protection does not work.

A
B
III
75

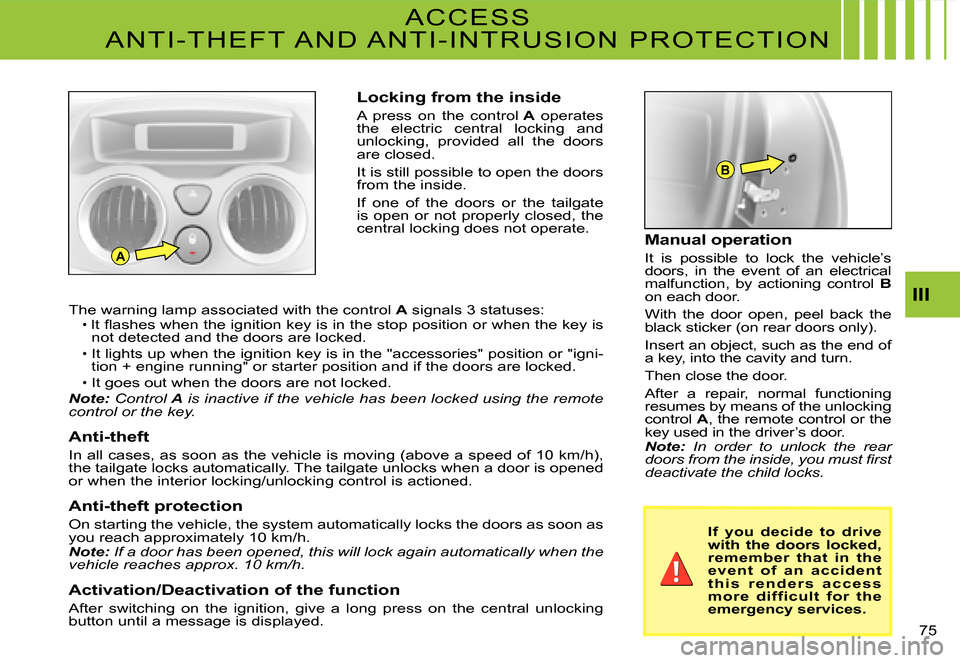

Locking from the inside
A press on the control A operates the electric central locking and unlocking, provided all the doors are closed.
It is still possible to open the doors from the inside.
If one of the doors or the tailgate is open or not properly closed, the central locking does not operate.
The warning lamp associated with the control A signals 3 statuses:lt fl ashes when the ignition key is in the stop position or when the key is not detected and the doors are locked.It lights up when the ignition key is in the "accessories" posit ion or "igni-tion + engine running" or starter position and if the doors are locked.
It goes out when the doors are not locked.Note: Control A is inactive if the vehicle has been locked using the remote control or the key.
Anti-theft
In all cases, as soon as the vehicle is moving (above a speed of 10 km/h), the tailgate locks automatically. The tailgate unlocks when a door is opened or when the interior locking/unlocking control is actioned.
Anti-theft protection
On starting the vehicle, the system automatically locks the doors a s soon as you reach approximately 10 km/h.Note: If a door has been opened, this will lock again automatically when the vehicle reaches approx. 10 km/h.
Activation/Deactivation of the function
After switching on the ignition, give a long press on the ce ntral unlocking button until a message is displayed.

A
III
89

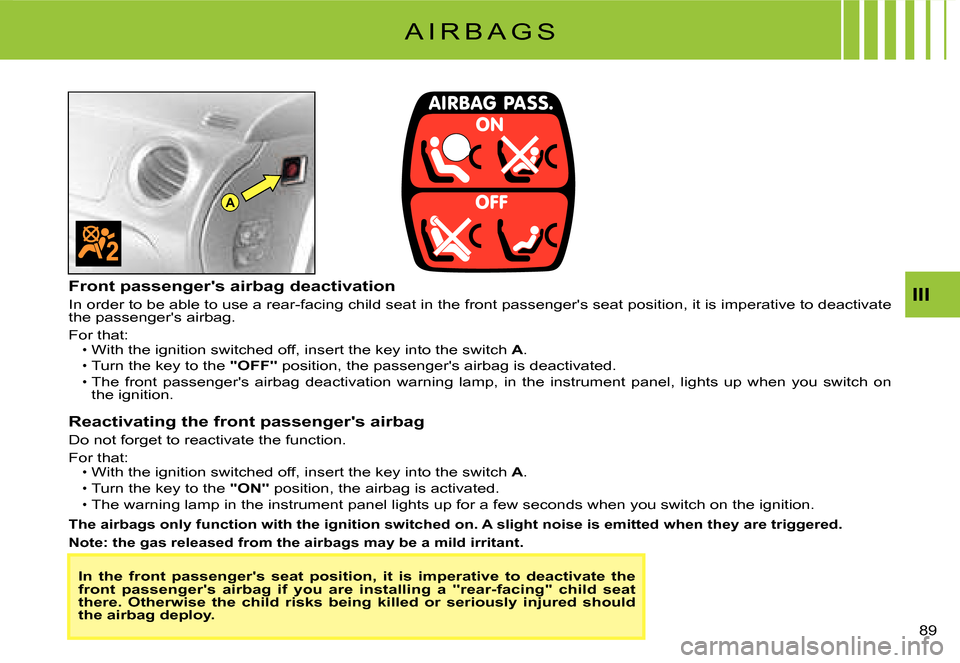

A I R B A G S
In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a "r ear-facing" child seat there. Otherwise the child risks being killed or serio usly injured should the airbag deploy.
Front passenger's airbag deactivation
In order to be able to use a rear-facing child seat in the front passenger's seat position, it is imperative to deactivate the passenger's airbag.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the "OFF" position, the passenger's airbag is deactivated.
The front passenger's airbag deactivation warning lamp, in th e instrument panel, lights up when you switch on the ignition.
Reactivating the front passenger's airbag
Do not forget to reactivate the function.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the "ON" position, the airbag is activated.
The warning lamp in the instrument panel lights up for a f ew seconds when you switch on the ignition.
The airbags only function with the ignition switched on. A slight noise is emitted when they are triggered.
Note: the gas released from the airbags may be a mild irritant.

III
98

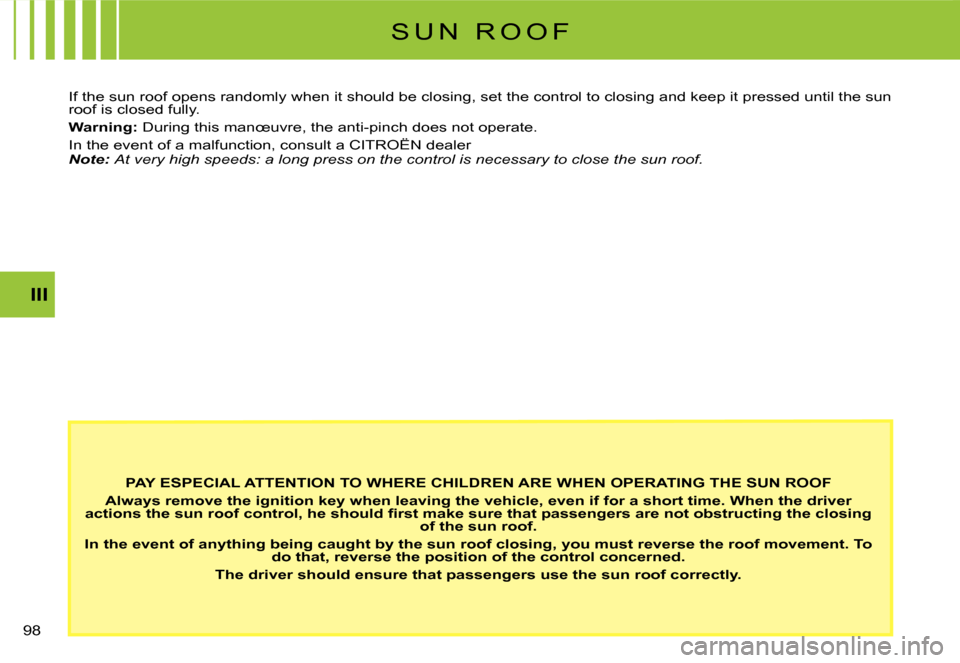

S U N R O O F
PAY ESPECIAL ATTENTION TO WHERE CHILDREN ARE WHEN OPERATING THE SUN ROOF
Always remove the ignition key when leaving the vehicle, even if for a short time. When the driver actions the sun roof control, he should fi rst make sure that passengers are not obstructing the closing of the sun roof.
In the event of anything being caught by the sun roof clos ing, you must reverse the roof movement. To do that, reverse the position of the control concerned.
The driver should ensure that passengers use the sun roof correctly.
If the sun roof opens randomly when it should be closing, set the control to closing and keep it pressed until the sun roof is closed fully.
Warning: During this manœuvre, the anti-pinch does not operate.
In the event of a malfunction, consult a CITROËN dealerNote: At very high speeds: a long press on the control is necessary to close the sun roof.

IV
112

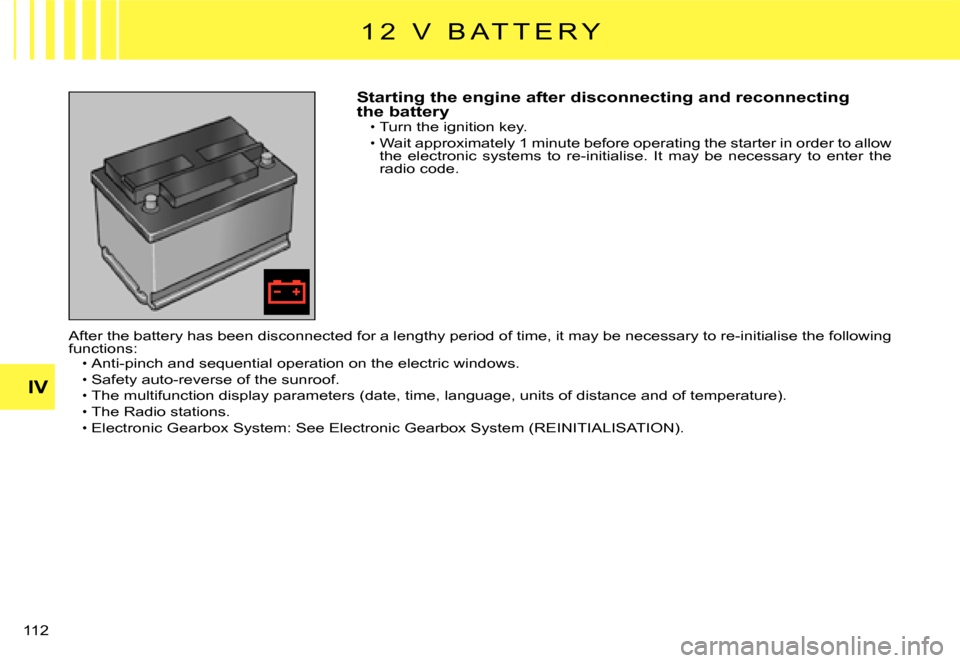

Starting the engine after disconnecting and reconnecting the batteryTurn the ignition key.
Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise. It may be necessary to enter the radio code.
