TECHNICAL DATA
(a) .../1: fi tted with low rolling resistance tyres to reduce consumption and emissions of CO
2.
The fuel consumption fi gures shown here correspond to the val ues communicated at the time of printing.
The fi gures for HDi with particle emissions fi lter (PEF) will be available during the year on the CITROËN SERVICE website.
These fuel consumption values were established in accordance wi th Directive 80/1268/CEE. They may vary depending on
the style of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use
of the vehicle equipment.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

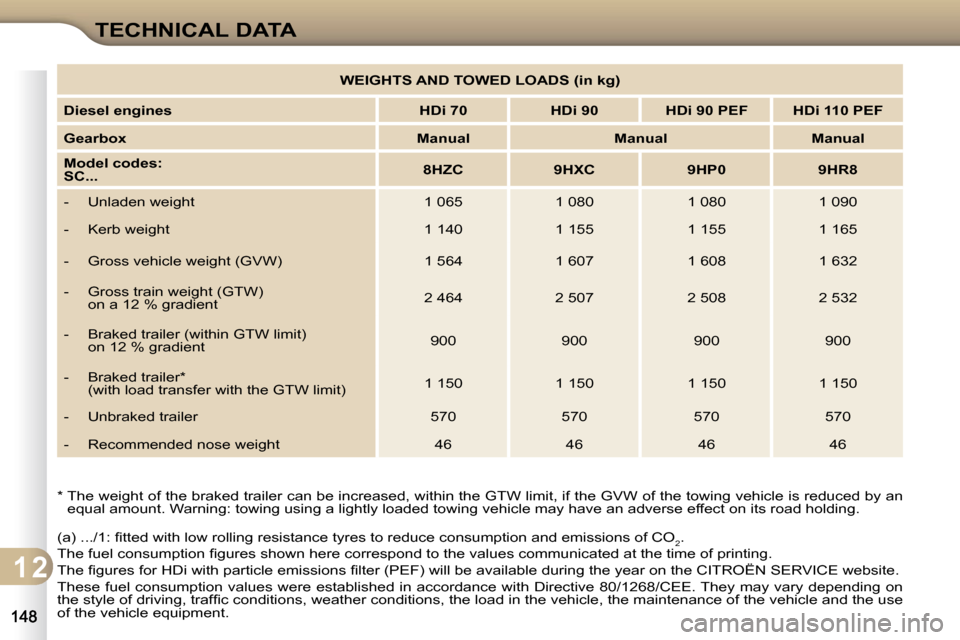

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines HDi 70 HDi 90 HDi 90 PEF HDi 110 PEF

Gearbox
Manual Manual Manual

Model codes:
SC...
8HZC 9HXC 9HP0 9HR8
- Unladen weight 1 065 1 080 1 080 1 090
- Kerb weight 1 140 1 155 1 155 1 165
- Gross vehicle weight (GVW) 1 564 1 607 1 608 1 632
- Gross train weight (GTW)
on a 12 % gradient 2 464 2 507 2 508 2 532
- Braked trailer (within GTW limit)
on 12 % gradient 900 900 900 900
- Braked trailer * (with load transfer with the GTW limit) 1 150 1 150 1 150 1 150
- Unbraked trailer 570 570 570 570
- Recommended nose weight 46 46 46 46

1 2
TECHNICAL DATA

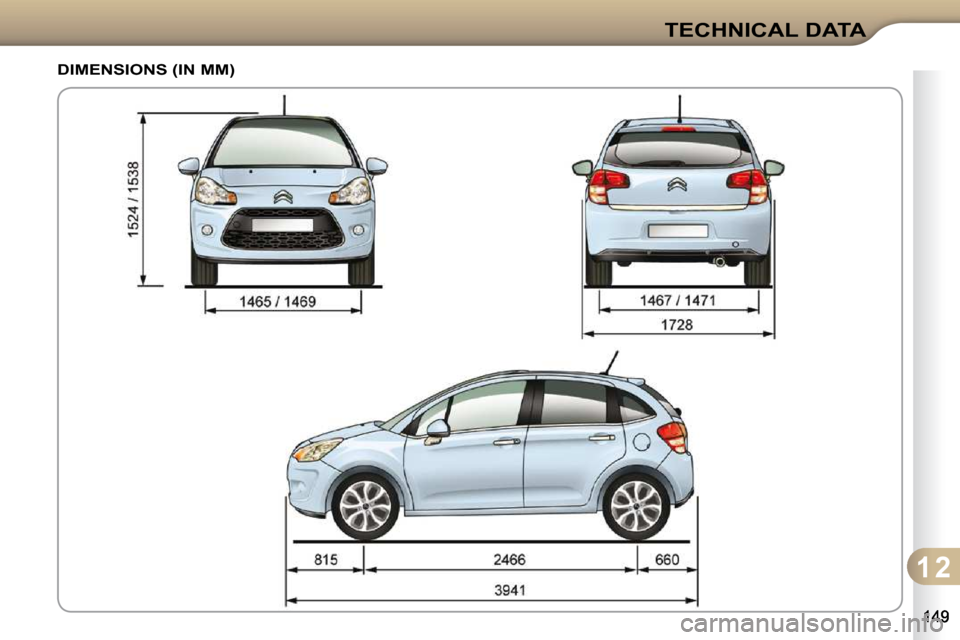

DIMENSIONS (IN MM)

1 2
TECHNICAL DATA
The infl ation pressure must be
checked when the tyres are cold,
at least once a month. If the infl ation pressure is too low,
this increases fuel consumption.

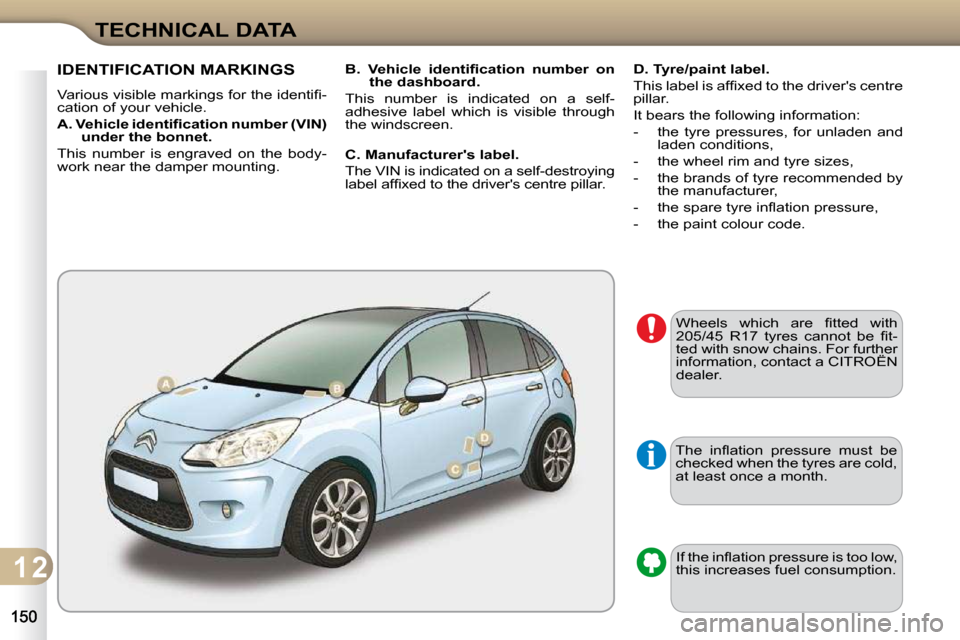

IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.

A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the body-
work near the damper mounting.
B. Vehicle identifi cation number on
the dashboard.
This number is indicated on a self-
adhesive label which is visible through
the windscreen.

C. Manufacturer's label.
The VIN is indicated on a self-destroying
label affi xed to the driver's centre pillar.
D. Tyre/paint label.
This label is affi xed to the driver's centre
pillar.
It bears the following information:
- the tyre pressures, for unladen and laden conditions,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- the spare tyre infl ation pressure,
- the paint colour code.
Wheels which are fi tted with
205/45 R17 tyres cannot be fi t-
ted with snow chains. For further
information, contact a CITROËN
dealer.

151
The MyWay system is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for will only operate in your vehicle. If it is to be installe If it is t
confi guration of the system.
Certain functions described in this handbook will become available during the course of the year.

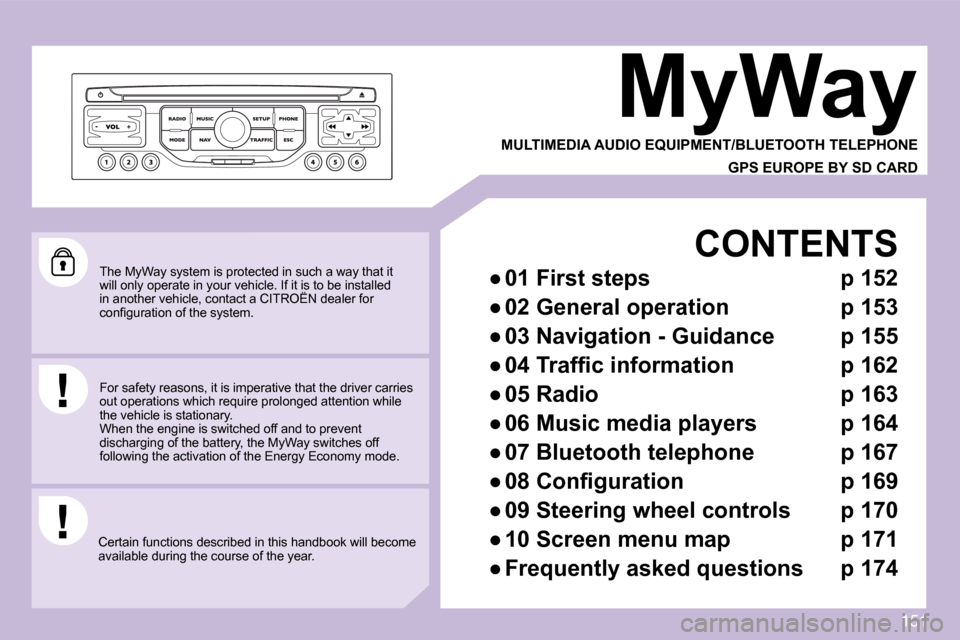

MyWay
CONTENTS

152
1
5
10
01
2
346
13
11
9
1415
781216
1. Engine not running - Short press: on/off. - Long press: CD pause, mute for the radio. Engine running - Short press: CD pause, mute for the radio. - Long press: reinitialisation of the system.
2. Volume adjustment.
3. Access to the "Radio" Menu. Display the list of s
tations.
4. Access to the "Music" Menu. Display the tracks.
6. Access to the "Phone" Menu. Display the call list .
7. Access to the "MODE" Menu. Selection of the successive display of: Radio, Map, NAV (if navigation is in progress), Te lephone (if a conversation is in progress). Long press: display of a black screen (DARK).
8. Access to the "Navigation" Menu. Display the last destinations.
9. Access to the "Traffi c" Menu. Display the current traffi c alerts.
10. ESC: abandon the operation in progress.
11. CD eject.
12. Selection of the previous/next radio station from the list. Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
13. Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
14. Buttons 1 to 6: Selection of the stored radio station. Long press: store the current radio station.
15. SD card reader.
16. Dial for selection of the screen display and acco rding to the context of the menu. Short press: confi rmation.
FIRST STEPS

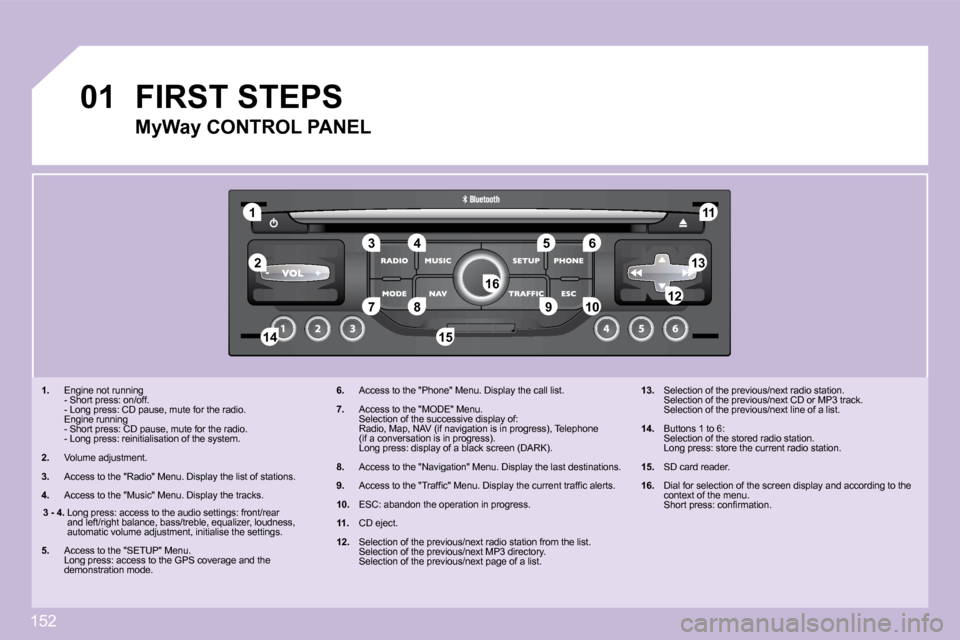

MyWay CONTROL PANEL
3 - 4. Long press: access to the audio settings: front/rear and left/right balance, bass/treble, equalizer, loudness, automatic volume adjustment, initialise the setting s.
5. Access to the "SETUP" Menu. Long press: access to the GPS coverage and the demonstration mode.

153

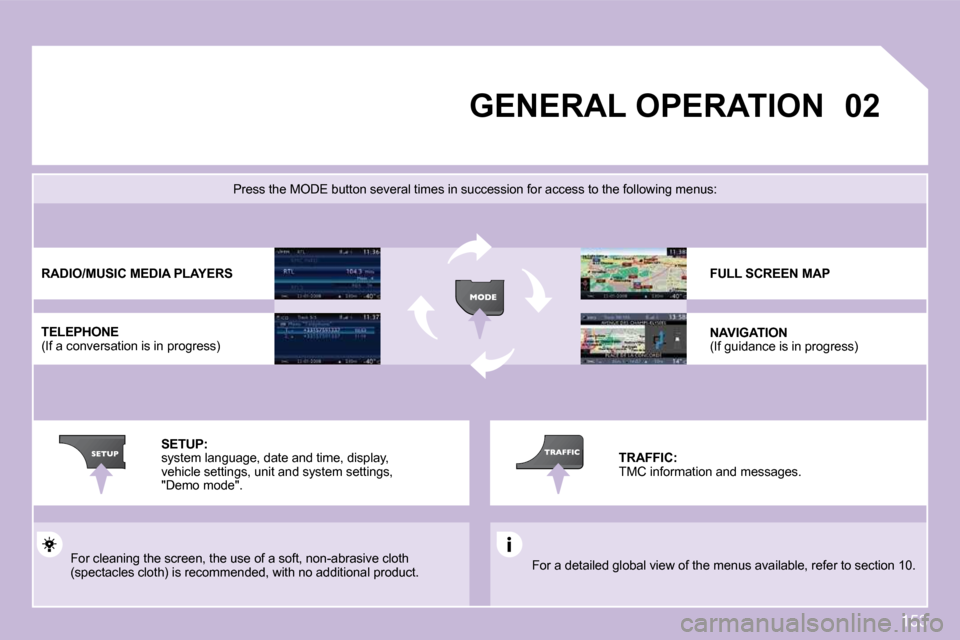

02GENERAL OPERATION
For a detailed global view of the menus available, refer to section 10.
Press the MODE button several times in succession for access to the following menus:
For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no addition al product.
RADIO /MUSIC MEDIA PLAYERSDIO DIO
TELEPHONE (If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION (If guidance is in progress)
SETUP: system language, date and time, display, vehicle settings, unit and system settings, "Demo mode".
TRAFFIC: TMC information and messages.

154
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1

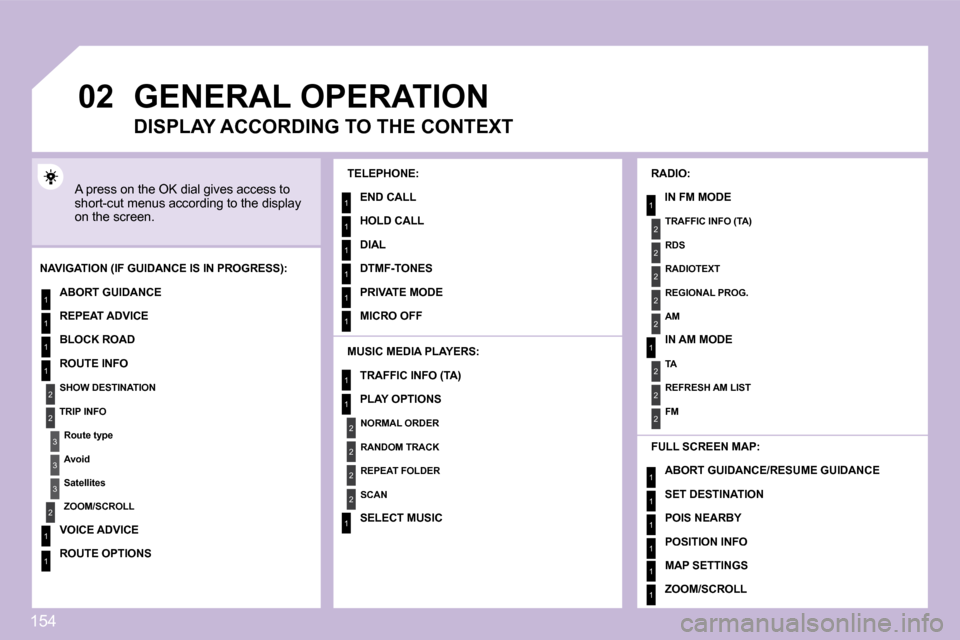

GENERAL OPERATION
A press on the OK dial gives access to short-cut menus according to the display on the screen.
MUSIC MEDIA PLAYERS:
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
ROUTE INFO
SHOW DESTINATION
TRIP INFO
Route type
Avoid
Satellites
ZOOM/SCROLL
VOICE ADVICE
ROUTE OPTIONS
RADIO:
IN FM MODE
TRAFFIC INFO (TA)
RDS
RADIOTEXT
REGIONAL PROG.
AM
IN AM MODE
TA
REFRESH AM LIST
FM
FULL SCREEN MAP:
DISPLAY ACCORDING TO THE CONTEXT
TRAFFIC INFO (TA)
PLAY OPTIONS
NORMAL ORDER
RANDOM TRACK
REPEAT FOLDER
SCAN
SELECT MUSIC
TELEPHONE:
END CALL
HOLD CALL
DIAL
DTMF-TONES
PRIVATE MODE
MICRO OFF
ABORT GUIDANCE /RESUME GUIDANCECE CE
SET DESTINATION
POIS NEARBY
POSITION INFO
MAP SETTINGS
ZOOM/SCROLL

155
03
1
2
3
5
6
4
NAVIGATION - GUIDANCE

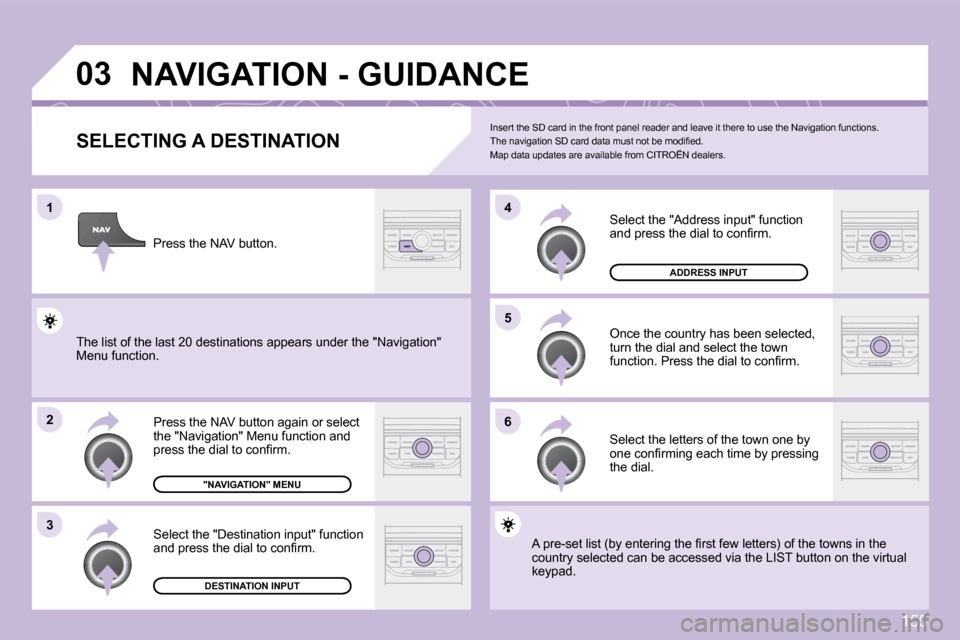

SELECTING A DESTINATION
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "Destination input" function and press the dial to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing the dial.
Once the country has been selected, turn the dial and select the town function. Press the dial to confi rm.
"NAVIGATION" MENU
DESTINATION INPUT
Insert the SD card in the front panel reader and leave it there to use the Navigation functions. The navigation SD card data must not be modifi ed. Map data updates are available from CITROËN dealer s.
A pre-set list (by entering the fi rst few letters) of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the "Address input" function and press the dial to confi rm.
ADDRESS INPUT
The list of the last 20 destinations appears under the "Navigation" The list of the last 20 destinations appears under the "Navigation" Menu function.

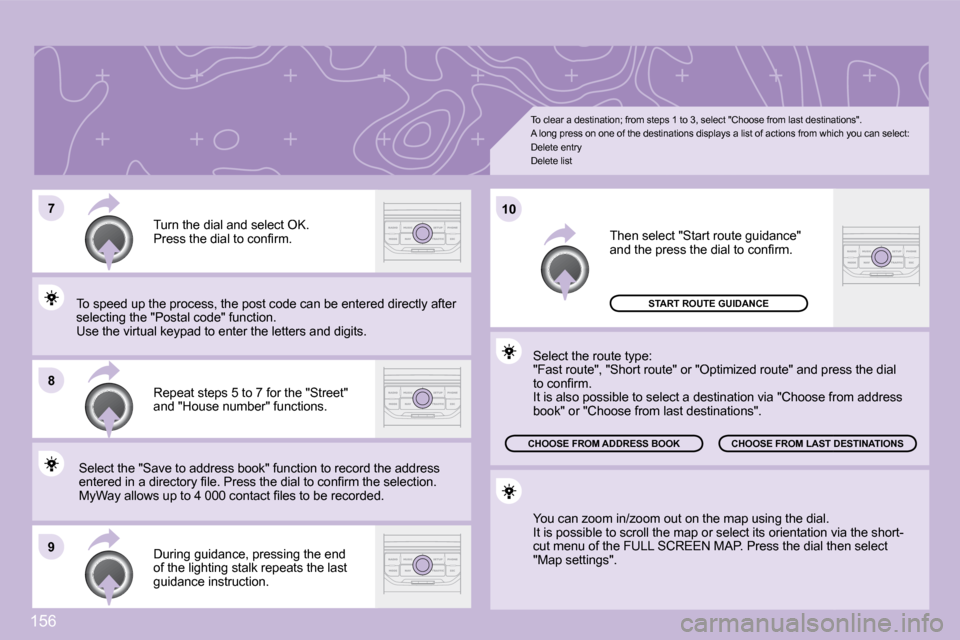

156
7
8
9
10
To clear a destination; from steps 1 to 3, select "Choose from last destinations". A long press on one of the destinations displays a list of actions from which you can select: Delete entry Delete list
Repeat steps 5 to 7 for the "Street" and "House number" functions.
Turn the dial and select OK. Press the dial to confi rm.
Select the "Save to address book" function to reco rd thord the address entered in a directory fi le. Press the dial to confi rm the selection. entered in a directory fi le. Press the dial to confi rm the selection. MyWay allows up to 4 000 contact fi les to be recor ded. MyWay allows up to 4 000 contact fi les to be recorded.
To speed up the process, the post code can be ente redtered directly after selecting the "Postal code" function. Use the virtual keypad to enter the letters and digits.
Then select "Start route guidance" and the press the dial to confi rm.
During guidance, pressing the end of the lighting stalk repeats the last guidance instruction.
You can zoom in/zoom out on the map using the dial . It is possible to scroll the map or select its orientation viaion via the short-cut menu of the FULL SCREEN MAP. Press the dial the n select cut menu of the FULL SCREEN MAP. Press the dial then select "Map settings".
Select the route type: "Fast route", "Short route" or "Optimized route" and press the dial "Fast route", "Short route" or "Optimized route" and press the dial to confi rm. It is also possible to select a destination via "Choose frose from address book" or "Choose from last destinations".
CHOOSE FROM LAST DST DESTINATIONS CHOOSE FROM ADDRESS BOOK
START ROUTE GUIDANCE

157
03
4
3
2
1
7
6
5
NAVIGATION - GUIDANCE

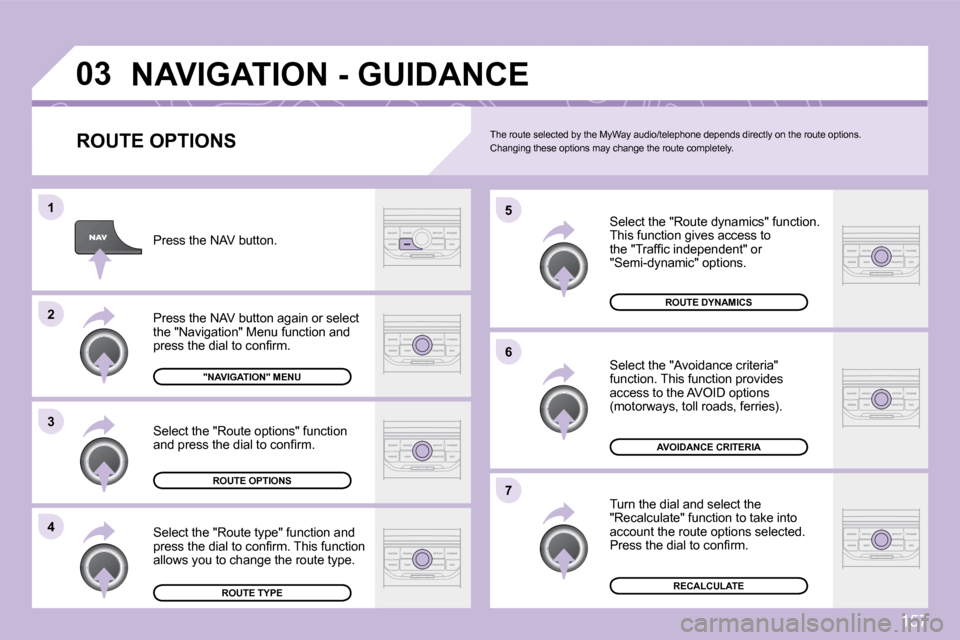

ROUTE OPTIONS
Select the "Route dynamics" function. This function gives access to the "Traffi c independent" or "Semi-dynamic" options.
Select the "Avoidance criteria" function. This function provides access to the AVOID options (motorways, toll roads, ferries).
Turn the dial and select the "Recalculate" function to take into account the route options selected. Press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "Route type" function and press the dial to confi rm. This function allows you to change the route type.
Select the "Route options" function and press the dial to confi rm.
RECALCULATE
AVOIDANCE CRITERIA
ROUTE DYNAMICS
ROUTE TYPE
ROUTE OPTIONS
"NAVIGATION" MENU
The route selected by the MyWay audio/telephone de
pends directly on the route options. Changing these options may change the route comple tely.
