11
PRACTICAL INFORMATION
Dashboard fuse box
The fuse box is placed in the lower sec-
t i o n o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
Refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
FH36 5 A Trailer relay unit.
FH37 - Not used.
FH38 20 A H i F i a m p l i fi e r .
FH39 20 A Heated seats.
FH40 30 A Trailer relay unit.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Air conditioning, clutch switch, electrochromatic
m i r r o r , p a r t i c l e fi l t e r p u m p ( D i e s e l ) , d i a g n o s t i c
s o c k e t , a i r fl o w s e n s o r ( D i e s e l ) .
F5 30 A Electric windows panel, passenger's electric
window control, front electric window motor.
F6 30 A Rear electric windows motors and driver's
electric window motor.
F7 5 A Courtesy lamp, glove box lighting, side reading
lamps.
Page 142 of 207
11
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Multifunction screen, audio system, navigation
radio, instrument panel with clock, alarm control
unit, alarm siren.
F9 30 A A u d i o s y s t e m ( a f t e r - m a r k e t ) , 1 2 V s o c k e t , p o r t a b l e
navigation support supply.
F10 15 A Steering wheel controls.
F11 15 A Ignition, diagnostic socket, automatic gearbox
control unit.
F12 15 A Rain/brightness sensor, trailer relay unit,
driving school module.
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking assistance control unit, airbag control unit,
instrument panel, automatic air conditioning,
U S B B o x , H i F i a m p l i fi e r .
F15 30 A Locking.
F16 - Not used.
F17 40 A Rear screen and exterior mirrors demisting/
defrosting.
SH - PARC shunt.
Page 143 of 207
11
PRACTICAL INFORMATION
Engine compartment fuse box
The fuse box is placed in the engine
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see correspon-
d i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control
relay, multifunction engine control main relay,
i n j e c t i o n p u m p ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Daytime running lamps.
F5 15 A D i e s e l h e a t e r ( D i e s e l ) , p a r t i c l e fi l t e r a d d i t i v e p u m p
( D i e s e l ) , a i r fl o w s e n s o r ( D i e s e l ) , f u e l p u m p ( 1 . 1 i
a n d 1 . 4 i ) , b l o w - b y h e a t e r a n d e l e c t r o v a l v e s ( V T i ) .
F6 10 A ABS/ESP control unit, secondary stop switch.
F7 10 A Electric power steering, automatic gearbox.
F8 25 A Starter control.
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t ( D i e s e l ) .
F10 30 A F u e l h e a t e r ( D i e s e l ) , b l o w - b y h e a t e r ( 1 . 1 i , 1 . 4 i a n d
D i e s e l ) , f u e l p u m p ( V T i ) , i n j e c t o r s a n d i g n i t i o n c o i l s
( p e t r o l ) , e l e c t r o n i c t h e r m o s t a t a n d c a n i s t e r p u r g e
e l e c t r o v a l v e ( 1 . 1 i a n d 1 . 4 i ) .
F11 40 A Heater blower.
Page 144 of 207
11
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A V a l v e t r o n i c s u p p l y ( V T i ) .
F15 10 A Right-hand main beam headlamps.
F16 10 A Left-hand main beam headlamps.
F17 15 A Left-hand dipped beam headlamps.
F18 15 A Right-hand dipped beam headlamps.
F19 15 A O x y g e n s e n s o r s a n d e l e c t r o v a l v e s ( V T i ) ,
e l e c t r o v a l v e s ( D i e s e l ) , E G R e l e c t r o v a l v e ( D i e s e l ) .
F20 10 A P u m p s , e l e c t r o n i c t h e r m o s t a t ( V T i ) w a t e r i n f u e l
s e n s o r ( D i e s e l ) .
F21 5 A Fan assembly control supply, ABS/ESP.
Page 145 of 207
11
PRACTICAL INFORMATION

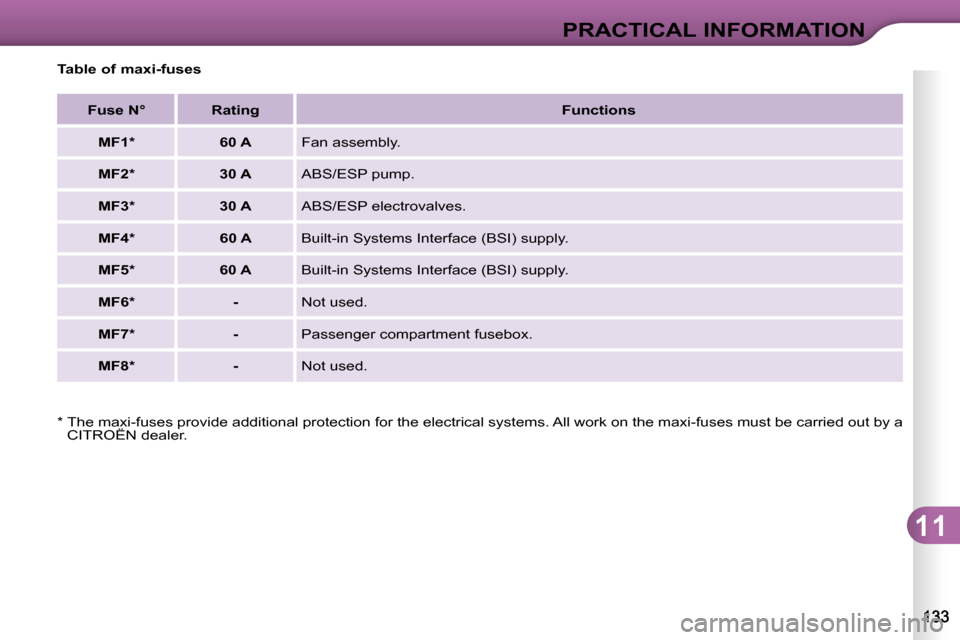

Table of maxi-fuses
Fuse N° Rating
Functions
MF1 * 60 A Fan assembly.
MF2 * 30 A ABS/ESP pump.
MF3 * 30 A ABS/ESP electrovalves.
MF4 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF5 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF6 * - Not used.
MF7 * - Passenger compartment fusebox.
MF8 * - Not used.
* The maxi-fuses provide additional protection for the e lectrical systems. All work on the maxi-fuses must be carried out by a
CITROËN dealer.
Page 146 of 207
11
PRACTICAL INFORMATION
BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
The battery is located under the bonnet.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
lever, then the exterior lever,
secure the bonnet strut,
remove the plastic cover by pulling
on its grip for access to the two ter-
minals,
unclip the fuse box to remove the
battery, if necessary.
Access to the battery
Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the negative termi-
n a l ( - ) o f t h e fl a t b a t t e r y A .
Start the slave vehicle.
Operate the starter of the broken
down vehicle and let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 147 of 207
11
PRACTICAL INFORMATION
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the
doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However,
if minor problems persist fol-
lowing this operation, contact a
CITROËN dealer.
Referring to the corresponding
section, you should yourself re-
i n i t i a l i s e :
- the remote control key,
- the GPS satellite navigation system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 148 of 207
11
PRACTICAL INFORMATION
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the
doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However,
if minor problems persist fol-
lowing this operation, contact a
CITROËN dealer.
Referring to the corresponding
section, you should yourself re-
i n i t i a l i s e :
- the remote control key,
- the GPS satellite navigation system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 149 of 207
11
PRACTICAL INFORMATION
If the telephone is being used at
the same time on the MyWay audio
navigation system, it will be inter-
rupted after 10 minutes.
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lamps, etc. for a maxi-
mum combined period ofthirty minutes.
Switching to economy mode
Once this period has elapsed, a message
appears on the multifunction screen indi-
cating that the vehicle has switched to
economy mode and the active functions
are put on standby. Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wipers stalk
to position the wiper blades in the
centre of the windscreen.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting a front or rear wiper blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
After fitting a front wiper blade
Switch on the ignition.
Operate the wipers stalk again to
park the wiper blades.
This period may be greatly re-
duced if the battery is not fully
charged.
Page 150 of 207
11
PRACTICAL INFORMATION
Failure to observe this special
condition could result in damage
to certain braking components
and the absence of braking as-
sistance the next time the engine
is started. When towing with all four wheels
on the ground, always use a
towing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any assistance
for braking or steering.

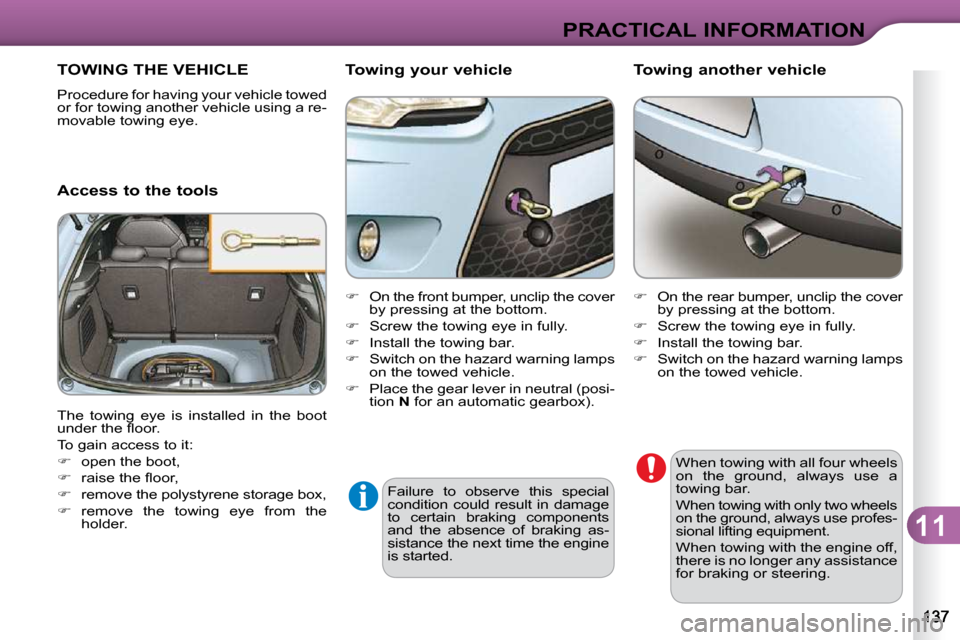

TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools
The towing eye is installed in the boot
u n d e r t h e fl o o r .
T o g a i n a c c e s s t o i t :
open the boot,
r a i s e t h e fl o o r ,
remove the polystyrene storage box,
remove the towing eye from the
holder. Towing your vehicle
On the front bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Place the gear lever in neutral (posi-
tion N f o r a n a u t o m a t i c g e a r b o x ) . Towing another vehicle
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
