Citroen C3 DAG 2009.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2009.5, Model line: C3 DAG, Model: Citroen C3 DAG 2009.5 1.GPages: 207, PDF Size: 7.74 MB
Page 151 of 207
11
PRACTICAL INFORMATION
We recommend the use of genu-
ine CITROËN towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle, and that
t h e fi t t i n g o f t h e t o w b a r i s e n -
trusted to a CITROËN dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
CITROËN dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i -
cal pre-equipment installed at
the rear of the vehicle, in accor-
dance with the manufacturer's
instructions.
TOWING A TRAILER,
A CARAVAN, ETC.
The rear parking assistance will
be deactivated automatically if
a genuine CITROËN towbar is
used.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
Driving advice
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. The maximum towing load on a long
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
Check the electrical signalling on
the trailer.
Page 152 of 207
11
PRACTICAL INFORMATION

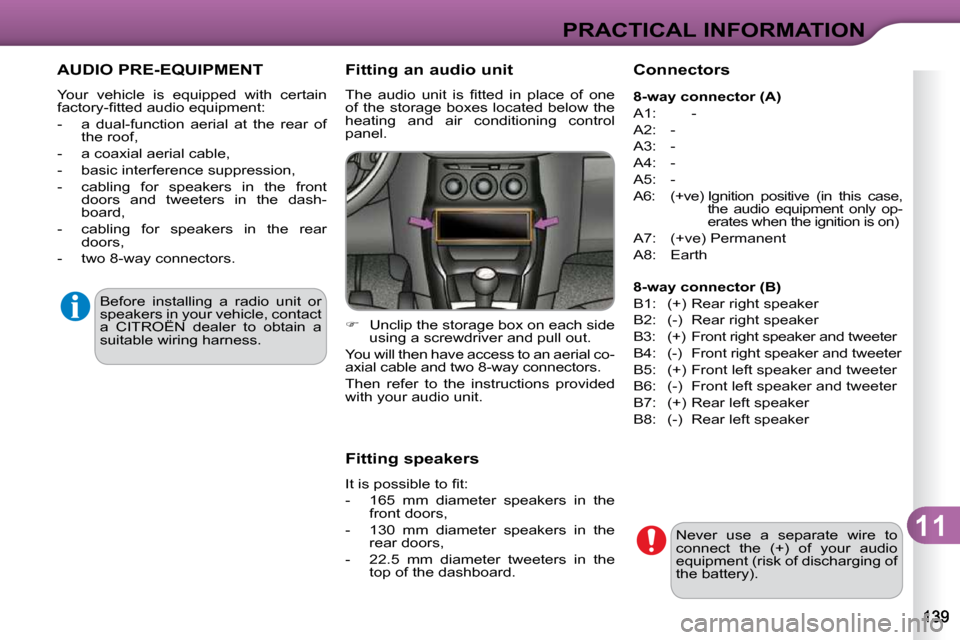

AUDIO PRE-EQUIPMENT
Your vehicle is equipped with certain
f a c t o r y - fi t t e d a u d i o e q u i p m e n t :
- a dual-function aerial at the rear of the roof,
- a coaxial aerial cable,
- basic interference suppression,
- cabling for speakers in the front doors and tweeters in the dash-
board,
- cabling for speakers in the rear doors,
- two 8-way connectors. Fitting an audio unit
T h e a u d i o u n i t i s fi t t e d i n p l a c e o f o n e
of the storage boxes located below the
heating and air conditioning control
panel.
Fitting speakers
I t i s p o s s i b l e t o fi t :
- 165 mm diameter speakers in the
front doors,
- 130 mm diameter speakers in the rear doors,
- 22.5 mm diameter tweeters in the top of the dashboard. Connectors
8-way connector
(A)
A 1 : -
A 2 : -
A 3 : -
A 4 : -
A 5 : -
A 6 : ( + v e ) I g n i t i o n p o s i t i v e ( i n t h i s c a s e ,
the audio equipment only op-
e r a t e s w h e n t h e i g n i t i o n i s o n )
A 7 : ( + v e ) P e r m a n e n t
A 8 : E a r t h
Never use a separate wire to
c o n n e c t t h e ( + ) o f y o u r a u d i o
equipment (risk of discharging of
t h e b a t t e r y ) .
8-way connector (B)
B 1 : ( + ) R e a r r i g h t s p e a k e r
B 2 : ( - ) R e a r r i g h t s p e a k e r
B 3 : ( + ) F r o n t r i g h t s p e a k e r a n d t w e e t e r
B 4 : ( - ) F r o n t r i g h t s p e a k e r a n d t w e e t e r
B 5 : ( + ) F r o n t l e f t s p e a k e r a n d t w e e t e r
B 6 : ( - ) F r o n t l e f t s p e a k e r a n d t w e e t e r
B 7 : ( + ) R e a r l e f t s p e a k e r
B 8 : ( - ) R e a r l e f t s p e a k e r Before installing a radio unit or
speakers in your vehicle, contact
a CITROËN dealer to obtain a
suitable wiring harness.
Unclip the storage box on each side
using a screwdriver and pull out.
You will then have access to an aerial co-
axial cable and two 8-way connectors.
Then refer to the instructions provided
with your audio unit.
Page 153 of 207
11
PRACTICAL INFORMATION
* To avoid any risk of jamming of the p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .

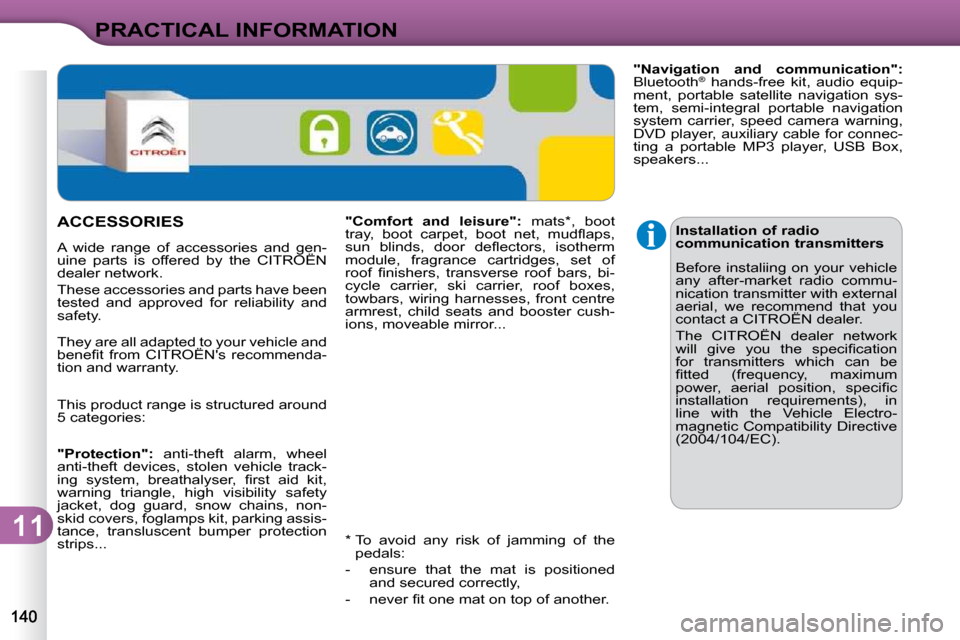

ACCESSORIES
They are all adapted to your vehicle and
b e n e fi t f r o m C I T R O Ë N ' s r e c o m m e n d a -
tion and warranty.
"Protection": anti-theft alarm, wheel
anti-theft devices, stolen vehicle track-
i n g s y s t e m , b r e a t h a l y s e r , fi r s t a i d k i t ,
warning triangle, high visibility safety
jacket, dog guard, snow chains, non-
skid covers, foglamps kit, parking assis-
tance, transluscent bumper protection
strips...
"Comfort and leisure": mats * , boot
t r a y , b o o t c a r p e t , b o o t n e t , m u d fl a p s ,
s u n b l i n d s , d o o r d e fl e c t o r s , i s o t h e r m
module, fragrance cartridges, set of
r o o f fi n i s h e r s , t r a n s v e r s e r o o f b a r s , b i -
cycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses, front centre
armrest, child seats and booster cush-
ions, moveable mirror...
"Navigation and communication":
Bluetooth ®
hands-free kit, audio equip-
ment, portable satellite navigation sys-
tem, semi-integral portable navigation
system carrier, speed camera warning,
DVD player, auxiliary cable for connec-
ting a portable MP3 player, USB Box,
speakers...
Installation of radio
communication transmitters
Before instaliing on your vehicle
any after-market radio commu-
nication transmitter with external
aerial, we recommend that you
contact a CITROËN dealer.
The CITROËN dealer network
w i l l g i v e y o u t h e s p e c i fi c a t i o n
for transmitters which can be
fi t t e d ( f r e q u e n c y , m a x i m u m
p o w e r , a e r i a l p o s i t i o n , s p e c i fi c
i n s t a l l a t i o n r e q u i r e m e n t s ) , i n
line with the Vehicle Electro-
magnetic Compatibility Directive
( 2 0 0 4 / 1 0 4 / E C ) .
A wide range of accessories and gen-
uine parts is offered by the CITROËN
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
This product range is structured around
5 c a t e g o r i e s :
Page 154 of 207
11
PRACTICAL INFORMATION

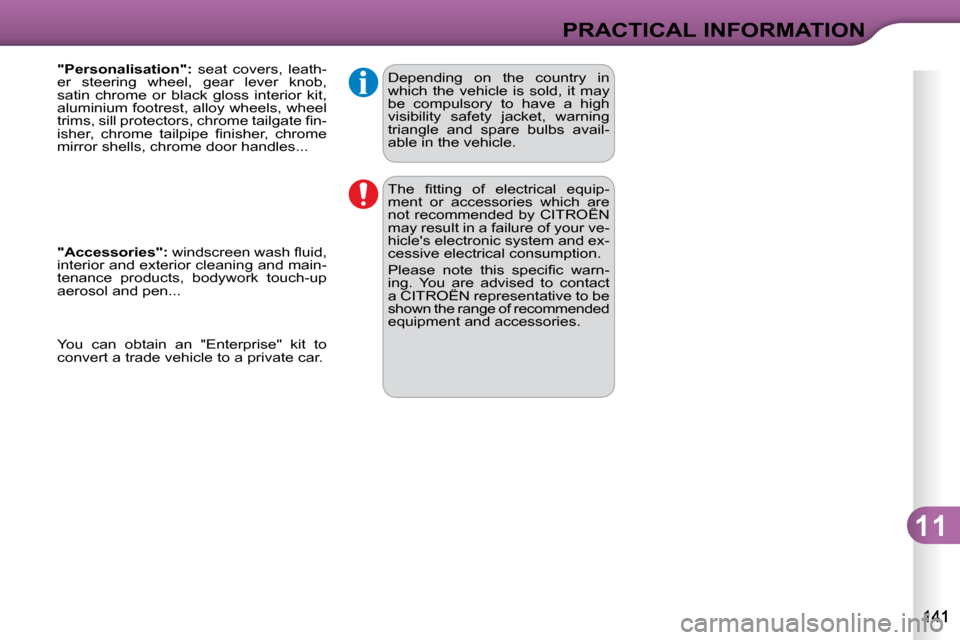

Depending on the country in
which the vehicle is sold, it may
be compulsory to have a high
visibility safety jacket, warning
triangle and spare bulbs avail-
able in the vehicle.
T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which are
not recommended by CITROËN
may result in a failure of your ve-
hicle's electronic system and ex-
cessive electrical consumption.
P l e a s e n o t e t h i s s p e c i fi c w a r n -
ing. You are advised to contact
a CITROËN representative to be
shown the range of recommended
equipment and accessories.
"Personalisation": seat covers, leath-
er steering wheel, gear lever knob,
satin chrome or black gloss interior kit,
aluminium footrest, alloy wheels, wheel
t r i m s , s i l l p r o t e c t o r s , c h r o m e t a i l g a t e fi n -
i s h e r , c h r o m e t a i l p i p e fi n i s h e r , c h r o m e
mirror shells, chrome door handles...
"Accessories": w i n d s c r e e n w a s h fl u i d ,
interior and exterior cleaning and main-
tenance products, bodywork touch-up
aerosol and pen...
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car.
Page 155 of 207
1 2
TECHNICAL DATA

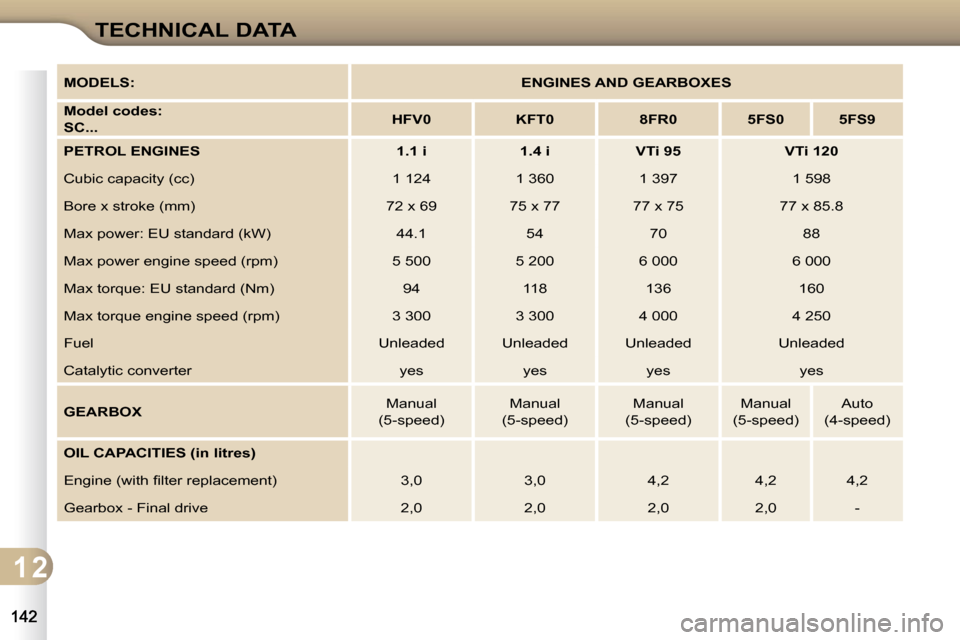

MODELS:ENGINES AND GEARBOXES
Model codes:
SC...HFV0KFT08FR05FS05FS9
PETROL ENGINES1.1 i1.4 iVTi 95VTi 120
Cubic capacity (cc) 1 124 1 360 1 397 1 598
Bore x stroke (mm) 72 x 69 75 x 77 77 x 75 77 x 85.8
Max power: EU standard (kW) 44.1 54 70 88
Max power engine speed (rpm) 5 500 5 200 6 000 6 000
Max torque: EU standard (Nm) 94 118 136 160
Max torque engine speed (rpm) 3 300 3 300 4 000 4 250
Fuel Unleaded Unleaded Unleaded Unleaded
Catalytic converter yes yes yes yes
GEARBOX Manual
(5-speed)
Manual
(5-speed)
Manual
(5-speed)
Manual
(5-speed)
Auto
(4-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3,0 3,0 4,2 4,2 4,2
Gearbox - Final drive 2,0 2,0 2,0 2,0 -
Page 156 of 207
1 2
TECHNICAL DATA

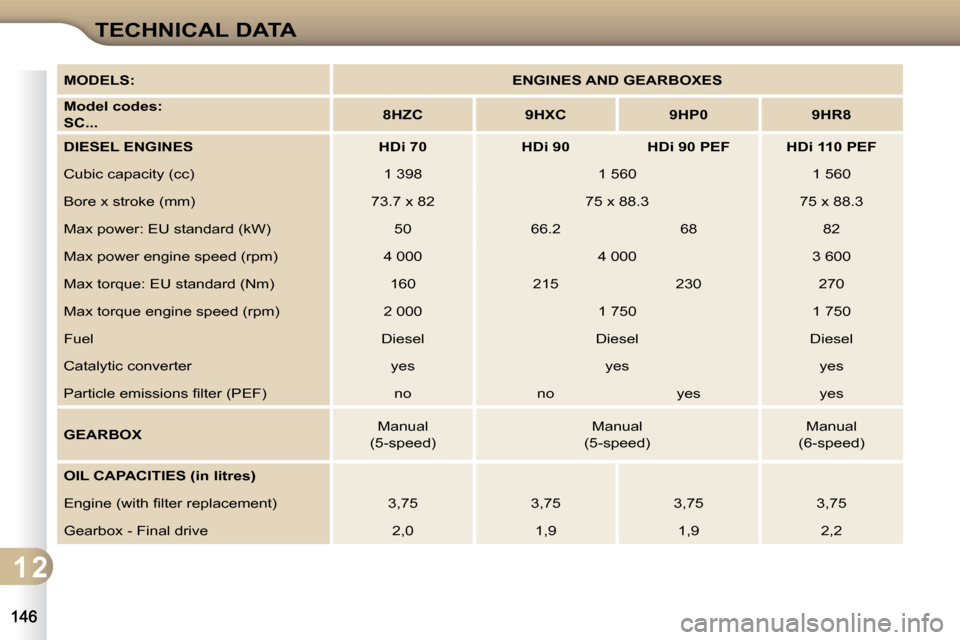

MODELS:ENGINES AND GEARBOXES
Model codes:
SC...8HZC9HXC9HP09HR8
DIESEL ENGINESHDi 70HDi 90HDi 90 PEFHDi 110 PEF
Cubic capacity (cc) 1 398 1 560 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3 75 x 88.3
Max power: EU standard (kW) 50 66.2 68 82
Max power engine speed (rpm) 4 000 4 000 3 600
Max torque: EU standard (Nm) 160 215 230 270
Max torque engine speed (rpm) 2 000 1 750 1 750
Fuel D i e s e l D i e s e l D i e s e l
Catalytic converter yes yes yes
P a r t i c l e e m i s s i o n s fi l t e r ( P E F ) no no yes yes
GEARBOX Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3,75 3,75 3,75 3,75
Gearbox - Final drive 2,0 1,9 1,9 2,2
Page 157 of 207
1 2
TECHNICAL DATA
( a ) . . . / 1 : fi t t e d w i t h l o w r o l l i n g r e s i s t a n c e t y r e s t o r e d u c e c o n s u m p t i o n a n d e m i s s i o n s o f C O
2.
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
T h e s e f u e l c o n s u m p t i o n v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h D i r e c t i v e 8 0 / 1 2 6 8 / C E E . T h e y m a y v a r y d e p e n d i n g o n
t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e
o f v e h i c l e e q u i p m e n t .
Quality of the fuel used for petrol engines
T h e p e t r o l e n g i n e s a r e p e r f e c t l y c o m p a t i b l e w i t h E 1 0 t y p e p e t r o l b i o f u e l s ( c o n t a i n i n g 1 0 % e t h a n o l ) , c o n f o r m i n g t o E u r o p e a n
standards EN 228 and EN 15376.
E 8 5 t y p e f u e l s ( c o n t a i n i n g u p t o 8 5 % e t h a n o l ) a r e r e s e r v e d e x c l u s i v e l y f o r v e h i c l e s m a r k e t e d f o r t h e u s e o f t h i s t y p e o f f u e l
( B i o F l e x v e h i c l e s ) . T h e q u a l i t y o f t h e e t h a n o l m u s t c o m p l y w i t h E u r o p e a n s t a n d a r d E N 1 5 3 7 6 .
F o r B r a z i l o n l y , s p e c i a l v e h i c l e s a r e m a r k e t e d t o r u n o n f u e l s c o n t a i n i n g u p t o 1 0 0 % e t h a n o l ( t y p e E 1 0 0 ) .

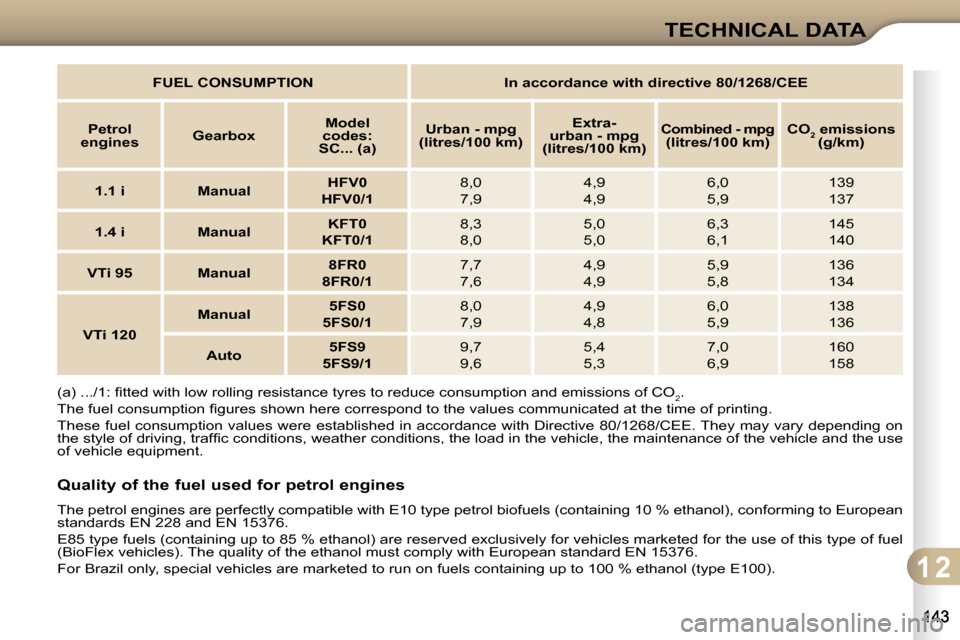

FUEL CONSUMPTIONIn accordance with directive 80/1268/CEE
Petrol enginesGearboxModel codes: SC... (a)
Urban - mpg (litres/100 km)
Extra-urban - mpg (litres/100 km)
Combined - mpg (litres/100 km)CO2 emissions (g/km)
1.1 iManualHFV0
HFV0/1
8,0
7,9
4,9
4,9
6,0
5,9
139
137
1.4 iManualKFT0
KFT0/1
8,3
8,0
5,0
5,0
6,3
6,1
145
140
VTi 95Manual8FR0
8FR0/1
7,7
7,6
4,9
4,9
5 ,9
5,8
136
134
VTi 120
Manual5FS0
5FS0/1
8,0
7,9
4,9
4,8
6,0
5,9
138
136
Auto5FS9
5FS9/1
9,7
9,6
5,4
5,3
7,0
6,9
160
158
Page 158 of 207
1 2
TECHNICAL DATA

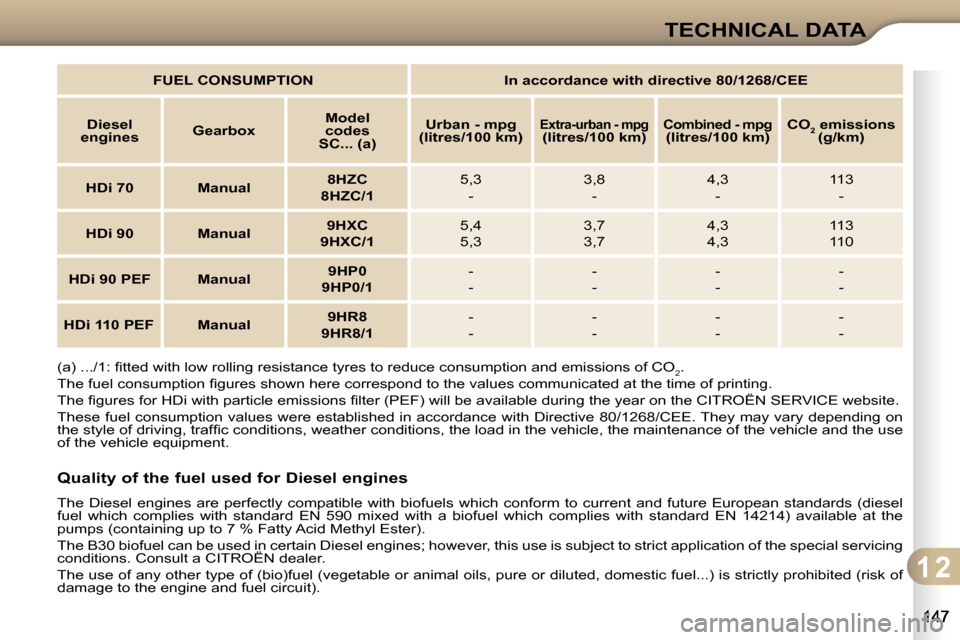

( a ) . . . / 1 : fi t t e d w i t h l o w r o l l i n g r e s i s t a n c e t y r e s t o r e d u c e c o n s u m p t i o n a n d e m i s s i o n s o f C O
2.
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
T h e fi g u r e s f o r H D i w i t h p a r t i c l e e m i s s i o n s fi l t e r ( P E F ) w i l l b e a v a i l a b l e d u r i n g t h e y e a r o n t h e C I T R O Ë N S E R V I C E w e b s i t e .
T h e s e f u e l c o n s u m p t i o n v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h D i r e c t i v e 8 0 / 1 2 6 8 / C E E . T h e y m a y v a r y d e p e n d i n g o n
t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e
o f t h e v e h i c l e e q u i p m e n t .
Quality of the fuel used for Diesel engine s
T h e D i e s e l e n g i n e s a r e p e r f e c t l y c o m p a t i b l e w i t h b i o f u e l s w h i c h c o n f o r m t o c u r r e n t a n d f u t u r e E u r o p e a n s t a n d a r d s ( d i e s e l
f u e l w h i c h c o m p l i e s w i t h s t a n d a r d E N 5 9 0 m i x e d w i t h a b i o f u e l w h i c h c o m p l i e s w i t h s t a n d a r d E N 1 4 2 1 4 ) a v a i l a b l e a t t h e
p u m p s ( c o n t a i n i n g u p t o 7 % F a t t y A c i d M e t h y l E s t e r ) .
T h e B 3 0 b i o f u e l c a n b e u s e d i n c e r t a i n D i e s e l e n g i n e s ; h o w e v e r , t h i s u s e i s s u b j e c t t o s t r i c t a p p l i c a t i o n o f t h e s p e c i a l s e r v i c i n g
c o n d i t i o n s . C o n s u l t a C I T R O Ë N d e a l e r .
T h e u s e o f a n y o t h e r t y p e o f ( b i o ) f u e l ( v e g e t a b l e o r a n i m a l o i l s , p u r e o r d i l u t e d , d o m e s t i c f u e l . . . ) i s s t r i c t l y p r o h i b i t e d ( r i s k o f
d a m a g e t o t h e e n g i n e a n d f u e l c i r c u i t ) . FUEL
CONSUMPTION In accordance with directive 80/1268/CEE
Diesel
engines
Gearbox Model
codes
SC... (a)
Urban - mpg
(litres/100 km)
Extra-urban - mpg
(litres/100 km)Combined - mpg
(litres/100 km) CO
2 emissions
(g/km)
HDi 70 Manual
8HZC
8HZC/1 5,3
- 3,8
- 4,3
- 113
-
HDi 90 Manual
9HXC
9HXC/1 5,4
5,3 3,7
3,7 4,3
4,3 113
110
HDi 90 PEF Manual
9HP0
9HP0/1 -
- -
- -
- - -
HDi 110 PEF Manual
9HR8
9HR8/1 -
- -
- - -- -
Page 159 of 207
1 2
TECHNICAL DATA
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
m u s t b e r e d u c e d b y 1 0 % f o r e a c h a d d i t i o n a l 1 0 0 0 m e t r e s o f a l t i t u d e .
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h a m b i e n t t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e a m b i e n t
temperature is above 37 °C, limit the towed load.
* T h e w e i g h t o f t h e b r a k e d t r a i l e r c a n b e i n c r e a s e d , w
i t h i n t h e G T W l i m i t , i f t h e G V W o f t h e t o w i n g v e h i c l e i s r e d u c e d b y a n
e q u a l a m o u n t . W a r n i n g : t o w i n g u s i n g a l i g h t l y l o a d e d t o w i n g v e h i c l e m a y h a v e a n a d v e r s e e f f e c t o n i t s r o a d h o l d i n g .

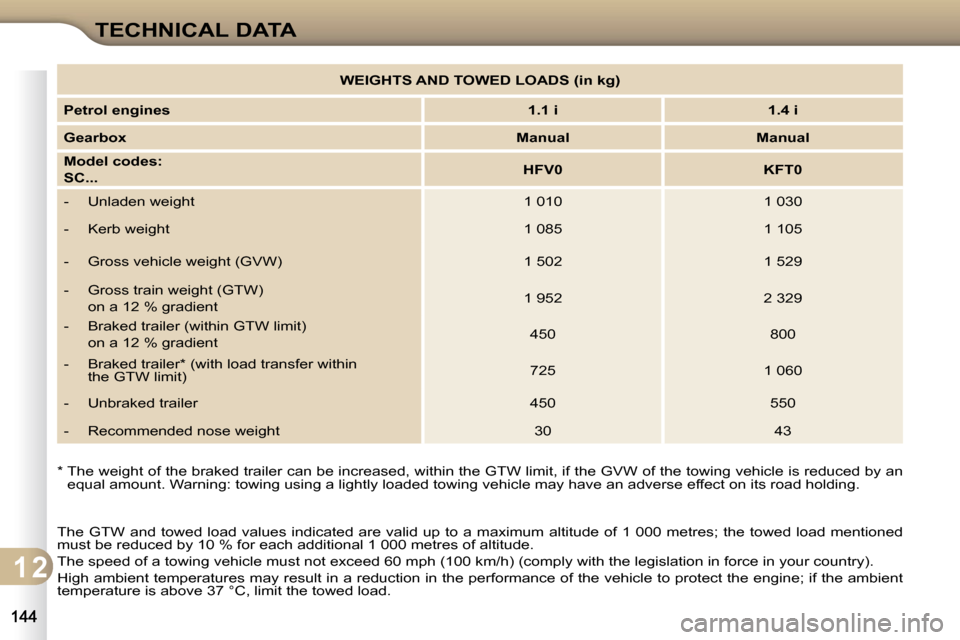

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines1.1 i1.4 i
GearboxManualManual
Model codes:
SC...HFV0KFT0
- Unladen weight 1 010 1 030
- Kerb weight 1 085 1 105
- G r o s s v e h i c l e w e i g h t ( G V W ) 1 502 1 529
- Gross train weight (GTW)
o n a 1 2 % g r a d i e n t 1 952 2 329
- Braked trailer (within GTW limit)
o n a 1 2 % g r a d i e n t 450 800
- B r a k e d t r a i l e r * ( w i t h l o a d t r a n s f e r w i t h i n the GTW limit) 725 1 060
- Unbraked trailer 450 550
- Recommended nose weight 30 43
Page 160 of 207
1 2
TECHNICAL DATA
* T h e w e i g h t o f t h e b r a k e d t r a i l e r c a n b e i n c r e a s e d , w i t h i n t h e G T W l i m i t , i f t h e G V W o f t h e t o w i n g v e h i c l e i s r e d u c e d b y a n
e q u a l a m o u n t . W a r n i n g : t o w i n g u s i n g a l i g h t l y l o a d e d t o w i n g v e h i c l e m a y h a v e a n a d v e r s e e f f e c t o n i t s r o a d h o l d i n g .
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
m u s t b e r e d u c e d b y 1 0 % f o r e a c h a d d i t i o n a l 1 0 0 0 m e t r e s o f a l t i t u d e .
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h a m b i e n t t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e a m b i e n t
temperature is above 37 °C, limit the towed load.

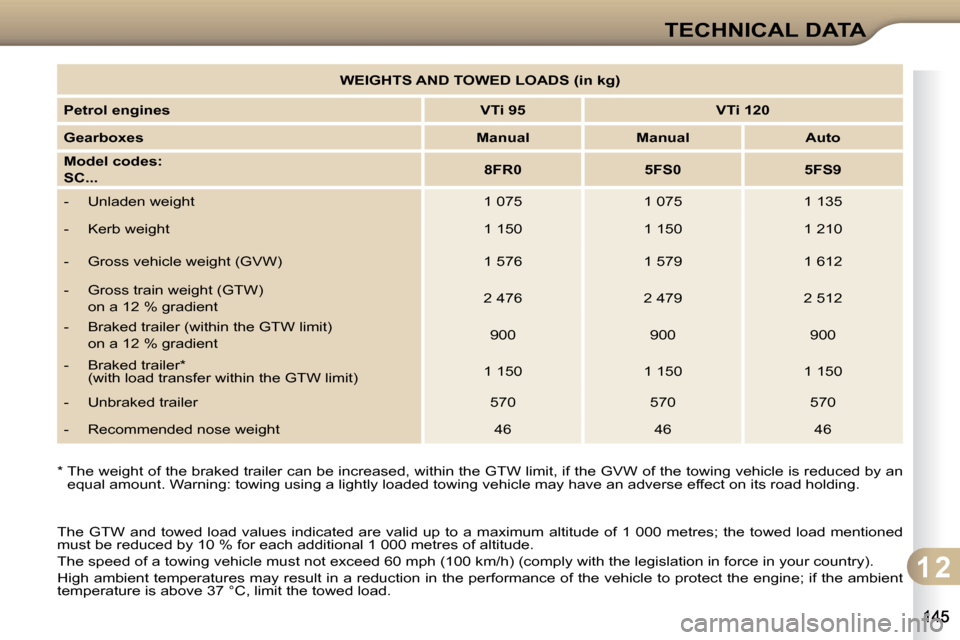

WEIGHTS AND TOWED LOADS (in kg)
Petrol enginesVTi 95VTi 120
GearboxesManualManualAuto
Model codes:
SC...8FR05FS05FS9
- Unladen weight 1 075 1 075 1 135
- Kerb weight 1 150 1 150 1 210
- G r o s s v e h i c l e w e i g h t ( G V W ) 1 576 1 579 1 612
- Gross train weight (GTW)
o n a 1 2 % g r a d i e n t 2 476 2 479 2 512
- Braked trailer (within the GTW limit)
o n a 1 2 % g r a d i e n t 900 900 900
- Braked trailer * ( w i t h l o a d t r a n s f e r w i t h i n t h e G T W l i m i t ) 1 150 1 150 1 150
- Unbraked trailer 570 570 570
- Recommended nose weight 46 46 46
