Citroen C3 DAG 2010.5 2.G User Guide
Manufacturer: CITROEN, Model Year: 2010.5, Model line: C3 DAG, Model: Citroen C3 DAG 2010.5 2.GPages: 235, PDF Size: 8.68 MB
Page 11 of 235
FAMILIARISATION
VENTILATION
Advice on interior settings
Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.
I require...
Heating or Manual air conditioning
Air distribution A i r fl o w
Air recirculation
/
Exterior air intake
Temperature Manual A/C
HEAT
COOL
DEMISTING
DEFROSTING
Page 12 of 235
FAMILIARISATION
MONITORING
Instrument panel
A. W i t h t h e i g n i t i o n o n , t h e f u e l g a u g e
bars for the fuel remaining should
come on.
B. W i t h t h e e n g i n e r u n n i n g , t h e a s s o c i -
ated low level warning lamp should
go off.
C. W i t h t h e i g n i t i o n o n , t h e o i l l e v e l i n -
dicator should display "OIL OK" for
a few seconds.
I f t h e l e v e l s a r e n o t c o r r e c t , t o p u p t h e
level which is low.
19 Warning lamps
1. W i t h t h e i g n i t i o n o n , t h e o r a n g e a n d
red warning lamps come on.
2. W i t h t h e e n g i n e r u n n i n g , t h e s e
warning lamps should go off.
I f a w a r n i n g l a m p r e m a i n s o n , r e f e r t o
the page concerned.
21, 26 Switch panel
Illumination of the indicator lamp indi-
cates the state of the corresponding
system.
A. ESP/ASR system deactivated.
96
B. Stop & Start system deactivated.
112
Page 13 of 235
FAMILIARISATION
PASSENGER SAFETY
Front passenger's airbag
1. Open the glove box.
2. Insert the key.
3. Select position:
"ON" ( a c t i v a t i o n ) , w i t h f r o n t p a s s e n -
g e r o r " f o r w a r d s f a c i n g " c h i l d s e a t ,
"OFF" ( d e a c t i v a t i o n ) , w i t h " r e a r f a c -
ing" child seat".
4. Remove the key keeping the switch
in the new position.
99 Front seat belts and
passenger's front airbag
A. Front seat belts not fastened or un-
fastened warning lamp.
100 Electric child lock
Illumination of the lamp
A indicates that
the rear door and rear electric window
controls are deactivated.
93
B. F r o n t p a s s e n g e r ' s a i r b a g d e a c t i v a -
tion indicator lamp.
C. F r o n t p a s s e n g e r ' s a i r b a g a c t i v a t i o n
indicator lamp.
97
Page 14 of 235
FAMILIARISATION
DRIVING SAFELY
Stop & Start
Going into engine STOP mode The "ECO" warning lamp comes
on in the instrument panel and
the engine goes into standby:
- with a manual gearbox; at speeds
b e l o w 1 2 m p h ( 2 0 k m / h ) , p u t t h e
g e a r l e v e r i n t o n e u t r a l , t h e n r e l e a s e
the clutch pedal.
I n s o m e c i r c u m s t a n c e s , S T O P m o d e
may not be available; the "ECO" warn-
i n g l a m p fl a s h e s f o r a f e w s e c o n d s ,
then goes off.
111 Going into engine START mode
The "ECO" warning lamp goes
off and the engine restarts:
- with a manual gearbox; depress
the clutch pedal.
I n c e r t a i n c i r c u m s t a n c e s , S T A R T m o d e
may be invoked automatically; the
"ECO" w a r n i n g l a m p fl a s h e s f o r a f e w
s e c o n d s , t h e n g o e s o f f .
112 Deactivation/Reactivation
You can deactivate the system at
any time by pressing the
"ECO OFF"
switch; the warning lamp in the button
comes on.
The system is reactivated auto-
matically every time the vehicle
is started using the key.
Before refueling or doing any-
t h i n g u n d e r t h e b o n n e t , y o u
must switch off the ignition with
the key.
113
Page 15 of 235
FAMILIARISATION Speed limiter "LIMIT"
1. Selecting/Switching off speed limiter
mode.
2. D e c r e a s e t h e p r o g r a m m e d v a l u e .
3. Increase the programmed value.
4. Speed limiter on/off.
114
DRIVING SAFELY
Cruise control "CRUISE"
1. Selecting/Switching off cruise con-
trol mode.
2. D e c r e a s e t h e p r o g r a m m e d v a l u e .
3. Increase the programmed value.
4. Cruise control Off/Resume.
116
The values must be set with the engine
running. Display in the instrument panel
The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.
I n o r d e r t o b e p r o g r a m m e d o r a c t i v a t e d ,
the vehicle speed must be higher than
2 5 m p h ( 4 0 k m / h ) , w i t h a t l e a s t f o u r t h
gear engaged on a manual gearbox
( s e c o n d g e a r o n a S e n s o D r i v e o r a u t o -
m a t i c g e a r b o x ) . Cruise control
Speed limiter

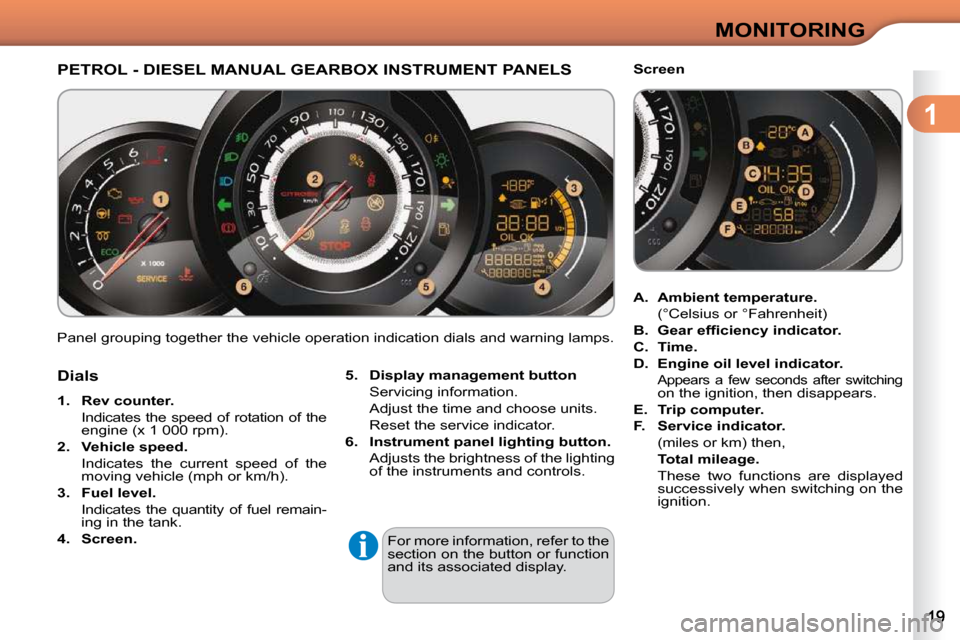

Page 16 of 235
1
MONITORING
Panel grouping together the vehicle operation indication dials and warning lamps.
PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS
5. Display management button
Servicing information.
Adjust the time and choose units.
Reset the service indicator.
6. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
For more information, refer to the
section on the button or function
and its associated display.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Screen.
A. Ambient temperature.
(°Celsius or °Fahrenheit)
B. Gear
e f fi c i e n c y
indicator.
C. Time.
D. Engine oil level indicator.
Appears a few seconds after switching
on the ignition, then disappears.
E. Trip computer.
F. Service indicato
r.
(miles or km) then,
Total mileage.
These two functions are displayed successively when switching on the
ignition.
Screen
Page 17 of 235
1
MONITORING
PETROL - DIESEL MANUAL, SENSODRIVE OR AUTOMATIC
GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle operation indication dials and warning lamps.
Depending on the version, the instrument panel may have permanent back-lighting.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
3. Fuel level.
Indicates the quantity of fuel remaining
in the tank.
4. Screen.
5. Display management button
Alternates display between range and trip mileage recorder.
Servicing information.
Resets the selected function to zero (trip distance recorder or service in-
dicator).
6. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
For more information, refer to the
section on the button or function
and its associated display.
A. Speed limiter
(mph or km/h) or
Cruise control.
B. Gear shift indicator.
C. SensoDrive
or
automatic gearbox
information.
D. Range
(miles or km) or
Trip mileage recorder.
E. Service indicator
(miles or km), then
Total mileage recorder
These two functions are displayed successively when switching on the
ignition
F. Engine oil level indicator
Appears a few seconds after switching
on the ignition, then disappears.
Screen

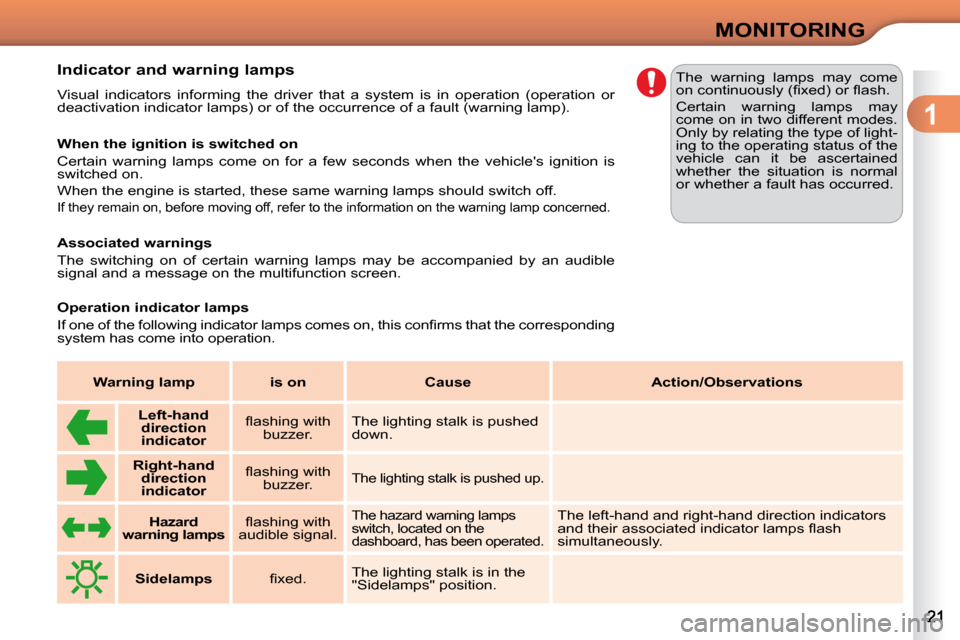

Page 18 of 235
1
MONITORING
Indicator and warning lamps
Visual indicators informing the driver that a system is in operat ion (operation or
deactivation indicator lamps) or of the occurrence of a fault (wa rning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehi cle's ignition is
switched on.
When the engine is started, these same warning lamps should switch off.
If they remain on, before moving off, refer to the information on the warning lamp concerned.
Operation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g
system has come into operation. The warning lamps may come
o n c o n t i n u o u s l y ( fi x e d ) o r fl a s h .
Certain warning lamps may
come on in two different modes.
Only by relating the type of light-
ing to the operating status of the
vehicle can it be ascertained
whether the situation is normal
or whether a fault has occurred.
Associated warnings
The switching on of certain warning lamps may be accompanied b y an audible
signal and a message on the multifunction screen.
Warning lamp is on Cause Action/Observations
Left-hand
direction
indicato
r fl a s h i n g w i t h
buzzer. The lighting stalk is pushed
down.
Right-hand
direction
indicator fl a s h i n g w i t h
buzzer.
The lighting stalk is pushed up.
Sidelamps fi x e d . The lighting stalk is in the
"Sidelamps" position.
Hazard
warning lamps fl a s h i n g w i t h
audible signal. The hazard warning lamps
switch, located on the
dashboard, has been operated. The left-hand and right-hand direction indicators
a n d t h e i r a s s o c i a t e d i n d i c a t o r l a m p s fl a s h
simultaneously.
Page 19 of 235
1
MONITORING
Front
foglamps fi x e d . The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.
Rear
foglamps fi x e d . The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.
Diesel engine
pre-heating fi x e d . The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp goes off before
starting.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme climatic conditions).
If the engine does not start, switch the ignition off
and then on, wait until the warning lamp goes off
again, then start the engine.
Parking brake fi x e d . The parking brake is
applied or not properly
released. Release the parking brake to switch off the
warning lamp, keeping your foot on the brake
pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Driving" section.
Dipped beam
headlamps fi x e d . The lighting stalk is in the
"Dipped beam headlamps"
position.
Main beam
headlamps fi x e d . The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.
Warning lamp is on Cause Action/Observations
Page 20 of 235
1
MONITORING
Stop & Start fi x e d .
The Stop & Start system
has put the engine in STOP
mode at a vehicle stop
( t r a f fi c l i g h t s , t r a f fi c j a m , o r
other...). The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.
fl a s h e s f o r a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically.
Refer to "Driving - § Stop & Start" for special
cases with STOP mode and START mode.
Passenger's
airbag
system fi x e d . The control switch, located
in the glove box, is in
the "
ON " position.
The passenger's front
airbag is activated.
In this case, do not install a
rear-facing child seat. Turn the control switch to the "
OFF " position
to deactivate the front passenger's airbag.
In this case you can install a rear-facing child
seat.
Engine
coolant
temperature fi x e d b l u e . On starting the engine, it
indicates that the engine is
cold. After a few minutes driving, it swiches off to
indicate that the engine temperature is normal.
In order to protect your engine, avoid driving too
hard until the warning lamp has switched off.
Warning lamp is on Cause Action/Observations
