Citroen C3 DAG 2010.5 2.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2010.5, Model line: C3 DAG, Model: Citroen C3 DAG 2010.5 2.GPages: 235, PDF Size: 8.68 MB
Page 1 of 235
FAMILIARISATION Rear parking sensors
This system provides a warning when
reversing by detecting obstacles located
behind the vehicle.
118
Stop & Start
This system puts the engine temporar-
ily into standby during stops in the traf-
fi c ( r e d l i g h t s , t r a f fi c j a m s , e t c . . . ) . T h e
engine restarts automatically as soon
as you want to move off. The Stop &
Start system reduces fuel consumption
a n d e x h a u s t e m i s s i o n s , a n d p r o v i d e s
the comfort of complete silence when
stationary.
111 Temporary puncture repair kit
This kit is a complete system consisting
o f a c o m p r e s s o r a n d s e a l a n t c a r t r i d g e ,
to allow the temporary repair of a tyre.
127
Zenith windscreen
This large windscreen provides incompa-
rable visibility and light in the passenger
compartment.
6
EXTERIOR
Page 2 of 235

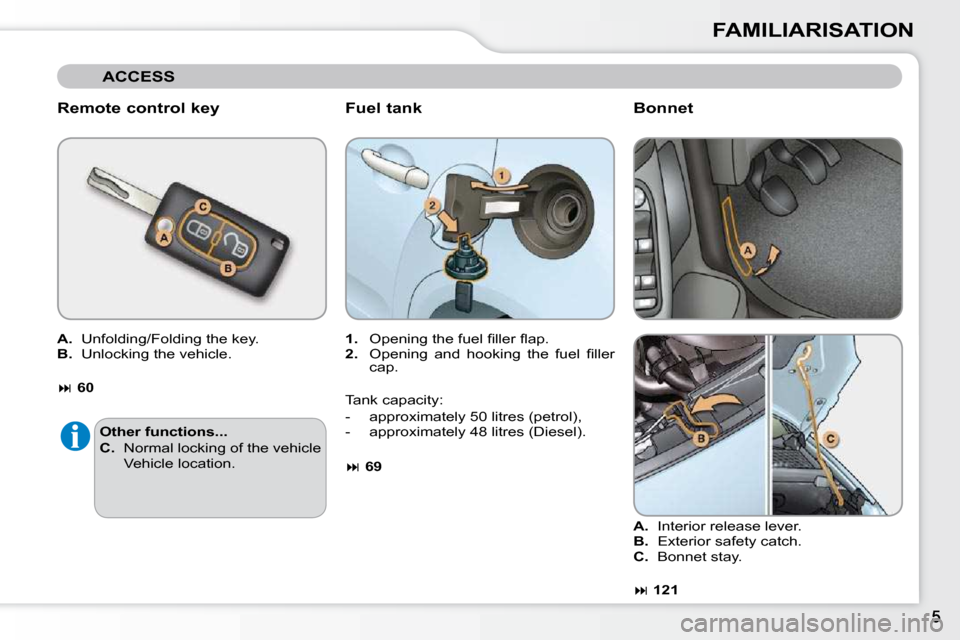

FAMILIARISATION
Remote control key Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r
cap.
A. Unfolding/Folding the key.
B. Unlocking the vehicle.
60
69
A. Interior release lever.
B. Exterior safety catch.
C. Bonnet stay.
121
Bonnet
ACCESS
Other functions...
C. Normal locking of the vehicle
Vehicle location. Tank capacity:
- a p p r o x i m a t e l y 5 0 l i t r e s ( p e t r o l ) ,
- a p p r o x i m a t e l y 4 8 l i t r e s ( D i e s e l ) .
Page 3 of 235

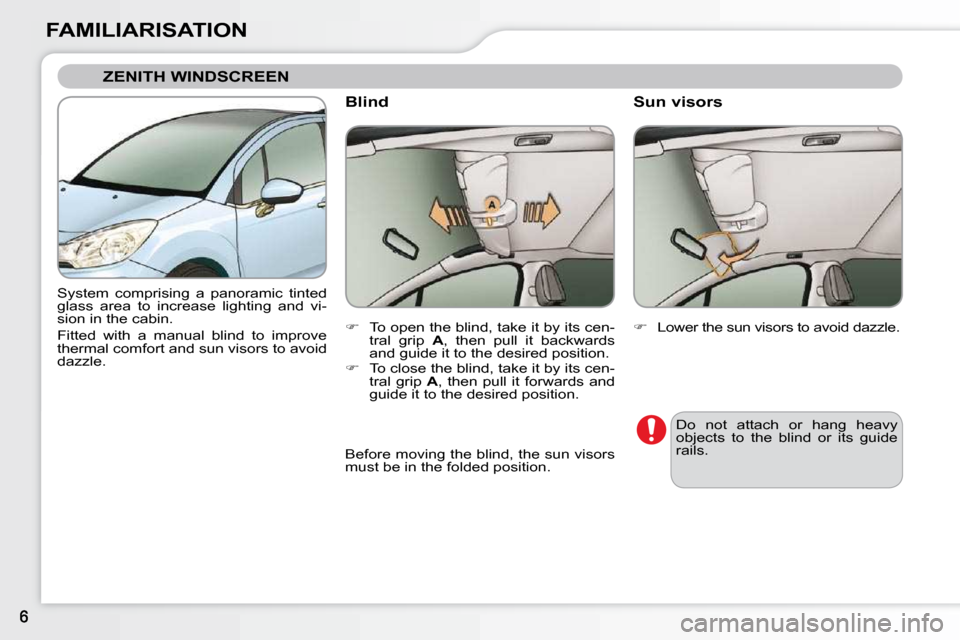

FAMILIARISATION
ZENITH WINDSCREEN
System comprising a panoramic tinted
glass area to increase lighting and vi-
sion in the cabin.
Fitted with a manual blind to improve
thermal comfort and sun visors to avoid
dazzle.
T o o p e n t h e b l i n d , t a k e i t b y i t s c e n -
tral grip A , t h e n p u l l i t b a c k w a r d s
and guide it to the desired position.
T o c l o s e t h e b l i n d , t a k e i t b y i t s c e n -
tral grip A , t h e n p u l l i t f o r w a r d s a n d
guide it to the desired position.
Lower the sun visors to avoid dazzle.
D o n o t a t t a c h o r h a n g h e a v y
o b j e c t s t o t h e b l i n d o r i t s g u i d e
rails.
Blind Sun visors
B e f o r e m o v i n g t h e b l i n d , t h e s u n v i s o r s
must be in the folded position.
Page 4 of 235

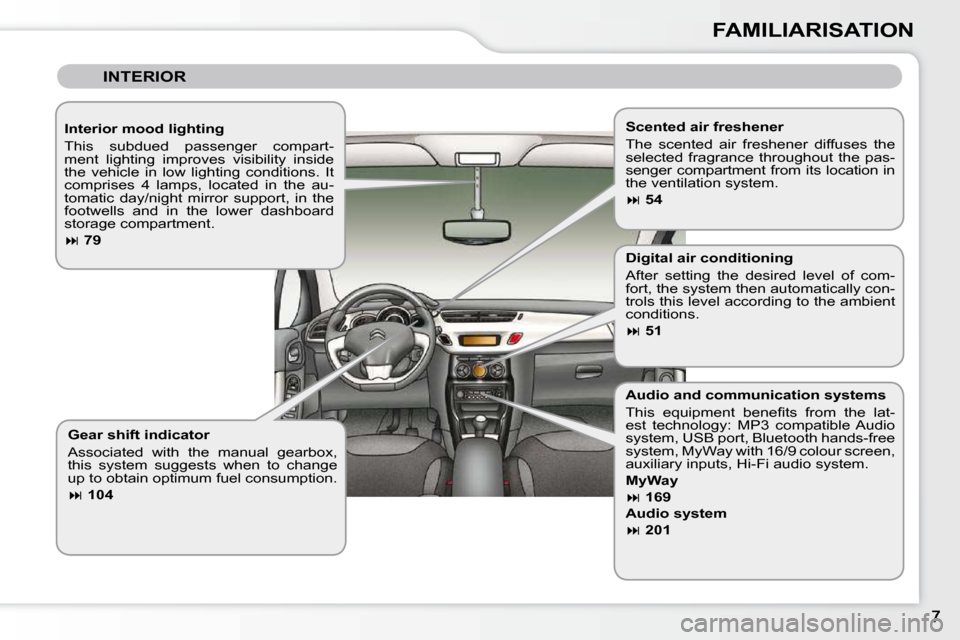

FAMILIARISATION
INTERIOR
Interior mood lighting
This subdued passenger compart-
ment lighting improves visibility inside
the vehicle in low lighting conditions. It
c o m p r i s e s 4 l a m p s , l o c a t e d i n t h e a u -
t o m a t i c d a y / n i g h t m i r r o r s u p p o r t , i n t h e
footwells and in the lower dashboard
storage compartment.
79
Gear shift indicator
A s s o c i a t e d w i t h t h e m a n u a l g e a r b o x ,
this system suggests when to change
up to obtain optimum fuel consumption.
104 Scented air freshener
The scented air freshener diffuses the
selected fragrance throughout the pas-
senger compartment from its location in
the ventilation system.
54
Digital air conditioning
After setting the desired level of com-
f o r t , t h e s y s t e m t h e n a u t o m a t i c a l l y c o n -
trols this level according to the ambient
conditions.
51
Audio and communication systems
T h i s e q u i p m e n t b e n e fi t s f r o m t h e l a t -
est technology: MP3 compatible Audio
s y s t e m , U S B p o r t , B l u e t o o t h h a n d s - f r e e
s y s t e m , M y W a y w i t h 1 6 / 9 c o l o u r s c r e e n ,
a u x i l i a r y i n p u t s , H i - F i a u d i o s y s t e m .
MyWay
169
Audio system
201
Page 5 of 235
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Cruise control/speed limiter
switches.
2. H e a d l a m p h e i g h t a d j u s t m e n t .
3. S t e e r i n g w h e e l a d j u s t m e n t c o n t r o l .
4. Lighting and direction indicators
control stalk.
5. Instrument panel.
6. D r i v e r ' s a i r b a g .
H o r n .
7. Gear lever.
8. 1 2 V a c c e s s o r y s o c k e t
USB port/auxiliary socket.
9. H e a t e d s e a t c o n t r o l .
10. Bonnet release lever.
11. D o o r m i r r o r c o n t r o l s .
Electric window controls.
Rear doors and electric windows deactivation control.
12. Fusebox.
13. Stop & Start button.
Electronic stability programme b u t t o n ( E S P / A S R ) .
14. Front door window demisting/
defrosting vent.
15. S p e a k e r ( t w e e t e r ) .
16. W i n d s c r e e n d e m i s t i n g / d e f r o s t i n g
vent.
Page 6 of 235
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio equipment steering wheel
controls.
3. W i p e r s / s c r e e n w a s h / t r i p c o m p u t e r
control stalk.
4. Microphone.
5. Scented air freshener.
6. Central locking button.
7. Multifunction screen.
8. H a z a r d w a r n i n g l a m p s s w i t c h .
9. C e n t r a l a d j u s t a b l e a i r v e n t s .
10. Sunshine sensor
H i - F i a u d i o s y s t e m c e n t r a l s p e a k e r .
11. P a s s e n g e r ' s a i r b a g .
12. S i d e a d j u s t a b l e a i r v e n t .
13. G l o v e b o x / P a s s e n g e r ' s a i r b a g
deactivation/Audio/video sockets.
14. Parking brake.
15. Central armrest with storage.
16. Upper and lower storage.
17. M y W a y o r A u d i o s y s t e m .
18. H e a t i n g / a i r c o n d i t i o n i n g c o n t r o l s .
Page 7 of 235

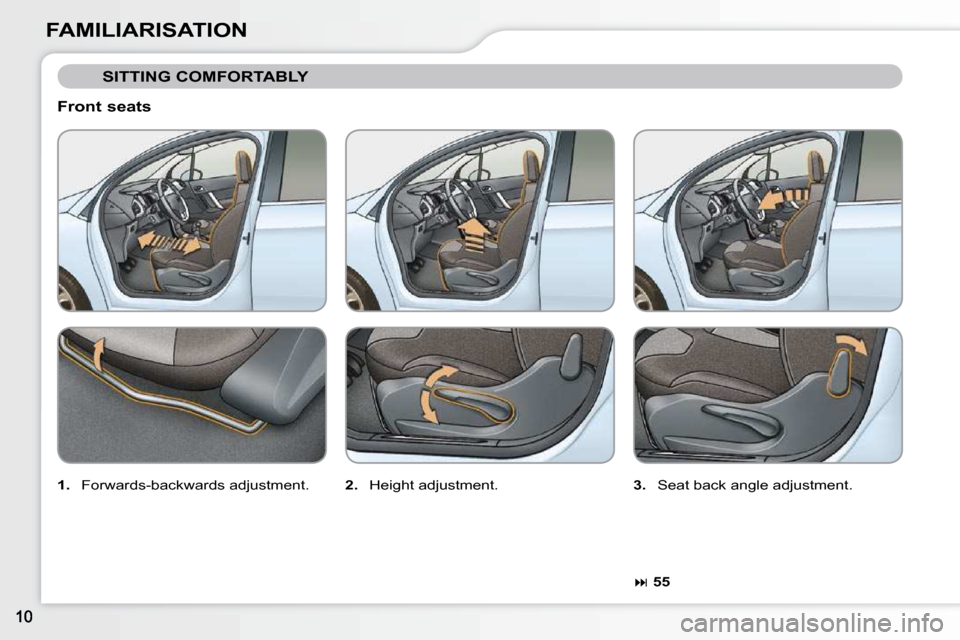

FAMILIARISATION Front seats
SITTING COMFORTABLY
1. F o r w a r d s - b a c k w a r d s a d j u s t m e n t .
2. H e i g h t a d j u s t m e n t .
3. S e a t b a c k a n g l e a d j u s t m e n t .
55
Page 8 of 235

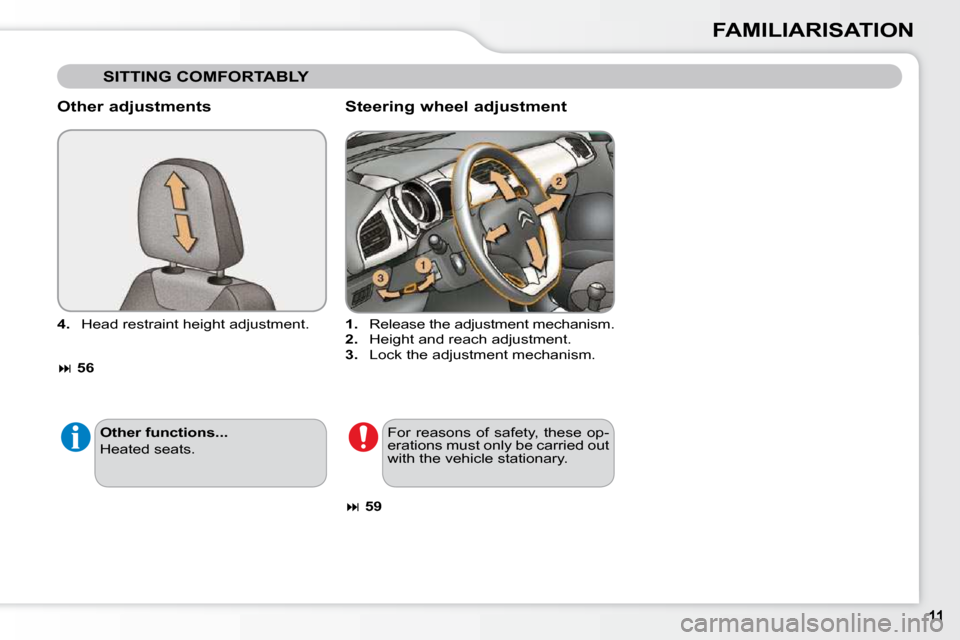

FAMILIARISATION
Other adjustments
4. H e a d r e s t r a i n t h e i g h t a d j u s t m e n t .
56 Steering wheel adjustment
1. R e l e a s e t h e a d j u s t m e n t m e c h a n i s m .
2. H e i g h t a n d r e a c h a d j u s t m e n t .
3. L o c k t h e a d j u s t m e n t m e c h a n i s m .
59 F o r r e a s o n s o f s a f e t y , t h e s e o p -
erations must only be carried out
with the vehicle stationary.
Other functions...
H e a t e d s e a t s .
SITTING COMFORTABLY
Page 9 of 235

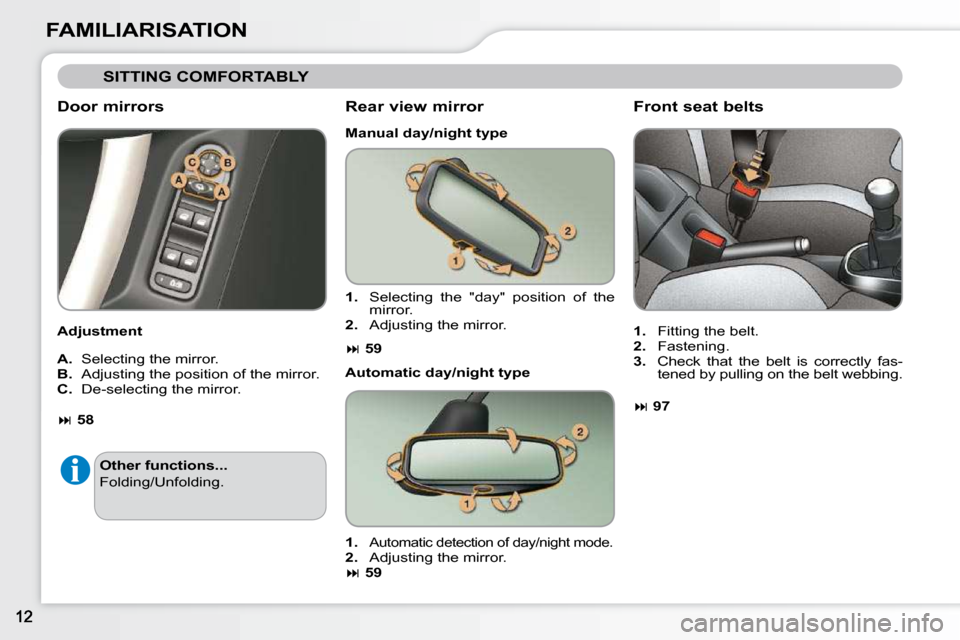

FAMILIARISATION
SITTING COMFORTABLY
Door mirrors
Adjustment
A. Selecting the mirror.
B. A d j u s t i n g t h e p o s i t i o n o f t h e m i r r o r .
C. D e - s e l e c t i n g t h e m i r r o r . Rear view mirror
Manual day/night type
1. Selecting the "day" position of the
mirror.
2. A d j u s t i n g t h e m i r r o r .
59
58 Automatic day/night type Front seat belts
1. Fitting the belt.
2. Fastening.
3. Check that the belt is correctly fas-
tened by pulling on the belt webbing.
97
1.
Automatic detection of day/night mode.
2. A d j u s t i n g t h e m i r r o r .
59
Other functions...
Folding/Unfolding.
Page 10 of 235

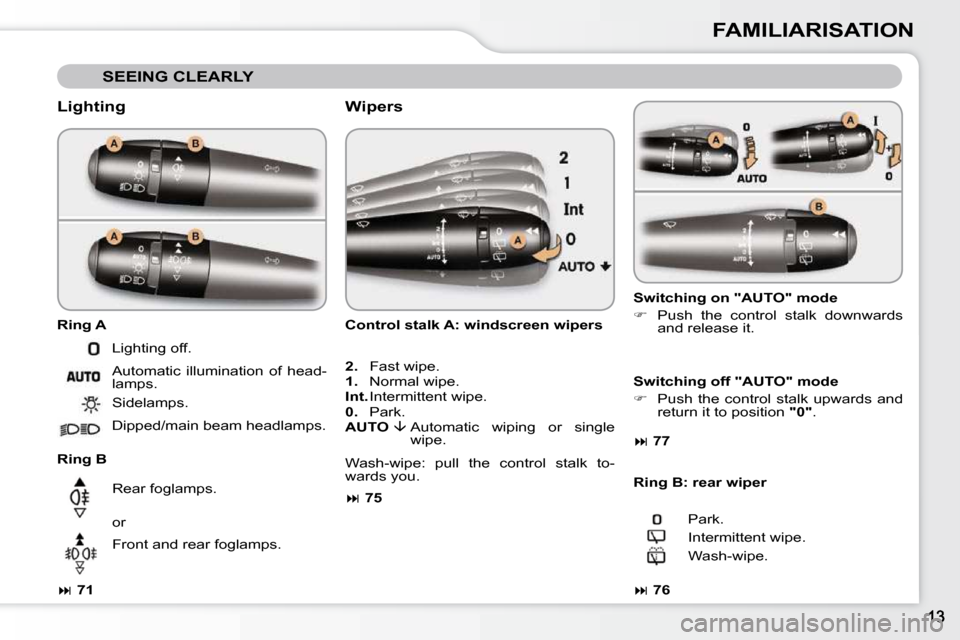

FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Ring B
71 Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
D i p p e d / m a i n b e a m h e a d l a m p s .
Rear foglamps.
or
Front and rear foglamps. Wipers
2. Fast wipe.
1. Normal wipe.
Int. Intermittent wipe.
0. Park.
AUTO
Automatic wiping or single
wipe.
75
76 Park.
Intermittent wipe.
W a s h - w i p e .
Control stalk A: windscreen wipers
W a s h - w i p e : p u l l t h e c o n t r o l s t a l k t o -
wards you.
Switching on "AUTO" mode
Push the control stalk downwards
and release it.
Switching off "AUTO" mode
Push the control stalk upwards and
return it to position "0" .
Ring B: rear wiper
77
