The level shown will only be
correct if the vehicle is on level
ground and the engine has been
off for more than 30 minutes.
Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message in the multifunction
screen.
I f t h e l o w o i l l e v e l i s c o n fi r m e d b y a
check using the dipstick, the level must
be topped up to prevent damage to the
engine.
Oil level low
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL--" .
C o n t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
Oil level indicator fault
Dipstick
There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of dam-
age to the engine),
- B = min; top up the level
v i a t h e o i l fi l l e r c a p , u s i n g
the grade of oil suited to
your engine.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine.
Page 32 of 235
1
MONITORING
Total distance recorder
System which measures the total distance
travelled by the vehicle during its life.
The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
With the ignition on, press the button
until zeros appear.
Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver. Clock
Adjusting the time - Choice of units
press the button for more than
two seconds: °C or °F is displayed,
press the button to select °C or °F,
press the button for more than
two seconds to complete the adjust-
ments.
After approximately 30 seconds without
any action, the screen returns to the
normal display.
To adjust the time of the clock and
choose the units used by the screen,
use the right-hand button on the instru-
ment panel, carrying out the operations
in the following order:
press the button for more than
t w o s e c o n d s : t h e m i n u t e s fl a s h ,
press the button to increase the
minutes,
press the button for more than
t w o s e c o n d s : t h e h o u r s fl a s h ,
press the button to increase the hours,
press the button for more than
two seconds: 24 H or 12 H is dis-
played,
press the button to select 24 H or
12 H,
Page 33 of 235
1
MONITORING
The instrument panel remains illumi-
nated with only the vehicle speed and
cruise control or speed limiter informa-
tion, if in use.
If there is an alert or a change in a func-
tion or to a setting, the black panel mode
is interrupted.
Activation
With the lighting on, press the left
hand button of the instrument panel
several times to progressively re-
duce the dashboard lighting level.
Press the button again to reduce the
lighting to the minimum level and
switch off the interior mood lighting.
Press the button again to activate
the black panel.
Black panel
System allowing certain displays to be
switched off for night driving.
Activation
When the lighting is on:
press the button to change the
brightness of the instruments and
controls,
when the level of brightness required
is reached, release the button.
Deactivation
When the lighting is off, or in day mode
o n v e h i c l e s fi t t e d w i t h d a y t i m e r u n n i n g
lamps, pressing the button does not
have any effect.
Lighting dimmer
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
Page 34 of 235
1
MONITORING
Screen in the instrument panel
Monochrome screen A Zero reset
Information displays
Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer infor-
mation in succession.
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
The trip computer provides the following
information:
- range,
- current fuel consumption,
- the Stop & Start time counter * , - distance travelled,
- average fuel consumption,
The next press then returns you to
the normal display.

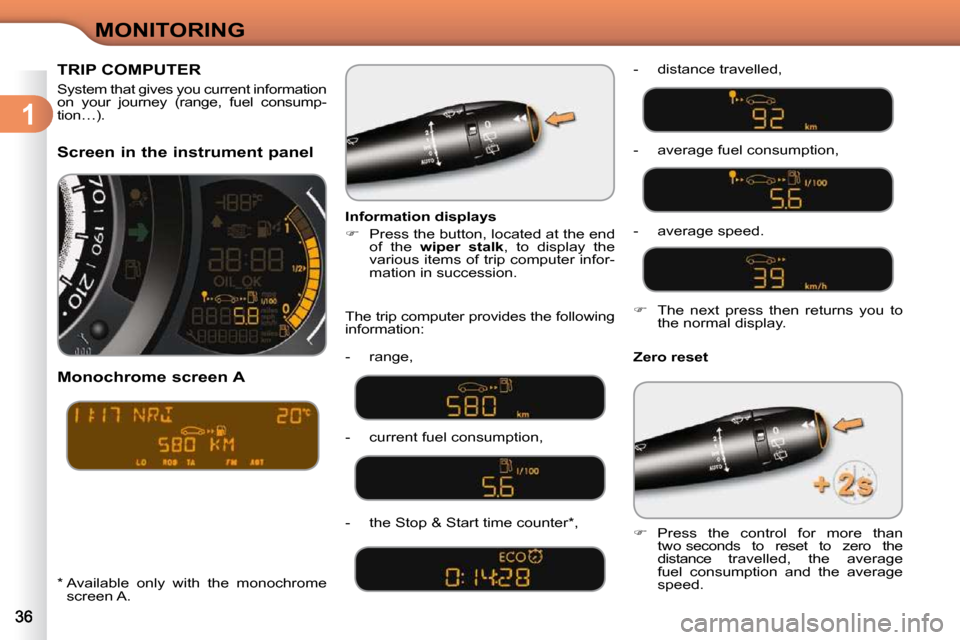

TRIP COMPUTER
System that gives you current information
on your journey (range, fuel consump-
tion…).
- average speed.
* Available only with the monochrome screen A.
Page 35 of 235
1
MONITORING

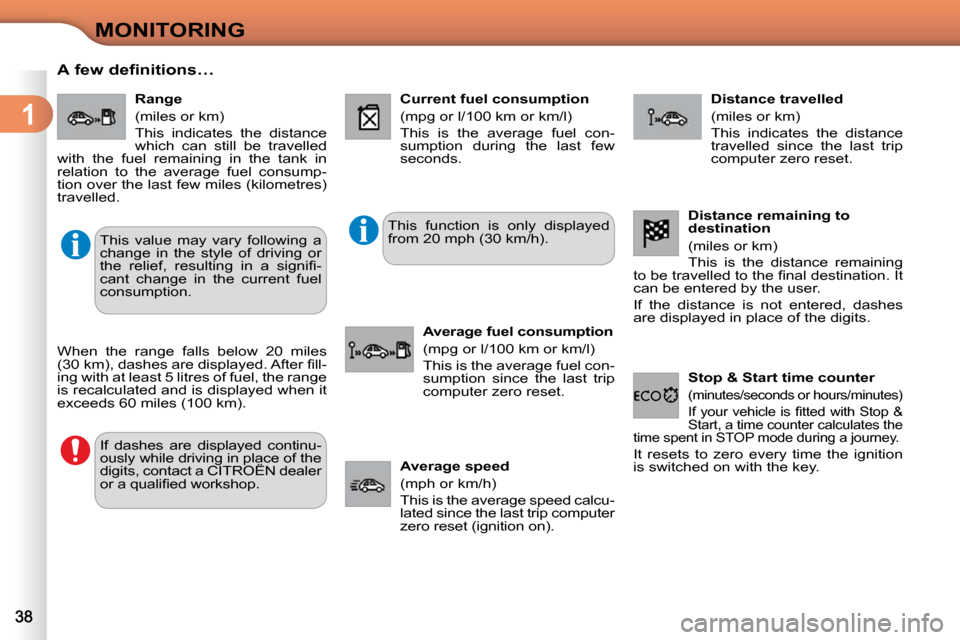

A few definitions… Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on). Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
This value may vary following a
change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi -
cant change in the current fuel
consumption.
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p . This function is only displayed
from 20 mph (30 km/h).
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). Distance remaining to
destination
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
can be entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Stop & Start time counter
(minutes/seconds or hours/minutes)
I f y o u r v e h i c l e i s fi t t e d w i t h S t o p &
Start, a time counter calculates the
time spent in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.
Page 36 of 235
1
MONITORING

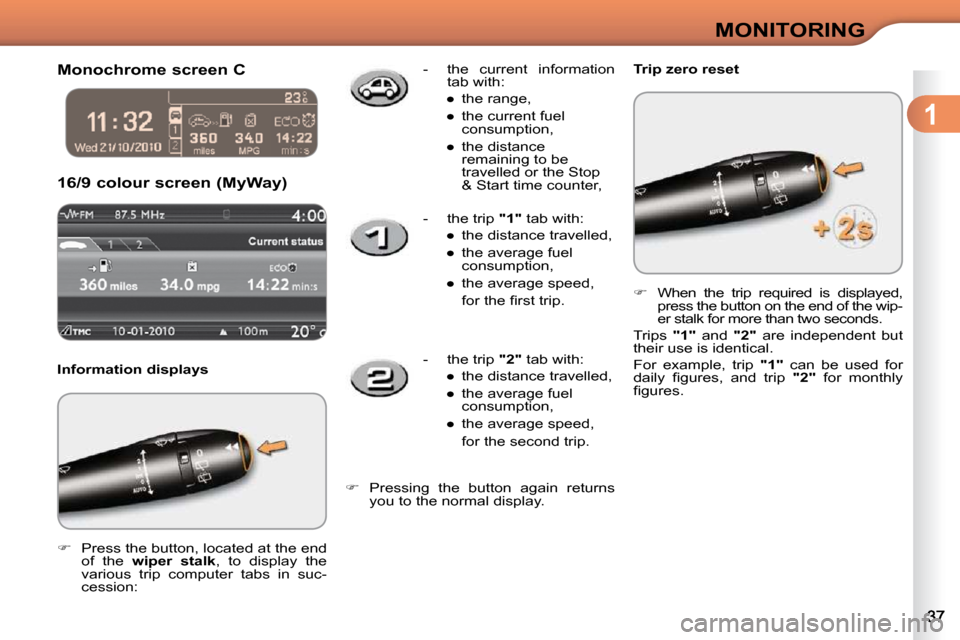

Monochrome screen C
16/9 colour screen (MyWay)
Information displays
Press the button, located at the end
of the wiper stalk , to display the
various trip computer tabs in suc-
cession: - the current information
tab with:
Page 37 of 235
1
MONITORING
A few definitions… Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on). Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
This value may vary following a
change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi -
cant change in the current fuel
consumption.
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p . This function is only displayed
from 20 mph (30 km/h).
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). Distance remaining to
destination
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
can be entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Stop & Start time counter
(minutes/seconds or hours/minutes)
I f y o u r v e h i c l e i s fi t t e d w i t h S t o p &
Start, a time counter calculates the
time spent in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.
Page 38 of 235
2
MULTIFUNCTION SCREENS

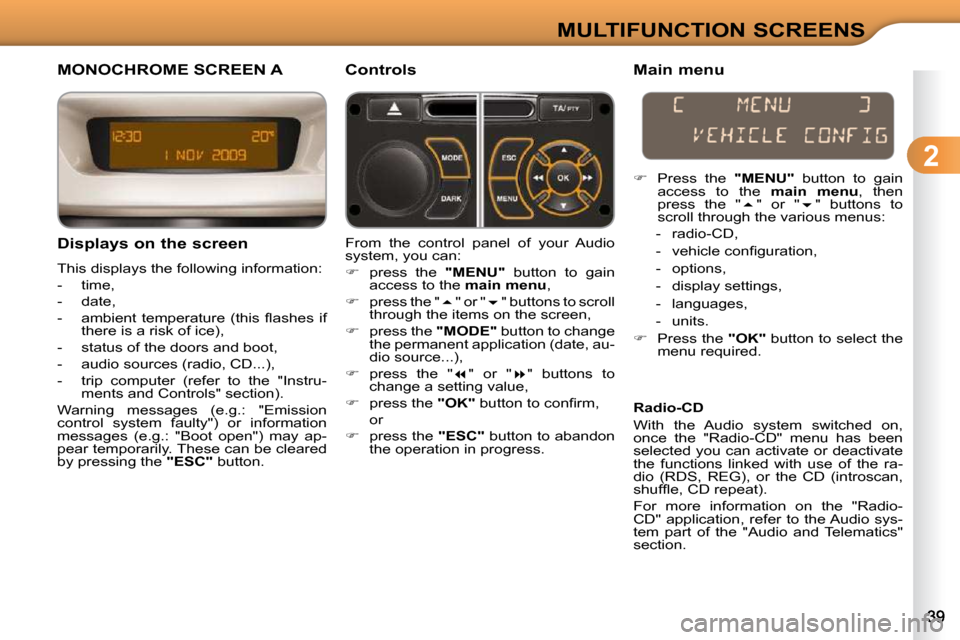

MONOCHROME SCREEN A
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instru- ments and Controls" section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. Controls
From the control panel of your Audio
system, you can:
press the "MENU" button to gain
access to the main menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (date, au-
dio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Main menu
Press the "MENU" button to gain
access to the main menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
Radio-CD
With the Audio system switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG), or the CD (introscan,
s h u f fl e , C D r e p e a t ) .
For more information on the "Radio-
CD" application, refer to the Audio sys-
tem part of the "Audio and Telematics"
section.
Page 39 of 235
2
MULTIFUNCTION SCREENS
V e h i c l e c o n fi g u r a t i o n
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home lighting (refer to the "Visibility" section),
- parking sensors (refer to the "Driving" section).
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty). D i s p l a y s e t t i n g s
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to save the
change and return to the normal
display or press the "ESC" button
to cancel. L a n g u a g e s
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
-
fuel consumption (l/100 km, mpg or km/l).
Once the fuel consumption units
have been set to mpg, the infor-
mation in the instrument panel
screen on speed and distance
will also be in mph and miles.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
by the driver of the multifunction
screen must only be done when
stationary.
Page 40 of 235
2
MULTIFUNCTION SCREENS
MONOCHROME SCREEN C
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB port, jack socket etc.),
- trip computer (refer to the "Instruments and controls" section).
Warning messages (E.g. "Emisions
control system faulty") or information
messages (E.g.: Automatic headlamps
active") may appear temporarily. These
can be cleared by pressing the "ESC"
button. Controls
From your Audio system control panel,
you can:
press the "MENU" button to gain
access to the main menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Main menu
Press the "MENU" button to gain
access to the main menu :
- audio functions,
- the trip computer,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
"Audio functions" menu
With the Audio system switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) , t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat) or the MP3 player (USB
port/jack socket).
For more information on the "Audio
functions" application, refer to the
Audio system part of the "Audio and
Telematics" section.
