ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle’s V5 registration do cument and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and the remote co ntrol would have
to be reinitialised. The remote control does not operate wh en the key is in the
ignition, even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.
Page 52 of 204
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l i g h t s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key
First press button A to fold the key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Page 53 of 204
!
53
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle’s V5 registration do cument and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and the remote co ntrol would have
to be reinitialised. The remote control does not operate wh en the key is in the
ignition, even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.
Page 54 of 204
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l i g h t s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key
First press button A to fold the key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Page 55 of 204
i
i
52
ACCESS Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote control
battery or in the event of a remote control
malfunction, you can no longer unlock,
lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e
informed by lighting of this
warning light, an audible
signal and a message on
the multifunction display.
This replacement battery is available
from CITROËN dealers.
Key reminder
If the key is left in the ignition
switch, an audible signal sounds
when the driver’s door is opened.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
Page 56 of 204
i
i
i
54
ACCESS
WINDOW MECHANISMS
System which opens or closes a window
m a n u a l l y o r a u t o m a t i c a l l y . I t i s fi t t e d w i t h
a system which provides protection if an
obstacle is detected on the one-touch
models and a deactivation system to
prevent misuse of the rear switches on
all models.
1. Driver’s electric window switch.
2.
Passenger’s electric window switch.
3. Rear right electric window switch.
4. Rear left electric window switch.
5. Disarming of the rear electric
window and door switches. In the event of unwanted opening
of the window on closing (for exam-
ple in the presence of frost):
press the switch until it opens
completely,
then pull it immediately until it
closes,
continue to hold the switch for
approximately one second after
the window has closed.
The safety auto-reverse function
is not active during these opera-
tions.
Safety auto-reverse
The one-touch electric windows are
fi t t e d w i t h a s a f e t y a u t o - r e v e r s e f u n c -
tion.
When the window rises and meets an
obstacle, it stops and partially lowers
again.
The electric window switches
remain operational for approxi-
mately 45 seconds after the igni-
tion is switched off or until a front
door is opened.
Electric windows
Press or pull the switch.
The window stops as soon
as the switch is released.
One-touch electric windows
There are two methods
of operation:
- manual mode
Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode
Press or pull the switch fully.
The window opens or closes
completely when the switch is re-
leased.
Pressing the switch again stops
the movement of the window. The electric window switches re-
main operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.
Page 57 of 204
!
i
55
ACCESS

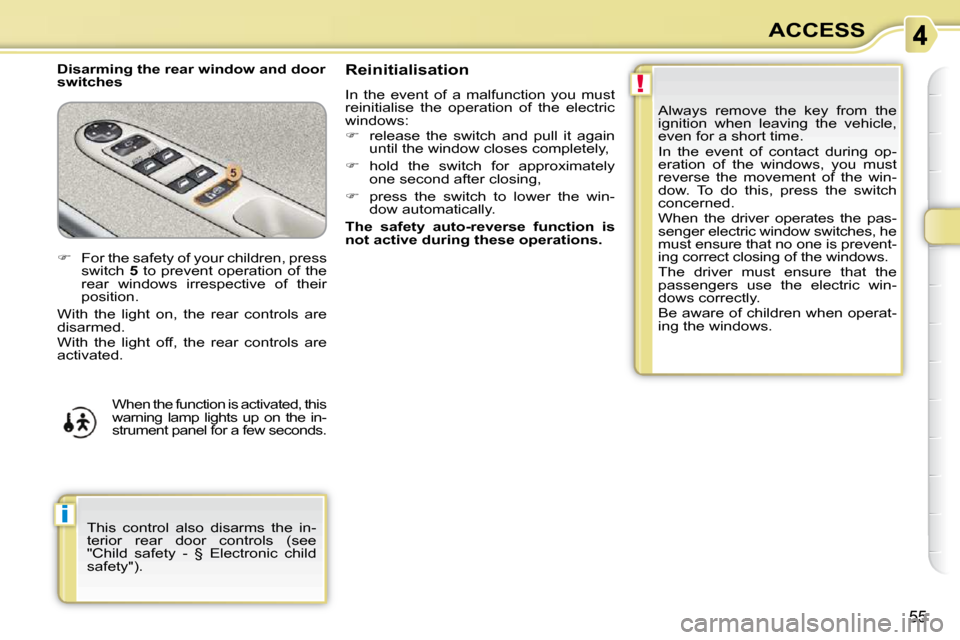

Disarming the rear window and door
switches Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Reinitialisation
In the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing,
press the switch to lower the win-
dow automatically.
The safety auto-reverse function is
not active during these operations.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
With the light on, the rear controls are
disarmed.
With the light off, the rear controls are
activated.
When the function is activated, this
warning lamp lights up on the in-
strument panel for a few seconds.
This control also disarms the in-
terior rear door controls (see
"Child safety - § Electronic child
safety").
Page 58 of 204
56
ACCESS
DOORS
After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside
Pull on the front door control to open
the door; this unlocks the vehicle
completely.
Pull on the rear door control to open
the door; this unlocks the door con-
cerned only. Closing
When a door is not closed correctly:
- when the engine is run-
ning, this warning light
comes on, accompanied
by a message on the mul-
tifunction display for a few
seconds,
-
when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning light comes on, accompanied
by an audible signal and a message
on the multifunction display for a few
seconds.
Opening
From outside
Page 59 of 204
!
i
i
57
ACCESS
If the vehicle is locked from the out-
s i d e , t h e r e d i n d i c a t o r l i g h t fl a s h e s
and button A is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors is open, the au-
tomatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is
active.
Manual centralised
control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
Press button A to lock the vehicle.
The red indicator light on the button
comes on. Automatic centralised
control
System which provides full automatic
locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this function.
Activation
Press button A for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction display, accompanied by
an audible signal.
Unlocking
Above 6 mph (10 km/h), press but-
ton A to unlock the doors and the
boot temporarily.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
Unlocking
Press button A again to unlock the
vehicle.
The red indicator light on the button
switches off. Locking
When the speed exceeds 6 mph
(10 km/h), the doors and the boot lock
automatically.
Deactivation
Press button A again for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction display, accompanied by
an audible signal.
Page 60 of 204
58
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the
central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is run-
ning, this warning light
comes on, accompanied
by a message on the mul-
tifunction display for a few
seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver’s door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver’s door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
