FAMILIARISATION EXTERIOR
Guide-me-home lighting
After switching off the ignition, the front
l i g h t s r e m a i n o n b r i e fl y t o m a k e y o u r e x i t
from the vehicle easier when the light is
poor.
63, 64
ASR and ESP systems
T h e s e s y s t e m s a r e l i n k e d t o g u a r a n t e e
t h e d i r e c t i o n a l s t a b i l i t y o f t h e v e h i c l e
w i t h i n t h e l i m i t s o f t h e l a w s o f p h y s i c s .
90 Glass panoramic roof
T h i s r o o f p r o v i d e s i n c o m p a r a b l e v i s i b i -
l i t y a n d l i g h t i n t h e p a s s e n g e r c o m p a r t -
ment.
59
Audible and/or visual rear parking
assistance
T h i s e q u i p m e n t w a r n s y o u i f a n o b s t a -
c l e i s d e t e c t e d b e h i n d t h e v e h i c l e w h e n
reversing.
104
Page 17 of 204
!
20
INSTRUMENTS and CONTROLS
Deactivation warning lights
If one of the following warning lights
c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -
sponding system has been switched off
intentionally. Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n t r e
of the dashboard, permits deactivation
o f t h e s y s t e m . T h i s i s c o n fi r m e d b y c o n -
tinuous lighting of this warning lamp and
of the indicator lamp on the button.
From approximately 30 mph (50km/h),
the system is reactivated automatically.
Passenger’s air bag system
deactivation
The passenger’s air bag system
is put into service automatically
when the vehicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d o n
the driver’s side of the fascia, permits
deactivation of the system. This is con-
fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning light on the instrument panel or
on the seat belt and passenger’s front
air bag warning lights display.
Do not install a "rearwards facing"
child seat when the front passenger
airbag is activated, or the child risks
being killed or seriously injured. When the front passenger air-
bag is activated, this warning
light comes on on the instru-
ment panel or in the front pas-
senger seat belt and airbag
warning light display for about
a minute.
Page 18 of 204
!
!
21
INSTRUMENTS and CONTROLS
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lights indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.
Central alert.
Lighting is associated with
the displaying of another
warning light:
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle as soon as it is safe to
do so. Service.
If this comes on, it indicates
the occurrence of a problem
in one of the systems which
d o e s n o t h a v e a s p e c i fi c
warning light.
In order to identify it, consult the mes-
sage on the multifunction display.
Check:
- the engine oil level,
- t h e s c r e e n w a s h fl u i d l e v e l ,
- the remote control battery,
- the condition of the bulbs.
For any other situations, contact a
CITROËN dealer.
The illumination of this warning light
may also indicate that the (Diesel) par-
t i c l e fi l t e r i s s t a r t i n g t o g e t c l o g g e d u p ,
d u e t o s p e c i fi c e x t e n d e d u r b a n d r i v i n g
conditions: low speed, congestion, etc.
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u a r e
a d v i s e d t o d r i v e , o n c e t r a f fi c c o n d i t i o n s
allow, at a speed of 40 mph (60 km/h)
or above for at least 5 minutes (until the
warning light goes out). Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e c i r - cuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light),
stop the vehicle as soon as it is safe to
do so.
When the vehicle is moving, check that
the handbrake is fully released.
Any fault resulting in the displaying
of a warning light must be the sub-
ject of further diagnostics by read-
ing the associated message on the
multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Warning lights
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning light and the indicator light
on the button come on continuously, this
indicates the occurrence of a fault in the
ESP/ASR system.
If the warning light remains on,
contact your CITROËN dealer.
Page 25 of 204
!
i
28
MULTIFUNCTION DISPLAYS Once the fuel consumption unit has
been changed to l/100km or km/l,
the information relating to speed
and distance also changes to kilo-
metres.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to record the
change and return to the normal dis-
play or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
For safety reasons, it is impera-
t i v e t h a t c o n fi g u r a t i o n o f t h e m u l -
tifunction displays by the driver
takes place when stationary.
Page 27 of 204
i
i
!
!
30
MULTIFUNCTION DISPLAYS
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100km, mpg or km/l). Displays on MyWay system
colour screen
"SETUP" menu
Date and time
This menu allows you to adjust the date
and time, and their format (refer to the
"Audio and telematics section").
Display
This menu allows you to adjust the
brightness of the display, the display
contrast and the colour of the map (day/
night and auto mode).
System parameters
This menu allows you to restore the fac-
tory settings, to display the software ver-
sion and to activate the scrolling texts.
This displays the following information:
- time,
- date,
- audio functions,
- guidance system information.
The chosen language will also be
used on the MyWay system colour
screen.
Once the fuel consumption unit
has been changed to l/100km or
km/l, the information relating to
speed and distance also changes
to kilometres.
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary. For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Press the SETUP button to access the
"SETUP" menu. It gives you access to
the following functions:
- Date and time,
- Display,
- System parameters.
Page 38 of 204
ii
41
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
t h e a i r fl o w w i l l r e a c h i t s o p t i m u m
level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only.
On entering the vehicle, if the
interior temperature is much colder
or warmer than the comfort value,
there is no need to change the value
displayed in order to obtain the com-
fort required. The system corrects
the difference in temperature auto-
matically and as quickly as possible.
The air conditioning only operates when
the engine is running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right
setting difference of more than 3. 4. Automatic visibility programme
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or de-ice the
windscreen and side windows
(humidity, several passen-
gers, ice, etc.).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
Press the "AUTO" button.
The indicator light on the
button comes on. 2 . D r i v e r ’ s s i d e a d j u s t m e n t
DUAL ZONE AUTOMATIC AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised
adjustment of all of the functions, pas-
senger compartment temperature, air
fl o w , a i r d i s t r i b u t i o n a n d a i r r e c i r c u l a -
tion, in accordance with the comfort
value that you have chosen.
This system is designed to operate
effectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator light on the but-
ton switches off and the indicator
light on the "AUTO" button comes on.
1. Automatic comfort programme
3 . P a s s e n g e r s i d e a d j u s t m e n t
Page 45 of 204
i
i
i
47
COMFORT
Fully-folded position F l a p s b e h i n d t h e b e n c h s e a t
Move the corresponding front seat
forward if necessary.
Place the head restraints in the low
position.
Pull control A , to release the seat
back which folds easily onto the
seat cushion.
This manoeuvre is accompanied by an
automatic recoil of the seat cushion.
T h e b e n c h s e a t fi t s i n t o t h e fl o o r t h e r e b y
p r o v i d i n g a d d i t i o n a l fl a t fl o o r s p a c e .
To put the seat back in position once
again:
Move the seat back backwards until
it locks in place.
Position the seat cushion as re-
quired. Flaps
B a f fi x e d t o t h e b a c k o f t h e b e n c h -
seat enable the boot to be closed when
the benchseat is in the forward position.
P u l l o n t h e u p p e r s e c t i o n o f t h e fl a p s t o
release them.
T h e y t h e r e b y a l l o w t h e fl o o r s p a c e t o b e
fl a t .

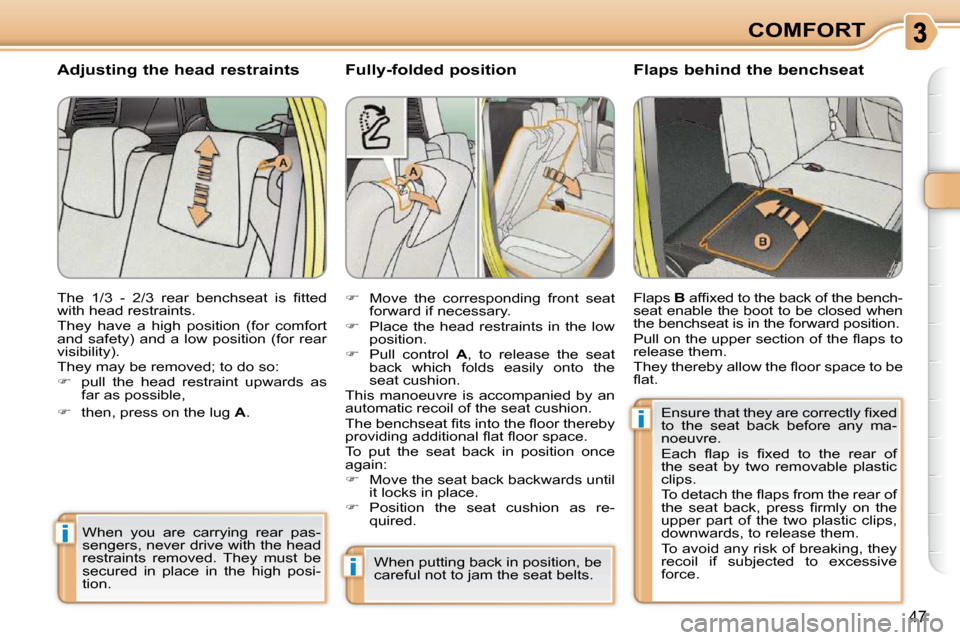

A d j u s t i n g t h e h e a d r e s t r a i n t s
T h e 1 / 3 - 2 / 3 r e a r b e n c h s e a t i s fi t t e d
with head restraints.
They have a high position (for comfort
and safety) and a low position (for rear
visibility).
They may be removed; to do so:
pull the head restraint upwards as
far as possible,
then, press on the lug A .
When you are carrying rear pas-
sengers, never drive with the head
restraints removed. They must be
secured in place in the high posi-
tion. When putting back in position, be
careful not to jam the seat belts. E n s u r e t h a t t h e y a r e c o r r e c t l y fi x e d
to the seat back before any ma-
noeuvre.
E a c h fl a p i s fi x e d t o t h e r e a r o f
the seat by two removable plastic
clips.
T o d e t a c h t h e fl a p s f r o m t h e r e a r o f
t h e s e a t b a c k , p r e s s fi r m l y o n t h e
upper part of the two plastic clips,
downwards, to release them.
To avoid any risk of breaking, they
recoil if subjected to excessive
force.
Page 46 of 204
i
!i
48
COMFORT The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from behind.

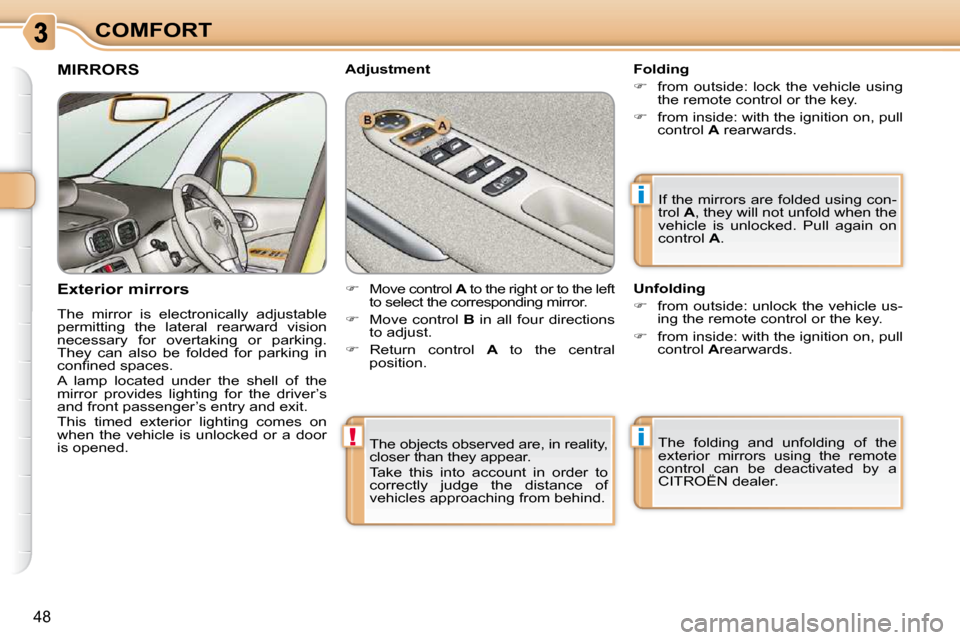

MIRRORS
Exterior mirrors
The mirror is electronically adjustable
permitting the lateral rearward vision
necessary for overtaking or parking.
They can also be folded for parking in
c o n fi n e d s p a c e s .
A lamp located under the shell of the
mirror provides lighting for the driver’s
and front passenger’s entry and exit.
This timed exterior lighting comes on
when the vehicle is unlocked or a door
is opened. Folding
from outside: lock the vehicle using
the remote control or the key.
from inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
A d j u s t m e n t
Unfolding
from outside: unlock the vehicle us-
ing the remote control or the key.
from inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Move control A to the right or to the left
to select the corresponding mirror.
Move control B in all four directions
to adjust.
Return control A to the central
position.
Page 57 of 204
!
i
55
ACCESS
Disarming the rear window and door
switches Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Reinitialisation
In the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing,
press the switch to lower the win-
dow automatically.
The safety auto-reverse function is
not active during these operations.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
With the light on, the rear controls are
disarmed.
With the light off, the rear controls are
activated.
When the function is activated, this
warning lamp lights up on the in-
strument panel for a few seconds.
This control also disarms the in-
terior rear door controls (see
"Child safety - § Electronic child
safety").
Page 64 of 204
61
VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lights providing
the vehicle's lighting.
Main lighting
The various front and rear lights of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- side lights, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l i g h t s a r e i n s t a l l e d t o f u l fi l t h e r e -
quirements of particular visibility condi-
tions:
- a rear fog lamp,
- front fog lamps.
Programming
Various automatic lighting control
modes are also available according to
the following options:
- guide-me-home lighting,
- automatic lighting. Model without AUTO lighting
Model with AUTO lighting
automatic switching on of
the lamps,
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the
ring
A and the stalk B .
A. main lighting mode selection ring,
with:
lamps off,
sidelamps only,
B. stalk for switching headlamps by pull-
ing: dipped headlamps/main beam
headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e
stalk. dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the selective switching on of the lighting
selected.
