COMFORT When the engine is cold, to prevent
too great a distribution of cold air,
t h e a i r fl o w w i l l r e a c h i t s o p t i m u m
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the inte-
rior temperature is much colder or
warmer than the comfort value, there
is no need to change the value dis-
played in order to obtain the comfort
required. The system corrects the
difference in temperature automati-
cally and as quickly as possible.
The air conditioning only operates when
the engine is running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right
setting difference of more than 3. 4 . A u t o m a t i c v i s i b i l i t y p r o g r a m m e
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
A u t o m a t i c o p e r a t i o n
Press the "AUTO" button.
The indicator lamp on the
button comes on. 2 . D r i v e r ' s s i d e a d j u s t m e n t
D U A L - Z O N E D I G I T A L A I R CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the " v i s i b i l i t y "
button again or press the "AUTO"
button, the indicator lamp on the but-
ton switches off and the indicator lamp
on the "AUTO" button comes on.
1 . A u t o m a t i c c o m f o r t p r o g r a m m e
3 . P a s s e n g e r s i d e a d j u s t m e n t
Page 32 of 198
i
!
45
COMFORT
Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automatically.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press one or more buttons
t o d i r e c t t h e a i r fl o w t o -
wards:
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
8. Air intake/Air recirculation S w i t c h i n g t h e s y s t e m o f f
T u r n t h e a i r fl o w c o n t r o l t o t h e l e f t u n t i l
all of the indicator lamps switch off.
This action switches off the air condi-
tioning and the ventilation.
Temperature related comfort is no lon-
g e r g u a r a n t e e d b u t a s l i g h t fl o w o f a i r ,
due to the movement of the vehicle, can
still be felt.
T u r n t h e a i r fl o w d i a l t o t h e r i g h t o r
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
Press this button for recir-
culation of the interior air.
The indicator lamp on the
button comes on.
5. Air conditioning On/Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and deterio-
ration of the air quality).
- the windscreen and side windows
(demisting or defrosting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l a m p s , b e t w e e n
the two fans, come on progressively in
relation to the value requested.
As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent the formation
of condensation. The indicator lamp
on the button switches off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.
Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9 . M o n o - z o n e / D u a l - z o n e
Press this button to equalise
the comfort value on the
passenger side with that
on the driver's side (mono
zone). The indicator lamp
on the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp on the
"A/C" button comes on.
Page 33 of 198
i
i
!
46
COMFORT As a safety precaution, do not car-
ry out any action on the cartridge
while driving.
Do not dismantle the cartridges.
D o n o t a t t e m p t t o r e fi l l t h e f r a g r a n c e
diffuser or the cartridges.
Avoid all contact with the skin and
eyes.
Keep out of reach of children and
animals.
Leave the central vents open.
The intensity of diffusion of the fra-
grance may depend on the ventila-
tion or air conditioning settings.
SCENTED AIR FRESHENER
System permitting the diffusion of a fra-
grance in the passenger compartment
in accordance with your requirements,
by means of the adjustment dial and the
various fragrance cartridges available.
Fitting the cartridge
Remove the cartridge from the
sealing case.
I n s t a l l t h e c a r t r i d g e ( fl o w e r a t t o p
right).
Press the dial and turn it a quarter of
a turn clockwise.
A d j u s t m e n t d i a l
This dial is located on the dashboard or
in the upper glove box.
It allows you to adjust the intensity of
diffusion of the fragrance.
Turn the dial to the right to permit
diffusion of the fragrance.
Turn the dial to the left to stop diffu-
sion of the fragrance. Fragrance cartridge
This cartridge can be removed easily.
You can change it at any time and store
it in the sealed case which keeps it
closed once it has been opened.
You can obtain different fragrance
cartridges from CITROËN dealers.
R e m o v i n g t h e c a r t r i d g e
Press the dial and turn it a quarter of
a turn anti-clockwise.
Remove the cartridge.
R e fi t i t s s e a l i n g c a s e .
Do not discard the original cartridge
as this serves as a plug when no
fragrance cartridge is in use.
In order to preserve the service
life of the cartridge, turn the dial to
the left when you no longer wish to
diffuse the fragrance in the passen-
ger compartment.
Page 34 of 198
47
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort. D r i v e r ' s s e a t h e i g h t a d j u s t m e n t S e a t b a c k a n g l e a d j u s t m e n t
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Raise the control bar and slide the
seat forwards or backwards.
Pull the control lever upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.
Push the control rearwards.
Page 35 of 198
!
48
COMFORT
Press the control located under the
front end of the armrest to release it.
Move it to the low position.
Raise it notch by notch to reach the
desired position.
To place the armrest in the vertical position,
raise it and push it backwards beyond the
point of resistance.

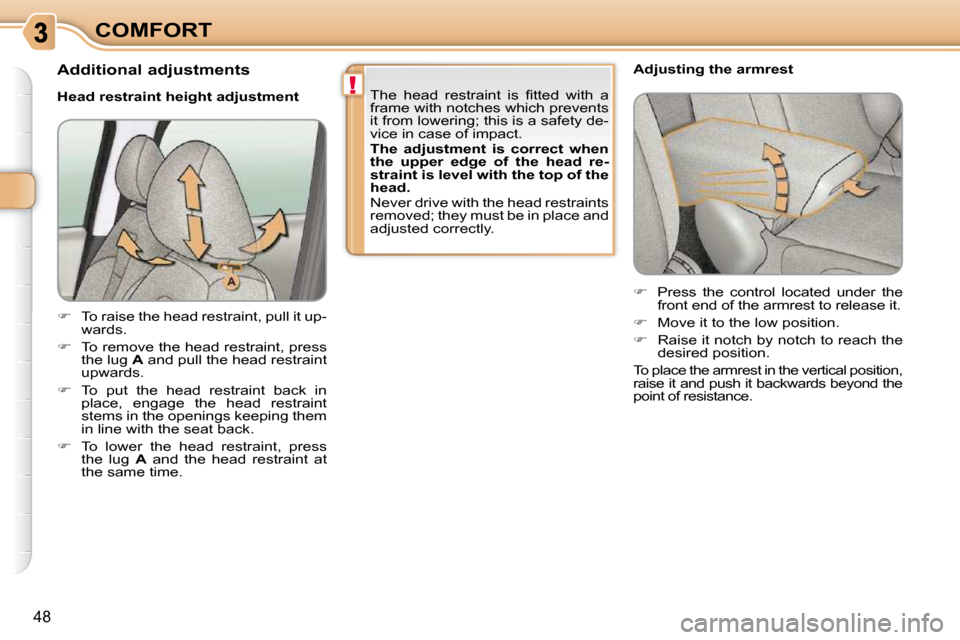

H e a d r e s t r a i n t h e i g h t a d j u s t m e n t
To raise the head restraint, pull it up-
wards.
To remove the head restraint, press
the lug A and pull the head restraint
upwards.
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
To lower the head restraint, press
the lug A and the head restraint at
the same time. T h e h e a d r e s t r a i n t i s fi t t e d w i t h a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.
T h e a d j u s t m e n t i s c o r r e c t w h e n
t h e u p p e r e d g e o f t h e h e a d r e -
s t r a i n t i s l e v e l w i t h t h e t o p o f t h e
head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
A d j u s t i n g t h e a r m r e s t
A d d i t i o n a l a d j u s t m e n t s
Page 36 of 198
!
COMFORT

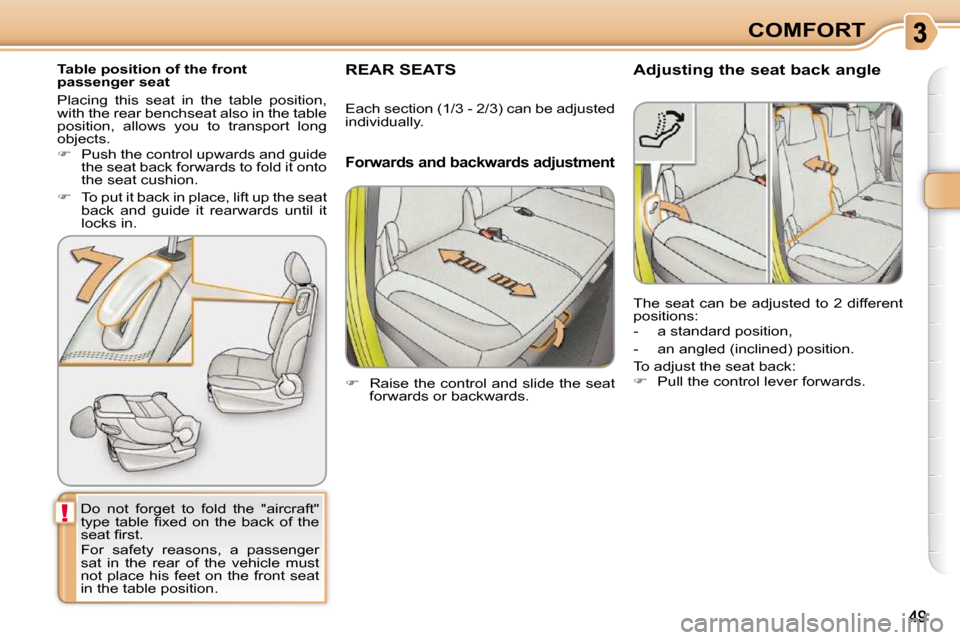

Table position of the front passenger seat
D o n o t f o r g e t t o f o l d t h e " a i r c r a f t "
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
For safety reasons, a passenger
sat in the rear of the vehicle must
not place his feet on the front seat
in the table position.
Placing this seat in the table position,
with the rear benchseat also in the table
position, allows you to transport long
objects.
Push the control upwards and guide
the seat back forwards to fold it onto
the seat cushion.
To put it back in place, lift up the seat
back and guide it rearwards until it
locks in.
REAR SEATS
F o r w a r d s a n d b a c k w a r d s a d j u s t m e n t
A d j u s t i n g t h e s e a t b a c k a n g l e
Raise the control and slide the seat
forwards or backwards.
Each section (1/3 - 2/3) can be adjusted
individually.
The seat can be adjusted to 2 different
positions:
- a standard position,
- an angled (inclined) position.
To adjust the seat back:
Pull the control lever forwards.
Page 37 of 198
!
COMFORT
Table position of the front passenger seat
D o n o t f o r g e t t o f o l d t h e " a i r c r a f t "
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
For safety reasons, a passenger
sat in the rear of the vehicle must
not place his feet on the front seat
in the table position.
Placing this seat in the table position,
with the rear benchseat also in the table
position, allows you to transport long
objects.
Push the control upwards and guide
the seat back forwards to fold it onto
the seat cushion.
To put it back in place, lift up the seat
back and guide it rearwards until it
locks in.
REAR SEATS
F o r w a r d s a n d b a c k w a r d s a d j u s t m e n t
A d j u s t i n g t h e s e a t b a c k a n g l e
Raise the control and slide the seat
forwards or backwards.
Each section (1/3 - 2/3) can be adjusted
individually.
The seat can be adjusted to 2 different
positions:
- a standard position,
- an angled (inclined) position.
To adjust the seat back:
Pull the control lever forwards.
Page 38 of 198
i
i
i
50
COMFORT F u l l y - f o l d e d p o s i t i o n Flaps behind the rear seats
Move the corresponding front seat
forward if necessary.
Place the head restraints in the low
position.
Pull control A , to release the seat
back which folds easily onto the
seat cushion.
This manoeuvre automatically retracts the seat cushion.
T h e s e a t fi t s i n t o t h e fl o o r , p r o v i d i n g a
c o n t i n u o u s l e v e l fl o o r .
To put the seat back in position:
Pull the seat back backwards until it
locks in place.
Return the seat cushion to the de-
sired position. Flaps
B fi t t e d t o t h e b a c k o f t h e r e a r
s e a t c l o s e t h e b o o t fl o o r w h e n t h e r e a r
seats are in the forward position.
P u l l o n t h e u p p e r s e c t i o n o f t h e fl a p s t o
release them.
They then provide a continuous level
fl o o r .
A d j u s t i n g t h e h e a d r e s t r a i n t s
T h e 1 / 3 - 2 / 3 r e a r s e a t i s fi t t e d w i t h h e a d
restraints.
They have a high position (for comfort
and safety) and a low position (for rear
visibility).
They may be removed, as follows:
pull the head restraint upwards as
far as possible,
then, press on the lug A .
When you are carrying rear pas-
sengers, never drive with the head
restraints removed. They must be
secured in place in the high position. When putting back in position,
take care not to jam the seat
belts. E n s u r e t h a t t h e y a r e c o r r e c t l y fi x e d
to the seat back before any ma-
noeuvre.
E a c h fl a p i s fi x e d t o t h e r e a r o f
the seat by two removable plastic
clips.
T o d e t a c h t h e fl a p s f r o m t h e r e a r
o f t h e s e a t b a c k , p r e s s fi r m l y d o w n
on the upper part of the two plastic
clips to release them.
To avoid risk of breakage, they dis-
engage if subjected to excessive
force.
Page 39 of 198
i
!i
51
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
MIRRORS
D o o r m i r r o r s
The mirror is electrically adjustable per-
mitting the lateral rearward vision neces-
sary for overtaking or parking. They can
a l s o b e f o l d e d f o r p a r k i n g i n c o n fi n e d
spaces.
A lamp located under the shell of the
mirror provides lighting for the driver's
and front passenger's entry and exit.
This timed exterior lighting comes on
when the vehicle is unlocked or a door
is opened. Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Never fold or unfold the electric
folding mirrors manually.
A d j u s t m e n t
Unfolding
From outside: unlock the vehicle
using the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Move control A to the right or to
the left to select the corresponding
mirror.
Move control B in all four directions
to adjust.
Return control A to the central posi-
tion.
Page 40 of 198
!
!
52
COMFORT
A d j u s t m e n t
Adjust the mirror so that the glass is
d i r e c t e d c o r r e c t l y i n t h e " d a y " p o s i -
tion.
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e a n t i -
dazzle device.
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the normal
" d a y " p o s i t i o n .

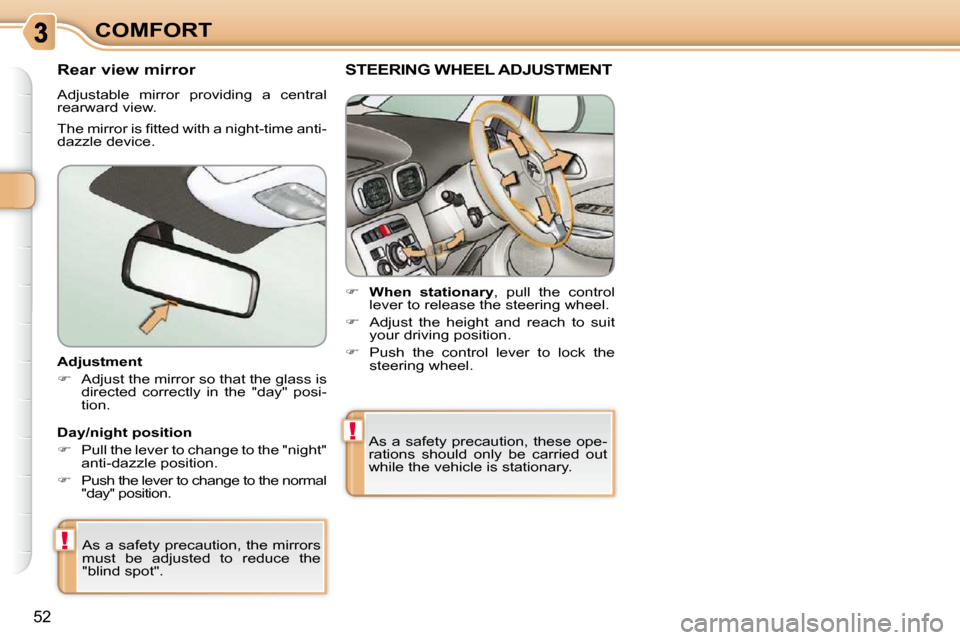

R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.
