Height adjustment
Seat belt not fastened/unfastened
warning lamp
Fastening

 Pull the strap, then insert the tongue
in the buckle.

 Check that the seat belt is fastened
correctly by pulling the strap.
 To lower the attachment point,
squeeze the control A and slide it
downwards.

 To raise the attachment point, slide
the control A upwards.
When the ignition is switched
on, this warning lamp comes on,
either on the instrument panel
or on the seat belt and passen-
ger’s front airbag warning lamp display,
if the driver and/or the front passenger
has not fastened their seat belt.
From approximately 12 mph (20 km/h)
this warning lamp fl ashes for two min-
utes accompanied by an audible signal.
Once these two minutes have elapsed,
this warning lamp remains on until the
driver and/or the front passenger fas-
tens their seat belt.
Unfastening

 Press the red button on the buckle.

 Guide the seat belt as it rolls up. SEAT BELTS
Front seat belts
The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact.
Depending on the severity of the im-
pact, the pretensioning system instantly
tightens the seat belts against the body
of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure of
the seat belt on the chest of the occupant,
so improving their protection.

96

1. Front and/or rear seat belts not
fastened/unfastened warning lamp.

2. Front left seat belt warning lamp.

3. Front right seat belt warning lamp.

4. Rear right seat belt warning lamp.

5. Rear centre seat belt warning lamp.

6. Rear left seat belt warning lamp.
Seat belt not fastened/unfastened
warning lamp display
Rear seat belts
The rear seats are each fi tted with a
three-point inertia reel seat belt with
force limiter (with the exception of the
rear centre seat).
Locking
When the rear side side belts are not
being used, you can lock them in place.
To do so:


Raise the grip A to its maximum height.
Fastening

 Pull the strap, then insert the tongue
in the buckle.

 Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening

 Press the red button on the buckle.

 Guide the seat belt as it rolls up.
The corresponding warning lamp 2 or 3
comes on in red on the seat belt and
passenger’s front airbag warning lamp
display if the seat belt is not fastened or
is unfastened. Seat belt unfastened warning lamp
This warning lamp comes on, ei-
ther on the instrument panel or on
the seat belt and passenger’s front
airbag warning lamp display, when
one or more rear passengers unfasten their
seat belt.
From approximately 12 mph (20 km/h), this
warning lamp fl ashes for two minutes accom-
panied by an audible signal of increasing vol-
ume. Once these two minutes have elapsed,
this warning lamp remains on until the one or
more rear passengers fasten their seat belt.
Seat belt unfastened warning lamp
display
When the ignition is switched on, the corre-
sponding warning lamps 4 , 5 and 6 come
on in red for approximately 30 seconds, if
the seat belt is not fastened.
When the engine is running or the vehi-
cle is moving, the corresponding warning
lamp 4 , 5 or 6 comes on in red, accompa-
nied by an audible signal and a message
on the multifunction screen, if a rear pas-
senger has unfastened their seat belt.

i
98
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
they will not fulfi l their role fully.
The seat belts are fi tted with an in-
ertia reel permitting automatic adjust-
ment of the length of the strap to your
size. The seat belt is stored automat-
ically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling fi rmly on the strap
and releasing it so that it re-winds
slightly. In order to be effective, a seat belt
must:
- be tightened as close to the body
as possible,
- be pulled in front of you with a smooth movement, checking that
it does not twist,
-
be used to restrain only one person,
- not bear any trace of cuts or fra- ying,
- not be converted or modifi ed to avoid affecting its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a CITROËN dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly. Recommendations for children
Use a suitable child seat if the passen-
ger is less than 12 years old or shorter
than one and a half metres.
Never use the same seat belt to secure
more than one person.
Never allow a child to travel on your lap.
In the event of an impact

Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air-
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer.

!
!
100
If at least one of the two airbag
warning lamps come on continu-
ously, do not install a child seat on
the front passenger seat.
Have the system checked by a
CITROËN dealer.
Operating fault If this warning lamp comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
screen, contact a CITROËN dealer to
have the system checked. The airbags
may no longer be triggered in the event
of a serious impact.
Reactivation
When you remove the child seat, turn
switch
1 to the "ON" position to reacti-
vate the airbag and so assure the safety
of your front passenger in the event of
an impact.
With the ignition on, this warn-
ing lamp comes on on the in-
strument panel or on the seat
belt and passenger’s front air-
bag warning lamp display for approxi-
mately one minute, if the passenger’s
front airbag is activated. To assure the safety of your child, it
is imperative that the passenger’s
front airbag is deactivated when
you install a "rearwards-facing"
child seat on the front passenger
seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were triggered.
According to version, this warn-
ing lamp comes on either on
the instrument panel or on the
seat belt and passenger’s front
airbag warning lamp display when the
ignition is on and until the airbag is re-
activated. If this warning lamp fl ashes,
contact a CITROËN dealer.
The passenger’s front airbag
may no longer be triggered in
the event of a serious impact.
Deactivation
Only the passenger’s front airbag can
be deactivated:

 with the ignition off , insert the key
in the passenger air bag disarming
switch 1 ,

 turn it to the "OFF" position,

 then, remove the key keeping the
switch in this position.

!
101
Lateral airbags
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the chest.
Each lateral airbag is built into the seat
backrest frame, door side.
Activation
The lateral airbags are triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
Curtain airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the side of the head.
Each curtain airbag is built into the pillars
and the upper passenger compartment
area. Operating fault
Activation
The curtain airbag is triggered at the
same time as the corresponding later-
al airbag in the event of a serious side
impact applied to all or part of the side
impact zone
B , perpendicular to the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
outside towards the inside of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
In the event of a rear or front colli-
sion, the airbag is not triggered.
Impact detection zones

A. Front impact zone.

B. Side impact zone. If this warning lamp comes on
on the instrument panel, accom-
panied by an audible signal and
a message on the multifunction
screen, contact a CITROËN dealer to
have the system checked. The airbags
may no longer be triggered in the event
of a serious impact.
The lateral airbag infl ates between the
front occupant of the vehicle and the
corresponding door trim panel.

!
103
DRIVING
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and engage
a gear.

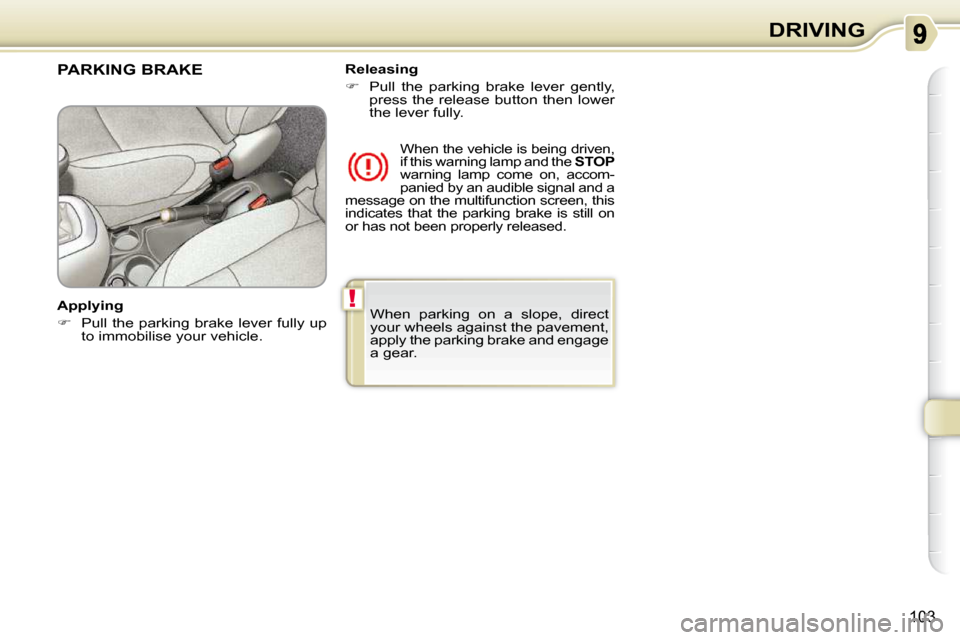

PARKING BRAKE
Applying

 Pull the parking brake lever fully up
to immobilise your vehicle.
When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accom-
panied by an audible signal and a
message on the multifunction screen, this
indicates that the parking brake is still on
or has not been properly released.
Releasing

 Pull the parking brake lever gently,
press the release button then lower
the lever fully.

i
i
109
DRIVING
Deactivation
The system will be deactivated au-
tomatically when towing a trailer
or when a bicycle carrier is fi tted
(vehicle fi tted with a towbar or bi-
cycle carrier recommended by
CITROËN). Reactivation
Press button
A again to reactivate the
system. The indicator lamp on the but-
ton is switched off.
If there is an operating fault, when re-
verse gear is engaged, the service
warning lamp comes on, accompanied
by an audible signal (short beep) and a
message on the multifunction screen.
With the engine running, press button A to
deactivate the system permanently. The
indicator lamp on the button comes on. In bad or wintry weather, ensure
that the sensors are not covered
with mud, frost or snow.

10
i!
115
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN dealer
(France) or an authorised waste
disposal site.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a CITROËN dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
CITROËN dealer without delay.
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
CITROËN dealer.

10
i!
115
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN dealer
(France) or an authorised waste
disposal site.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a CITROËN dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
CITROËN dealer without delay.
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
CITROËN dealer.

132
PRACTICAL INFORMATION
Fuse N° Rating Functions

F8 20 A Multifunction screen, audio system, navigation radio.

F9 30 A Audio system (fi tted as an option), 12 V socket.

F10 15 A Steering mounted controls.

F11 15 A Ignition, diagnostic socket.

F12 15 A Rain/brightness sensor, trailer relay unit.

F13 5 A Main stop switch, engine relay unit.

F14 15 A Parking sensor control unit, seat belt unfastened
warning lamp, airbag control unit, instrument panel,
air conditioning, USB Box.

F15 30 A Locking.

F16 - Not used.

F17 40 A Rear screen and exterior mirrors demist/defrost.

SH - PARC shunt.
