FAMILIARISATION EXTERIOR
Guide-me-home lighting
After the ignition has been switched off,
t h e f r o n t l i g h t s r e m a i n o n b r i e fl y t o m a k e
y o u r e x i t f r o m t h e v e h i c l e e a s i e r w h e n
the light is poor.
65, 66
ASR and ESP systems
T h e s e s y s t e m s a r e l i n k e d t o g u a r a n t e e
t h e d i r e c t i o n a l s t a b i l i t y o f t h e v e h i c l e ,
w i t h i n t h e l i m i t s o f t h e l a w s o f p h y s i c s .
92 Glass panoramic roof
T h i s r o o f p r o v i d e s i n c o m p a r a b l e v i s i b i l i t y
and light in the passenger compartment.
61
Audible and/or visual rear parking
assistance
T h i s e q u i p m e n t w a r n s y o u i f a n o b s t a -
c l e i s d e t e c t e d b e h i n d t h e v e h i c l e w h e n
r e v e r s i n g .
106
Page 5 of 207
FAMILIARISATION INSTRUMENTS AND CONTROLS
1. C r u i s e c o n t r o l / s p e e d l i m i t e r s w i t c h .
2. S t e e r i n g w h e e l a d j u s t m e n t c o n t r o l .
3. Lights and direction indicators
controls.
4. I n s t r u m e n t p a n e l .
5. D r i v e r ' s a i r b a g .
Horn.
6. G e a r l e v e r .
7. Bonnet release.
8. E x t e r i o r m i r r o r c o n t r o l s .
Electric window controls.
Rear electric windows and doors d e a c t i v a t i o n c o n t r o l .
9. F u s e b o x .
10. M a n u a l h e a d l a m p h e i g h t
a d j u s t m e n t .
11. F r o n t s i d e w i n d o w d e m i s t i n g v e n t .
12. S p e a k e r ( t w e e t e r ) .
13. W i n d s c r e e n d e m i s t i n g v e n t .
Page 6 of 207
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. S t e e r i n g l o c k a n d i g n i t i o n .
2. A u d i o e q u i p m e n t s t e e r i n g w h e e l
control.
3. W i p e r s / w a s h - w i p e / t r i p c o m p u t e r
controls.
4. C e n t r a l a d j u s t a b l e a n d c l o s i n g
v e n t s .
5. S t o r a g e t r a y .
F r a g r a n c e d i f f u s e r .
6. S u n s h i n e s e n s o r .
7. P a s s e n g e r a i r b a g .
8. S i d e a d j u s t a b l e a n d c l o s i n g v e n t .
9. P a s s e n g e r a i r b a g d i s a r m i n g .
10. G l o v e b o x .
11. D y n a m i c s t a b i l i t y c o n t r o l ( E S P /
A S R ) b u t t o n .
P a r k i n g a s s i s t a n c e b u t t o n .
C e n t r a l l o c k i n g b u t t o n .
H a z a r d w a r n i n g l i g h t s b u t t o n .
12. Heating/air conditioning controls.
13. A u d i o e q u i p m e n t .
14. Lighter.
1 2 V s o c k e t ( 1 0 0 W m a x ) .
15. U S B s o c k e t / J a c k s o c k e t .
16. M o v a b l e a s h t r a y .
17. Heated seat controls.
18. H a n d b r a k e .
Page 10 of 207
FAMILIARISATION
SEE CLEARLY
Lighting
Ring A
Ring B R a i s e o r l o w e r t h e l i g h t s s t a l k p a s s i n g t h e
p o i n t o f r e s i s t a n c e ; t h e c o r r e s p o n d i n g d i -
r e c t i o n i n d i c a t o r s w i l l fl a s h f o r a s l o n g a s
t h e s t a l k r e m a i n s i n t h i s p o s i t i o n .
Direction indicators
Switching on "AUTO" mode
P r e s s t h e s t a l k d o w n a n d r e l e a s e i t .
Ring B: rear wiper
63
68
Lights off.
A u t o m a t i c s w i t c h i n g o n o f t h e
lights.
Side lights.
Dipped/main beam headlamps.
Rear fog lamp.
or
Front and rear fog lamps.
P a r k .
Intermittent wipe.
W a s h - w i p e .
Control A: windscreen wipers
67
Wipers
Switching off "AUTO" mode
P u s h t h e s t a l k u p a n d r e t u r n i t t o p o -
sition "0" .
69
90
"Motorway" function
P r e s s t h e l i g h t s s t a l k u p o r d o w n o n c e ,
w i t h o u t p a s s i n g t h e p o i n t o f r e s i s t a n c e ;
the corresponding direction indicators
w i l l fl a s h t h r e e t i m e s .
Y o u c a n u s e t h i s f u n c t i o n a t a n y s p e e d ,
b u t i t i s p a r t i c u l a r l y u s e f u l w h e n c h a n g -
i n g l a n e o n h i g h - s p e e d r o a d s .

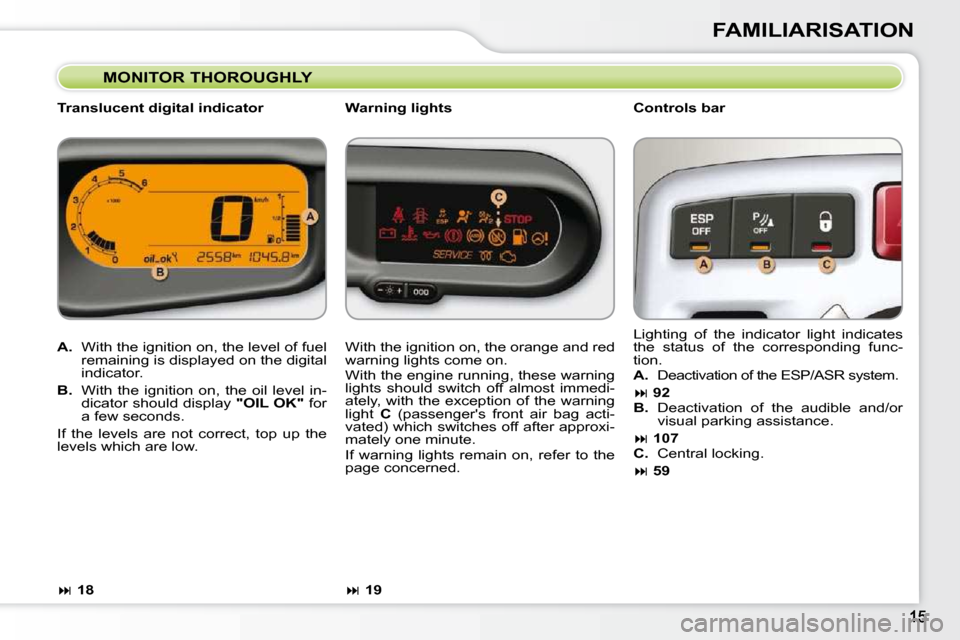

Page 12 of 207
FAMILIARISATION
MONITOR THOROUGHLY
Translucent digital indicator Controls bar
A. W i t h t h e i g n i t i o n o n , t h e l e v e l o f f u e l
r e m a i n i n g i s d i s p l a y e d o n t h e d i g i t a l
indicator.
B. W i t h t h e i g n i t i o n o n , t h e o i l l e v e l i n -
d i c a t o r s h o u l d d i s p l a y "OIL OK" for
a few seconds.
I f t h e l e v e l s a r e n o t c o r r e c t , t o p u p t h e
l e v e l s w h i c h a r e l o w . Lighting of the indicator light indicates
t h e s t a t u s o f t h e c o r r e s p o n d i n g f u n c -
tion.
A. D e a c t i v a t i o n o f t h e E S P / A S R s y s t e m .
92
B. D e a c t i v a t i o n o f t h e a u d i b l e a n d / o r
v i s u a l p a r k i n g a s s i s t a n c e .
107
C. C e n t r a l l o c k i n g .
59
W i t h t h e i g n i t i o n o n , t h e o r a n g e a n d r e d
warning lights come on.
W i t h t h e e n g i n e r u n n i n g , t h e s e w a r n i n g
l i g h t s s h o u l d s w i t c h o f f a l m o s t i m m e d i -
a t e l y , w i t h t h e e x c e p t i o n o f t h e w a r n i n g
light
C ( p a s s e n g e r ' s f r o n t a i r b a g a c t i -
v a t e d ) w h i c h s w i t c h e s o f f a f t e r a p p r o x i -
m a t e l y o n e m i n u t e .
If warning lights remain on, refer to the
page concerned.
Warning lights
18
19
Page 13 of 207
FAMILIARISATION KEEP YOUR PASSENGERS SAFE
Passenger's front air bag Electric child lock
1. I n s e r t i o n o f t h e k e y .
2. S e l e c t i o n o f t h e p o s i t i o n :
"OFF" ( d i s a r m i n g ) , w i t h " r e a r f a c -
ing" child seat,
"ON" ( a c t i v a t i o n ) , w i t h f r o n t p a s s e n -
ger or "forwards facing" child seat.
3. R e m o v a l o f t h e k e y k e e p i n g t h e
switch in this position. Lighting of the indicator light indicates
t h e s t a t u s o f t h e c o r r e s p o n d i n g f u n c -
tion.
A. A c t i v a t i o n o f t h e e l e c t r i c c h i l d l o c k .
A. F r o n t a n d / o r r e a r s e a t b e l t s n o t f a s -
t e n e d / u n f a s t e n e d w a r n i n g l i g h t .
B. Front left seat belt warning light.
C. Front right seat belt warning light.
D. Rear right seat belt warning light.
E. Rear centre seat belt warning light.
F. Rear left seat belt warning light.
G. P a s s e n g e r ' s f r o n t a i r b a g d i s a r m e d
warning light.
H. P a s s e n g e r ' s f r o n t a i r b a g a c t i v a t e d
warning light.
Seat belts and passenger's front air
bag
94
98
89
Page 15 of 207
i
18
INSTRUMENTS and CONTROLS
PETROL - DIESEL INSTRUMENT PANEL
Panel grouping together the digital indicator, the multifunction display and the ve-
hicle operation indicator lights.
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Rev counter zone indicating that you
must change up a gear.
3. Speed limiter
or
Cruise control.
(km/h or mph)
4. Electric child lock indicator light.
Indicates, for a few seconds, the activation of the electric child lock
(deactivation of the rear windows
and doors).
Translucent digital indicator
This display groups together the warn-
ing and information messages.
Multifunction display
Indicator lights display zone
This zone groups together the vehicle
operation indicator lights.
Display zero reset button
This permits resetting of the function
selected to zero (trip distance recorder
or maintenance indicator).
Instrument panel lighting button
This adjusts the brightness of the light-
ing of the instruments and controls.
For further information, refer to the
paragraph relating to the button or
function and its associated display.
5. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
6. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
7. Trip distance recorder.
(km or miles)
8. Maintenance indicator.
(km or miles) then,
Distance recorder.
(km or miles)
9. Engine oil level indicator.
Page 16 of 207
!
19
INSTRUMENTS and CONTROLS
The warning lights may come on
c o n t i n u o u s l y o r fl a s h .
Certain warning lights may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Indicator and warning lights
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lights) or of the
occurrence of a fault (warning light).
Associated warnings
The switching on of certain warning lights
may be accompanied by an audible signal
and a message on the multifunction display.
Operation indicator lights
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l i g h t s c o m e s o n , t h i s c o
n fi r m s t h a t t h e c o r r e s p o n d -
ing system has come into operation.
Left-hand direction indicator.
Sidelamps.
Handbrake applied.
Main beam headlamps.
Dipped headlamps.
Front fog lamps.
Coolant temperature.
If lit, this indicates that the en-
gine is cool. Right-hand direction
indicator.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the warning light concerned.
Diesel engine pre-heating.
Wait until this is switched off be-
fore operating the starter.
Rear fog lamp.
Electric child lock.
If lit, the child lock is activated.
This warning light is displayed a
few seconds after the function
is activated.
Page 17 of 207
!
20
INSTRUMENTS and CONTROLS
Deactivation warning lights
If one of the following warning lights
c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -
sponding system has been switched off
intentionally. Dynamic stability control
(ESP/ASR) deactivation.
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n t r e
of the fascia, permits deactivation of the
s y s t e m . T h i s i s c o n fi r m e d b y c o n t i n u -
ous lighting of this warning light and of
the indicator light on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Passenger's air bag system
deactivation.
The passenger's air bag system
is put into service automatically
when the vehicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d o n
the passenger's side of the fascia, per-
mits deactivation of the system. This is
c o n fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning light on the instrument panel or
on the seat belt and passenger's front
air bag warning lights display.
Do not install a "rearwards facing"
child seat when the front passenger
airbag is activated, or the child risks
being killed or seriously injured. When the front passenger air-
bag is activated, this warning
light comes on on the instrument
panel or in the front passenger
seat belt and airbag warning
light display for about a minute.
Page 18 of 207
!
!
21
INSTRUMENTS and CONTROLS
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lights indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.
Central alert.
Lighting is associated with
the displaying of another
warning light:
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle immediately and as
safely as possible. Service.
If this comes on, it indicates
the occurrence of a problem
in one of the systems which
d o e s n o t h a v e a s p e c i fi c
warning light.
In order to identify it, consult the mes-
sage on the multifunction display.
Check:
- the engine oil level,
- t h e s c r e e n w a s h fl u i d l e v e l ,
- the remote control battery,
- the condition of the bulbs.
For any other situations, contact a
CITROËN dealer.
The illumination of this warning light
may also indicate that the (Diesel) par-
t i c l e fi l t e r i s s t a r t i n g t o g e t c l o g g e d u p ,
d u e t o s p e c i fi c e x t e n d e d u r b a n d r i v i n g
conditions: low speed, congestion, etc.
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u a r e
a d v i s e d t o d r i v e , o n c e t r a f fi c c o n d i t i o n s
allow, at a speed of 40 mph (60 km/h)
or above for at least 5 minutes (until the
warning light goes out). Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
When the vehicle is moving, check that
the handbrake is fully released.
Any fault resulting in the displaying
of a warning light must be the sub-
ject of further diagnostics by read-
ing the associated message on the
multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Warning lights
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning light and the indicator light
on the button come on continuously, this
indicates the occurrence of a fault in the
ESP/ASR system.
If the warning light remains on,
contact your CITROËN dealer.
