MULTIFUNCTION SCREENS
MONOCHROME SCREEN A
ASSOCIATED WITH THE
MYWAY COLOUR SCREEN
Main menu
Displays on screen A
This displays the following information:
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. Controls
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
main menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- language,
- units.
Press the "OK" button to select the
menu required.
V e h i c l e c o n fi g u r a t i o n
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section),
Page 32 of 224
i
i
!
!
35
MULTIFUNCTION SCREENS
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
L a n g u a g e
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or km/l). Displays on the MyWay system
colour screen
"SETUP" menu
Date and time
This menu allows you to adjust the date
and time, and their format (refer to the
"Audio and telematics section").
Display
This menu allows you to adjust the
brightness of the display, the display
contrast and the colour of the map (day/
night and auto mode).
System parameters
This menu allows you to restore the
factory settings, to display the software
version and to activate scrolling text.
This displays the following information:
- time,
- date,
- audio functions,
- navigation system information.
The chosen language will also be
used by the MyWay system colour
screen.
Once the fuel consumption unit
has been changed to mpg, the
information relating to speed and
distance also changes to miles.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary. F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary.
Press the SETUP button to access the
"SETUP" menu. It gives you access to
the following functions:
- Date and time,
- Display,
- System parameters.
Page 33 of 224
36
MULTIFUNCTION SCREENS
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- state of the openings (doors, boot, etc.),
- audio sources (radio, CD, USB port, etc.),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. From the audio equipment control panel,
you can:
press the "MENU" button for access
to the main menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Main menu
Press the "MENU" button for ac-
cess to the main menu :
- audio functions,
- trip computer (refer to the end of the section),
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
MONOCHROME SCREEN C Controls
"Audio functions" menu
With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) , t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat) or the MP3 player (USB
port).
For more information on the "Audio func-
tions" application, refer to the Audio sys-
tems part of the "Audio and Telematics"
section.
Page 34 of 224
37
MULTIFUNCTION SCREENS
"Trip computer" menu
A l e r t l o g
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
functions, etc.)
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- guide-me-home lighting. "Personalisation-
C o n f i g u r a t i o n " m e n u
Once this menu has been selected,
you can gain access to the following
functions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- choice of language.
Status of functions
This summarises the status (active or
inactive) of the vehicle's functions.
Enter distance to destination
This allows you to enter an approximate
d i s t a n c e u n t i l y o u r fi n a l d e s t i n a t i o n .
Press the "MENU" button for ac-
cess to the main menu.
Press the arrows, then the "OK"
button to select the " Trip computer "
menu.
In the " Trip computer " menu, select
one of the following applications:
Page 35 of 224
!
i
38
MULTIFUNCTION SCREENS
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Example: setting of the duration of the
guide-me-home lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.
Press the " " or " " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK" button
t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary.
C h o i c e o f l a n g u a g e
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues, Türkçe, Portugues-Brasil). Once the fuel consumption unit has
been changed to mpg, the informa-
tion relating to speed and distance
also changes to miles. Telephone menu
With the Audio system on and this
m e n u s e l e c t e d , y o u c a n c o n fi g u r e y o u r
Bluetooth hands-free system (pairing),
view the various telephone directories
(calls log, services...) and manage your
calls (call, hang up, double call, secret
mode...).
For more information on the "Telephone"
application, refer to the Audio system
section in "Audio et Telematics".
Page 36 of 224
39
MULTIFUNCTION SCREENS

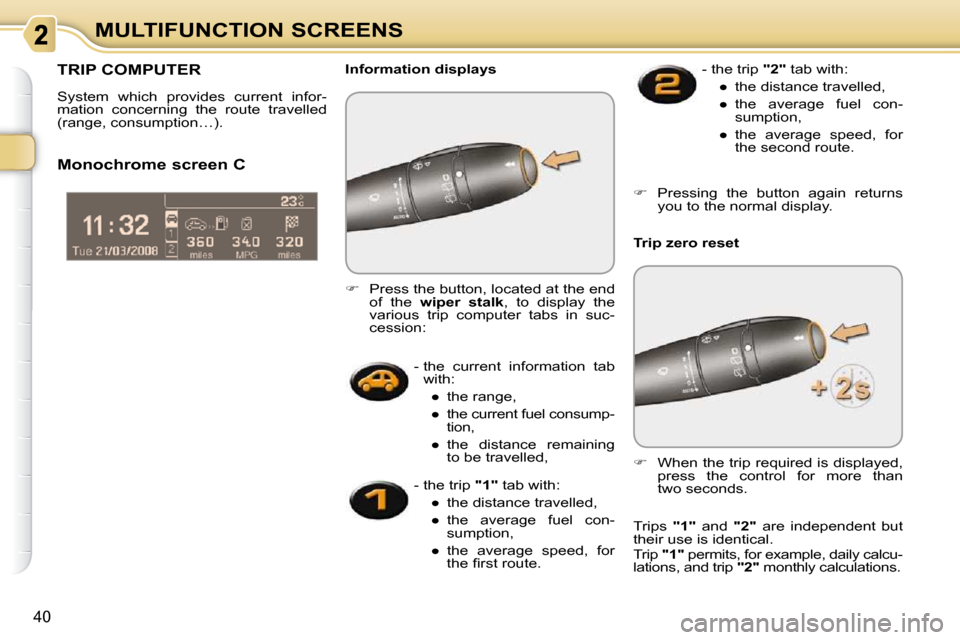

TRIP COMPUTER
Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer data
in succession. The trip computer provides the following
information:
System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).
Press the control for more than two
seconds to reset to zero the distance
travelled, the average fuel consump-
tion and the average speed.
Monochrome screen A
Zero reset
Information displays - range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
The next press then returns you to
the normal display.
Page 37 of 224
40
MULTIFUNCTION SCREENS - the current information tab with:
Page 38 of 224
i
i
!
41
MULTIFUNCTION SCREENS
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer. This function is only displayed from
20 mph (30 km/h).
This value may vary following
a change in the style of driving
or the relief, resulting in a sig-
n i fi c a n t c h a n g e i n t h e c u r r e n t f u e l
consumption. R a n g e
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
A v e r a g e f u e l
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset. D i s t a n c e t r a v e l l e d
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
A v e r a g e s p e e d
(mph or km/h)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on). D i s t a n c e r e m a i n i n g t o
destination
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 39 of 224
42
COMFORT

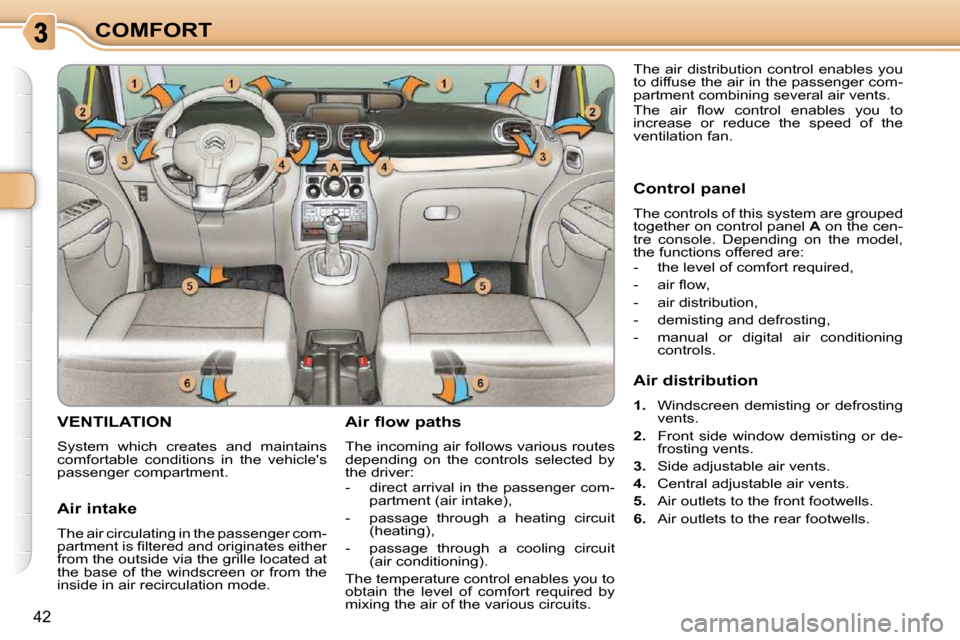

VENTILATION
System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment. Air flow paths
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation fan.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- the level of comfort required,
- a i r fl o w ,
- air distribution,
- demisting and defrosting,
- manual or digital air conditioning controls.
Air distribution
1. Windscreen demisting or defrosting
vents.
2. Front side window demisting or de-
frosting vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Page 40 of 224
i
43
COMFORT
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.
In order for these systems to be fully effective, follow the g uidelines on opera-
tion and maintenance below:
If the interior temperature remains very high after the vehicle has been
p a r k e d i n t h e s u n f o r a c o n s i d e r a b l e t i m e , fi r s t v e n t i l a t e t h e p a s s e n g e r
compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e -
newal of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the passenger
compartment on both sides of the rear shelf.
Do not cover the sunshine sensor, located on the dashboard (behind the
instrument panel); this is used for regulation of t he air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in good working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . T h a n k s
t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and the cleanliness of th e passenger compart-
ment (reduction of allergic symptoms, bad odours an d greasy deposits).
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a
CITROËN dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning saves engine power and so improves towing
capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
