Citroen C3 PLURIEL 2007.5 1.G Owners Manual

1
2
2
IV

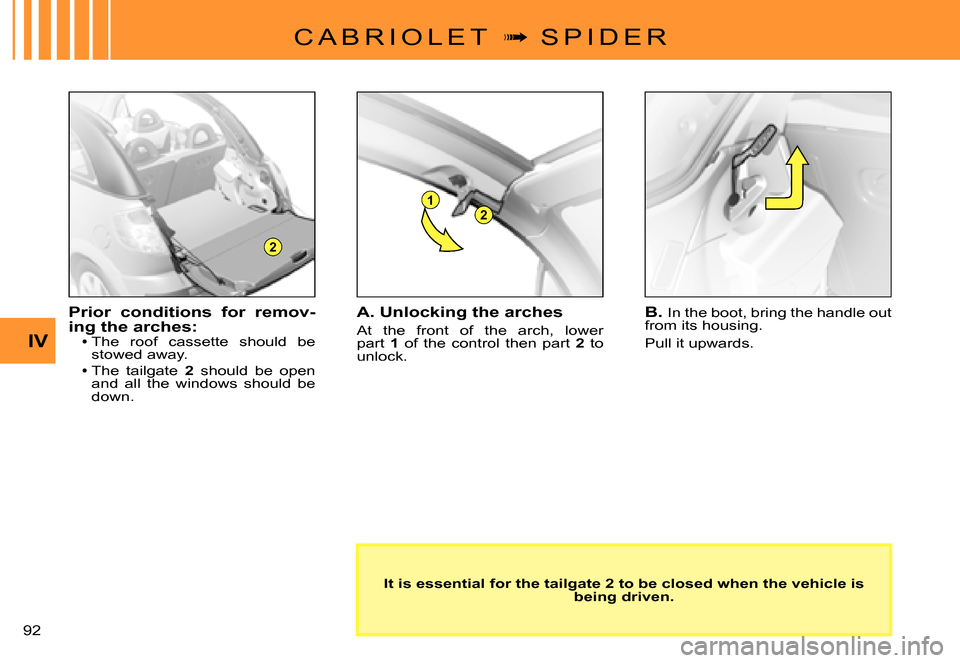

92
C A B R I O L E T

1
2
IV

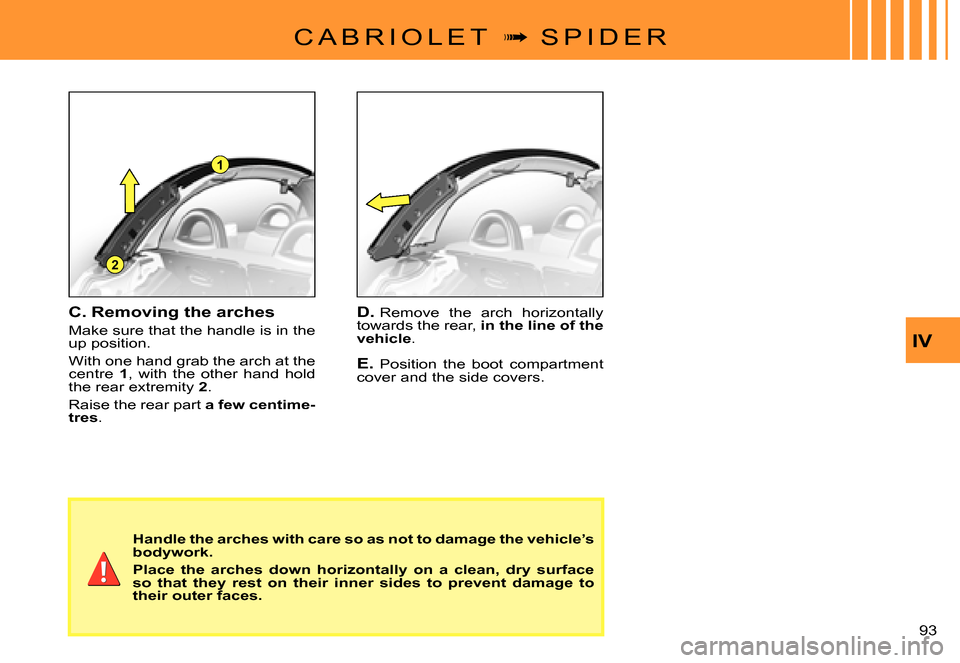

93
C A B R I O L E T

1
2
IV
94
S P I D E R

1
2
1
IV
95
S P I D E R

A
IV

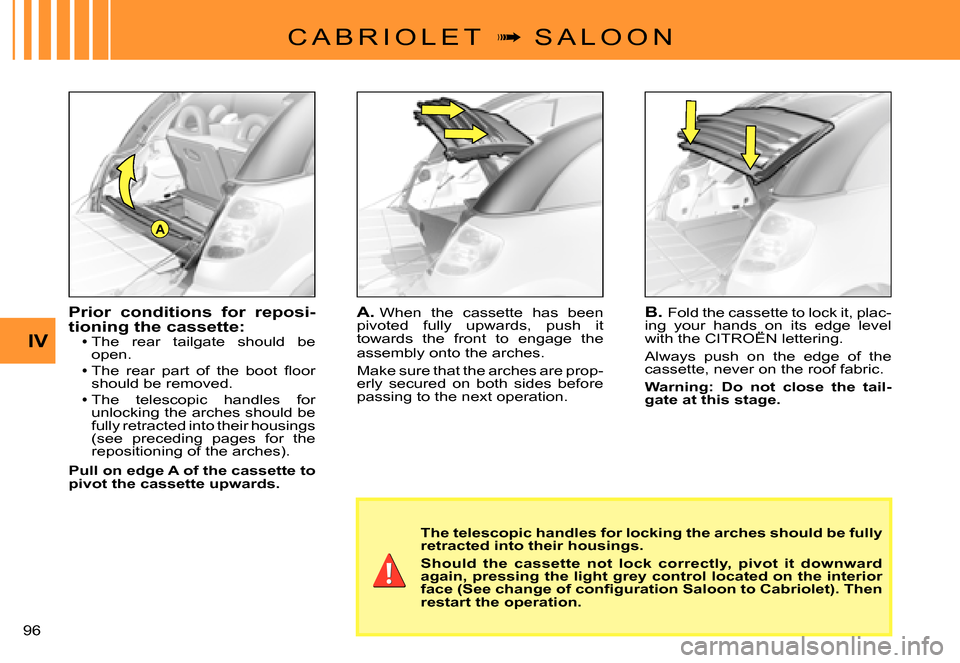

96
C A B R I O L E T

IV
97
C A B R I O L E T

1
IV

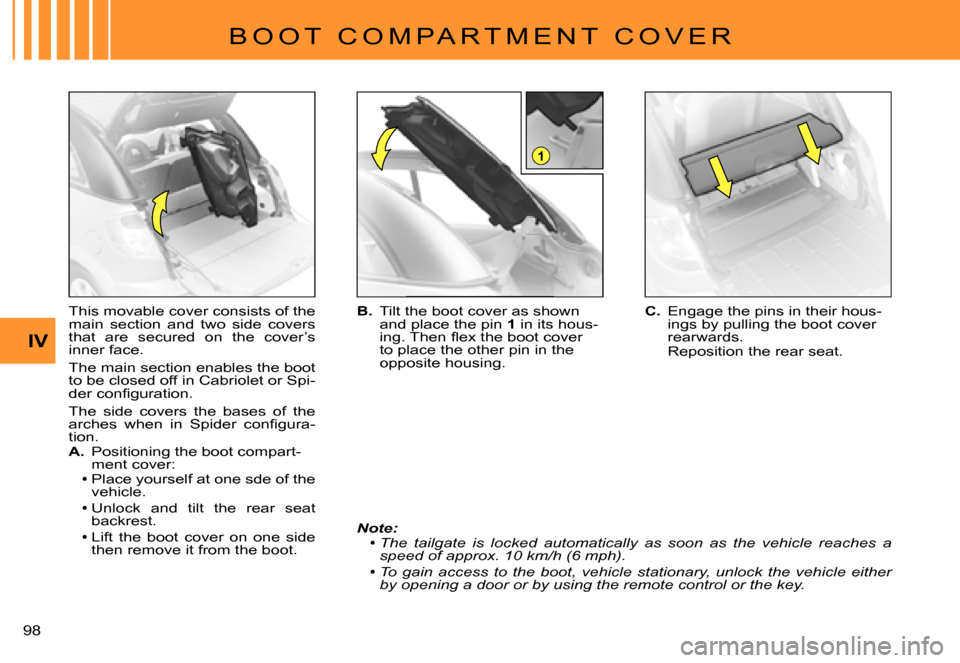

98
B O O T C O M P A R T M E N T C O V E R
This movable cover consists of the main section and two side covers that are secured on the cover’s inner face.
The main section enables the boot to be closed off in Cabriolet or Spi-der confi guration.
The side covers the bases of the arches when in Spider confi gura-tion.A. Positioning the boot compart-ment cover:Place yourself at one sde of the vehicle.
Unlock and tilt the rear seat backrest.
Lift the boot cover on one side then remove it from the boot.



B. Tilt the boot cover as shown and place the pin 1 in its hous-ing. Then fl ex the boot cover to place the other pin in the opposite housing.
C. Engage the pins in their hous-ings by pulling the boot cover rearwards.Reposition the rear seat.
Note:The tailgate is locked automatically as soon as the vehicle reaches a speed of approx. 10 km/h (6 mph).
To gain access to the boot, vehicle stationary, unlock the vehicle either by opening a door or by using the remote control or the key.



1
2
IV

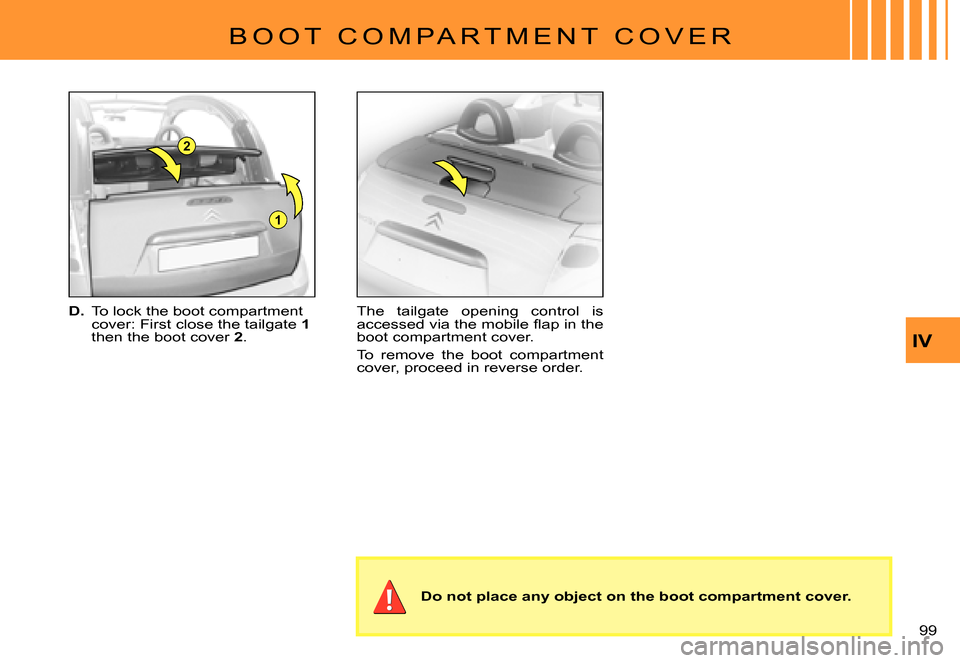

99
B O O T C O M P A R T M E N T C O V E R
D. To lock the boot compartment cover: First close the tailgate 1then the boot cover 2.
The tailgate opening control is accessed via the mobile fl ap in the boot compartment cover.
To remove the boot compartment cover, proceed in reverse order.
Do not place any object on the boot compartment cover.

IV

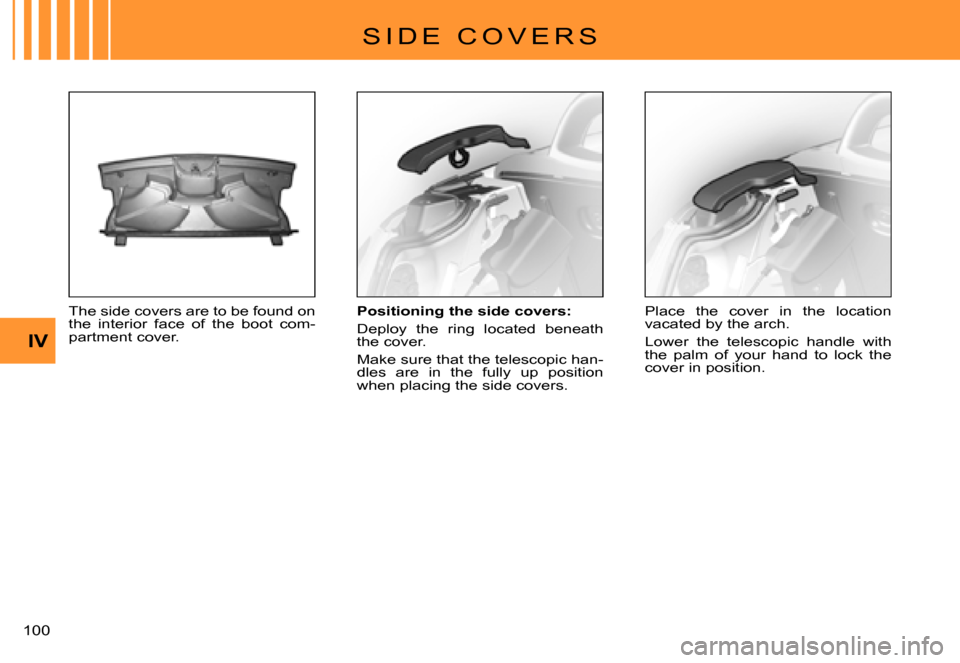

100
S I D E C O V E R S
The side covers are to be found on the interior face of the boot com-partment cover.
Positioning the side covers:
Deploy the ring located beneath the cover.
Make sure that the telescopic han-dles are in the fully up position when placing the side covers.
Place the cover in the location vacated by the arch.
Lower the telescopic handle with the palm of your hand to lock the cover in position.

A
IV

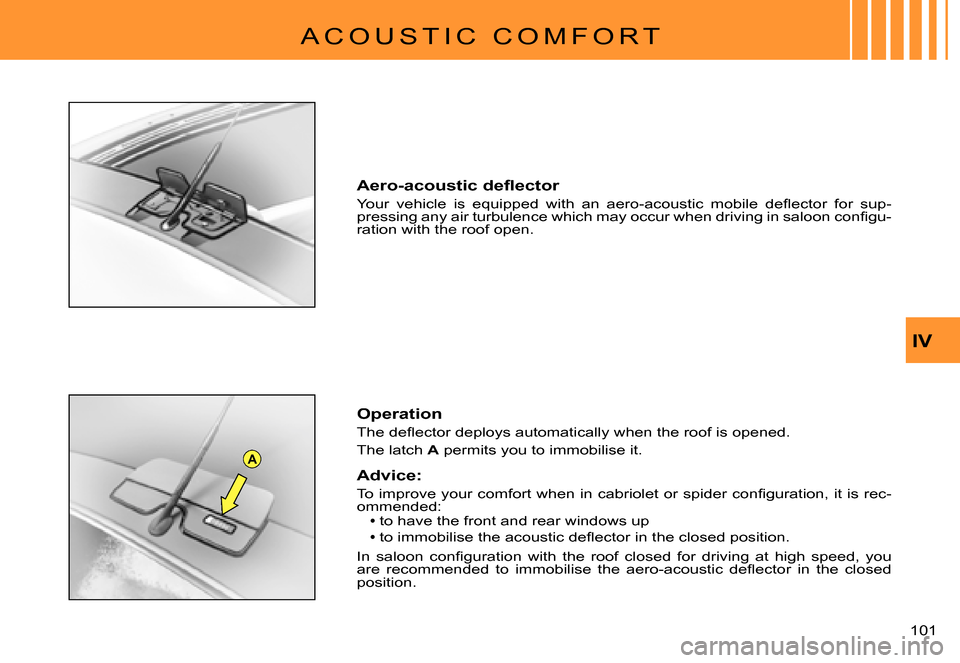

101
A C O U S T I C C O M F O R T
Aero-acoustic defl ector
Your vehicle is equipped with an aero-acoustic mobile defl ector for sup-pressing any air turbulence which may occur when driving in saloon confi gu-ration with the roof open.
Operation
The defl ector deploys automatically when the roof is opened.
The latch A permits you to immobilise it.
Advice:
To improve your comfort when in cabriolet or spider confi guration, it is rec-ommended:to have the front and rear windows up
to immobilise the acoustic defl ector in the closed position.
In saloon confi guration with the roof closed for driving at high speed, you are recommended to immobilise the aero-acoustic defl ector in the cl osed position.
