Page 111 of 144
V
1 1 2
T A B L E O F F U S E S
D A S H B O A R D F U S E S
Ref.RatingFunction
35 AAirbags
410 ADiagnostic socket – Clutch switch – Steering angle sensor
530 ARear window – Sun roof
630 AScreen wash
820 ADigital clock – Controls at the steering wheel – Radio – Display
930 A C i g a r - l i g h t e r – D i g i t a l c l o c k – I n t e r i o r l a m p s – V a n i t y m i r r o r
1015 AAlarm
1115 AIgnition switch – Diagnostic socket
1215 AAirbag ECU – Rain and brightness sensor
1415 AParking assistance – Instrument panel – Air conditioning – Blueto oth® telephone®
1530 A Central locking – Deadlocking
1740 AHeated rear screen
18SHUNTCUSTOMER PARK SHUNT
Page 112 of 144
V
1 1 3
F U S E S
Any action on the MAXI fuses (that give extra protection) (in grey in the diagrams), located in the fuseboxes, should be left to a CITROËN dealer.grey in the diagrams), lthe dia
Fuses under the bonnet
Fusebox
To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.
After a repair, take care to reclose the cover.
Page 113 of 144
V
1 1 4
T A B L E O F F U S E S
F U S E S U N D E R T H E B O N N E T
Ref.RatingFunction
120 AWater-in-diesel-fuel sensor
215 AHorn
310 AScreen wash
420 AHeadlamp wash
515 AFuel pump
610 APower steering
710 ACoolant level sensor
825 AStarter
910 AECUs (ABS, ESP)
1030 AEngine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge
1140 AAir blower
1230 AWindscreen wiper
1430 AAir pump (petrol version) – Diesel fuel heater
Page 114 of 144
4
A
CB
V
1 1 5
1 2 V B A T T E R Y
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.A. Dischargedbattery (Under the bonnet)B. Assisting batteryC. Earth point on broken down vehicle
C h e c k t h a t t h e a s s i s t i n g b a t t e r y h a s s u f fi c i e n t v o l t a g e ( 1 2 V ) .
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact with each other.
Connect the cables according to the order indicated in the diagram. orderCheck that the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.Note: For any operation necessitating a disconnection of the bat-tery, you must wait 3 minutes after switching the ignition off, taking no action which will prevent the vehicle's electrical system from going to sleep (such as operating the doors and tailg ate, pressing the buttons on the remote control, etc.).
N e v e r a p p r o a c h w i t h a fl a m e o r c r e a t e s p a r k s i n t h e v i c i n i t y of the battery (explosive gas).
The battery contains dilute sulphuric acid which is highly corrosive.
When handling batteries, always protect your face a nd especially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
Advice
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
Page 115 of 144
VI
1 1 6

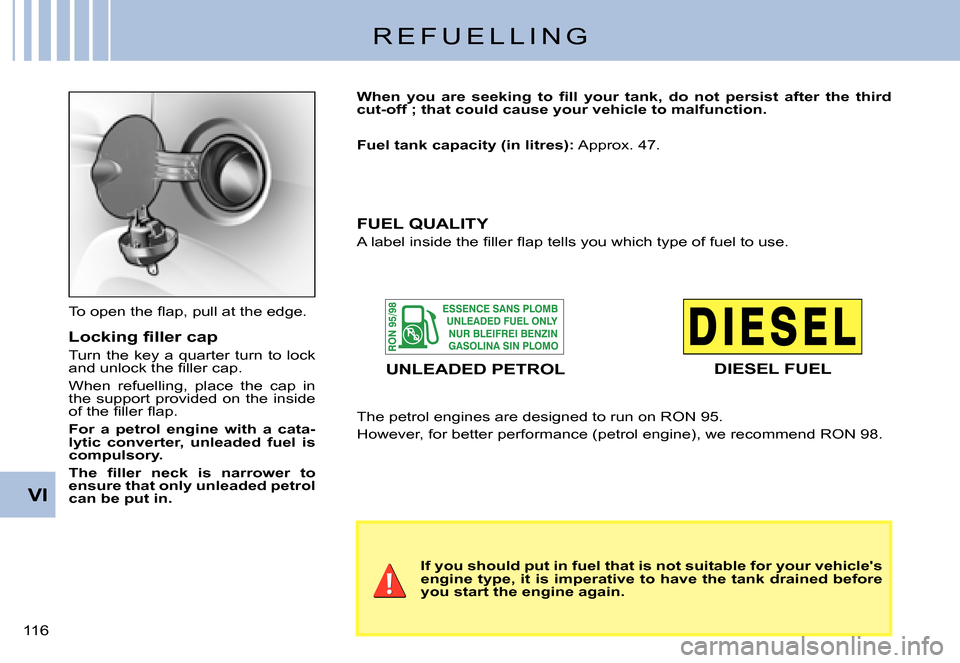

R E F U E L L I N G
T o o p e n t h e fl a p , p u l l a t t h e e d g e .
L o c k i n g fi l l e r c a p
Turn the key a quarter turn to lock a n d u n l o c k t h e fi l l e r c a p .
When refuelling, place the cap in the support provided on the inside o f t h e fi l l e r fl a p .
For a petrol engine with a cata-lytic converter, unleaded fuel is compulsory.
T h e fi l l e r n e c k i s n a r r o w e r t o ensure that only unleaded petrol can be put in.
W h e n y o u a r e s e e k i n g t o fi l l y o u r t a n k , d o n o t p e r s i s t a f t e r t h e t h i r d cut-off ; that could cause your vehicle to malfunction.
Fuel tank capacity (in litres): A p p r o x . 4 7 .
If you should put in fuel that is not suitable for your vehicle's engine type, it is imperative to have the tank drained be fore you start the engine again.
FUEL QUALITY
A l a b e l i n s i d e t h e fi l l e r fl a p t e l l s y o u w h i c h t y p e o f f u e l t o u s e .
UNLEADED PETROLDIESEL FUEL
T h e p e t r o l e n g i n e s a r e d e s i g n e d t o r u n o n R O N 9 5 .
H o w e v e r , f o r b e t t e r p e r f o r m a n c e ( p e t r o l e n g i n e ) , w e r e c o m m e n d R O N 9 8 .
Page 116 of 144
1
3
2
4
VI
1 1 7
C H A N G I N G B U L B S
HEADLAMP UNIT1. Dipped beams2. Main beams3. Sidelamps4. The direction indicator warn-ing lampsNote: A light misting may appear on the headlamp surface in certain conditions of use.
Note: To change the bulbs in the LH headlamp lens:Remove the battery cover.
Detach the fusebox cover.
Main beams
Tilt the metallic spring holding the fl a p g i v i n g a c c e s s t o t h e l a m p bulbs.
O p e n t h e a c c e s s fl a p .
Disconnect the connector.
Disengage the retaining spring.
Take out the bulb.
Bulb: H1
Dipped beams
Tilt the metallic spring holding the fl a p g i v i n g a c c e s s t o t h e l a m p bulbs.
O p e n t h e a c c e s s fl a p .
Disconnect the connector.
Disengage the retaining spring.
Take out the bulb.
Bulb: H7
Front foglamps
Bulb: H1
Page 117 of 144
VI
1 1 8

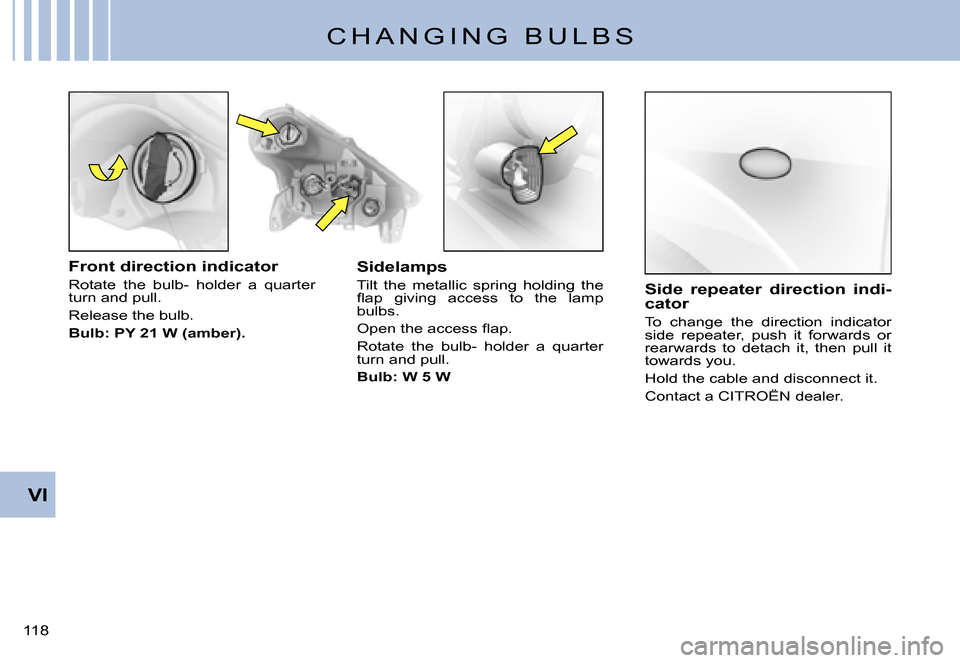

C H A N G I N G B U L B S
Front direction indicator
Rotate the bulb- holder a quarter turn and pull.
Release the bulb.
Bulb: PY 21 W (amber).
Sidelamps
Tilt the metallic spring holding the fl a p g i v i n g a c c e s s t o t h e l a m p bulbs.
O p e n t h e a c c e s s fl a p .
Rotate the bulb- holder a quarter turn and pull.
Bulb: W 5 W
Side repeater direction indi-cator
To change the direction indicator side repeater, push it forwards or rearwards to detach it, then pull it towards you.
Hold the cable and disconnect it.
Contact a CITROËN dealer.
Page 118 of 144
VI
119

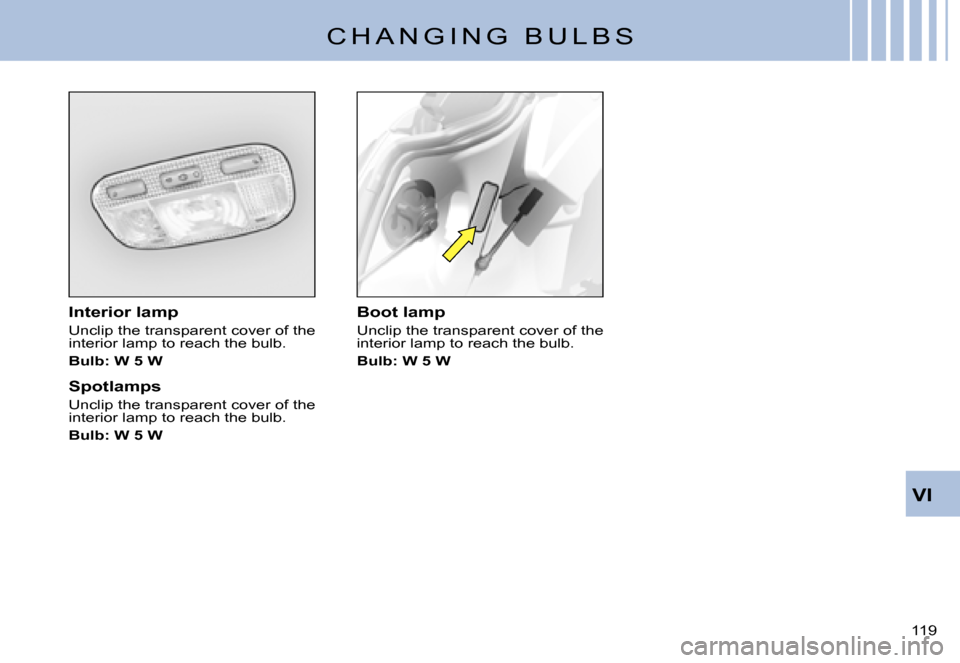

C H A N G I N G B U L B S
Interior lamp
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Spotlamps
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Boot lamp
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Page 119 of 144
3
1
2
VI
1 2 0
C H A N G I N G B U L B S
Rear lamp unit
Identify the failed bulb.
Bulbs: 1. Stop-lamps and sidelamps: P 21 W/5 W.2. Direction indicator: PY 21 W.3. Foglamp: P 21 W.Left hand sideReversing lamp: P 21 W.
Right hand side
RemovalRemove the tailgate balancing strut by removing the retaining clip.
U n d o t h e l a m p fi x i n g s c r e w s .Remove the bulb- holder to access the bulb.
R e fi t t h e a s s e m b l y a f t e r r e p l a c i n g the bulb.
Page 120 of 144
VI
1 2 1
C H A N G I N G B U L B S
Third stoplamp U n d o t h e fi x i n g s c r e w s t o r e m o v e the tailgate interior trim.
Unclip the bulb- holder to access the bulbs.
Bulb: W 5 W.
Number plate
Unclip the lens then pull the bulb- holder.
Bulb: W 5 W.
After each operation, check that the lamps work.
