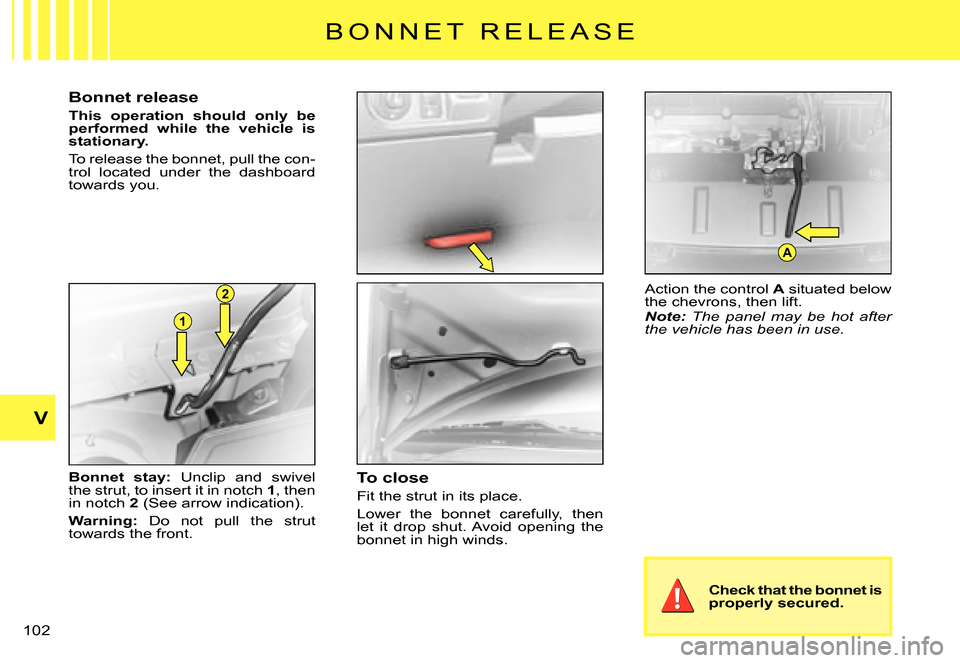

B O N N E T R E L E A S E
Bonnet release
This operation should only be performed while the vehicle is stationary.
To release the bonnet, pull the con-trol located under the dashboard towards you.
Bonnet stay: Unclip and swivel the strut, to insert it in notch 1, then in notch 2 (See arrow indication).
Warning: Do not pull the strut towards the front.
To close
Fit the strut in its place.
Lower the bonnet carefully, then let it drop shut. Avoid opening the bonnet in high winds.
Action the control A situated below the chevrons, then lift.Note: The panel may be hot after the vehicle has been in use.
Check that the bonnet is properly secured.
Page 102 of 144
A
B
1 0 3
L E V E L S

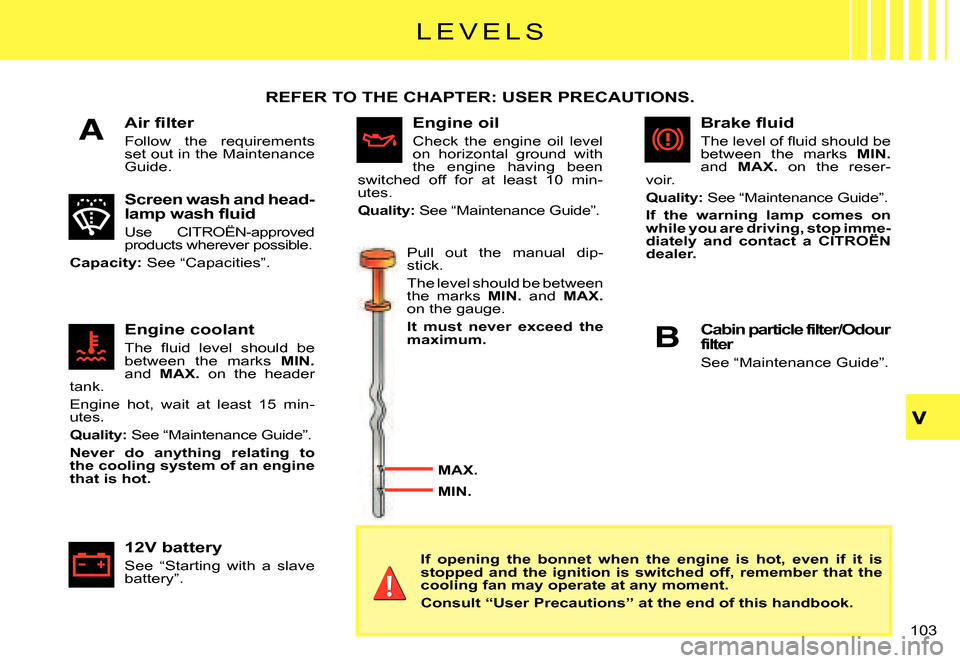

A i r fi l t e r
Follow the requirements set out in the Maintenance Guide.
REFER TO THE CHAPTER: USER PRECAUTIONS.
Screen wash and head- l a m p w a s h fl u i d
Use CITROËN-approved products wherever possible.
Capacity: See “Capacities”.
Engine coolant
T h e fl u i d l e v e l s h o u l d b e between the marks MIN.and MAX. on the header tank.
E n g i n e h o t , w a i t a t l e a s t 1 5 m i n -utes.
Quality: See “Maintenance Guide”.
Never do anything relating to the cooling system of an engine that is hot.
12V battery
See “Starting with a slave battery”.
Engine oil
Check the engine oil level on horizontal ground with the engine having been s w i t c h e d o f f f o r a t l e a s t 1 0 m i n -utes.
Quality: See “Maintenance Guide”.
Pull out the manual dip-stick.
The level should be between the marks MIN. and MAX.on the gauge.
It must never exceed the maximum.
MAX.
MIN.
B r a k e fl u i d
T h e l e v e l o f fl u i d s h o u l d b e between the marks MIN.and MAX. on the reser-voir.
Quality: See “Maintenance Guide”.
If the warning lamp comes on while you are driving, stop imme-diately and contact a CITROËN while you are driving, stop imme-stop imme-
dealer.
Cabin particle filter/Odour filter
See “Maintenance Guide”.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Consult “User Precautions” at the end of this handbook.
Page 103 of 144
V
1 0 7
L E V E L S

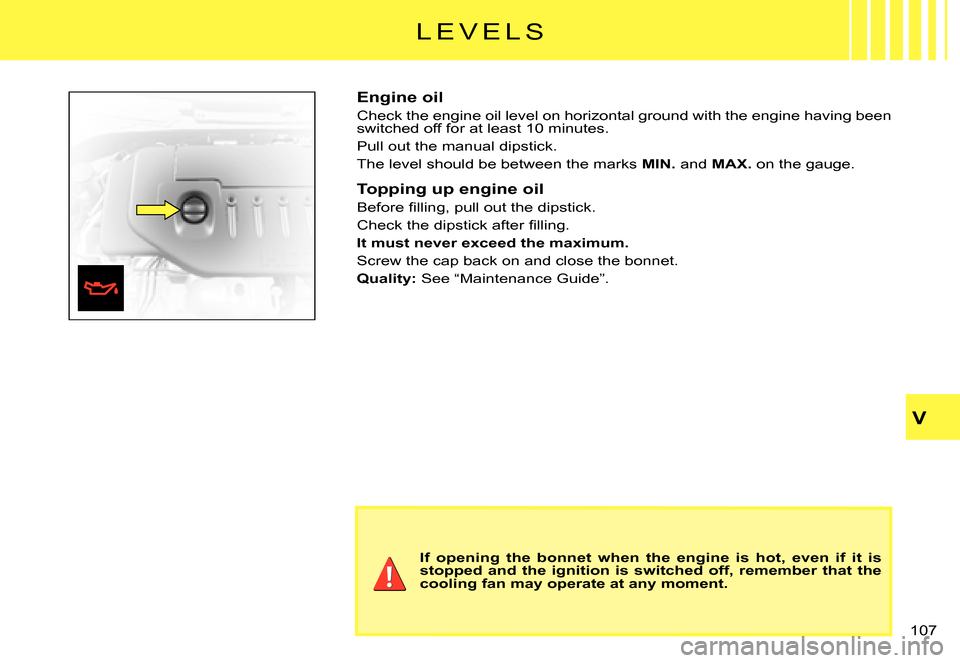

Engine oil
Check the engine oil level on horizontal ground with the engine having been s w i t c h e d o f f f o r a t l e a s t 1 0 m i n u t e s .
Pull out the manual dipstick.
The level should be between the marks MIN. and MAX. on the gauge.
Topping up engine oil
B e f o r e fi l l i n g , p u l l o u t t h e d i p s t i c k .
C h e c k t h e d i p s t i c k a f t e r fi l l i n g .
It must never exceed the maximum.
Screw the cap back on and close the bonnet.
Quality: See “Maintenance Guide”.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Page 104 of 144
V
1 0 8

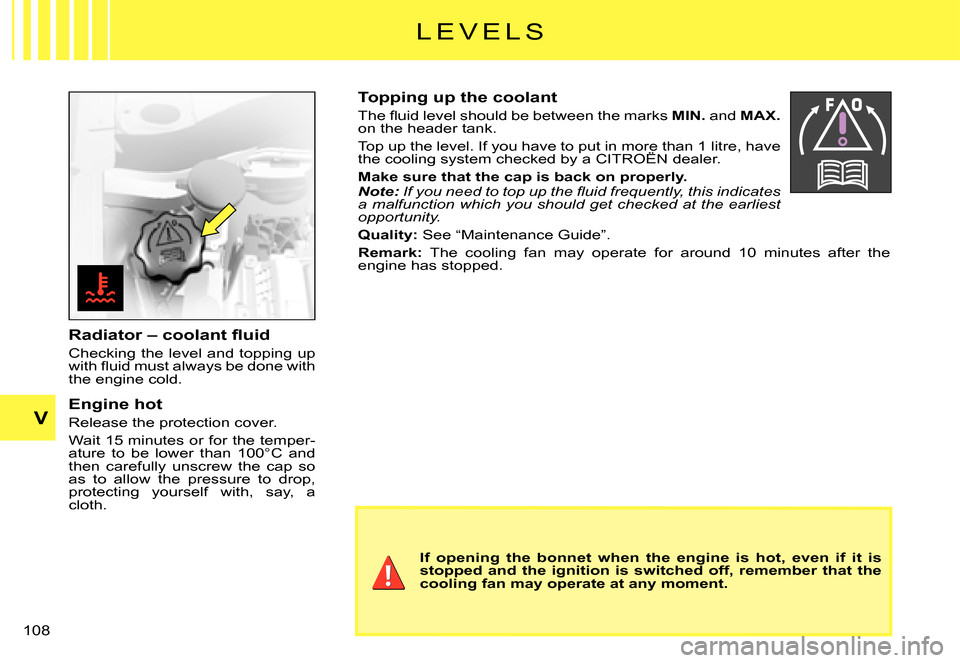

Topping up the coolant
T h e fl u i d l e v e l s h o u l d b e b e t w e e n t h e m a r k s MIN. and MAX.on the header tank.
Top up the level. If you have to put in more than 1 litre, have the cooling system checked by a CITROËN dealer.Top up the level. If you have to put in more than 1 litre, in more than
Make sure that the cap is back on properly.Note: I f y o u n e e d t o t o p u p t h e fl u i d f r e q u e n t l y , t h i s i n d i c a t e s a malfunction which you should get checked at the earliest opportunity.
Quality: See “Maintenance Guide”.
Remark: T h e c o o l i n g f a n m a y o p e r a t e f o r a r o u n d 1 0 m i n u t e s a f t e r t h e engine has stopped.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
L E V E L S
R a d i a t o r – c o o l a n t fl u i d
Checking the level and topping up w i t h fl u i d m u s t a l w a y s b e d o n e w i t h the engine cold.
Engine hot
Release the protection cover.
W a i t 1 5 m i n u t e s o r f o r t h e t e m p e r - a t u r e t o b e l o w e r t h a n 1 0 0 ° C a n d then carefully unscrew the cap so as to allow the pressure to drop, protecting yourself with, say, a cloth.
Page 105 of 144
V
1 0 4

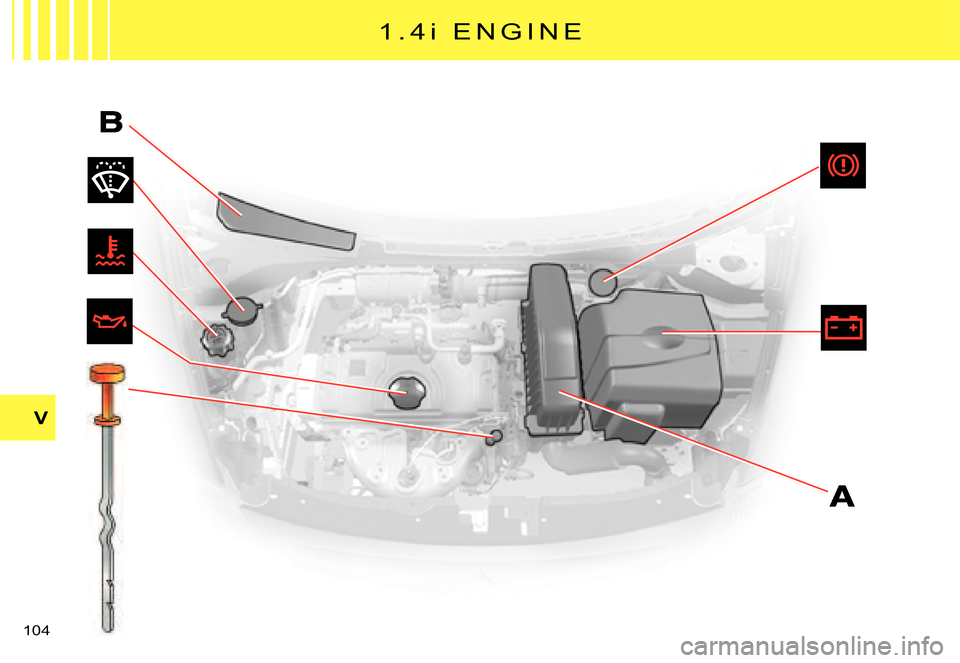

1 . 4i E N G I N E
Page 106 of 144
V
1 0 5

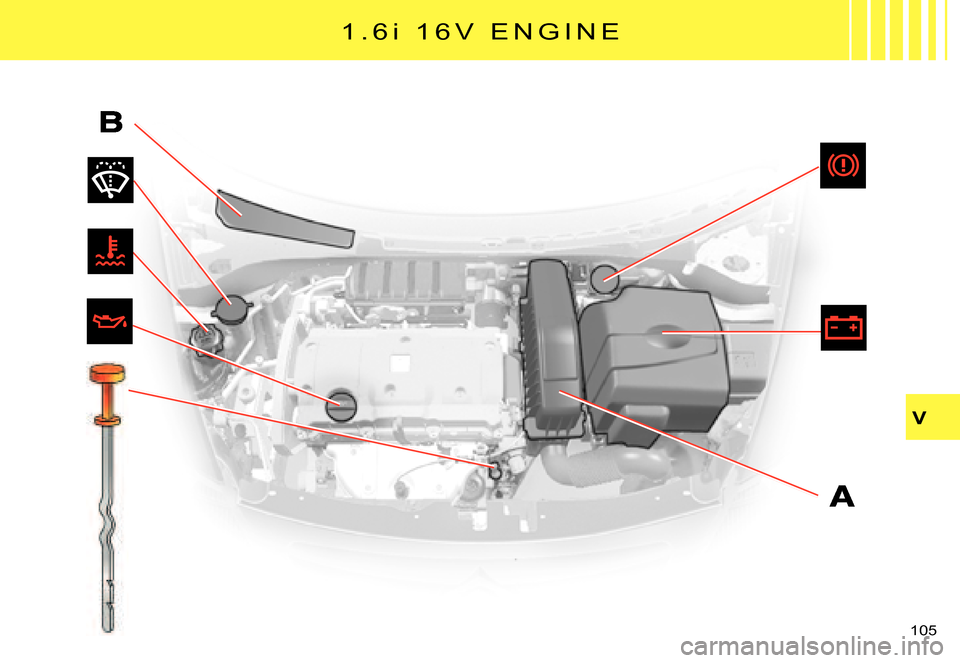

1 . 6i 1 6 V E N G I N E
Page 107 of 144
V
1 0 6

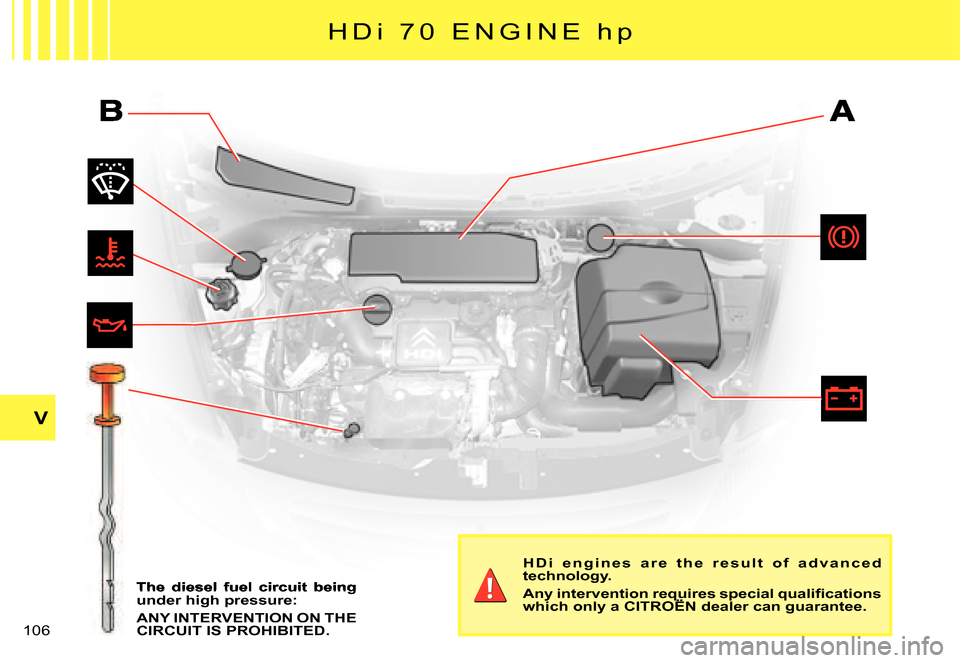

H Di 7 0 E N G I N E h p
The diesel fuel circuit being under high pressure:
ANY INTERVENTION ON THE CIRCUIT IS PROHIBITED.
H D i e n g i n e s a r e t h e r e s u l t o f a d v a n c e d technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s which only a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s
Page 108 of 144
V
1 0 9

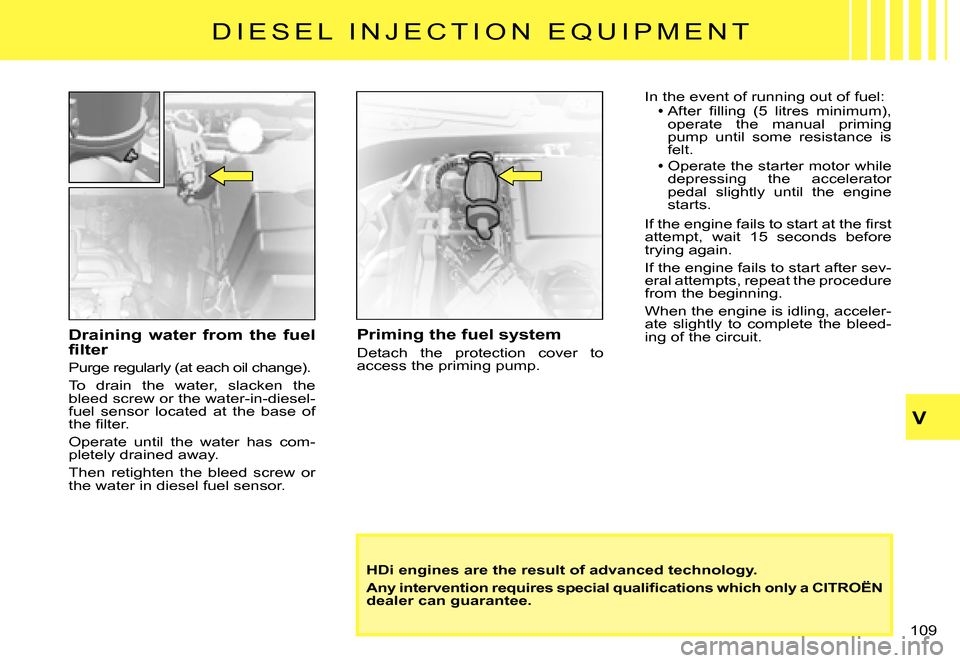

D I E S E L I N J E C T I O N E Q U I P M E N T
Priming the fuel system
Detach the protection cover to access the priming pump.
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a C I T R O Ë N dealer can guarantee.
Draining water from the fuel fi l t e r
Purge regularly (at each oil change).
To drain the water, slacken the bleed screw or the water-in-diesel-fuel sensor located at the base of t h e fi l t e r .
Operate until the water has com-pletely drained away.
Then retighten the bleed screw or the water in diesel fuel sensor.
In the event of running out of fuel: A f t e r fi l l i n g ( 5 l i t r e s m i n i m u m ) , operate the manual priming pump until some resistance is felt.
Operate the starter motor while depressing the accelerator pedal slightly until the engine starts.
I f t h e e n g i n e f a i l s t o s t a r t a t t h e fi r s t a t t e m p t , w a i t 1 5 s e c o n d s b e f o r e trying again.
If the engine fails to start after sev-eral attempts, repeat the procedure from the beginning.
When the engine is idling, acceler-ate slightly to complete the bleed-ing of the circuit.
Page 109 of 144
V
1 1 0

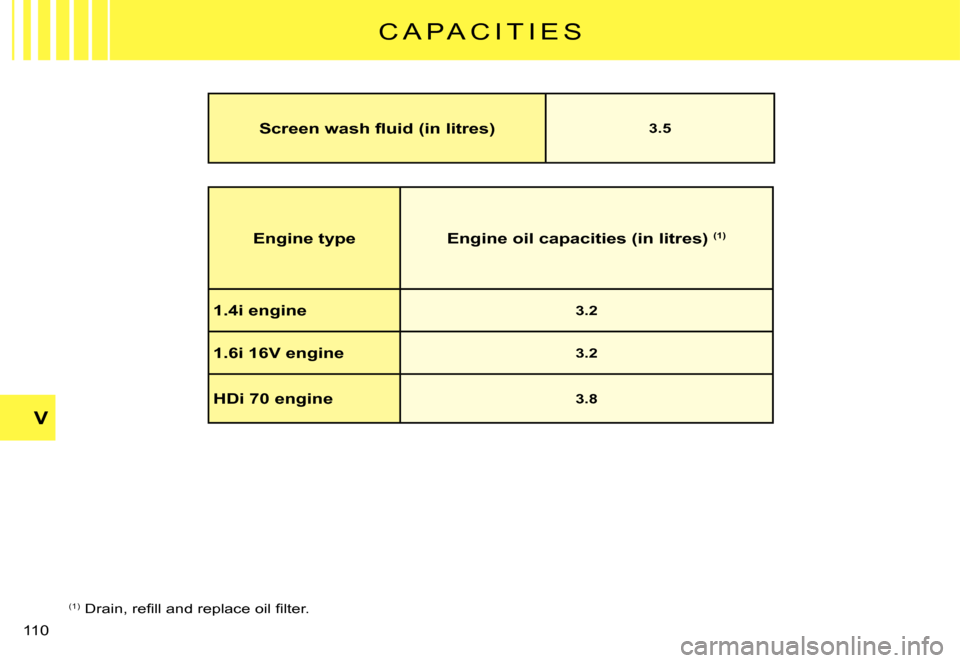

C A P A C I T I E S
Engine typeEngine oil capacities (in litres) (1)
1.4i engine3.2
1.6i 16V engine3.2
HDi 70 engine3.8
(1) D r a i n , r e fi l l a n d r e p l a c e o i l fi l t e r .
S c r e e n w a s h fl u i d ( i n l i t r e s )3.5
Page 110 of 144
V
111
F U S E S

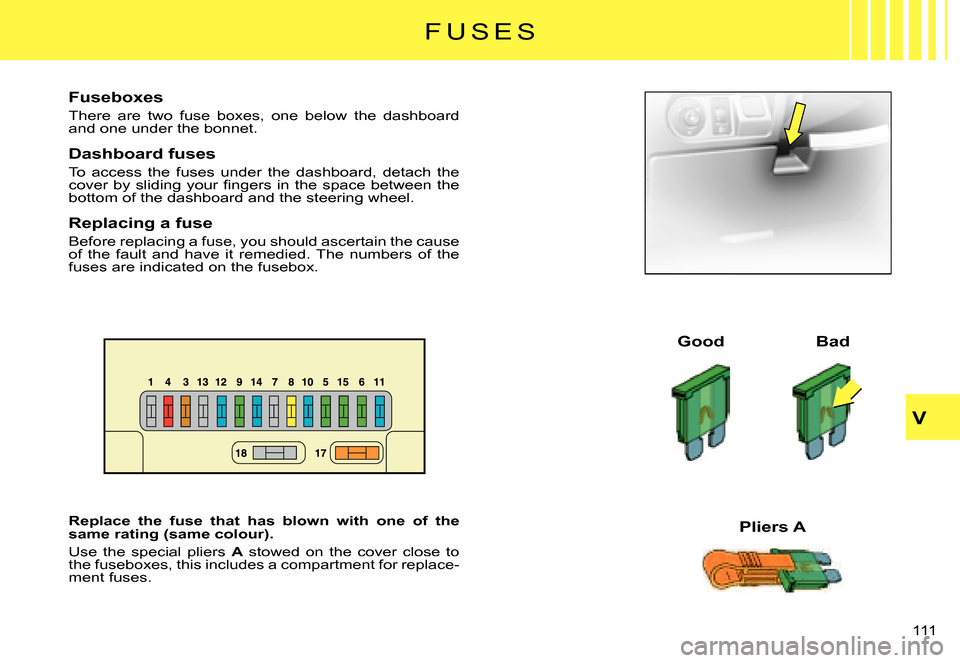

Fuseboxes
There are two fuse boxes, one below the dashboard and one under the bonnet.
Dashboard fuses
To access the fuses under the dashboard, detach the c o v e r b y s l i d i n g y o u r fi n g e r s i n t h e s p a c e b e t w e e n t h e bottom of the dashboard and the steering wheel.
Replacing a fuse
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the fuses are indicated on the fusebox.
Replace the fuse that has blown with one of the same rating (same colour).
Use the special pliers A stowed on the cover close to the fuseboxes, this includes a compartment for replace-ment fuses.
GoodBad
Pliers A
