A
VI
1 2 2
S A F E T Y R E C O M M E N D A T I O N S

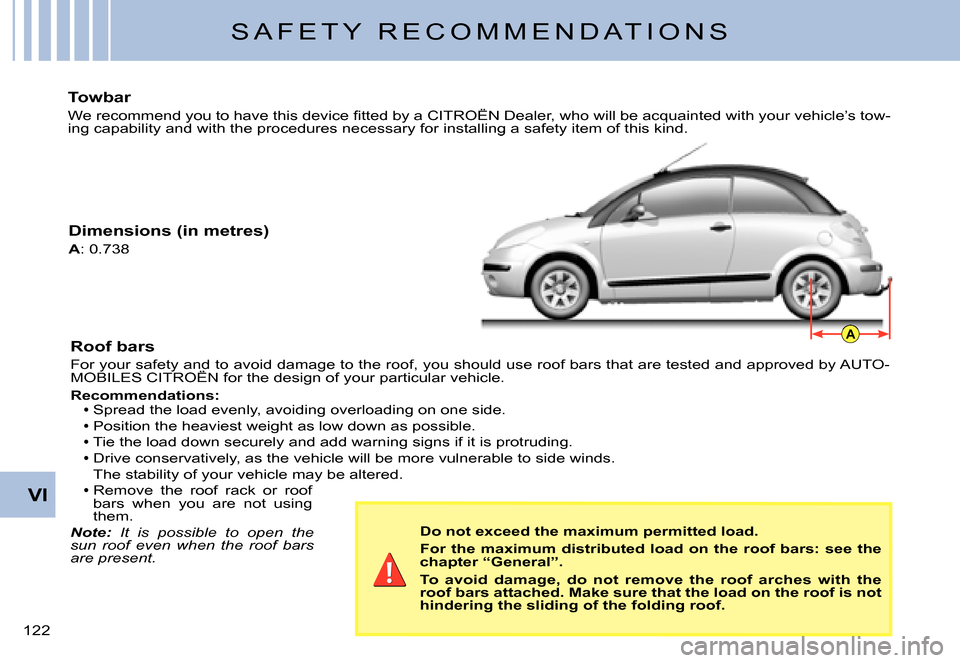

Towbar
W e r e c o m m e n d y o u t o h a v e t h i s d e v i c e fi t t e d b y a C I T R O Ë N D e a l e r , w h o w i l l b e a c q u a i n t e d w i t h y o u r v e h i c l e ’ s t o w -ing capability and with the procedures necessary for installing a safety item of this kind.
Dimensions (in metres)
A : 0 . 7 3 8
Do not exceed the maximum permitted load.
For the maximum distributed load on the roof bars: see the chapter “General”.
To avoid damage, do not remove the roof arches with the roof bars attached. Make sure that the load on the roof is n ot hindering the sliding of the folding roof.
Roof bars
For your safety and to avoid damage to the roof, you should use roof bars that are tested and approved by AUTO-MOBILES CITROËN for the design of your particular vehicle.For your safety and to avoid damage to the roof, you should use safety and
Recommendations:Spread the load evenly, avoiding overloading on one side.
Position the heaviest weight as low down as possible.Tie the load down securely and add warning signs if it is protruding.
Drive conservatively, as the vehicle will be more vulnerable to si de winds.
The stability of your vehicle may be altered.Remove the roof rack or roof bars when you are not using them.Note: It is possible to open the sun roof even when the roof bars are present.
Page 122 of 144
1 2 3
C H A N G I N G A W H E E L

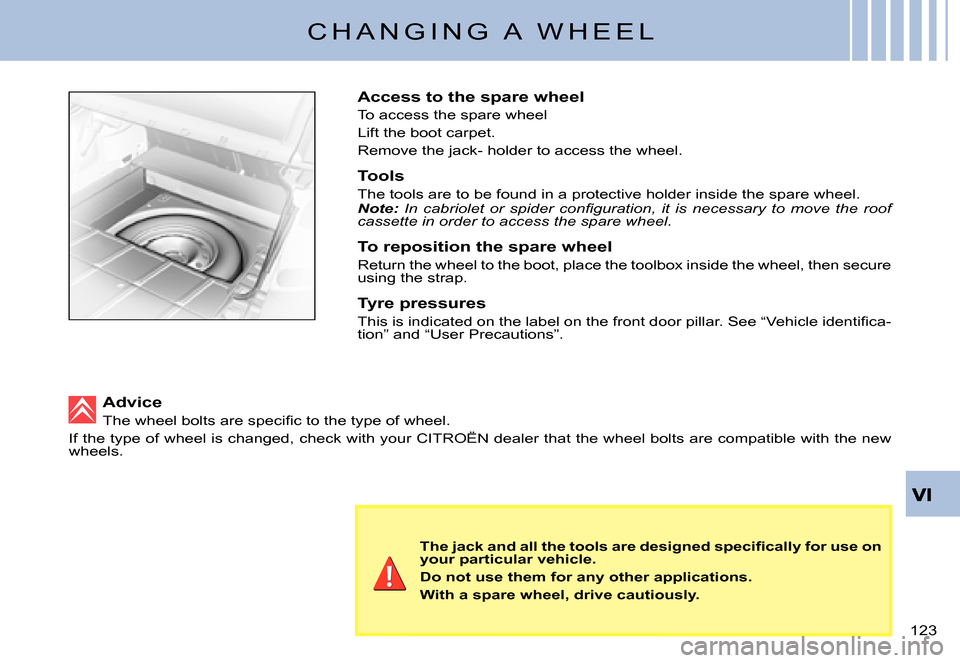

Access to the spare wheel
To access the spare wheel
Lift the boot carpet.
Remove the jack- holder to access the wheel.
Tools
The tools are to be found in a protective holder inside the spare wheel.Note: I n c a b r i o l e t o r s p i d e r c o n fi g u r a t i o n , i t i s n e c e s s a r y t o m o v e t h e r o o f cassette in order to access the spare wheel.
To reposition the spare wheel
Return the wheel to the boot, place the toolbox inside the wheel, then secure using the strap.
Tyre pressures
T h i s i s i n d i c a t e d o n t h e l a b e l o n t h e f r o n t d o o r p i l l a r . S e e “ V e h i c l e i d e n t i fi c a -tion” and “User Precautions”.
Advice
T h e w h e e l b o l t s a r e s p e c i fi c t o t h e t y p e o f w h e e l .
If the type of wheel is changed, check with your CITROËN dea ler that the wheel bolts are compatible with the new wheels.
T h e j a c k a n d a l l t h e t o o l s a r e d e s i g n e d s p e c i fi c a l l y f o r u s e o n your particular vehicle.
Do not use them for any other applications.
With a spare wheel, drive cautiously.
Page 123 of 144
6
3
2
5
1
4
VI
1 2 4
C H A N G I N G A W H E E L
Removal1. P a r k t h e v e h i c l e o n s t a b l e , fi r m g r o u n d t h a t i s n o t s l i p p e r y . A p p l y t h e parking brake. S w i t c h o f f t h e i g n i t i o n a n d e n g a g e fi r s t g e a r o r r e v e r s e g e a r , d e p e n d i n g on any slope.2. Detach the wheel trim if there is one, using the end of the wheelbrace 4, pulling close to the valve.3. S l a c k e n t h e w h e e l b o l t s . F o r v e h i c l e s w i t h a l u m i n i u m w h e e l r i m s , fi r s t remove the bolt protectors using tool 6 and use the socket for the anti- theft bolt 5.4. Position the jack 1 at the vehicle subframe jacking point closest to the wheel to be changed. Make sure that the whole surface of the jack base is in contact with the ground.5. Expand the jack 1 until the wheel is a few centimetres above the ground.6. Remove the uppermost bolt.7. Undo the other bolts, remove the wheel.
Tools1. J a c k .2. Movable towing eye.3. Compartment for bulb kit (Not supplied).4. Wheelbrace.5. Socket for anti- theft bolts (For vehicles with aluminium wheel rims).6. Tool for removing wheel bolt protectors (For vehicles with alumin ium wheel rims).
Page 124 of 144
VI
1 2 5
C H A N G I N G A W H E E L

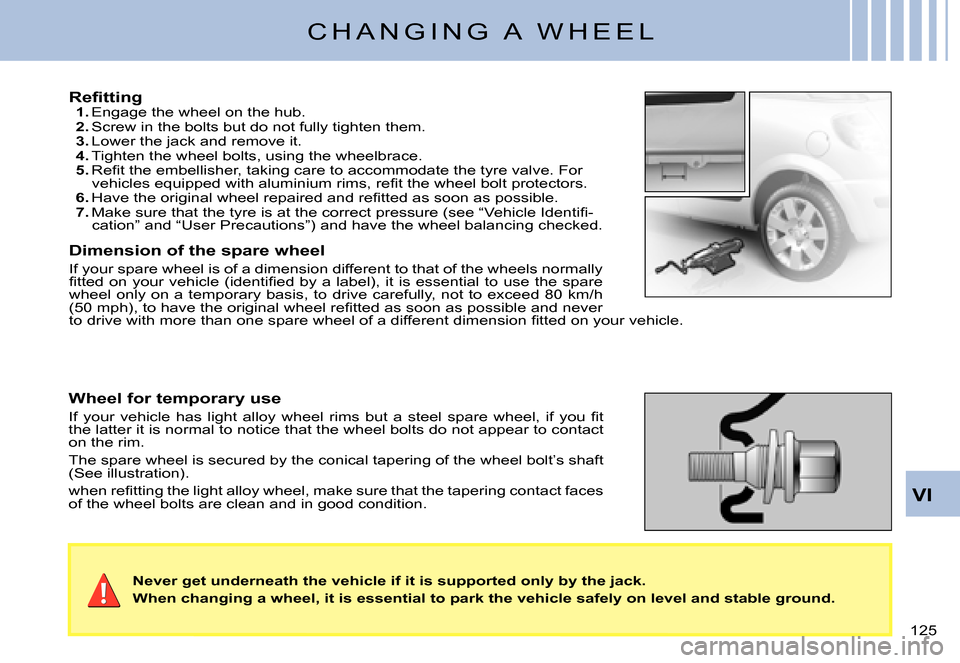

R e fi t t i n g1. Engage the wheel on the hub.2. Screw in the bolts but do not fully tighten them.3. Lower the jack and remove it.4. Tighten the wheel bolts, using the wheelbrace.5. R e fi t t h e e m b e l l i s h e r , t a k i n g c a r e t o a c c o m m o d a t e t h e t y r e v a l v e . F o r v e h i c l e s e q u i p p e d w i t h a l u m i n i u m r i m s , r e fi t t h e w h e e l b o l t p r o t e c t o r s .6. H a v e t h e o r i g i n a l w h e e l r e p a i r e d a n d r e fi t t e d a s s o o n a s p o s s i b l e .7. M a k e s u r e t h a t t h e t y r e i s a t t h e c o r r e c t p r e s s u r e ( s e e “ V e h i c l e I d e n t i fi -cation” and “User Precautions”) and have the wheel balancing checke d.
Dimension of the spare wheel
If your spare wheel is of a dimension different to that of the wheels normally fi t t e d o n y o u r v e h i c l e ( i d e n t i fi e d b y a l a b e l ) , i t i s e s s e n t i a l t o u s e t h e s p a r e w h e e l o n l y o n a t e m p o r a r y b a s i s , t o d r i v e c a r e f u l l y , n o t t o e x c e e d 8 0 k m / h ( 5 0 m p h ) , t o h a v e t h e o r i g i n a l w h e e l r e fi t t e d a s s o o n a s p o s s i b l e a n d n e v e r t o d r i v e w i t h m o r e t h a n o n e s p a r e w h e e l o f a d i f f e r e n t d i m e n s i o n fi t t e d o n y o u r v e h i c l e .
Never get underneath the vehicle if it is supported only by the jack.
When changing a wheel, it is essential to park the vehicle safely on level and stable ground.
Wheel for temporary use
I f y o u r v e h i c l e h a s l i g h t a l l o y w h e e l r i m s b u t a s t e e l s p a r e w h e e l , i f y o u fi t the latter it is normal to notice that the wheel bolts do not appear to contact on the rim.
The spare wheel is secured by the conical tapering of the whe el bolt’s shaft (See illustration).
w h e n r e fi t t i n g t h e l i g h t a l l o y w h e e l , m a k e s u r e t h a t t h e t a p e r i n g c o n t a c t f a c e s of the wheel bolts are clean and in good condition.
Page 125 of 144
1 2 6
T O W I N G – L I F T I N G
Towing with wheels on the ground
T o w i n g e y e fi x i n g s a r e l o c a t e d a t t h e f r o n t a n d a t t h e r e a r o f t h e v e h i c l e .
To access them:Carefully lift the access cover.Release it by pressing on the lower part.
A lug keeps the cover attached to the bumper, so that it do es not become lost.
The ignition key must be in position M to retain steering.
Use a bar with attachments to the towing eyes as above.

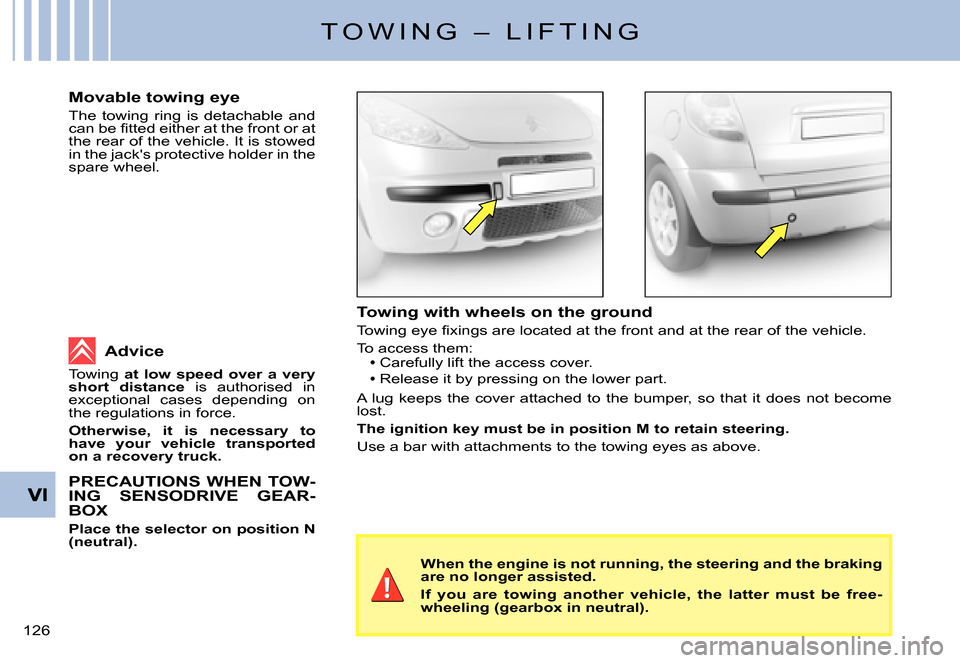

Movable towing eye
The towing ring is detachable and c a n b e fi t t e d e i t h e r a t t h e f r o n t o r a t the rear of the vehicle. It is stowed in the jack's protective holder in the spare wheel.
When the engine is not running, the steering and the bra king are no longer assisted.
If you are towing another vehicle, the latter must be free-wheeling (gearbox in neutral).
Advice
Towing at low speed over a very short distance is authorised in exceptional cases depending on the regulations in force.
Otherwise, it is necessary to have your vehicle transported on a recovery truck.
PRECAUTIONS WHEN TOW-ING SENSODRIVE GEAR-BOX
Place the selector on position N (neutral).
Page 126 of 144
VII
1 2 7

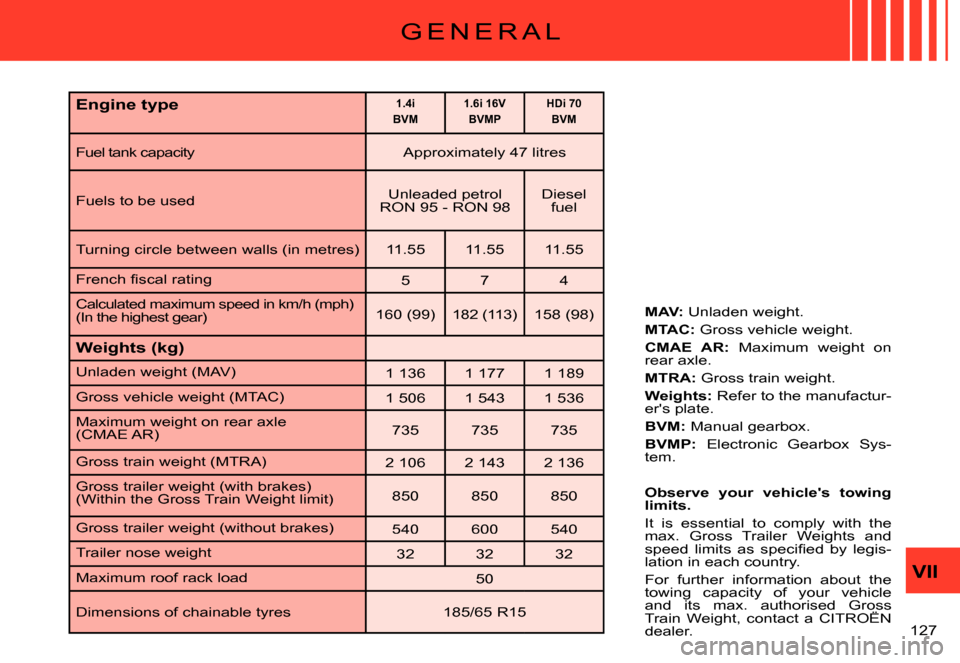

G E N E R A L
MAV: Unladen weight.
MTAC: Gross vehicle weight.
CMAE AR: Maximum weight on rear axle.
MTRA: Gross train weight.
Weights: Refer to the manufactur-er's plate.
BVM: Manual gearbox.
BVMP: Electronic Gearbox Sys-tem.
Observe your vehicle's towing limits.
It is essential to comply with the max. Gross Trailer Weights and s p e e d l i m i t s a s s p e c i fi e d b y l e g i s -lation in each country.
For further information about the towing capacity of your vehicle and its max. authorised Gross Train Weight, contact a CITROËN dealer.
Engine type1.4iBVM1.6i 16VBVMPHDi 70BVM
Fuel tank capacity A p p r o x i m a t e l y 4 7 l i t r e s
Fuels to be usedUnleaded petrol R O N 9 5 - R O N 9 8Diesel fuel
Turning circle between walls (in metres) 1 1 . 5 5 1 1 . 5 5 1 1 . 5 5
F r e n c h fi s c a l r a t i n g 5 7 4
Calculated maximum speed in km/h (mph) (In the highest gear) 1 6 0 ( 9 9 ) 1 8 2 ( 1 1 3 ) 1 5 8 ( 9 8 )
Weights (kg)
U n l a d e n w e i g h t ( M A V ) 1 1 3 6 1 1 7 7 1 1 8 9
Gross vehicle weight (MTAC) 1 5 0 6 1 5 4 3 1 5 3 6
Maximum weight on rear axle (CMAE AR) 7 3 5 7 3 5 7 3 5
Gross train weight (MTRA) 2 1 0 6 2 1 4 3 2 1 3 6
Gross trailer weight (with brakes) (Within the Gross Train Weight limit) 8 5 0 8 5 0 8 5 0
Gross trailer weight (without brakes) 5 4 0 6 0 0 5 4 0
Trailer nose weight 3 2 3 2 3 2
Maximum roof rack load 5 0
Dimensions of chainable tyres 1 8 5 / 6 5 R 1 5
Page 127 of 144
G
B
E
H
I
FVII
1 2 8
D I M E N S I O N S
( I N M E T R E S )
A 2 . 4 6 0
B 3 . 9 3 4
C 0 . 7 7 9
D 0 . 6 9 5
E 1 . 4 3 1
F 1 . 4 3 0 / 1 . 4 3 5
G 1 . 7 0 0
H 1 . 5 5 9 / 1 . 5 6 3
I 1 . 8 7 7
Page 128 of 144
E
A
D
C
G
F
B
H
VII
1 2 9
D I M E N S I O N S
( I N M E T R E S )
A 0 . 9 8 7
B 0 . 4 0 0
C 0 . 6 6 0
D 0 . 8 8 5
E 0 . 6 4 5
F 1 . 1 8 0
G 0 . 7 3 0
H 0 . 6 3 5
Page 129 of 144
VII
1 3 0

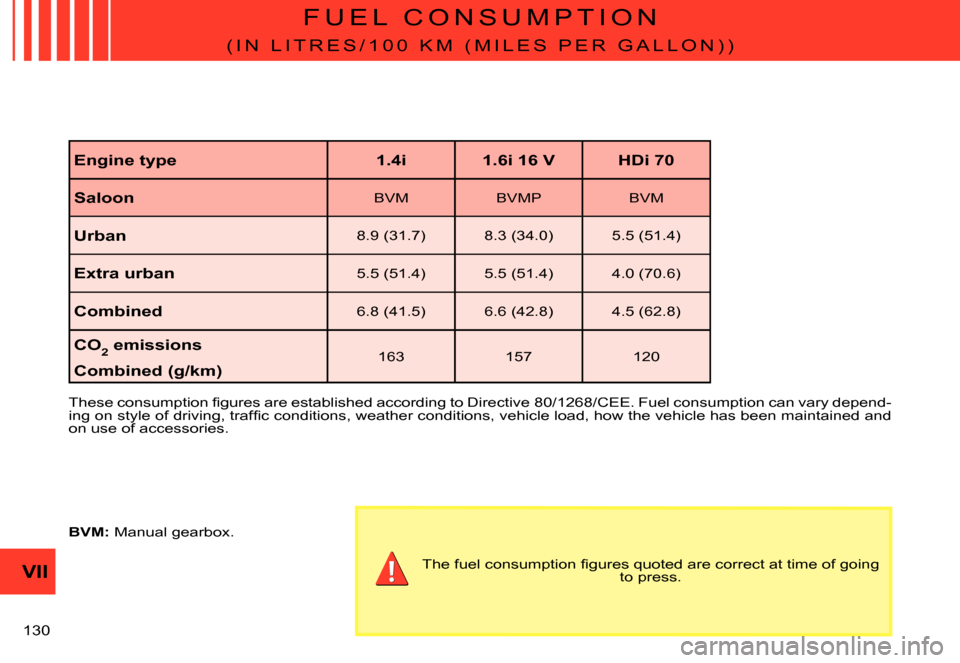

F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
T h e s e c o n s u m p t i o n fi g u r e s a r e e s t a b l i s h e d a c c o r d i n g t o D i r e c t i v e 8 0 / 1 2 6 8 / C E E . F u e l c o n s u m p t i o n c a n v a r y d e p e n d - i n g o n s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , v e h i c l e l o a d , h o w t h e v e h i c l e h a s b e e n m a i n t a i n e d a n d on use of accessories.
Engine type1.4i1.6i 16 VHDi 70
Saloon B V M B V M P B V M
Urban 8 . 9 ( 3 1 . 7 ) 8 . 3 ( 3 4 . 0 ) 5 . 5 ( 5 1 . 4 )
Extra urban 5 . 5 ( 5 1 . 4 ) 5 . 5 ( 5 1 . 4 ) 4 . 0 ( 7 0 . 6 )
Combined 6 . 8 ( 4 1 . 5 ) 6 . 6 ( 4 2 . 8 ) 4 . 5 ( 6 2 . 8 )
CO2 emissions
Combined (g/km) 1 6 3 1 5 7 1 2 0
T h e f u e l c o n s u m p t i o n fi g u r e s q u o t e d a r e c o r r e c t a t t i m e o f g o i n g to press.
BVM: Manual gearbox.
Page 130 of 144
A
A
B
D
1
C
VII
1 3 1
V E H I C L E I D E N T I F I C A T I O N

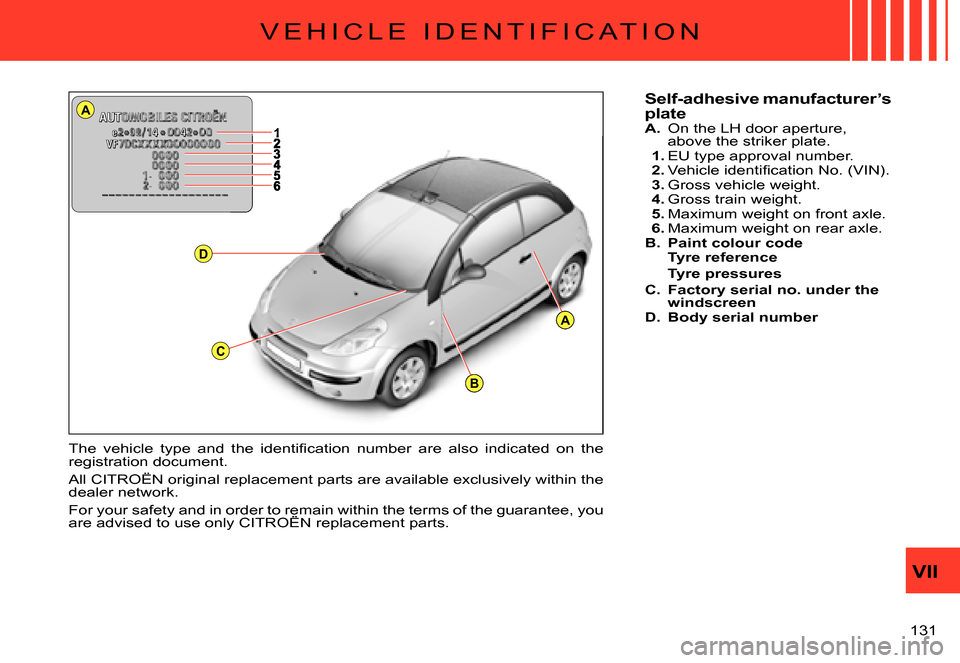

Self-adhesive manufacturer’s plateA. On the LH door aperture, above the striker plate.1. EU type approval number.2. V e h i c l e i d e n t i fi c a t i o n N o . ( V I N ) .3. Gross vehicle weight.4. Gross train weight.5. Maximum weight on front axle.6. Maximum weight on rear axle.B. Paint colour codeTyre reference
Tyre pressures
C. Factory serial no. under the windscreenD. Body serial number
T h e v e h i c l e t y p e a n d t h e i d e n t i fi c a t i o n n u m b e r a r e a l s o i n d i c a t e d o n t h e registration document.
All CITROËN original replacement parts are available exclusively w ithin the dealer network.
For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.For your safety and in order to remain within the terms of order to remain
