Citroen C3 PLURIEL DAG 2008 1.G Owner's Manual

IN
BRIEF
4
I

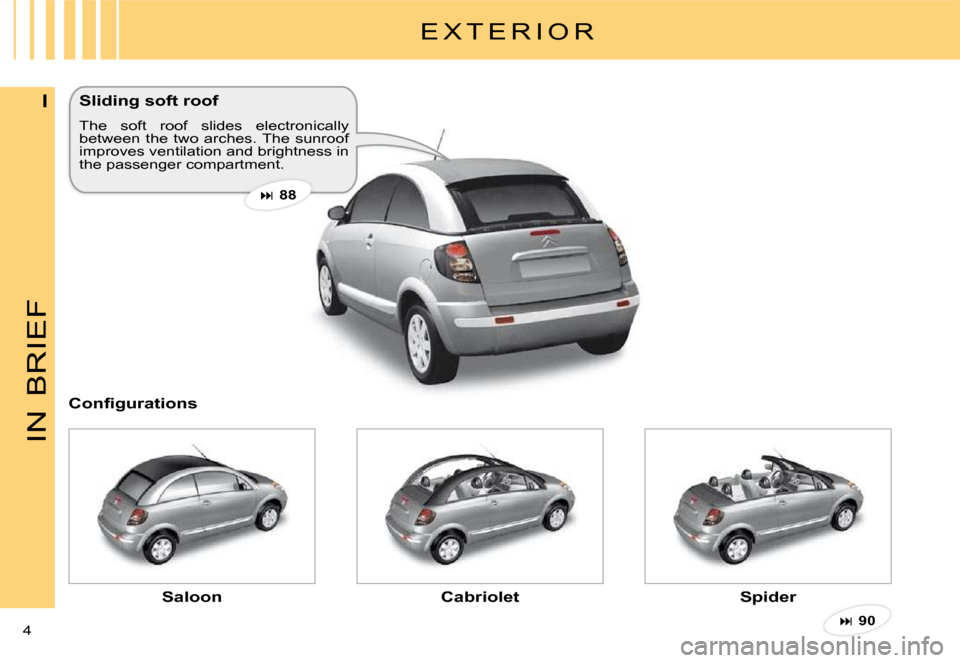

E X T E R I O R
Sliding soft roof
The soft roof slides electronically between the two arches. The sunroof improves ventilation and brightness in the passenger compartment.
88
SaloonCabrioletSpider
Confi gurations
90

A
C
BA
A
B
IN
BRIEF
5
IFuel tank
A. Opening of the fuel fl ap.
B. Opening of the fuel cap.
Tank capacity: approximately 47 litres.
A. Locking/unlocking of the vehi-cle from the interior.
Remote control key
A. Locking of the vehicle.
B. Unlocking of the vehicle.
C. Key release/storage.
Manual central locking
1966116
O P E N I N G

A
2
1
A
B
B
A
IN
BRIEF
6
IRear screen Spare wheel and tools
O P E N I N G
Opening
Open the rear screen 1 by press-ing on control A and open the tailgate 2 by pressing on control B located inside the tailgate.
Access to the spare wheel
Lift up the carpet, then remove the toolbox to access the wheel.
Access to the tools
The tools are located in the toolbox in the spare wheel. Pull the strap to access
Opening
Open the rear screen 1 by pressing on control A located above the letter R in CITROËN.
8484123
Tailgate
It is necessary to open the rear screen to gain access to the tailgate opening control.
Always close the tailgate before re-closing the rear screen.
In Cabriolet or Spider confi gu-ration, it is necessary to move the roof cassette to access the spare wheel.

IN
BRIEF
7

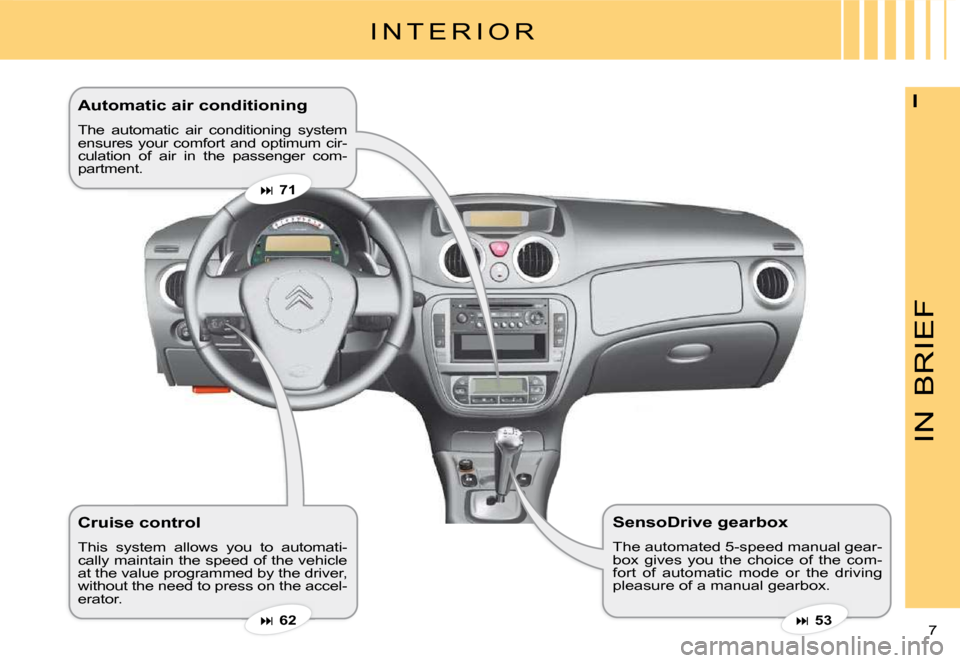

IAutomatic air conditioning
The automatic air conditioning system ensures your comfort and optimum cir-culation of air in the passenger com-partment.
Cruise control
This system allows you to automati-cally maintain the speed of the vehicle at the value programmed by the driver, without the need to press on the accel-erator.
SensoDrive gearbox
The automated 5-speed manual gear-box gives you the choice of the com-fort of automatic mode or the driving pleasure of a manual gearbox.
I N T E R I O R
62
71
53

123456789101112131415
IN
BRIEF
8
I
D A S H B O A R D

BRIEF
9
I
D A S H B O A R D
22 Gear lever.
23 Rear electric window controls.
24 Moveable ashtray.
25 Parking brake.
26 Cigar lighter / 12 V acces-sories socket (functions with ignition switched on) (Maximum power 120 W).
27 Radio control under steering wheel.
28 Steering lock - Ignition.
29 Steering column adjustment control.
30 Controls :

2
4
5
1
3
IN
BRIEF
10
I
G E T T I N G S T A R T E D
Front seats
1. Head restraint adjustment.
2. Backrest angle adjustment.
3. Seat height and angle.
4. Longitudinal adjustment.
5. Access to rear seats.
75

1
3
2
21
1
IN
BRIEF
11
I
1. Releasing by pulling lever.
2. Locking by pushing lever.
Manual adjustment of
steering wheel heightAdjustment of exterior rear
view mirrors
1. Selection of driver’s side mir-ror.
2. Selection of passenger’s side mirror.
3. Foldback / Deployment.
G E T T I N G S T A R T E D
Adjustment of interior rear
view mirror
1. « Day / Night » mirror position control.
495050

1
3
2
IN
BRIEF
12
I
G E T T I N G S T A R T E D
Electric window controls
1. Driver’s electric window con-trol.
2. Passenger’s electric window control.
Ignition switch
S. Steering lock position.
M. Drive position.
D. Starting position.
Sliding soft roof control
Turn the control to the left to open the sunroof.
There are 8 opening positions.
3. Rear electric windows control.
255188

A
IN
BRIEF
13
ILighting
Ring A
Ring B
Front and rear foglamps.
Headlamps off.
Automatic lighting of head-lamps.
Sidelamps.
Dipped or main beams.
Front screen wipe
Screen wipe
Front screen wash
2 : Fast wipe.
1 : Normal wipe.
I : Intermittent wipe.
0 : Off.
Pressing downwards :
- AUTO : Automatic wipe.
- Single wipe.
To activate the front screen wash, pull the screen wipe control towards you.
V I S I B I L I T Y
454748
To deactivate automatic wipe, put the control to position I, then return it to position 0.
