Page 11 of 129
IN
BRIEF
14
I

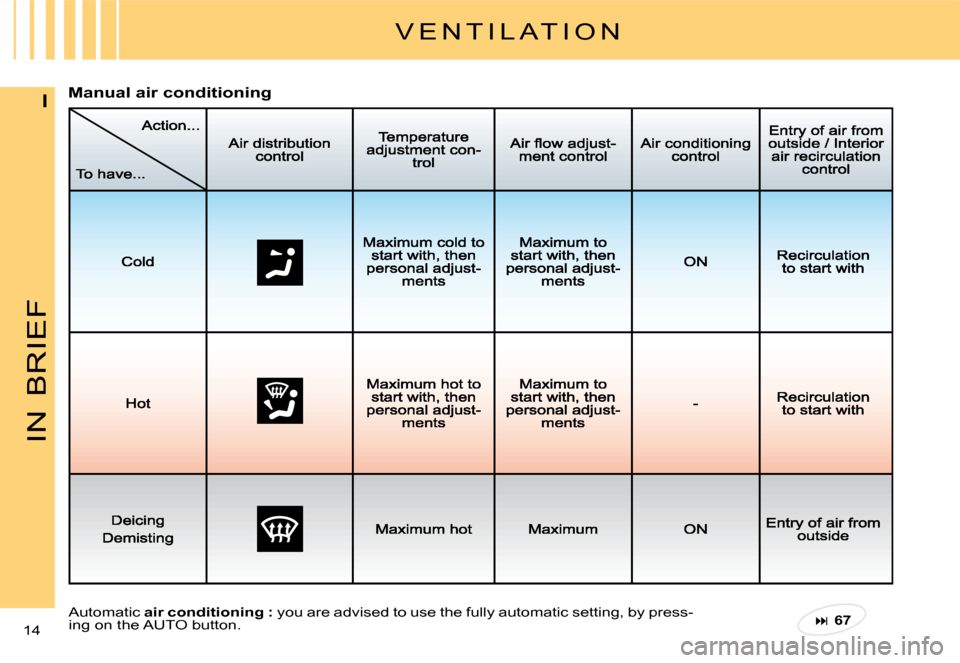

V E N T I L A T I O N
M a n u a l a i r c o n d i t i o n i n g
Automatic air conditioning : you are advised to use the fully automatic setting, by press-ing on the AUTO button. 67
Page 12 of 129
DB
A
CAD
C
B
IN
BRIEF
15
I
M O N I T O R I N G
I n s t r u m e n t p a n e lControls panel
A. Rev counter.
B. Instrument panel screen.
C. Fuel gauge.
D. Dashboard lighting rheostat.
When the ignition is switched on, the orange and red warning lamps light up.
With the engine running, these warning lamps should go out.
If the warning lamps remain lit, refer to the appropriate page.
Warning lamps
The lighting of the warning lamp indicates the status of the corre-sponding function.
A. Activation of alarm.
B. Locking of electric rear windows.
C. Activation of over-speed alert.
D. Deactivation of ESP.
27 30
23
51
61
60
Page 13 of 129
A
B
IN
BRIEF
16
IDriver’s seat belt fastening
detectionDeactivation of front
passenger’s airbag
The warning lamp lights up if the driver’s seat belt has not been fastened when the ignition is switched on and between 0 and 20 km/h.
Over 20 km/h, the warning lamp fl a s h e s a c c o m p a n i e d b y a s o u n d signal for approximately 2 minutes. After this it remains lit up.
1. With the ignition off, insert the key in switch A.
2. Turn the key to the «OFF» position, the passenger’s air-bag is deactivated.
3. The front passenger’s airbag deactivation warning lamp, on the instrument panel, lights up when the ignition is switched on.
I s o ï¬ x f a s t e n i n g s y s t e m
Two rings B, located between the backrest and the seat cushion, a l l o w a c h i l d s e a t t o b e ï¬ t t e d .
P A S S E N G E R S A F E T Y
30 78 79
Page 14 of 129
BCA
IN
BRIEF
17
I D a s h b o a r d d i s p l a y
SensoDrive gearbox
B. Control under steering wheel «-».
C. Control under steering wheel «+».
This automated 5-speed manual gearbox gives you the choice of the comfort of automatic mode or the driving pleasure of a manual gearboxA. Gear lever.
The gear engaged and «AUTO» mode are displayed on the instru-ment panel.
The foot-on-brake warning lamp fl a s h e s t o i n d i c a t e t h a t i t i s n e c e s -sary to press the brake pedal.
D R I V I N G
53
Page 15 of 129
IN
BRIEF
18
I
D R I V I N G
C r u i s e c o n t r o l Speed limiter I n s t r u m e n t p a n e l d i s p l a y
1. Activation / Deactivation of cruise control mode.
2. Reduction of the programmed speed.
3. Increase in the programmed speed.
4. Start / Stop cruise control.
To programme or activate, the vehicle speed must be over 40 km/h (25mph).
1. Activation / Deactivation of speed limiter mode.
2. Reduction of the programmed speed.
3. Increase in the programmed speed.
4. Start / Stop speed limiter.
Cruise control or speed limiter mode appears in the instrument panel when selected.
C r u i s e c o n t r o l
Speed limiter
64 62
To stop cruise control, you can either : - press on the brake pedal,
- press on control 4,
- use control 1,
- as a last resort, switch off the engine.
Page 16 of 129
B
A
II
19
R E M O T E C O N T R O L
Note: The simultaneous use of other high frequency equipment (mobile telephones, domestic alarms, etc.) may momentarily hinder the operation of the remote control.
If there is a permanent fault, the remote control has to be reinitial-ised. See “Changing remote con-trol batteriesâ€.
Central unlocking
A short press on control B unlocks your vehicle.
T h i s o p e r a t i o n i s c o n ï¬ r m e d b y t h e r a p i d fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s and the lighting of the interior lamp (if the function is activated). It can also deploy the exterior rear view mirrors.
Central locking – Deadlocking
A short press on button A locks your vehicle.
T h i s i s c o n ï¬ r m e d b y t h e l i g h t i n g f o r a r o u n d 2 s e c o n d s o f t h e d i r e c t i o n i n d i c a -tors and by the interior lamp going out. It may cause the exte rior rear view mirrors to fold back.
If any of the doors, or the boot, is open or not properly closed, the central locking does not operate.
For vehicles equipped with deadlocking, two successive presses on co ntrol A will operate deadlocking. It is then impossible to open the doors, either from the inside or from the outside.
It is dangerous to operate the deadlocking when a p erson is in the vehicle as unlocking is impossible from the inside (without the remote control).
Page 17 of 129
A
C
B
II
2 0
R E M O T E C O N T R O L
Changing the remote control battery
First, retract the key-carrier if necessary.
Unclip the housing by lifting at the rear (see diagram).
Battery: C R 0 5 2 3 o f 3 V .
Re-initialisation of the remote control
After a change of battery, it may be necessary to re-initialise the remote control. To do that, switch on the ignition and immediately action button Aon your remote control to trigger the action desired. This may ta ke some ten seconds.Note: Make a careful note of the numbers for the keys and for the remot e control on the ASSISTANCE card. Keep this in a safe place.
Do not throw away the old batteries. They should be returned to a CITROËNdealer or deposited at a recognised collection point (a camera shop, for example).
Except when reinitialising, the remote control cannot function while the key is in the ignition, even when switched off.
Warning: by inadvertently actioning the remote control, wh en for example it is in your pocket, you can unlock the vehicle without your realising it.
However, if none of the doors is opened within thirty seconds following an unlocking, the doors will automatically relock.
Warning: there is a risk of damage if the replacement batte ry is not the correct one.
Only use batteries that are identical or equivalent to those approved by CITROËN.Only use batteries that ies tha
Locating of the vehicle
To locate the vehicle on a carpark, press button A, the interior lamps come on and the direction indica- t o r s fl a s h f o r a f e w s e c o n d s . T h e vehicle remains locked.
Folding and ejecting the key
Button C is for folding and eject-ing the key from its housing in the remote control.
If you do not press on button C, you could damage the key mecha-nism.
Page 18 of 129
II
2 1
K E Y S
It is dangerous to operate the deadlocking when a person is in the vehicle as unlocking is impossible from the inside (without the remote control).
The key number is on the label attached to the key.
If you lose your keys
Visit your CITROËN dealer with your vehicle registr ation documents and your proof of identity.
Your CITROËN dealer will be able to recover the key and transponder code to enable your key to be replaced.
Electronic immobiliser key
The key operates all the vehicle’s locks as well as the ignition.Note: For safety reasons, a buzzer will sound if you have switched off the ignition and opened the driv-er’s door without having removed the ignition key.
The key can be used to deactivate the front passenger’s airbag. See “Airbagsâ€.
Central locking using the key
A brief action with the key locks the vehicle.
Deadlocking: Central locking using the key
A second action straightaway with the key deadlocks the vehicle. It is then impossible to open the doors from either inside or outside the vehicle.Note:With the vehicle stationary and the engine switched off, locking is sig- n a l l e d b y t h e fl a s h i n g o f t h e i n t e r i o r l o c k i n g c o n t r o l w a r n i n g l a m p .If any of the doors, or the boot, is open or not properly clo sed, the central locking does not operate.
Electronic immobiliser
The ELECTRONIC IMMOBILISER device locks the engine supply system.
The system activates automatically as the key is removed from the igni tion.
All the vehicle’s keys contain an electronic immobiliser device.
After you switch on the ignition, a dialogue starts between the key and the electronic immobiliser device.
If the key is not recognised, you cannot start the vehicle .
If this occurs, leave your vehicle immobilised and contact a CITRO ËN dealer.
Page 19 of 129
B
A1
II
2 3
A N T I - I N T R U S I O N A L A R M
Your vehicle may be equipped with an ANTI-INTRUSION ALARM. This provides:Exterior perimeter protection by means of detectors on the vehi-cle access points (doors, boot, bonnet) as well as on the elec-trical supply.Interior volumetric protection by means of ultrasonic sensors (detecting movement inside the passenger compartment). This can be deactivated using the control 1.
Page 20 of 129
II
2 4
Operating the alarm
First make sure all the doors are closed.
The alarm is armed by pressing button A on the remote control.
W i t h t h e a l a r m a r m e d , t h e p r o t e c t i o n s a r e a c t i v e a f t e r 5 s e c o n d s ( p e r i m e t e r ) a n d 4 5 s e c o n d s ( v o l u m e t r i c ) .
When the alarm is armed (on standby), any intrusion w i l l t r i g g e r t h e s i r e n f o r 3 0 s e c o n d s , a c c o m p a n i e d b y the direction indicators lighting up.
The alarm then goes back on standby, but the trigger-ing remains memorised and is signalled by the rapid fl a s h i n g o f t h e w a r n i n g l a m p o n c o n t r o l 1 after you have deactivated the alarm with a press on the unlocking button B . T h e fl a s h i n g s t o p s w h e n y o u s w i t c h o n t h e ignition.
The siren is also triggered if there is a cutting of the electrical supply. To stop it, restore the electrical supply then press on the unlocking button B.Note:If you want to lock your vehicle without arming the alarm, just lock with the key only.If you lock your vehicle and a door, or the boot, is still open, the central locking does not operate but the alarm will arm itself after approx. 45 seconds.Note: The siren is automatically deactivated (for exam-ple for disconnecting the battery) as soon as the vehicle is unlocked using the remote control.
