Page 151 of 252
11
149
PRACTICAL INFORMATION

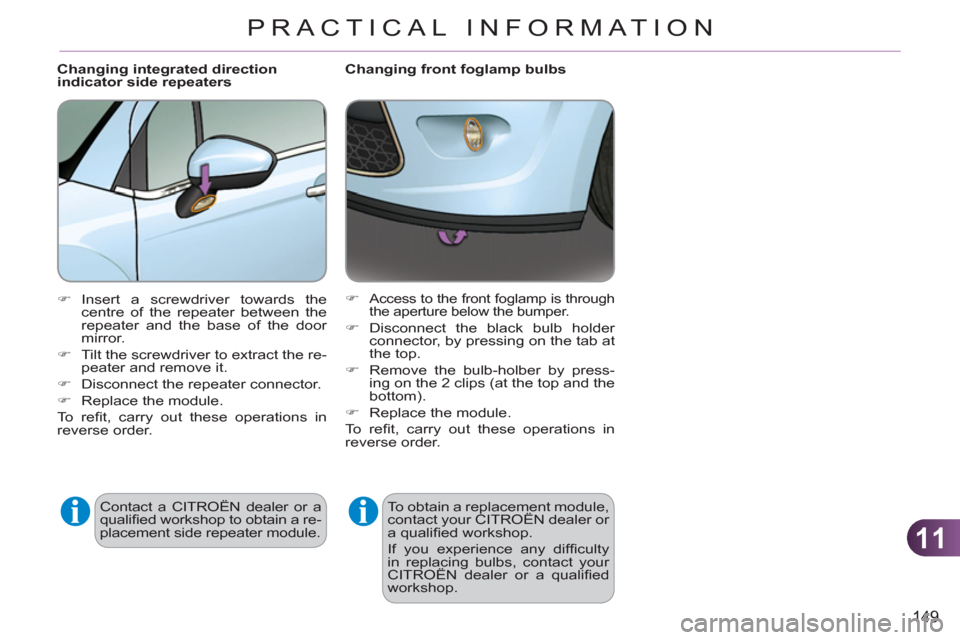

Changing front foglamp bulbs
To obtain a replacement module,
contact your CITROËN dealer or
a qualifi ed workshop.
If you experience any diffi culty
in replacing bulbs, contact your
CITROËN dealer or a qualifi ed
workshop.
)
Access to the front foglamp is through
the aperture below the bumper.
)
Disconnect the black bulb holder
connector, by pressing on the tab at
the top.
)
Remove the bulb-holber by press-
ing on the 2 clips (at the top and the
bottom).
)
Replace the module.
To r efi t, carry out these operations in
reverse order.
Changing integrated direction
indicator side repeaters
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the door
mirror.
)
Tilt the screwdriver to extract the re-
peater and remove it.
)
Disconnect the repeater connector.
)
Replace the module.
To r efi t, carry out these operations in
reverse order.
Contact a CITROËN dealer or a
qualifi ed workshop to obtain a re-
placement side repeater module.
Page 152 of 252
11
150
PRACTICAL INFORMATION

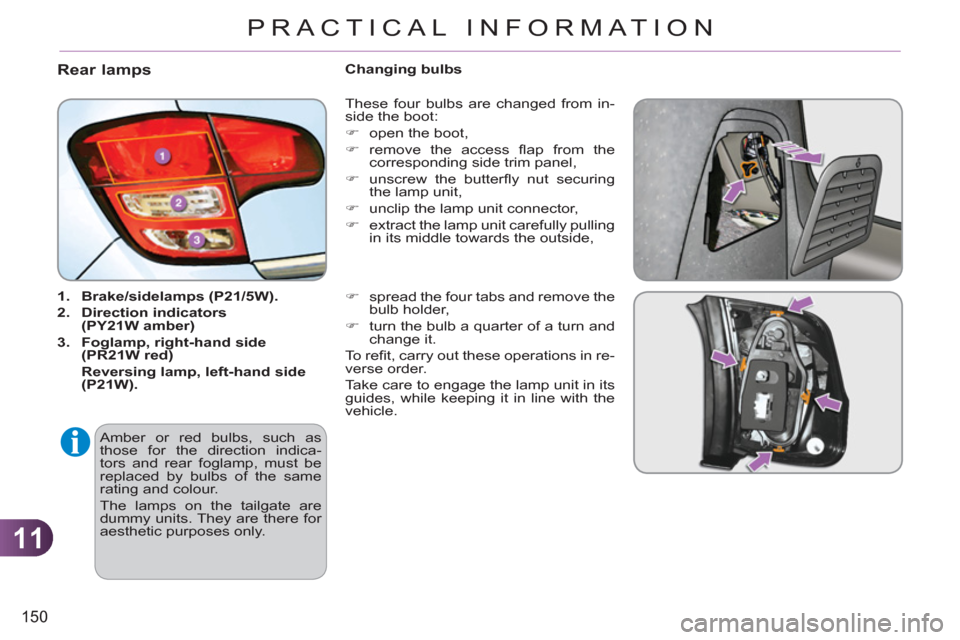

Rear lamps
1.
Brake/sidelamps (P21/5W).
2.
Direction indicators
(PY21W amber)
3.
Foglamp, right-hand side
(PR21W red)
Reversing lamp, left-hand side
(P21W).
These four bulbs are changed from in-
side the boot:
)
open the boot,
)
remove the access fl ap from the
corresponding side trim panel,
)
unscrew the butterfl y nut securing
the lamp unit,
)
unclip the lamp unit connector,
)
extract the lamp unit carefully pulling
in its middle towards the outside,
)
spread the four tabs and remove the
bulb holder,
)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Changing bulbs
Amber or red bulbs, such as
those for the direction indica-
tors and rear foglamp, must be
replaced by bulbs of the same
rating and colour.
The lamps on the tailgate are
dummy units. They are there for
aesthetic purposes only.
Page 153 of 252
11
151
PRACTICAL INFORMATION

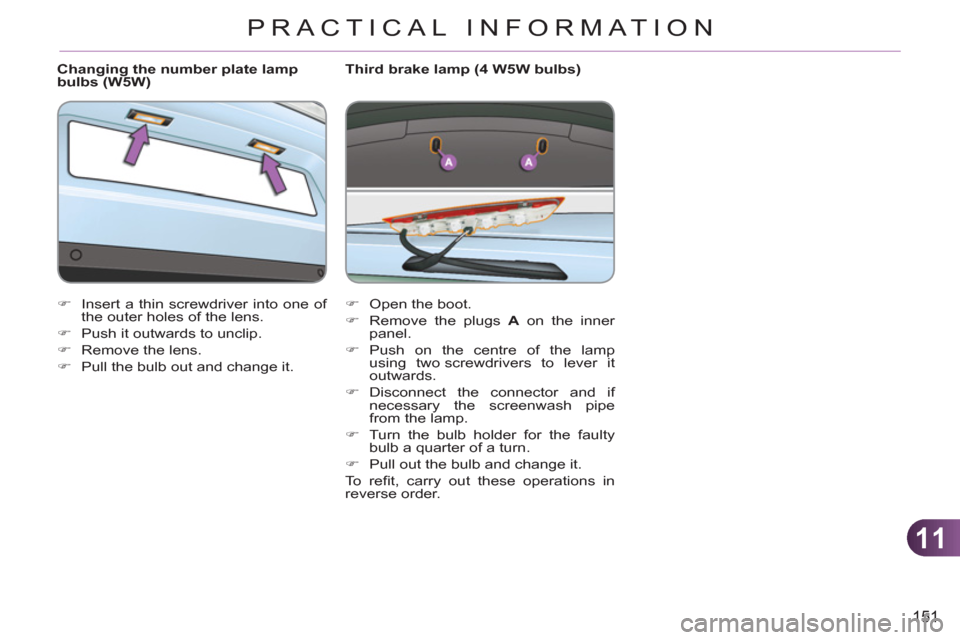

Changing the number plate lamp
bulbs (W5W)
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb out and change it.
)
Open the boot.
)
Remove the plugs A
on the inner
panel.
)
Push on the centre of the lamp
using two screwdrivers to lever it
outwards.
)
Disconnect the connector and if
necessary the screenwash pipe
from the lamp.
)
Turn the bulb holder for the faulty
bulb a quarter of a turn.
)
Pull out the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Third brake lamp (4 W5W bulbs)
Page 154 of 252
11
152
PRACTICAL INFORMATION

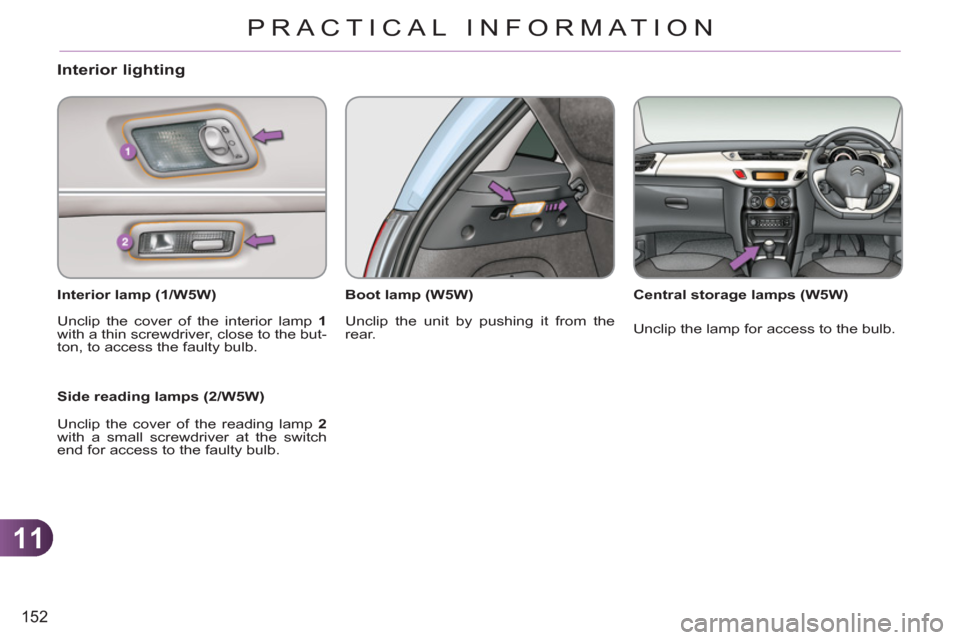

Interior lighting
Interior lamp (1/W5W)
Unclip the cover of the interior lamp 1
with a thin screwdriver, close to the but-
ton, to access the faulty bulb.
Side reading lamps (2/W5W)
Unclip the cover of the reading lamp 2
with a small screwdriver at the switch
end for access to the faulty bulb.
Boot lamp (W5W)
Unclip the unit by pushing it from the
rear.
Central storage lamps (W5W)
Unclip the lamp for access to the bulb.
Page 155 of 252
11
153
PRACTICAL INFORMATION

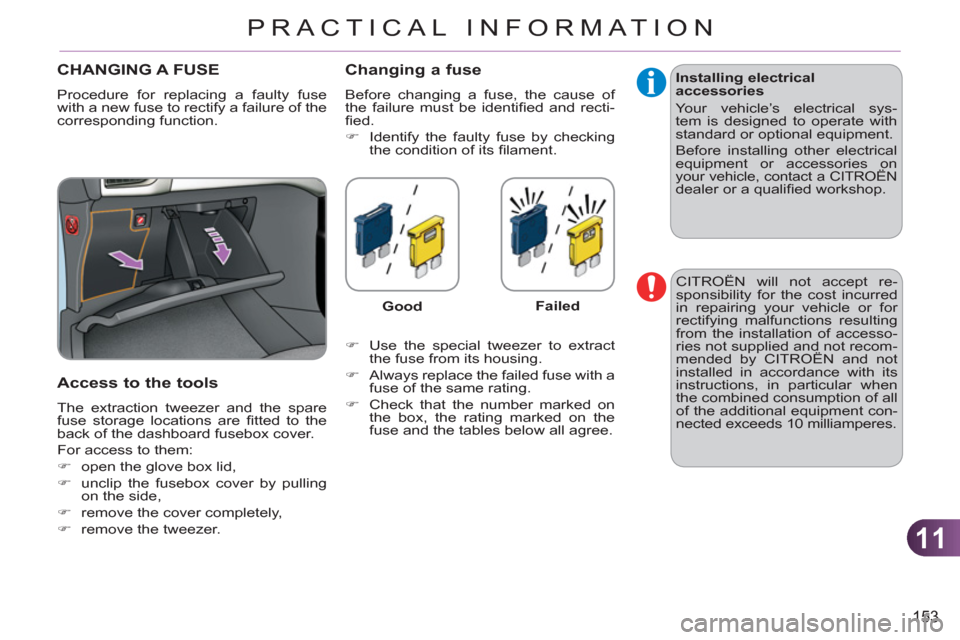

CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction tweezer and the spare
fuse storage locations are fi tted to the
back of the dashboard fusebox cover.
For access to them:
)
open the glove box lid,
)
unclip the fusebox cover by pulling
on the side,
)
remove the cover completely,
)
remove the tweezer.
Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the faulty fuse by checking
the condition of its fi lament.
Good
Failed
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the failed fuse with a
fuse of the same rating.
)
Check that the number marked on
the box, the rating marked on the
fuse and the tables below all agree.
Installing electrical
accessories
Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN dealer or a qualifi ed workshop.
CITROËN will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying malfunctions resulting
from the installation of accesso-
ries not supplied and not recom-
mended by CITROËN and not
installed in accordance with its
instructions, in particular when
the combined consumption of all
of the additional equipment con-
nected exceeds 10 milliamperes.
Page 156 of 252
11
154
PRACTICAL INFORMATION
Dashboard fusebox
The fusebox is placed in the lower dash-
board (left-hand side).
Access to the fuses
)
Refer to the paragraph "Access to
the tools".
Fuse tables
Fuse N°
Rating
Functions
FH36
5 A
Trailer relay unit.
FH37
-
Not used.
FH38
20 A
HiFi amplifi er.
FH39
-
Not used.
FH40
40 A
Trailer relay unit.
Fuse N°
Rating
Functions
F1
15 A
Rear wiper.
F2
-
Not used.
F3
5 A
Airbags and pretensioners control unit.
F4
10 A
Air conditioning, clutch switch, electrochromatic
mirror, particle fi lter pump (Diesel), diagnostic
socket, airfl ow sensor (Diesel).
F5
30 A
Electric windows panel, passenger’s electric
window control, front electric window motor.
F6
30 A
Rear electric windows motors and driver’s electric
window motor.
F7
5 A
Courtesy lamp, side reading lamps.
Page 157 of 252
11
155
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F8
20 A
Multifunction screen, audio system, navigation
radio, instrument panel with clock, alarm control
unit, alarm siren, audio system (after-market),
portable navigation system carrier supply.
F9
30 A
Multifunction screen, audio system, navigation
audio unit, instrument pnael with clock, alarm
control unit, alarm siren, audio system
(after-market), 12 V socket, portable navigation
support supply, locking.
F10
15 A
Steering mounted controls.
F11
15 A
Ignition, diagnostic socket, automatic gearbox
control unit.
F12
15 A
Rain/sunshine sensor, trailer relay unit, driving
school module.
F13
5 A
Main stop switch, engine relay unit.
F14
15 A
Parking sensors control unit, airbag control unit,
instrument panel, automatic air conditioning,
USB Box, HiFi amplifi er.
F15
30 A
Locking.
F16
-
Not used.
F17
40 A
Rear screen and door mirrors demisting/defrosting.
SH
-
PARC shunt.
Page 158 of 252
11
156
PRACTICAL INFORMATION

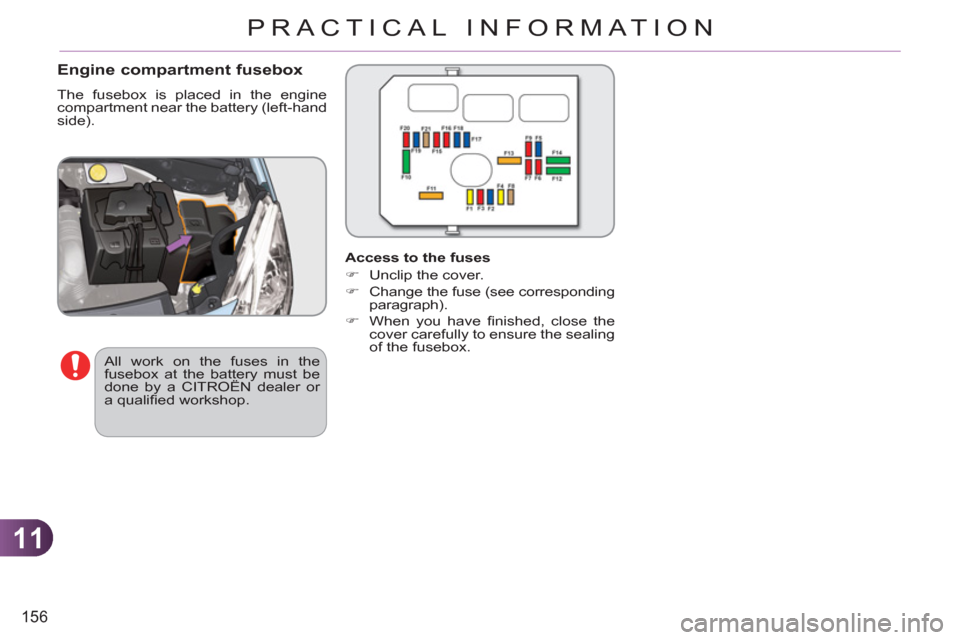

Engine compartment fusebox
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see corresponding
paragraph).
)
When you have fi nished, close the
cover carefully to ensure the sealing
of the fusebox.
All work on the fuses in the
fusebox at the battery must be
done by a CITROËN dealer or
a qualifi ed workshop.
Page 159 of 252
11
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F1
20 A
Engine control unit supply, cooling fan unit control
relay, multifunction engine control main relay,
injection pump (Diesel).
F2
15 A
Horn.
F3
10 A
Front/rear wash-wipe.
F4
20 A
Daytime running lamps.
F5
15 A
Diesel heater (Diesel), particle fi lter additive pump
(Diesel), air fl ow sensor (Diesel), fuel pump
(1.1i and 1.4i), blow-by heater and electrovalves (VTi).
F6
10 A
ABS/ESP control unit, secondary stop switch.
F7
10 A
Electric power steering, automatic gearbox.
F8
25 A
Starter control.
F9
10 A
Switching and protection unit (Diesel).
F10
30 A
Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and
Diesel), fuel pump (VTi), injectors and ignition coils
(petrol), electronic thermostat and canister purge
electrovalve (1.1i and 1.4i).
F11
40 A
Heater blower.
Page 160 of 252
11
158
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F12
30 A
Windscreen wipers slow/fast speed.
F13
40 A
Built-in systems interface supply (ignition positive).
F14
30 A
Valvetronic supply (VTi).
F15
10 A
Right-hand main beam headlamps.
F16
10 A
Left-hand main beam headlamps.
F17
15 A
Left-hand dipped beam headlamps.
F18
15 A
Right-hand dipped beam headlamps.
F19
15 A
Oxygen sensors and electrovalves (VTi),
electrovalves (Diesel), EGR electrovalve (Diesel).
F20
10 A
Pumps, electronic thermostat (VTi), water in fuel
sensor (Diesel).
F21
5 A
Fan assembly control supply, ABS/ESP.
