Citroen C3 RHD 2012 2.G Owner's Manual

12
179
TECHNICAL DATA
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
Low tyre pressures increase fuel
consumption.
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.

A. Vehicle identifi cation number (VIN)
under the bonnet.

This number is engraved on the body-
work near the passenger compartment
fi lter.
B. Vehicle identifi cation number on
the dashboard.

This number is indicated on a self-
adhesive label which is visible through
the windscreen.

C. Manufacturer's label.

The VIN is indicated on a self-destroying
label affi xed to the left hand centre pillar.
D. Tyre/paint label.

This label is affi xed to the left hand
centre pillar.
It bears the following information:


- the tyre pressures, for unladen and
laden conditions,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the spare tyre infl ation pressure,

- the paint colour code.
Wheels which are fi tted with
205/45 R17 tyres cannot be
fi tted with snow chains. For more
information, contact a CITROËN
dealer or a qualifi ed workshop.

180

181
EMERGENCY OR ASSISTANCE CALL

182
EMERGENCY OR ASSISTANCE CALL







CITROËN LOCALISED EMERGENCY CALL
In an emergency, press this button for more than 2 seconds.Flashing of the green LED and a voice message confi rm thatthe call has been made to the CITROËN Emergency team * . gg g
Pressing this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels
the request.

CITROËN LOCALISED ASSISTANCE CALL


When the ignition is switched on, the green
LED comes on for 3 seconds indicating
that the system is operating correctly.

If the oran
ge LED fl ashes: there is
a system fault.
If the oran
ge LED is on continuously:
the backup battery must be replaced.
In either case, contact a CITRO
ËN. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the CITROËN Emergency team which receiveslocating information from the vehicle and can send a detailed alert to theappropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directl
y by the emergency services (11 2) without
the vehicle location.

If an impact is detected b
y the airbag ECU, and independentlyof the deployment of any airbags, an emergency call is made
automatically.


*

These services are subject to conditions and availability.
Consult a CITROËN dealer.If you purchased your vehicle outside the CITROËN dealer network,
we invite
you to have a dealer check the confi guration of these servicesand, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularl
y to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefi t from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN y,y
Internet website www.citroen.co.uk.

183
The MyWay is protected in such a way that it will onlyoperate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of py
the system.
Certain functions described in this handbook will
become available during the year.

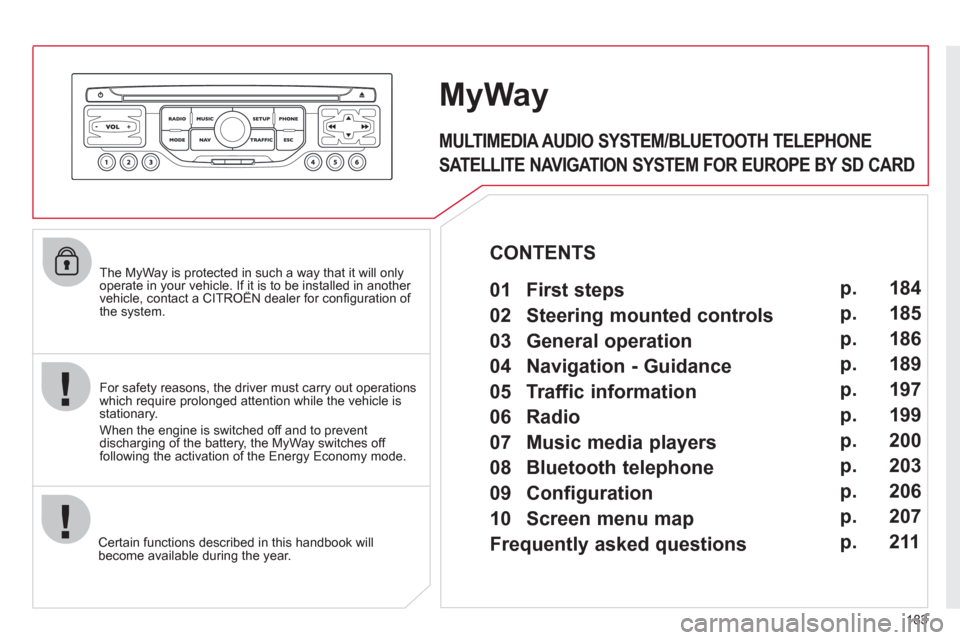

MyWay

For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the MyWay switches off
following the activation of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

Frequently asked questionsp. 184
185
186
189
197
199
200
203
206
207
211

184
01

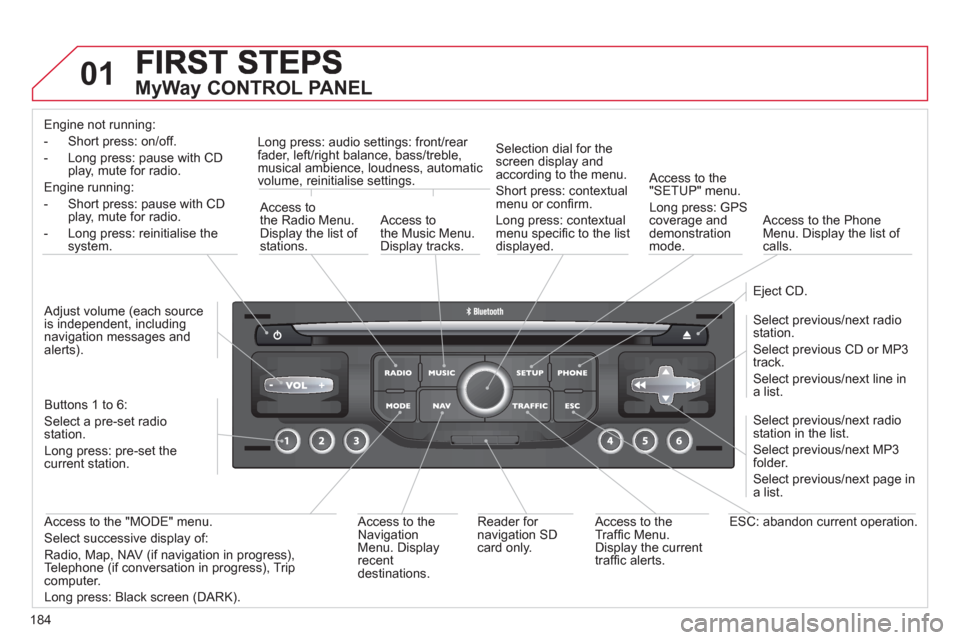

MyWay CONTROL PANEL
Engine not running:
-
Short press: on/off.
- Long press: pause with
CD play, mute for radio.
Engine running:
- Short
press: pause with CD play, mute for radio.
-
Long press: reinitialise thesystem.
Access to
the Radio Menu. Display the list of stations.
Access to
the Music Menu.Display tracks. Lon
g press: audio settings: front/rear fader, left/right balance, bass/treble,
musical ambience, loudness, automatic
volume, reinitialise settings.
Selection dial for the
screen display and according to the menu.
Short press: contextual
menu or confi rm.
Long press: contextual
menu specifi c to the list
displayed.
A
ccess to the"SETUP" menu.
Lon
g press: GPS coverage anddemonstration
mode.
Access to the PhoneMenu. Display the list of calls.

E
ject CD.

Select previous/next radio station.
Select previous CD or MP3
track.
Select previous/next line in a list.

Select
previous/next radio station in the list.
Select previous/next MP3
folder.
Select previous/next page in a list.

E
SC: abandon current operation.
Access to theTraffi c Menu. Display the current
traffi c alerts. R
eader for navigation SDcard only.
A
ccess to theNavigation Menu. Displayrecent destinations.
A
ccess to the "MODE" menu.
Select successive display of:
Radio, Map, NAV (if navigation in progress),
Telephone (if conversation in progress), Tripcomputer.
Long press: Black screen (DARK). Buttons 1 to
6:
Select a pre-set radiostation.
Long press: pre-set the current station.
Ad
just volume (each source
is independent, including
navigation messages andalerts).

185

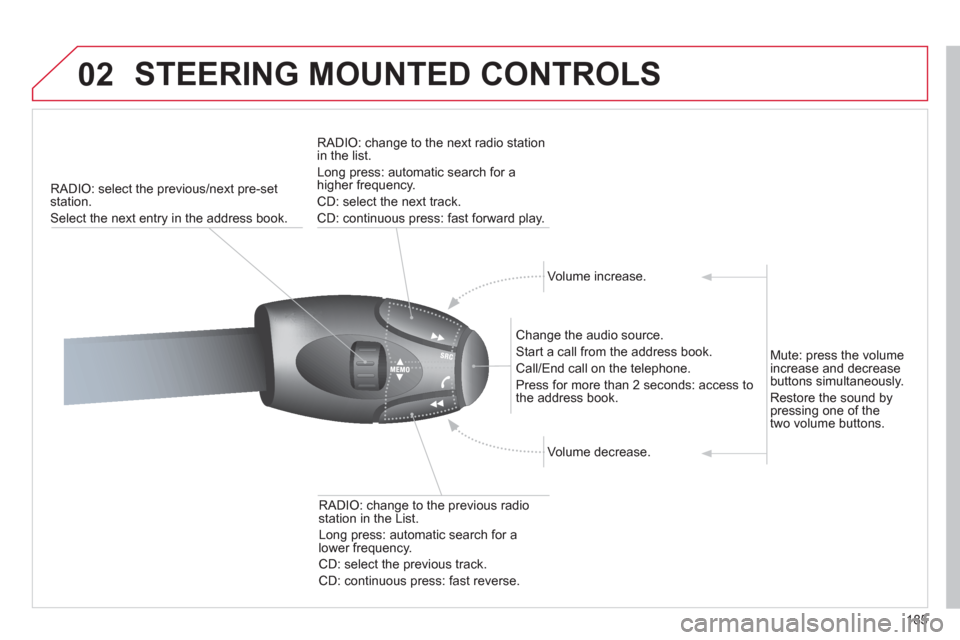

02 STEERING MOUNTED CONTROLS
RADIO: select the previous/next pre-set station.
Select the next entr
y in the address book.
RADI
O: change to the next radio station in the list.
Lon
g press: automatic search for ahigher frequency.

CD: select the next track.
CD: continuous press: fast forward pla
y.

Volume increase.

Change the audio source.

Start a call from the address book.
Call/End call on the tele
phone.
Pr
ess for more than 2 seconds: access tothe address book.
V
olume decrease.

RADI
O: change to the previous radio station in the List.
Lon
g press: automatic search for a
lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.
Mute:
press the volume
increase and decrease
buttons simultaneously.

Restore the sound bypressing one of the
two volume buttons.

186

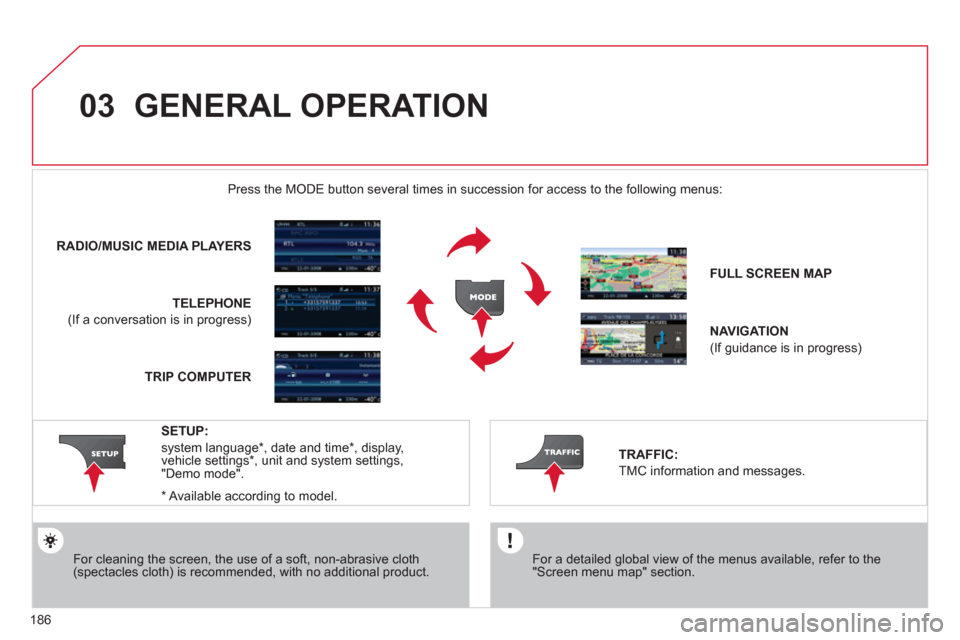

03 GENERAL OPERATION


For a detailed global view of the menus available, refer to the"Screen menu map" section.
Press the M
ODE button several times in succession for access to the following menus:


For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. RADIO/MU
SIC MEDIA PLAYERS
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MA
P
NAVIGATION
(If guidance is in progress)
SETUP:
system language *
, date and time *
, display,
vehicle settings * , unit and system settings,
"Demo mode".
TRAFFIC:
TMC information and messages.

*
Available accordin
g to model. TRIP COMPUTE
R

187
03

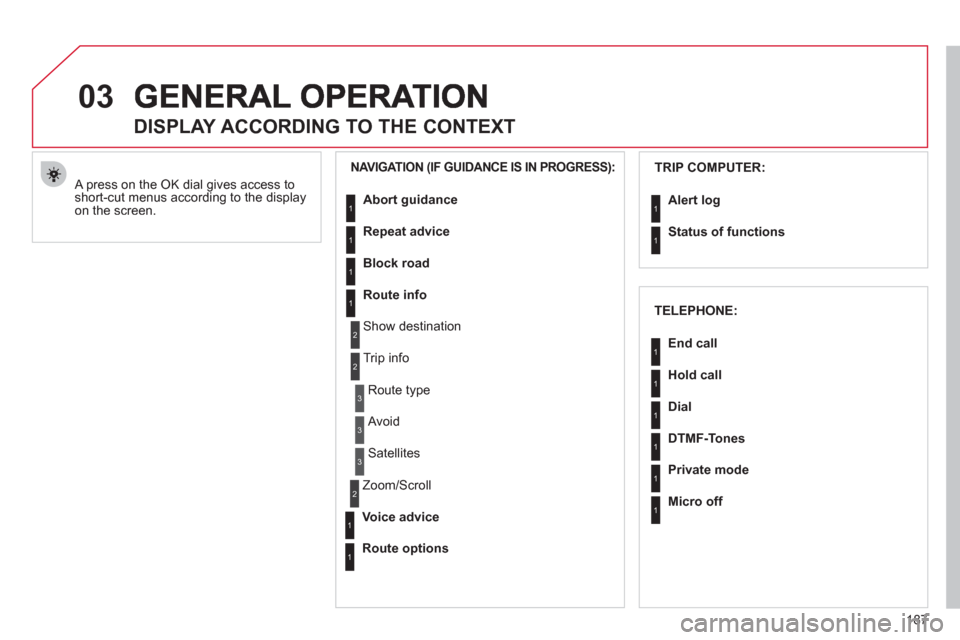

A press on the OK dial gives access to short-cut menus according to the displayon the screen.







DISPLAY ACCORDING TO THE CONTEXT


NAVIGATION (IF GUIDANCE IS IN PROGRESS):TRIP COMPUTER:
Abort
guidance
Repeat advice
Block road
Route info

Show destination
Tri
p info
Route t
ype

Avoid
Satellites
Zoom
/Scroll
Voice advice
Route options
Alert log
Status of functions
1
2
3
3
2
1
1
1
3
1
1
1
1
2


TELEPHONE:
End call
Hold call
Dial
DTMF-Tones
Private mode
Micro off
1
1
1
1
1
1

188
03GENERAL OPERATION





DISPLAY ACCORDING TO THE CONTEXT


FULL SCREEN MAP:
Abort
guidance/Resume guidance
Set destination
POIs nearb
y
Position info
Map settings
Zoom/Scroll
1
1
1
1
1
1
RADIO:
In FM mode
Traffi c info (TA)
RD
S
R
adiotext
Regional prog.
In AM mode
AM
TA
R
efresh AM list
FM
1
2
1
2
2
2
2
2
2
2
MUSIC MEDIA PLAYERS:
Traffi c info (TA)
Play options
Normal order
R
andom track
Re
peat folder
Select musi
c
Scan
1
1
2
2
2
2
1
