Page 11 of 324
9
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-
a
t each change of season,
-
a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a
b
l
ueH
di
d
i
esel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a CITROËN dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
Eco-driving
.
Page 12 of 324
10
Panel grouping together the vehicle operation indication dials and warning lamps.
Instrument panels - manual gearbox
5. Display management button. S
ervicing information.
a
d
just the time and choose units.
R
eset the service indicator.
6.
I
nstrument panel lighting button.
a
d
justs the brightness of the lighting of the
instruments and controls.
1. R
ev counter.
I
ndicates the speed of rotation of the
engine (x 1 000 rpm).
2.
S
peedometer .
I
ndicates the current speed of the moving
vehicle (mph or km/h).
3.
F
uel gauge.
I
ndicates the quantity of fuel remaining in
the tank.
4.
S
creen. A. A
mbient temperature.
(
°Celsius or °Fahrenheit)
B.
G
ear efficiency indicator.
C.
Ti
me.
D.
E
ngine oil level indicator.
A
ppears a few seconds after switching on
the ignition, then disappears.
E.
T
rip computer.
F.
S
ervice indicator or Range related
to the AdBlue additive and the SCR
system (miles or km), then,
t
otal mileage.
T
hese functions are displayed successively
when switching on the ignition.
Screen
For more information, refer to the
section on the button or function and its
associated display.
Dials
Monitoring
Page 13 of 324
11
Instrument panels - electronic or automatic gearboxes
Panel grouping together the vehicle operation indication dials and warning lamps. Depending on the version, the instrument panel may have permanent
back-lighting.
1.
R
ev counter.
I
ndicates the speed of rotation of the
engine (x 1 000 rpm).
2.
S
peedometer .
I
ndicates the current speed of the moving
vehicle (mph or km/h).
3.
F
uel gauge.
I
ndicates the quantity of fuel remaining in
the tank.
4.
S
creen. 5.
D
isplay management button.
A
lternates display between range and trip
mileage recorder.
S
ervicing information.
R
esets the selected function to zero (trip
distance recorder or service indicator).
6.
I
nstrument panel lighting button.
a
d
justs the brightness of the lighting of the
instruments and controls.
ScreenDials
For more information, refer to the
section on the button or function and its
associated display. A.
S
peed limiter
(
mph or km/h) or
C
ruise control.
B.
G
ear
efficiency indicator.
C.
E
lectronic
or automatic gearbox
information.
D.
R
ange
(
miles or km) or
T
rip mileage recorder.
E.
S
ervice indicator
(
miles or km), then
tot
al mileage recorder.
T hese two functions are displayed
successively when switching on the ignition.
F.
E
ngine oil level indicator.
A
ppears a few seconds after switching on
the ignition, then disappears.
1
Monitoring
Page 14 of 324
12
Visual indicators informing the driver that a system is in operation (operation or deactivation indicator lamps) or of the occurrence of a fault
(warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few
seconds when the vehicle's ignition is
switched
on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has
come into operation.
Associated warnings
The illumination of certain warning lamps may
be accompanied by an audible signal and a
message in the multifunction screen.
The warning lamps may come on continuously
(fixed) or flash.
Warning/indicator lamp is onCause Action / Observations
Left-hand direction
indicatorflashing with buzzer. The lighting stalk is pushed down.
Right-hand
direction indicatorflashing with buzzer.The lighting stalk is pushed up.
Sidelamps fixed. The lighting stalk is in the
"Sidelamps" position.
Hazard warning
lamps
flashing with audible
signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.Certain warning lamps may come on
in one of two different modes. Only by
relating the type of illumination to the
operating status of the vehicle can it
be ascertained whether the situation is
normal or whether a fault has occurred.
Indicator and warning lamps
Monitoring
Page 15 of 324
13

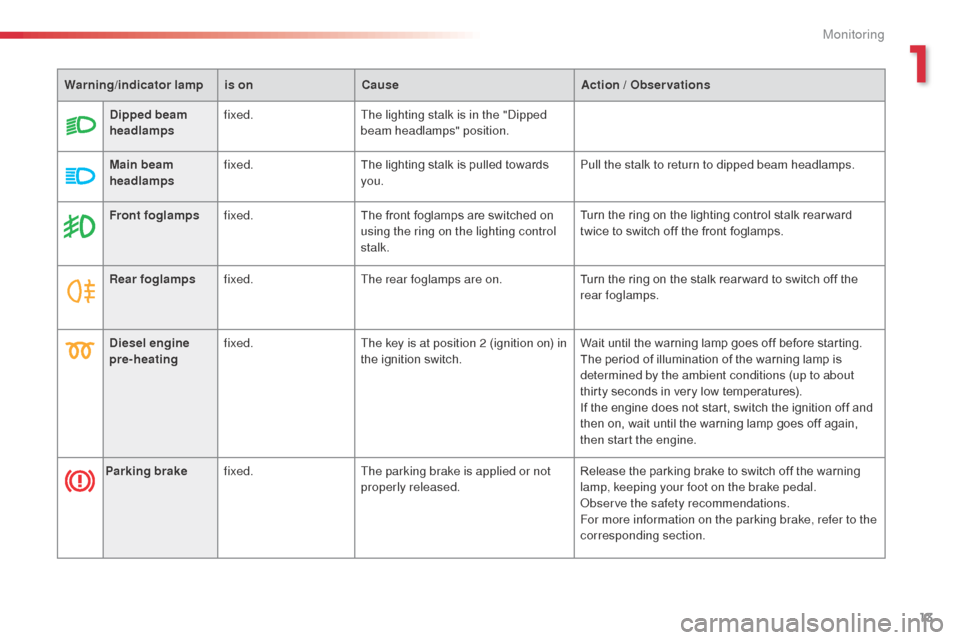

Front foglampsfixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
twice to switch off the front foglamps.
Rear foglamps fixed. The rear foglamps are on. Turn the ring on the stalk rear ward to switch off the
rear foglamps.
Diesel engine
pre-heating fixed.
The key is at position 2 (ignition on) in
the ignition switch. Wait until the warning lamp goes off before starting.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in very low temperatures).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Parking brake fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
ob
serve the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.
Dipped beam
headlamps
fixed.
The lighting stalk is in the "
di
pped
beam headlamps" position.
Main beam
headlamps fixed.
The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Warning/indicator lamp
is onCause Action / Observations
1
Monitoring
Page 16 of 324
14
Stop & Star tfixed. When the vehicle stops (red lights,
traffic jams,
...) the Stop & Start system
has put the engine into ST
oP m
ode.The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a few
seconds, then
goes off. ST
oP m
ode is temporarily
unavailable.
or
ST
aR
T mode is invoked
automatically. For more information on special cases with STOP
mode and ST
aR
T mode, refer to the "Stop & Start"
section.
Engine coolant
temperature
fixed blue.
on s
tarting the engine, it indicates
that the engine is cold. After a few minutes driving, it swiches off to indicate
that the engine temperature is normal.
In order to protect your engine, avoid driving too hard
until the warning lamp has switched off.
Warning/indicator lamp
is onCause Action / Observations
Monitoring
Page 17 of 324
15
Foot on the
brake pedalfixed.
The brake pedal must be pressed. With an electronic gearbox, press the brake pedal to
start the engine (lever in position N).
With an automatic gearbox, with the engine running,
press the brake pedal before releasing the parking
brake, to unlock the lever and come out of position P .
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
flashing. With an electronic gearbox, if you
hold the vehicle on an incline using
the accelerator for too long, the
clutch overheats. Use the brake pedal and/or the parking brake.
Automatic
wiping fixed.
The wiper control is pushed
downwards. Automatic front wiping is activated.
Warning
/indicator lampis on Cause Action / Observations
1
Monitoring
Page 18 of 324
16
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the multifunction screen.Passenger's
airbag system fixed.
The control, located in the glove box,
is set to the OFF position.
The passenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is a fault with
the operation of the airbags (
ai
rbag
warning lamp on). Set the control to the ON
position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rear ward
facing position.
Dynamic
stability control
(DSC/ASR) fixed.
The button, located at the bottom
left of the dashboard, is pressed. Its
indicator lamp is on.
The
d
S
C/
aS
R is deactivated.
dSC
: dynamic stability control.
aS
R: anti-slip regulation.Press the button to activate the
d
S
C/
aS
R. Its
indicator lamp goes off.
The DSC/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
Warning/indicator
lampis on Cause Action / Observations
Monitoring
Page 19 of 324
17
Any fault resulting in the illumination of a warning lamp must be investigated further by
reading the associated message in the multifunction screen.
If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified workshop.
Warning lamps
When the engine is running or the vehicle is
being driven, the illumination of one of the
following warning lamps indicates a fault which
requires action on the part of the driver.STOP fixed, alone or
associated with
another warning
lamp, accompanied
by an audible signal
and a message in the
screen. Illumination of the warning lamp is
associated with a serious braking
system or engine coolant temperature
problem.
Stop as soon as it is safe to do so as the engine may
cut out when driving.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.
Service temporarily. Minor problems have occurred for
which there is no specific warning
lamp. Identify the problem by reading the message shown in
the screen, such as, for example:
-
t
he engine oil level,
-
t
he screenwash level,
-
t
he remote control battery,
-
s
aturation of the particle filter on d
i
esel vehicles
(refer to the "Particle filter (
di
esel)" section).
For any other faults, contact a CITR
oËn
dealer or
a
qualified workshop.
fixed. Major problems have occurred for
which there is no specific warning
lamp. Identify the problem by reading the message shown
in the screen and contact a CITR
oËn
dealer or
a
qualified workshop.
Warning/indicator
lampis on Cause Action / Observations
1
Monitoring
Page 20 of 324
18
Anti-lock
Braking System
(ABS)fixed.
The anti-lock braking system has a
fault. The vehicle retains conventional braking.dr
ive carefully at reduced speed and contact a
CITROËN dealer or a qualified workshop without
d e l ay.
Dynamic
stability control
(DSC/ASR) flashing.
The
d
S
C/
aS
R regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed. The
d
S
C/
aS
R system has a fault. Have it checked by a CITR
oËn
dealer or a qualified
workshop.
Engine
autodiagnosis
system flashing.
The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITR
oËn
dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.If it does not go off, contact a CITRoËn dealer or
qualified workshop without delay.
Braking
fixed, associated with
the STOP warning
lamp. The braking system fluid level is too
low.
You must stop as soon as it is safe to do so.
Top up with brake fluid recommended by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.
+ fixed, associated with
the ST
oP a
nd
ab
S
w
arning lamps.
The electronic brake force distribution
(E
bFd) s
ystem has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a CITR
oËn
dealer or a qualified
workshop.
Warning/indicator
lampis on Cause Action / Observations
Monitoring
