39
Example: setting of the duration of the guide-
me-home lighting
F
P
ress the " 5" or " 6" buttons, then the
"OK" button to select the menu required.
F

P
ress the " 5" or " 6" buttons, then the
"OK" button to select the "Guide-me-home
headlamps" line.
F

P
ress the " 7" or " 8" buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK" button to confirm.
F

P
ress the " 5" or " 6" buttons, then the
"OK" button to select the "OK" box and
confirm or press the "Back" button to
cancel.Display configuration
once this menu has been selected, you can
gain access to the following settings:
-
b

rightness-video setting,
-

d
ate and time setting,
-

s
election of units.
on

ce the fuel consumption units have
been changed to mpg, the information
in the screen relating to speed and
distance also changes to mph and miles
respectively.
Setting the date and time
F

Sel
ect the "Set date and time" function
using the " 5" or " 6" button.
F
Press "OK" to confirm the selection.
F
a
d
just the settings one by one using the
" 7 " or " 8" button then confirm with "OK" .
F

T
hen select the "OK" box in the screen
and confirm.
Choice of language
once this menu has been selected, you can
change the language used by the display, by
choosing a new language from the list offered. For safety reasons, configuration by the
driver of the multifunction screen must
only be done when stationary.
"Telephone" Menu
With audio system on, once this menu is
selected you can configure your
bl uetooth
hands-free system (pairing), view the various
telephone directories (list of calls, services...)
and manage your calls (call, hang up, second
call, secret mode...).
For more information on the "Telephone"
function, refer to the "
au

dio system" section.
2
Multifunction screens

40
Touch screen tablet
This system gives access to:
- m enus for adjusting settings for vehicle
functions and systems,
-

a
udio and display configuration menus,
-

a
udio system and telephone controls and
the display of associated information,
-

t
he display of alert messages,
-

t
he display of ambient temperature (a blue
snow flake appears when there is a risk of
i c e),
-

t
he display of the trip computer.
And, depending on equipment, it allows:
-

t
he display of visual parking sensors
information,
-

a
ccess to the controls for the navigation
system and Internet services, and the
display of associated information.
Recommendations
It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...).
A light wipe is not enough.
The screen does not recognise pressing with
more than one finger.
This technology allows use at all temperatures
and when wearing gloves.
do n

ot use pointed objects on the touch screen
tablet.
Do not touch the touch screen tablet with wet
hands.
Uses a soft clean cloth to clean it.
General operation
as a safety measure, some functions
can only be viewed with the vehicle
stationary. When the vehicle moves off,
their display is interrupted. After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
Principles
Press the "
MENU" button for access to the
different menus, then press the virtual buttons.
Each menu is displayed over one or two pages
(primary page and secondary page).
Use this button to go to the
secondary page.
Use this button to return to the
primary page.
Use this button for access to
additional information and to the
settings for certain functions.
Use this button to confirm.
Use this button to quit.
Multifunction screens

41
Menus
Navigationnavigation is available depending on
country and/or trim level.
Refer to the "
au

dio and telematics"
section.
Telephone
Refer to the "
au

dio and telematics"
section. 1.
V

olume / mute.
Refer to the "
aud

io and telematics" section.
Radio Media
Refer to the "
au

dio and telematics"
section.
Settings
Allows configuration of the display
and the system.
Refer to the corresponding section.
Internet
These services are available
depending on country and/or trim
level.
Refer to the "
au

dio and telematics"
section. Driving
Allows access to the trip computer
and, depending on version, the
adjustment of settings for certain
functions.
Refer to the corresponding section.
Press this button, then choose the
desired menu.
2
Multifunction screens

42
"Driving" menu
The systems with settings that can be adjusted are detailed in the table below.Button Corresponding function Comments
Diagnostic Recap of current alerts.
Under-inflation initialisation Reinitialisation of the tyre pressures.
Refer to the Safety section.
Vehicle settings Access to other functions with settings that can be adjusted. The functions are grouped
together under three tabs:
-
"Driving assistance "
-

"
Parking sensors" (Activation of the rear parking sensors; refer to the "Driving" section).
-

"
Automatic rear wiper in reverse" (Activation of rear wiper coupled to reverse gear; refer
to the " Visibility" section).
-
"Lighting "
-

"
LED daytime running lamps" (Activation of the daytime running lamps; refer to the
"Visibility" section).
-

"
Guide-me-home lighting" (Automatic guide me home lighting; refer to the " Visibility"
section),
Select or deselect the tabs at the bottom of the screen to display the functions required.
Multifunction screens

43
"Settings" menu
The functions accessible in this menu are given in the table below.Button Corresponding function Comments
Audio settings
ad

justment of volume, balance...
Turn off screen Turns off the display in the the touch screen tablet (black screen).
Pressing the black screen (or the MENU button) restores the display.
System Settings Choice of units:
-
t

emperature (°Celsius or °Fahrenheit)
-

d
istance and fuel consumption (l/100 km, mpg or km/l).
Time/Date Setting the date and time.
Languages Choice of language used from a defined list.
Screen settings
ad

justment of the display settings (scrolling of text, animations...) and the screen brightness.
Calculator
di

splay the calculator.
Calendar
di

splay the calendar.
2
Multifunction screens

44

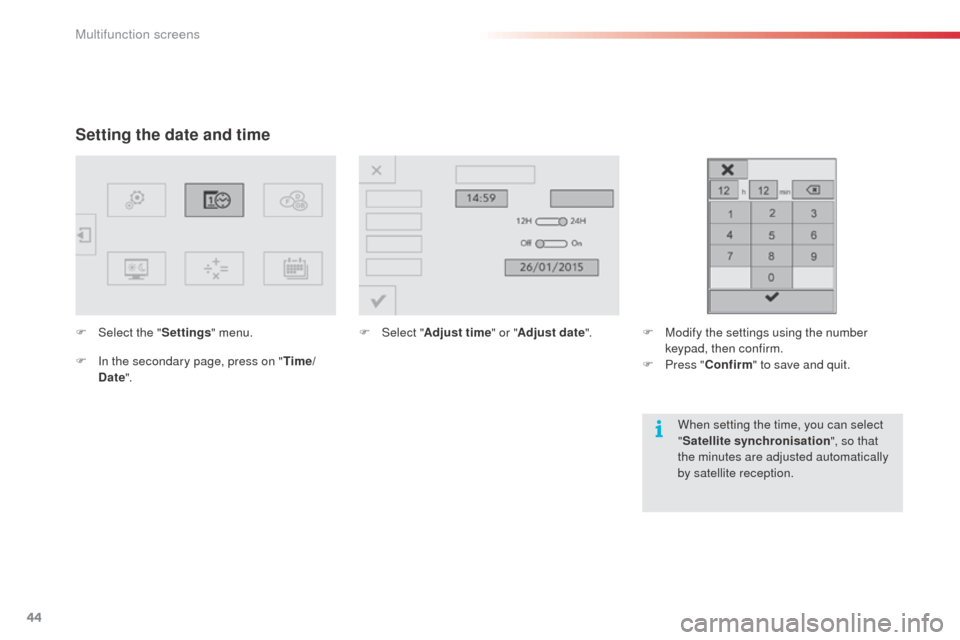

Setting the date and time
F Select the "Settings" menu.
F
I
n the secondary page, press on " Time/
Date ". F
Sel ect "
Adjust time " or "Adjust date". F M odify the settings using the number
keypad, then confirm.
F

P
ress "Confirm " to save and quit.
When setting the time, you can select
" Satellite synchronisation ", so that
the minutes are adjusted automatically
by satellite reception.
Multifunction screens

45
Ventilation
Air intake
The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
Air treatment
The incoming air follows various routes
depending on the controls selected by the
driver:
-
d
irect arrival in the passenger
compartment (air intake),
-
p

assage through a heating circuit (heating),
-

p
assage through a cooling circuit (air
conditioning).
The temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
The air distribution control enables you to
diffuse the air in the passenger compartment
combining several air vents.
The air flow control enables you to increase or
reduce the speed of the ventilation blower.
Control panel
The controls of this system are grouped
together on control panel A on the centre
console.
d
e
pending on the model, the
functions offered are:
-

t
he level of comfort required,
-

a
ir flow,
-
a

ir distribution,
-


demisting-defrosting,
-
m

anual or digital air conditioning controls.

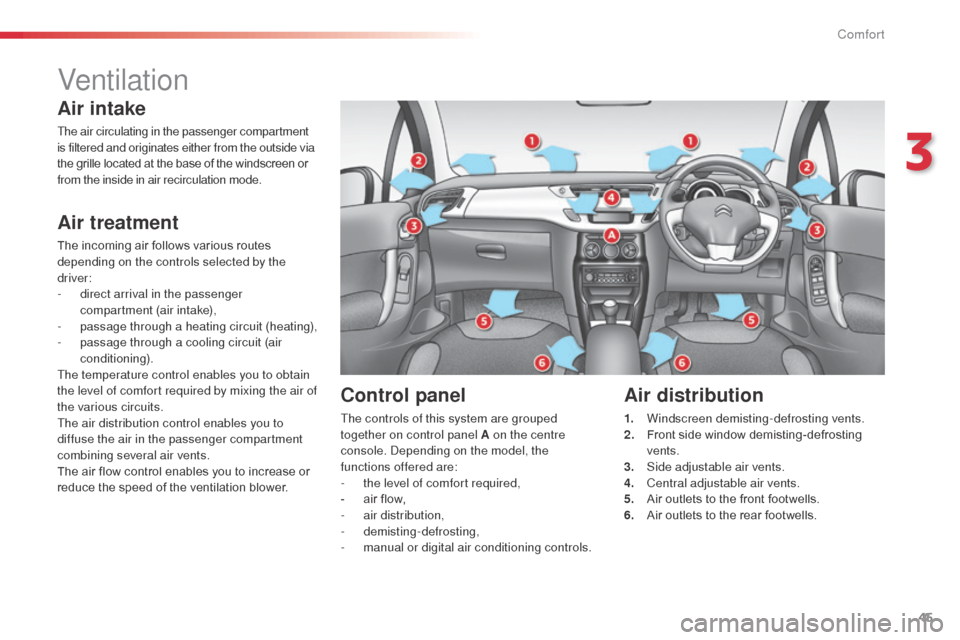

Air distribution
1. Windscreen demisting-defrosting vents.
2. Front side window demisting-defrosting
vents.
3.
S

ide adjustable air vents.
4.
C

entral adjustable air vents.
5.
A

ir outlets to the front footwells.
6.
A

ir outlets to the rear footwells.
3
Comfort

46
If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.Recommendations for ventilation and
air conditioning
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F

I
f the system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Comfort

47
Heating / VentilationManual air
conditioning
The heating / ventilation or air conditioning
systems operates with the engine running,
as well as in STOP mode with Stop & Start.
1. Temperature adjustment
2. Air flow adjustment
F Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your
requirements.
F

T
urn the dial from position 1
to position 5 to obtain a
comfortable air flow.
Manual control panel
Electric control panel Manual control panel
Electric control panel
F If you place the air flow control
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfortable
level. However, a slight flow of air,
due to the movement of the vehicle,
can still be felt.
3
Comfort

48

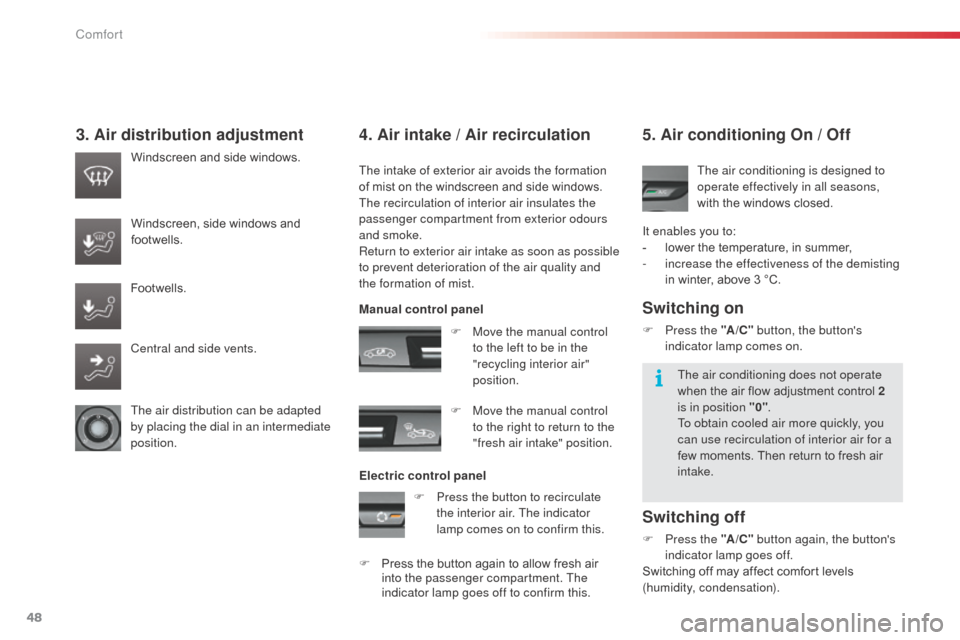

3. Air distribution adjustment
The intake of exterior air avoids the formation
of mist on the windscreen and side windows.
The recirculation of interior air insulates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the air quality and
the formation of mist.
Windscreen and side windows.
Windscreen, side windows and
footwells.
Footwells.
Central and side vents.
The air distribution can be adapted
by placing the dial in an intermediate
position. F

M
ove the manual control
to the left to be in the
"recycling interior air"
position.
F

M
ove the manual control
to the right to return to the
"fresh air intake" position.
Manual control panel
Electric control panel
F

P
ress the button to recirculate
the interior air. The indicator
lamp comes on to confirm this.
F

P
ress the button again to allow fresh air
into the passenger compartment. The
indicator lamp goes off to confirm this.
5. Air conditioning On / Off
Switching off
F Press the "A /C " button again, the button's
indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation). The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It enables you to:
-
l
ower the temperature, in summer,
-
i
ncrease the effectiveness of the demisting
in winter, above 3 °C.
Switching on
F Press the "A /C " button, the button's
indicator lamp comes on.
The air conditioning does not operate
when the air flow adjustment control 2
is in position "0" .
To obtain cooled air more quickly, you
can use recirculation of interior air for a
few moments. Then return to fresh air
intake.
4. Air intake / Air recirculation
Comfort
