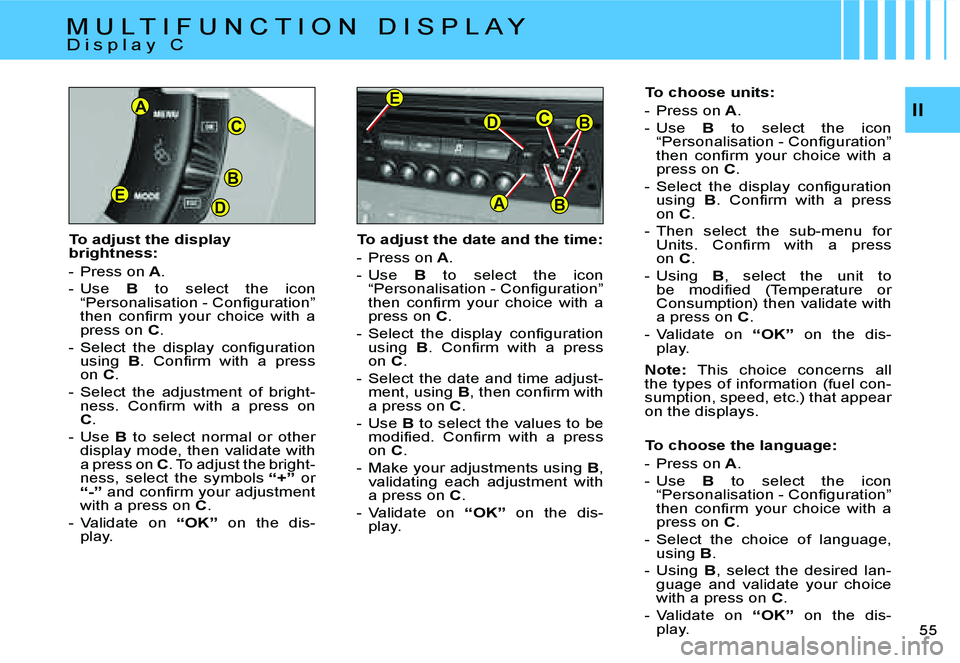

To adjust the date and the time:
- Press on A.
- Use B to select the icon
“Personalisation - Configuration”
then confirm your choice with a
press on C.
- Select the display configuration using B. Confirm with a press
on C.
- Select the date and time adjust -
ment, using B, then confirm with
a press on C.
- Use B to select the values to be
modified. Confirm with a press
on C.
- Make your adjustments using B,
validating each adjustment with
a press on C.
- Validate on “OK” on the dis -
play. To choose units:
- Press on
A.
- Use B to select the icon
“Personalisation - Configuration”
then confirm your choice with a
press on C.
- Select the display configuration using B. Confirm with a press
on C.
- Then select the sub-menu for Units. Confirm with a press
on C.
- Using B, select the unit to
be modified (Temperature or
Consumption) then validate with
a press on C.
- Validate on “OK” on the dis -
play.
Note: This choice concerns all
the types of information (fuel con -
sumption, speed, etc.) that appear
on the displays.
To adjust the display
brightness:
- Press on
A.
- Use B to select the icon
“Personalisation - Configuration”
then confirm your choice with a
press on C.
- Select the display configuration using B. Confirm with a press
on C.
- Select the adjustment of bright -
ness. Confirm with a press on
C .
- Use B to select normal or other
display mode, then validate with
a press on C. To adjust the bright -
ness, select the symbols “+” or
“-” and confirm your adjustment
with a press on C.
- Validate on “OK” on the dis -
play. To choose the language:
- Press on
A.
- Use B to select the icon
“Personalisation - Configuration”
then confirm your choice with a
press on C.
- Select the choice of language, using B.
- Using B, select the desired lan -
guage and validate your choice
with a press on C.
- Validate on “OK” on the dis -
play.
M U L T I F U N C T I O N D I S P L A YD i s p l a y C

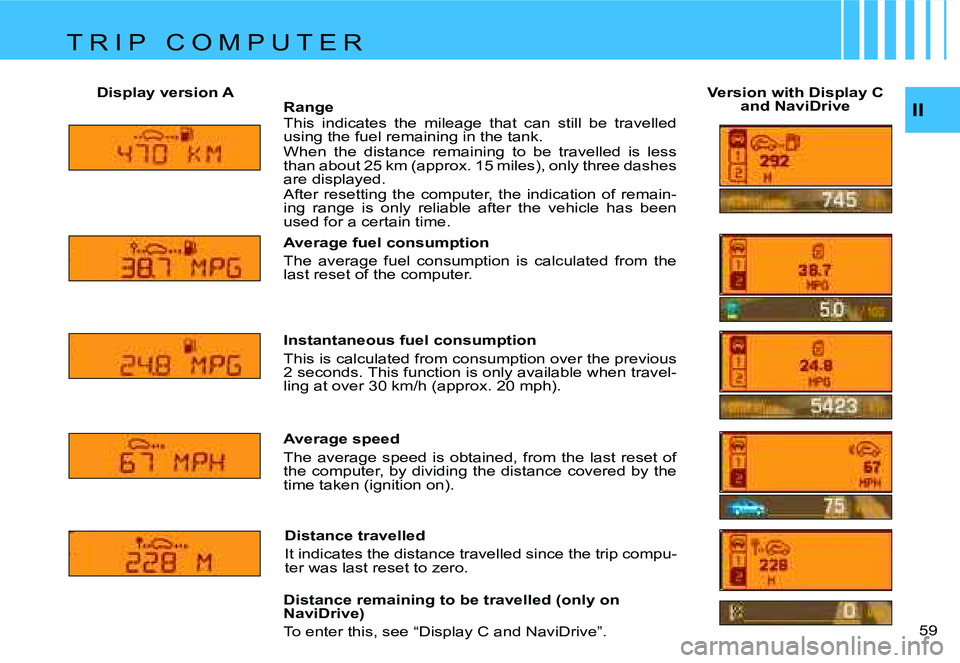

II59
Display version A
Version with Display C
and NaviDrive
Range
This indicates the mileage that can still be travelled
using the fuel remaining in the tank.
When the distance remaining to be travelled is less
than about 25 km (approx. 15 miles), only three dashes
are displayed.
After resetting the computer, the indication of remain-
ing range is only reliable after the vehicle has been
used for a certain time.
Average fuel consumption
The average fuel consumption is calculated from the
last reset of the computer.
Instantaneous fuel consumption
This is calculated from consumption over the previous
2 seconds. This function is only available when travel-
ling at over 30 km/h (approx. 20 mph).
Average speed
The average speed is obtained, from the last reset of
the computer, by dividing the distance covered by the
time taken (ignition on).
Distance travelled
It indicates the distance travelled since the trip compu-
ter was last reset to zero.
Distance remaining to be travelled (only on
NaviDrive)
To enter this, see “Display C and NaviDrive”.
T R I P C O m P u T E R

E
124
D
A
B
C
B
3
B
DE
C
AII

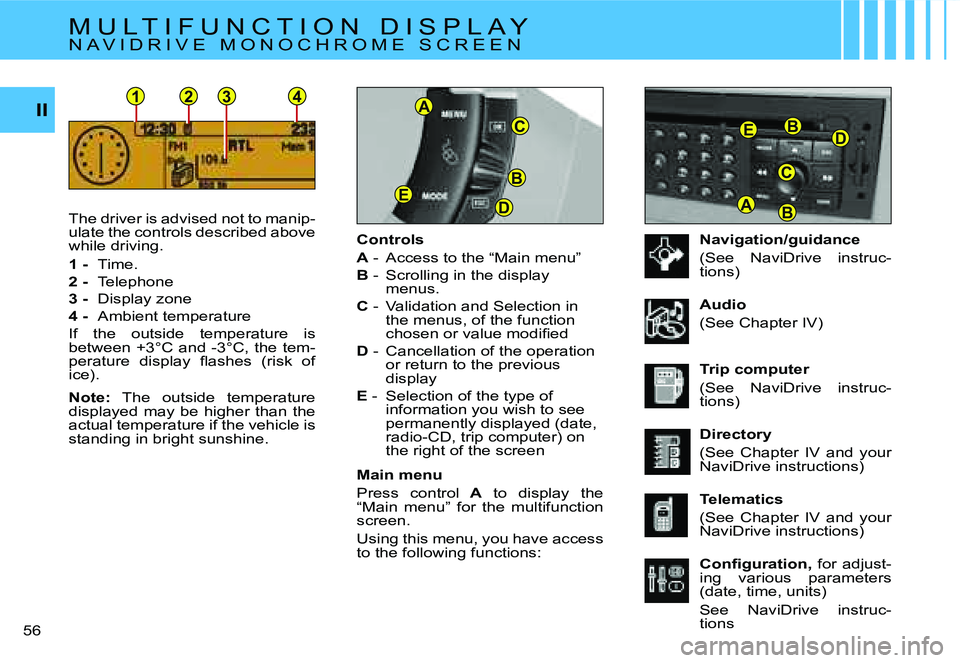

56 Controls
A
- Access to the “Main menu”
B - Scrolling in the display
menus.
C - Validation and Selection in
the menus, of the function
chosen or value modified
D - Cancellation of the operation
or return to the previous
display
E - Selection of the type of
information you wish to see
permanently displayed (date,
radio-CD, trip computer) on
the right of the screen
Main menu
Press control A to display the
“Main menu” for the multifunction
screen.
Using this menu, you have access
to the following functions:
The driver is advised not to manip-
ulate the controls described above
while driving.
1 -
Time.
2 - Telephone
3 - Display zone
4 - Ambient temperature
If the outside temperature is
between +3°C and -3°C, the tem-
perature display flashes (risk of
ice).
Note: The outside temperature
displayed may be higher than the
actual temperature if the vehicle is
standing in bright sunshine. Navigation/guidance
(See NaviDrive instruc-
tions)
Audio
(See Chapter IV)
Trip computer
(See NaviDrive instruc-
tions)
Directory
(See Chapter IV and your
NaviDrive instructions)
Telematics
(See Chapter IV and your
NaviDrive instructions)
Configuration,
for adjust-
ing various parameters
(date, time, units)
See NaviDrive instruc-
tions
M U L T I F U N C T I O N D I S P L A Y
N A V I D R I V E M O N O C H R O M E S C R E E N

II59
Display version A
Version with Display C
and NaviDrive
Range
This indicates the mileage that can still be travelled
using the fuel remaining in the tank.
When the distance remaining to be travelled is less
than about 25 km (approx. 15 miles), only three dashes
are displayed.
After resetting the computer, the indication of remain-
ing range is only reliable after the vehicle has been
used for a certain time.
Average fuel consumption
The average fuel consumption is calculated from the
last reset of the computer.
Instantaneous fuel consumption
This is calculated from consumption over the previous
2 seconds. This function is only available when travel-
ling at over 30 km/h (approx. 20 mph).
Average speed
The average speed is obtained, from the last reset of
the computer, by dividing the distance covered by the
time taken (ignition on).
Distance travelled
It indicates the distance travelled since the trip compu-
ter was last reset to zero.
Distance remaining to be travelled (only on
NaviDrive)
To enter this, see “Display C and NaviDrive”.
T R I P C O m P u T E R

ED
A
B
C
B
B
DE
C
A
12345
II
57
D -
Cancellation of the operation
or return to the previous
display
E - Selection of the type of
information you wish to see
permanently displayed (date,
radio-CD, trip computer) on
the right of the screen
Main menu
Press control A to display the
“Main menu” for the multifunction
screen.
Using this menu, you have access
to the following functions: Trip computer
(See NaviDrive handbook)
Directory
(See NaviDrive handbook)
Telematics
(See NaviDrive handbook)
Configuration
, for adjust-
ing various parameters
(date, time, units)
(See NaviDrive handbook)
Map
(See NaviDrive handbook)
Video
(See NaviDrive handbook)
Navigation/guidance
(See NaviDrive handbook)
Audio
(See NaviDrive handbook)
The driver is advised not to manip-
ulate the controls described above
while driving.
1 - Ambient temperature
2 - Directory
3 - Date
4 - Telephone
5 - Time.
If the outside temperature is
between +3°C and -3°C, the tem-
perature display flashes (risk of
ice).
Note: The outside temperature
displayed may be higher than the
actual temperature if the vehicle is
standing in bright sunshine.
Controls
A - Access to the “Main menu”
B - Scrolling in the display
menus.
C - Validation and Selection in
the menus, of the function
chosen or value modified
M U L T I F U N C T I O N D I S P L A Y
N A V I D R I V E C O L O U R S C R E E N

II59
Display version A
Version with Display C
and NaviDrive
Range
This indicates the mileage that can still be travelled
using the fuel remaining in the tank.
When the distance remaining to be travelled is less
than about 25 km (approx. 15 miles), only three dashes
are displayed.
After resetting the computer, the indication of remain-
ing range is only reliable after the vehicle has been
used for a certain time.
Average fuel consumption
The average fuel consumption is calculated from the
last reset of the computer.
Instantaneous fuel consumption
This is calculated from consumption over the previous
2 seconds. This function is only available when travel-
ling at over 30 km/h (approx. 20 mph).
Average speed
The average speed is obtained, from the last reset of
the computer, by dividing the distance covered by the
time taken (ignition on).
Distance travelled
It indicates the distance travelled since the trip compu-
ter was last reset to zero.
Distance remaining to be travelled (only on
NaviDrive)
To enter this, see “Display C and NaviDrive”.

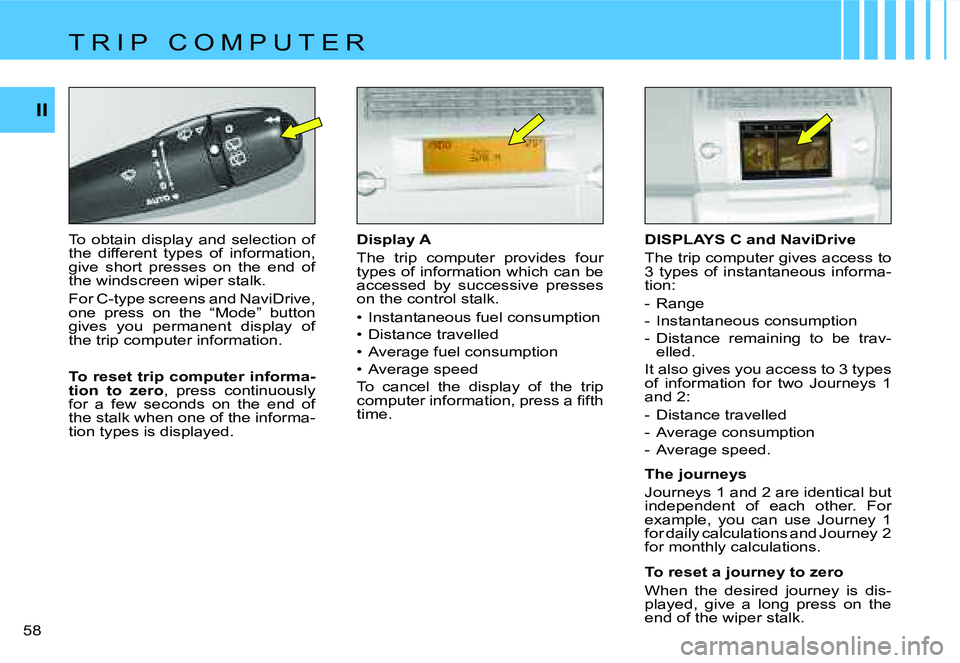

T R I P C O m P u T E R

II
58 Display A
The trip computer provides four
types of information which can be
accessed by successive presses
on the control stalk.
• Instantaneous fuel consumption
• Distance travelled
• Average fuel consumption
• Average speed
To cancel the display of the trip
computer information, press a fifth
time.
DISPLAYS C and NaviDrive
The trip computer gives access to
3 types of instantaneous informa-
tion:
- Range
- Instantaneous consumption
- Distance remaining to be trav-
elled.
It also gives you access to 3 types
of information for two Journeys 1
and 2:
- Distance travelled
- Average consumption
- Average speed.
The journeys
Journeys 1 and 2 are identical but
independent of each other. For
example, you can use Journey 1
for daily calculations and Journey 2
for monthly calculations.
To reset a journey to zero
When the desired journey is dis-
played, give a long press on the
end of the wiper stalk.
To obtain display and selection of
the different types of information,
give short presses on the end of
the windscreen wiper stalk.
For C-type screens and NaviDrive,
one press on the “Mode” button
gives you permanent display of
the trip computer information.
To reset trip computer informa-
tion to zero
, press continuously
for a few seconds on the end of
the stalk when one of the informa-
tion types is displayed.
T R I P C O M P U T E R

II59
Display version A
Version with Display C
and NaviDrive
Range
This indicates the mileage that can still be travelled
using the fuel remaining in the tank.
When the distance remaining to be travelled is less
than about 25 km (approx. 15 miles), only three dashes
are displayed.
After resetting the computer, the indication of remain-
ing range is only reliable after the vehicle has been
used for a certain time.
Average fuel consumption
The average fuel consumption is calculated from the
last reset of the computer.
Instantaneous fuel consumption
This is calculated from consumption over the previous
2 seconds. This function is only available when travel-
ling at over 30 km/h (approx. 20 mph).
Average speed
The average speed is obtained, from the last reset of
the computer, by dividing the distance covered by the
time taken (ignition on).
Distance travelled
It indicates the distance travelled since the trip compu-
ter was last reset to zero.
Distance remaining to be travelled (only on
NaviDrive)
To enter this, see “Display C and NaviDrive”.
T R I P C O m P u T E R

II
60 6 speed gearbox
Reverse gear
Lift the collar
A to engage reverse
gear.
Do not select reverse gear until the
vehicle is completely stationary.
Depress the clutch pedal and
wait a few moments before gently
engaging reverse gear.

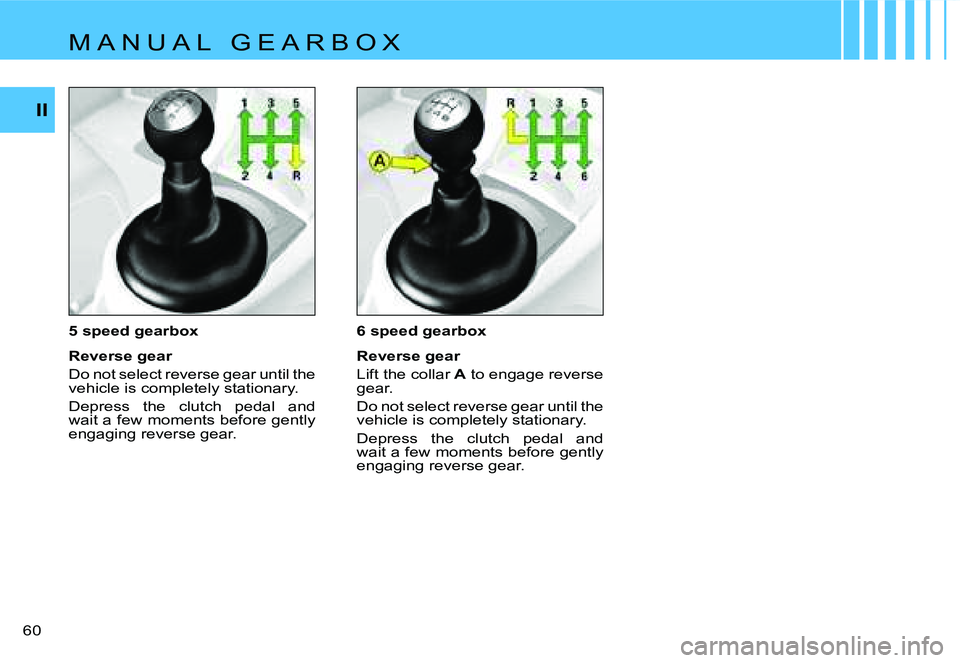

5 speed gearbox
Reverse gear
Do not select reverse gear until the
vehicle is completely stationary.
Depress the clutch pedal and
wait a few moments before gently
engaging reverse gear.
M A N U A L G E A R B O X

II
61

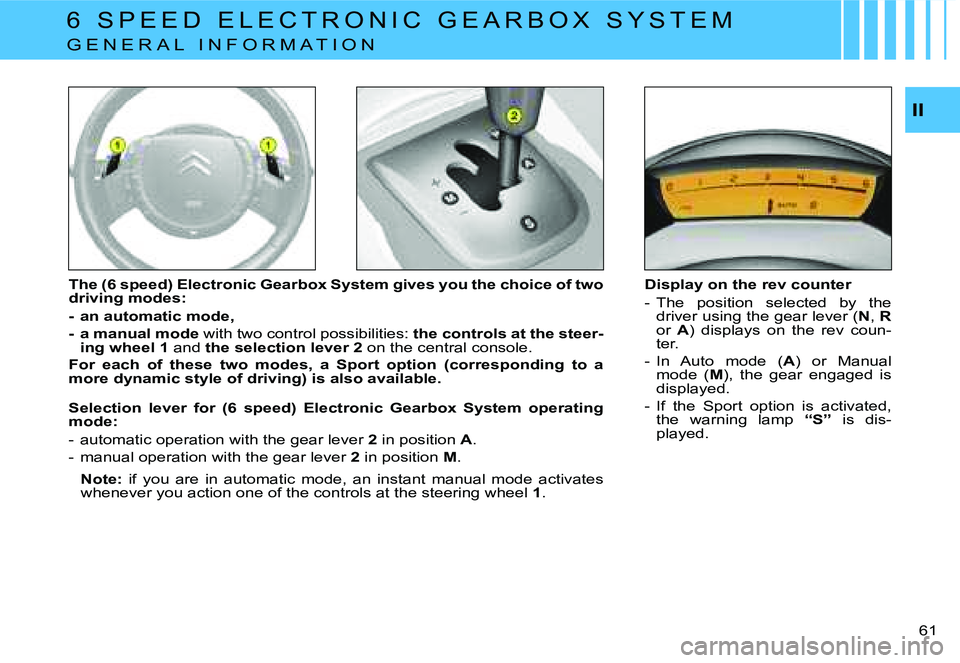

The (6 speed) Electronic Gearbox System gives you the choi
ce of two
driving modes:
- an automatic mode,
- a manual mode with two control possibilities: the controls at the steer-
ing wheel 1 and the selection lever 2 on the central console.
For each of these two modes, a Sport option (corresponding to a
more dynamic style of driving) is also available. Display on the rev counter
- The position selected by the
driver using the gear lever ( N, R
or A) displays on the rev coun-
ter.
- In Auto mode ( A) or Manual
mode ( M), the gear engaged is
displayed.
- If the Sport option is activated, the warning lamp “S” is dis-
played.
Selection lever for (6 speed) Electronic Gearbox System oper
ating
mode:
- automatic operation with the gear lever 2 in position A.
- manual operation with the gear lever 2 in position M.
Note: if you are in automatic mode, an instant manual mode activat es
whenever you action one of the controls at the steering whee l 1 .
6 S P E E D E L E C T R O N I C G E A R B O X S Y S T E M
G E N E R A L I N F O R M A T I O N
