Citroen C4 2008 1.G Owner's Guide
Manufacturer: CITROEN, Model Year: 2008, Model line: C4, Model: Citroen C4 2008 1.GPages: 257, PDF Size: 8.06 MB
Page 31 of 257
32
II
M U L T I F U N C T I O N D I S P L A Y
To activate/deactivate automatic guide-me-home lighting
- Press on A.
- Select, using B, the sub-menu t o p e r s o n a l i s e - c o n fi g u r e y o u r v e h i c l e , t h e n c o n fi r m y o u r c h o i c e by a press on C.
- Select guide-me-home lighting, using B.
- The system tells you whether the function is active/inactive. Modify this status by a press on E or F or.
- Validate with a press on C.
To activate/deactivate rear screen wipe on engaging reverse gear
- Press on A.
- Select, using B, the sub-menu t o p e r s o n a l i s e - c o n fi g u r e y o u r v e h i c l e , t h e n c o n fi r m y o u r c h o i c e by a press on C.
- Select rear screen wipe, using B.
- The system tells you whether the function is active/inactive. Modify this status by a press on E or F.
- Validate with a press on C.
Main menu
By pressing control A then B, you have access to the following functions:
Page 32 of 257
33
II
M U L T I F U N C T I O N D I S P L A Y
To display the log of alerts
- Press on A.
- Using B, select the sub-menu for o p t i o n s . C o n fi r m w i t h t w o p r e s s e s on C.
Note: You can cancel the start of the display by selecting E to abandon, validate with a press on C.
The alerts that have previously been signalled to you but not resolved, are recalled to you in a scroll. To delete the display of an alert, press D.
To adjust the date and time
- Press on A.
- Using B, select the sub-menu for Display Adjustments then validate with a press on C.
- Using B, select what you wish to modify: year, month, day, hour, minutes, or display mode.
- M a k e y o u r a d j u s t m e n t b y p r e s s e s on E or F or. You can continue your adjustments, selecting further parameters by pressingB . W h e n y o u h a v e fi n i s h e d y o u r adjustments, press C.
To choose the language
- Press on A.
- Using B, select the sub-menu for L a n g u a g e s . C o n fi r m y o u r c h o i c e with a press on C.
- By presses on E or F or, select the language of your choice then validate with a press on C.
To choose the units
- Press on A.
- Using B, select the sub-menu for U n i t s . C o n fi r m y o u r c h o i c e w i t h a press on C.
- Using B, select the unit you wish to modify (Temperature or Consumption).
- Via presses on E or F or, select the unit of your choice, then validate with a press on C.
Note: This choice concerns all the types of information (fuel consumption, speed, etc.) that appear on the displays.
Page 33 of 257
34
II
M U L T I F U N C T I O N D I S P L A Y
Main menu
Press control A to display the "Main menu" for the multifunction screen. Using this menu, you have access to the following functions:
Presentation:
1 - Time.
2 - Ambient temperature
3 - Date and Display zone
If the outside temperature is between +3 °C and -3 °C, the temperature d i s p l a y fl a s h e s ( r i s k o f i c e ) .
Note: the outside temperature displayed may be higher than the actual temperature if the vehicle is standing in bright sunlight.
Radio-CD
(See "Radio")
Trip computer
Bluetooth hands-free kit
(See "Radio")
Controls
A - Access to the "Main menu".
B - Scrolling in the display menus.
C - Validation and selection in the menus of the function chosen o r t h e v a l u e m o d i fi e d .
D - Cancellation of the operation or return to the previous display.
E - Selection of the type of information you wish to see permanently displayed (date, radio-CD, trip computer) on the right of the screen.
DISPLAY C
It allows:
- Distance to your destination.
- Access to log of alerts (list of the alerts that have been previously signalled).
- Access to status of functions, for example activation/deactivation of automatic lighting of head-lamps, ESP, windscreen wipers.
The driver is advised not to operate the controls when driving.
Page 34 of 257
35
II
M U L T I F U N C T I O N D I S P L A Y
Personalisation C o n fi g u r a t i o n
It allows you to activate/deactivate:
- Triggering of rear screen wipe.
- Automatic guide-me-home lighting, with choice of duration.
- Driving headlamps.
Also to choose:
- Brightness, the time, the date, units.
- The display language.
To activate/deactivate rear wipe on engaging reverse gear
- Press on A.
- Use B to select the trip computer i c o n , t h e n c o n fi r m w i t h a p r e s s o n C.
- Select your entry of distance, using B . C o n fi r m y o u r c h o i c e w i t h a press on C.
- To choose the distance, select the fi g u r e t o b e m o d i fi e d , u s i n g B, then c o n fi r m w i t h a p r e s s o n C.
- Use B to adjust the value then validate with a press on C.
- Validate on "OK" on the display.
To activate/deactivate automatic guide-me-home lighting
- Press on A.
- Use B to select the icon "Personalisation-Configuration" t h e n c o n fi r m y o u r c h o i c e w i t h a press on C.
- Then select the sub-menu for v e h i c l e p a r a m e t e r s . C o n fi r m y o u r choice with a press on C.
- Using B, select lighting and s i g n a l l i n g . C o n fi r m y o u r c h o i c e with a press on C.
- Then with a press on C, select/deselect guide-me-home lighting to activate or deactivate it. After activation, choose the duration: press on C then use B to select the duration and press on C.
- Validate on "OK" on the display.
To activate/deactivate the directional headlamps
- Press on A.
- Use B to select the icon "Personalisation-Configuration" t h e n c o n fi r m y o u r c h o i c e w i t h a press on C.
- Then select the sub-menu for v e h i c l e p a r a m e t e r s . C o n fi r m w i t h a press on C.
To adjust the display brightness
- Press on A.
- Use B to select the icon "Personalisation-Configuration" t h e n c o n fi r m y o u r c h o i c e w i t h a press on C.
- S e l e c t t h e d i s p l a y c o n fi g u r a t i o n using B . C o n fi r m w i t h a p r e s s on C.
- Select the adjustment of brightness. C o n fi r m w i t h a p r e s s o n C.
- Use B to select normal or other display mode, then validate with a press on C. To adjust the brightness, select the symbols "+"or "-" a n d c o n fi r m y o u r a d j u s t m e n t with a press on C.
- Validate on "OK" on the display.
- Using B, select the driving a s s i s t a n c e . C o n fi r m y o u r c h o i c e with a press on C.
- Then with a press on C, select/deselect driving headlamps to activate or deactivate them.
- Validate on "OK" on the display.
Page 35 of 257
36
II
M U L T I F U N C T I O N D I S P L A Y
To choose units
- Press on A.
- Use B to select the icon "Personalisation-Configuration" t h e n c o n fi r m y o u r c h o i c e w i t h a press on C.
- S e l e c t t h e d i s p l a y c o n fi g u r a t i o n using B . C o n fi r m w i t h a p r e s s o n C.
- Then select the sub-menu for U n i t s . C o n fi r m w i t h a p r e s s o n C.
- Using B, select the unit to b e m o d i fi e d ( T e m p e r a t u r e o r Consumption) then validate with a press on C.
- Validate on "OK" on the display.
Note: This choice concerns all the types of information (fuel consumption, speed, etc.) that appear on the displays.
To choose the language
- Press on A.
- Use B to select the icon "Personalisation-Configuration" t h e n c o n fi r m y o u r c h o i c e w i t h a press on C.
- Select the choice of language, using B.
- Using B, select the desired language and validate your choice with a press on C.
- Validate on "OK" on the display.
To adjust the date and time
- Press on A.
- Use B to select the icon "Personalisation-Configuration" t h e n c o n fi r m y o u r c h o i c e w i t h a press on C.
- S e l e c t t h e d i s p l a y c o n fi g u r a t i o n using B . C o n fi r m w i t h a p r e s s on C.
- Select the date and time adjustment, using B , t h e n c o n fi r m with a press on C.
- Use B to select the values to be m o d i fi e d . C o n fi r m w i t h a p r e s s o n C.
- M a k e y o u r a d j u s t m e n t s u s i n g B, validating each adjustment with a press on C.
- Validate on "OK" on the display.
Page 36 of 257
37
II
M U L T I F U N C T I O N D I S P L A Y
Controls
A - Access to the "Main menu".
B - Scrolling in the display menus.
C - Validation and Selection in the menus, of the function chosen o r v a l u e m o d i fi e d .
D - Cancellation of the operation or return to the previous display.
E - Selection of the type of information you wish to see permanently displayed (date, radio-CD, trip computer) on the right of the screen.
Presentation:
1 - Ambient temperature
2 - Directory
3 - Date
4 - Telephone
5 - Time
If the outside temperature is between +3 °C and -3 °C, the temperature d i s p l a y fl a s h e s ( r i s k o f i c e ) .
Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is standing in bright sunshine.
NAVIDRIVE DISPLAYMain menu
Press control A to display the "Main menu" for the multifunction screen.
This menu gives access to the following functions (See "Navidrive" instructions):
The driver is advised not to operate the controls when driving.
T r a f fi c i n f o r m a t i o n
Vehicle diagnosis
Audio
C o n fi g u r a t i o n , f o r adjusting various parameters (date, time, units)
Map
Video
Navigation/guidance
Audio
Page 37 of 257
38
II
M U L T I F U N C T I O N D I S P L A Y
Display A
The trip computer provides 5 types of information, which can be accessed by pressing successively on the end o f t h e c o n t r o l s t a l k .
Page 38 of 257
39
II
M U L T I F U N C T I O N D I S P L A Y
Display C or NaviDrive (continued)
The journeys
Journeys 1 and 2 are identical but independent of each other. For example, you can use Journey 1 for daily calculations and Journey 2 for monthly calculations.
To reset a journey to zero
When the desired journey is displayed, give a long press on the e n d o f t h e w i p e r s t a l k .
Permanent display
Pressing the "Mode" button causes the trip computer information to be displayed permanently.
Enter the distance to be travelled
- Press A.
- Using B select the trip computer icon, then validate by pressing C.
- Select distance entry, using B. Validate your choice by pressing C.
- To choose the distance, select the fi g u r e t o b e m o d i fi e d u s i n g B t h e n validate using C.
- Using B, adjust the value then validate using C.
- Validate with "OK" in the display.
To display the log of alerts or status of functions
- Press A.
- Using B select the trip computer icon, then validate by pressing C.
- Select the log of alerts or status of functions.
- Once the list is displayed, scroll through the list using B.
- Press D to return to the permanent display.
Page 39 of 257
40
II
M U L T I F U N C T I O N D I S P L A Y
Display ADisplay C or NaviDrive (continued)RangeThis indicates the mileage that can still be travelled using the f u e l r e m a i n i n g i n t h e t a n k .When the distance remaining to be travelled is less than abo ut 2 5 k m ( a p p r o x . 1 5 m i l e s ) , o n l y t h r e e d a s h e s a r e d i s p l a y e d .After resetting the computer, the indication of remaining range is only reliable after the vehicle has been used for a certain time.
Average fuel consumption
The average fuel consumption is calculated from the last reset of the computer.
Instantaneous fuel consumption
This is calculated from consumption over the previous 2 seconds. T h i s f u n c t i o n i s o n l y a v a i l a b l e w h e n t r a v e l l i n g a t o v e r 3 0 k m / h (approx. 20 mph).
Average speed
The average speed is obtained, from the last reset of the c o m p u t e r , b y d i v i d i n g t h e d i s t a n c e c o v e r e d b y t h e t i m e t a k e n (ignition on).
Distance travelled
It indicates the distance travelled since the trip computer was last reset to zero.
Distance remainingSee previous page.
Page 40 of 257
41

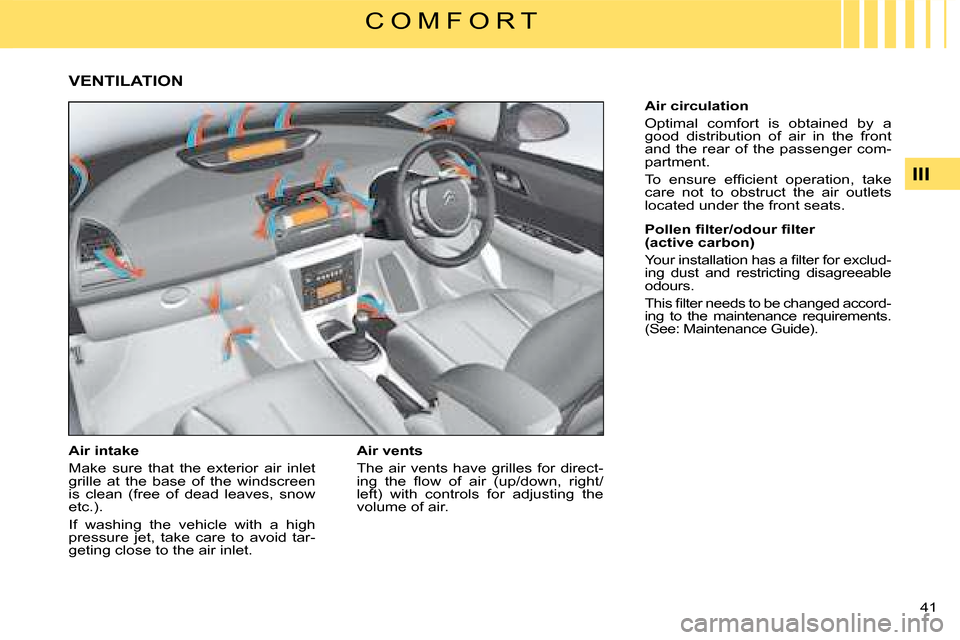

III
C O M F O R T
VENTILATION
Air intake
Make sure that the exterior air inlet grille at the base of the windscreen is clean (free of dead leaves, snow etc.).
If washing the vehicle with a high pressure jet, take care to avoid tar-geting close to the air inlet.
Air vents
The air vents have grilles for direct- i n g t h e fl o w o f a i r ( u p / d o w n , r i g h t / left) with controls for adjusting the volume of air.
Air circulation
Optimal comfort is obtained by a good distribution of air in the front and the rear of the passenger com-partment.
T o e n s u r e e f fi c i e n t o p e r a t i o n , t a k e care not to obstruct the air outlets located under the front seats.
P o l l e n fi l t e r / o d o u r fi l t e r (active carbon)
Y o u r i n s t a l l a t i o n h a s a fi l t e r f o r e x c l u d -ing dust and restricting disagreeable odours.
T h i s fi l t e r n e e d s t o b e c h a n g e d a c c o r d -ing to the maintenance requirements. (See: Maintenance Guide).
