Citroen C4 2008 1.G Repair Manual

61
IV
A C C E S S

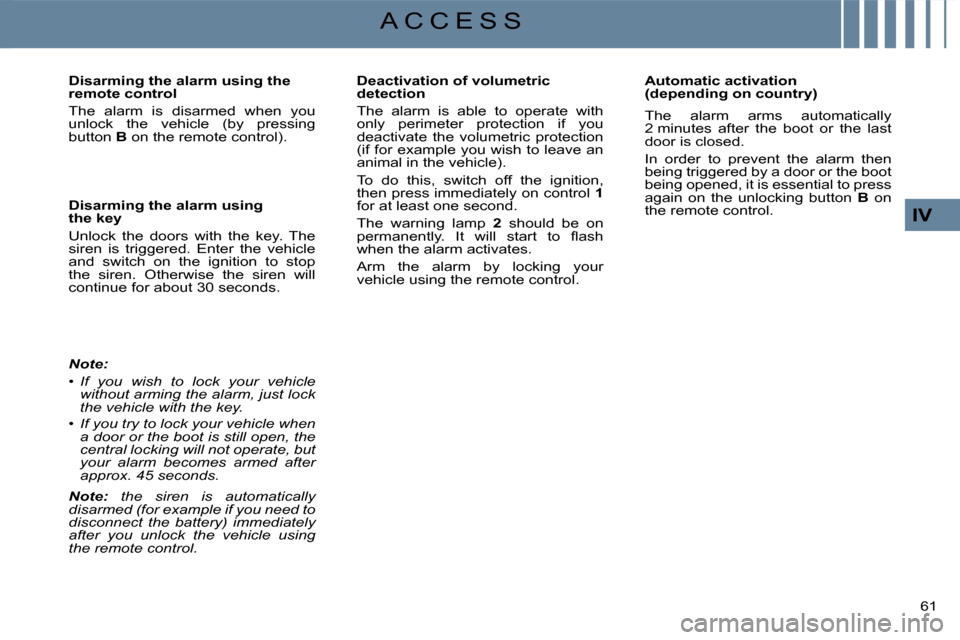

Deactivation of volumetric detection
The alarm is able to operate with only perimeter protection if you deactivate the volumetric protection (if for example you wish to leave an animal in the vehicle).
To do this, switch off the ignition, then press immediately on control 1for at least one second.
The warning lamp 2 should be on permanently. It will start to fl ash when the alarm activates.
Arm the alarm by locking your vehicle using the remote control.
Disarming the alarm using the remote control
The alarm is disarmed when you unlock the vehicle (by pressing button B on the remote control).
Disarming the alarm using the key
Unlock the doors with the key. The siren is triggered. Enter the vehicle and switch on the ignition to stop the siren. Otherwise the siren will continue for about 30 seconds.
Note:

62
IV
A C C E S S

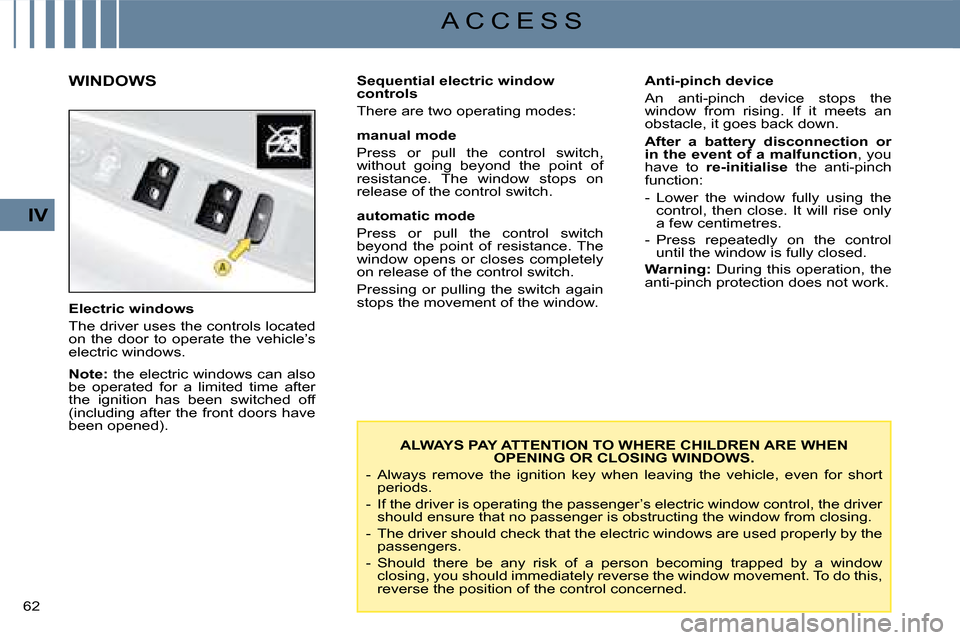

Electric windows
The driver uses the controls located on the door to operate the vehicle’s electric windows.
Note: the electric windows can also be operated for a limited time after the ignition has been switched off (including after the front doors have been opened).
Anti-pinch device
An anti-pinch device stops the window from rising. If it meets an obstacle, it goes back down.
After a battery disconnection or in the event of a malfunction, you have to re-initialise the anti-pinch function:
- Lower the window fully using the control, then close. It will rise only a few centimetres.
- Press repeatedly on the control until the window is fully closed.
Warning: During this operation, the anti-pinch protection does not work.
WINDOWSSequential electric window controls
There are two operating modes:
manual mode
Press or pull the control switch, without going beyond the point of resistance. The window stops on release of the control switch.
automatic mode
Press or pull the control switch beyond the point of resistance. The window opens or closes completely on release of the control switch.
Pressing or pulling the switch again stops the movement of the window.
ALWAYS PAY ATTENTION TO WHERE CHILDREN ARE WHEN OPENING OR CLOSING WINDOWS.
- Always remove the ignition key when leaving the vehicle, even for short periods.
- If the driver is operating the passenger’s electric window control, the driver should ensure that no passenger is obstructing the window fro m closing.
- The driver should check that the electric windows are used prope rly by the passengers.
- Should there be any risk of a person becoming trapped by a win dow closing, you should immediately reverse the window movement. To do this, reverse the position of the control concerned.

63
IV
A C C E S S
If you decide to drive with the doors locked, remem-ber that in the event of an accident this renders access more diffi cult for the emergency services.
Locking the doors from the inside
With the doors closed, press button B once to operate the electric central locking and unlocking.
The doors can still be opened from inside.
The central locking will not operate if a door is open, or not properly closed.
The lamp on the control B can signal any of 3 statuses:
- It fl ashes if the doors are open when the vehicle is stationary, engine stopped.
- It lights up if the doors are locked and the ignition is switched on.
- It goes out if the doors are not locked.
DOORSNote: Control B is inactive if the vehicle has been locked with the remote control or with the key.
Personal security
When the vehicle is started, the system automatically locks the doors and tailgate as soon as you reach a speed of approx. 10 km/h (6 mph).
Note: If a door is opened, this door will automatically relock as soon as the vehicle reaches approx. 6 mph.
Activation/Deactivation of the function
After switching on the ignition, give a long press on the central unlocking button until a message is displayed.
This allows from the front, deactivation of the opening of the rear doors and the use of the rear windows.
It is activated by means of a press on control A located on the electric windows control panel. The warning lamp in the instrument panel lights up for approx. 10 seconds.
Each time the ignition is switched on, the warning lamp comes on for approx. 10 seconds.
Opening of the doors from the outside and operation of the rear electric windows remain possible from the front of the vehicle.
Electric child safety

63
IV
A C C E S S
If you decide to drive with the doors locked, remem-ber that in the event of an accident this renders access more diffi cult for the emergency services.
Locking the doors from the inside
With the doors closed, press button B once to operate the electric central locking and unlocking.
The doors can still be opened from inside.
The central locking will not operate if a door is open, or not properly closed.
The lamp on the control B can signal any of 3 statuses:
- It fl ashes if the doors are open when the vehicle is stationary, engine stopped.
- It lights up if the doors are locked and the ignition is switched on.
- It goes out if the doors are not locked.
DOORSNote: Control B is inactive if the vehicle has been locked with the remote control or with the key.
Personal security
When the vehicle is started, the system automatically locks the doors and tailgate as soon as you reach a speed of approx. 10 km/h (6 mph).
Note: If a door is opened, this door will automatically relock as soon as the vehicle reaches approx. 6 mph.
Activation/Deactivation of the function
After switching on the ignition, give a long press on the central unlocking button until a message is displayed.
This allows from the front, deactivation of the opening of the rear doors and the use of the rear windows.
It is activated by means of a press on control A located on the electric windows control panel. The warning lamp in the instrument panel lights up for approx. 10 seconds.
Each time the ignition is switched on, the warning lamp comes on for approx. 10 seconds.
Opening of the doors from the outside and operation of the rear electric windows remain possible from the front of the vehicle.
Electric child safety

64
IV
A C C E S S
Manual operation (emergency mode)
In the event of an electrical fault, it is possible to lock the vehicle’s doors by actioning control C on each door.
With the door open, insert the end of a key or similar item into the aperture and turn.
Close the door.
After a repair, normal functioning resumes using either the unlocking control B, the remote control, or the key used in the driver’s door.
Closing the tailgate
Lower the tailgate, using the 2 hand-hold zones located on the tailgate interior trim.
Removing your fi ngers, press down to close.
TAILGATE
Opening from the outside
Press upwards on lever 1 which is located between the number plate lamps.
Anti-theft security
In all cases, as soon as the vehicle is moving (at above approx. 10 km/h or 6 mph) the tailgate locks auto-matically. The tailgate unlocks when a door is opened or if the interior locking/unlocking button is pressed.
Emergency unlocking
If there is a problem with unlocking the tailgate, it can be unlocked from inside the boot:
- insert a screwdriver or similar tool into hole 2 of the lock,
- turn it in order to unlock the tailgate.

64
IV
A C C E S S
Manual operation (emergency mode)
In the event of an electrical fault, it is possible to lock the vehicle’s doors by actioning control C on each door.
With the door open, insert the end of a key or similar item into the aperture and turn.
Close the door.
After a repair, normal functioning resumes using either the unlocking control B, the remote control, or the key used in the driver’s door.
Closing the tailgate
Lower the tailgate, using the 2 hand-hold zones located on the tailgate interior trim.
Removing your fi ngers, press down to close.
TAILGATE
Opening from the outside
Press upwards on lever 1 which is located between the number plate lamps.
Anti-theft security
In all cases, as soon as the vehicle is moving (at above approx. 10 km/h or 6 mph) the tailgate locks auto-matically. The tailgate unlocks when a door is opened or if the interior locking/unlocking button is pressed.
Emergency unlocking
If there is a problem with unlocking the tailgate, it can be unlocked from inside the boot:
- insert a screwdriver or similar tool into hole 2 of the lock,
- turn it in order to unlock the tailgate.

65
V
V I S I B I L I T Y
LIGHTING CONTROLS
1 Off
2 Automatic lighting
3 Sidelamps
4 Dipped beam/Main beam
Sidelamps on
Dipped beams/main beams on
Pull the stalk towards you to change from dipped beam to main beam and vice versa.
Turn the barrel A forward.
Turn the barrel A forward.
Automatic lighting of headlamps
Sidelamps and dipped beams come on automatically in conditions of poor ambient light or when the wip-ers are in continuous operation.
Guide-me-home lighting
This function leaves the headlamps on temporarily to assist your exit in low light conditions.
This function is activated:

66
V
V I S I B I L I T Y
Vehicles with front and rear foglamps (Ring B)
In conditions of poor visibility, if the ambient brightness does not trigger the automatic light-ing, it is up to you to switch on your dipped beams manually, as well as your foglamps.
They operate when sidelamps, dipped beams or main beams are switched on.
HEADLAMP ADJUSTMENT
You are advised to adjust the aim of the headlamps in accordance with vehicle load.
In the dashboard on the right hand side of the steering column.
0. 1 or 2 occupants in the front seats.
-. 3 occupants.
1. 5 occupants.
-. Intermediate position.
2. 5 occupants + maximum au-thorised load.
-. Intermediate position.
3. Driver + maximum authorised load.
Note: vehicles equipped with Xenon headlamps have automatic head-lamp adjustment.
For a vehicle equipped with front and rear foglamps:
- 1st notch forwards: switches on front foglamps.
- 2nd notch forwards: switches on rear foglamps.
- 1st notch rearwards: switches off rear foglamps.
- 2nd notch rearwards: switches off front foglamps.
Note:
The rear foglamps must only be used when visibility is severely re-duced (fog, snow).
For a vehicle equipped with rear foglamps:
- 1st notch forwards: switches on rear foglamps.
- 1st notch rearwards: switches off rear foglamps.

65
V
V I S I B I L I T Y
LIGHTING CONTROLS
1 Off
2 Automatic lighting
3 Sidelamps
4 Dipped beam/Main beam
Sidelamps on
Dipped beams/main beams on
Pull the stalk towards you to change from dipped beam to main beam and vice versa.
Turn the barrel A forward.
Turn the barrel A forward.
Automatic lighting of headlamps
Sidelamps and dipped beams come on automatically in conditions of poor ambient light or when the wip-ers are in continuous operation.
Guide-me-home lighting
This function leaves the headlamps on temporarily to assist your exit in low light conditions.
This function is activated:

66
V
V I S I B I L I T Y
Vehicles with front and rear foglamps (Ring B)
In conditions of poor visibility, if the ambient brightness does not trigger the automatic light-ing, it is up to you to switch on your dipped beams manually, as well as your foglamps.
They operate when sidelamps, dipped beams or main beams are switched on.
HEADLAMP ADJUSTMENT
You are advised to adjust the aim of the headlamps in accordance with vehicle load.
In the dashboard on the right hand side of the steering column.
0. 1 or 2 occupants in the front seats.
-. 3 occupants.
1. 5 occupants.
-. Intermediate position.
2. 5 occupants + maximum au-thorised load.
-. Intermediate position.
3. Driver + maximum authorised load.
Note: vehicles equipped with Xenon headlamps have automatic head-lamp adjustment.
For a vehicle equipped with front and rear foglamps:
- 1st notch forwards: switches on front foglamps.
- 2nd notch forwards: switches on rear foglamps.
- 1st notch rearwards: switches off rear foglamps.
- 2nd notch rearwards: switches off front foglamps.
Note:
The rear foglamps must only be used when visibility is severely re-duced (fog, snow).
For a vehicle equipped with rear foglamps:
- 1st notch forwards: switches on rear foglamps.
- 1st notch rearwards: switches off rear foglamps.
