52
III
C O M F O R T
M e m o r i s a t i o n o f d r i v i n g positions
You have the possibility to memorise two driving positions, via the buttons M / 1 and M / 2.
M e m o r i s a t i o n u s i n g t h e b u t t o n s
To memorise, using the buttons lo-cated on the side of the seat:
- turn the ignition key to the drive position,
- adjust your seat and your exterior rear view mirrors,
- press on button M then immediately on button 1 " fi r s t d r i v i n g p o s i t i o n " or on button 2 "second driving position".
The memorisation is recognised by an audible signal. Memorising of a new position cancels the previous one.
R e c a l l o f a m e m o r i s e d d r i v i n g position
V e h i c l e s t o p p e d (ignition on or en-gine running)
- P r e s s b r i e fl y o n b u t t o n 1 or2 to recall the corresponding memorised position.
Note: a f t e r fi v e c o n s e c u t i v e r e c a l l s of a memorised position, this function will be deactivated until the engine is started.
V e h i c l e m o v i n g
- Keep button 1 or 2 pressed to recall the corresponding memorised position.
Page 52 of 257
53
III
C O M F O R T
B e f o r e f o l d i n g t h e s e a t
Before tipping the rear seat, make sure that the seat belts will not be snagged or trapped by the seat and its catches.
Position them carefully to the sides of the backrests.
R e a r h e a d r e s t r a i n t s
The rear head restraints have two positions:
- A low stowed position when the seat is not occupied.
- A raised position to optimise the safety of the passenger, by raising it to its stop, i n c l u d i n g w h e n u s e d w i t h a f o r w a r d f a c i n g c h i l d s e a t .
To lower the head restraints, press on the unlocking controls.
To remove them, pull upwards as far as permitted, then press on the un-locking controls.
Note: Never drive the vehicle with- o u t t h e h e a d r e s t r a i n t s fi t t e d .
R e a r a r m r e s t
- Lower the rear armrest to improve your comfort.
- Lift the cover for access to its storage box.
This can contain a storage box, two cup holders and two pen holders.
REAR SEATS
F o l d i n g t h e s e a t c u s h i o n
- raise the front of the seat cushion,
- tilt it towards the front seats.
When repositioning the seat base, make sure that the seat belt buckles are back in place.
Note: When you fold a rear seat cushion, you should also fold the corresponding backrest.
Page 53 of 257
54
III
C O M F O R T
F o l d i n g t h e b a c k r e s t
Stow the head restraints.
Press on control A located on the extremity of the backrest and tilt fully forwards.
When returning the seat backrest to the normal position, ensure that it locks into place: the red warning in-dicator, located on the control, must not be visible.
R e m o v i n g t h e s e a t b a s e
To improve seating versatility, the rear seats are removable.
Detach one of the linkages from its securing point, then disengage the other linkage to remove the seat as-sembly.
When you are handling the rear seats, avoid trapping the seat belts and make sure that the belt buckles are positioned correctly.
Page 54 of 257
55
III
C O M F O R T

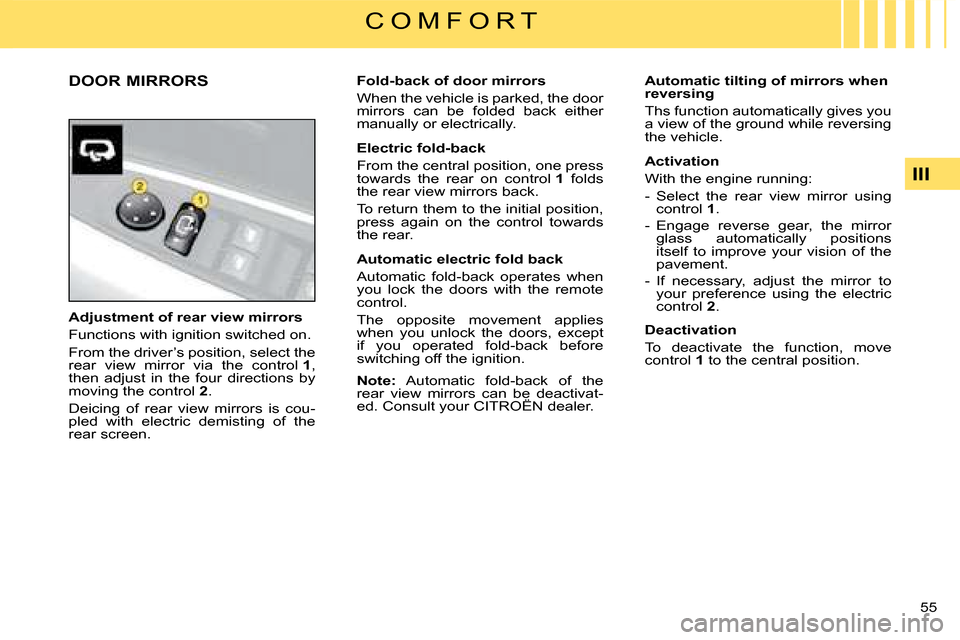

DOOR MIRRORS
