T E C H N I C A L S P E C I F I C A T I O N S
WEIGHTS - DIESEL3-door model
Engine typeHDi 90 BVMHDi 90 FAP BVMHDi 110 BVMHDi 110 FAP BVMHDi 110 FAP BVMPHDi 135 FAP BVAHDi 140 FAP BVM
Fuel tank capacityApproximately 60 litres
Recommended fuelDiesel fuel
Turning circle between walls (in metres)11.311.311.311.311.31212
French fi scal rating5566677
Power (kW)6666.2808080100103
Calculated maximum speed in km/h (mph) (in the highest gear)180180192192192206207
Weights (kg)
Unladen weight1 25512791 2691 2791 2931 4101 379
Gross vehicle weight (GVW)1 77517991 7901 7991 7901 8801 835
Maximum rear axle weight850850850850850850850
Gross train weight (GTW)3 07530993 0903 0993 0903 4503 335
Gross trailer weight (with brakes) (within the Gross Train Weight limit)
10 to 12 % incline1 30013001 3001 3001 3001 5701 500
8 to 10 % incline1 30013001 3001 3001 3001 5701 500
Incline of up to 8 %1 30013001 3001 3001 3001 5701 800
Gross trailer weight (without brakes)665677672677675740727
Trailer nose weight66666666657073
Maximum roof bar load75

156
XII
T E C H N I C A L S P E C I F I C A T I O N S

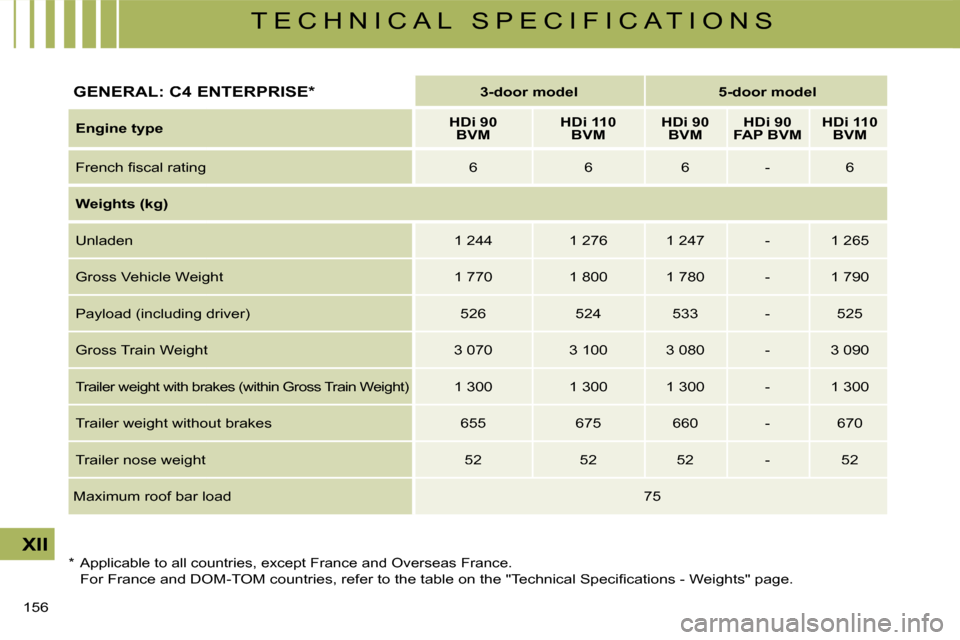

GENERAL: C4 ENTERPRISE*3-door model5-door model
Engine typeHDi 90BVMHDi 110BVMHDi 90BVMHDi 90 FAP BVMHDi 110BVM
French fi scal rating666-6
Weights (kg)
Unladen1 2441 2761 247-1 265
Gross Vehicle Weight1 7701 8001 780-1 790
Payload (including driver)526524533-525
Gross Train Weight3 0703 1003 080-3 090
Trailer weight with brakes (within Gross Train Weight)1 3001 3001 300-1 300
Trailer weight without brakes655675660-670
Trailer nose weight525252-52
Maximum roof bar load75
* Applicable to all countries, except France and Overseas France.
For France and DOM-TOM countries, refer to the table on the "T echnical Specifi cations - Weights" page.

XII
T E C H N I C A L S P E C I F I C A T I O N S
The fuel consumption fi gures quoted are correct at time of going to press.
Engine type1.4i 16V1.6i 16V1.6i 16V 120 ch1.6i 16V 150 ch1.6i 16V 140 ch1.6i 16V manual BioFlex
SaloonBVMBVMBVABVMBVABVMBVABVM
Recommended fuelUnleaded petrol RON 95 - RON 98E85
Urban8.79.510.69.310.19.8-9.5-
CO2 emissions209224252220240234-224-
Extra urban5.25.75.85.25.55.3-5.7-
CO2 emissions124135138124131127-135-
Combined6.47.17.66.77.26.9-7.1-
CO2 emissions153169180159171164-169-
These consumption values are established in compliance with European directive 80/1268/CEE. They can vary depending on how the vehicle is driven, on the prevailing traffi c conditions, on weather conditions, on vehicle load, on how the vehicle has been maintained and also on how many accessories are in use.
FUEL CONSUMPTION

158
XII

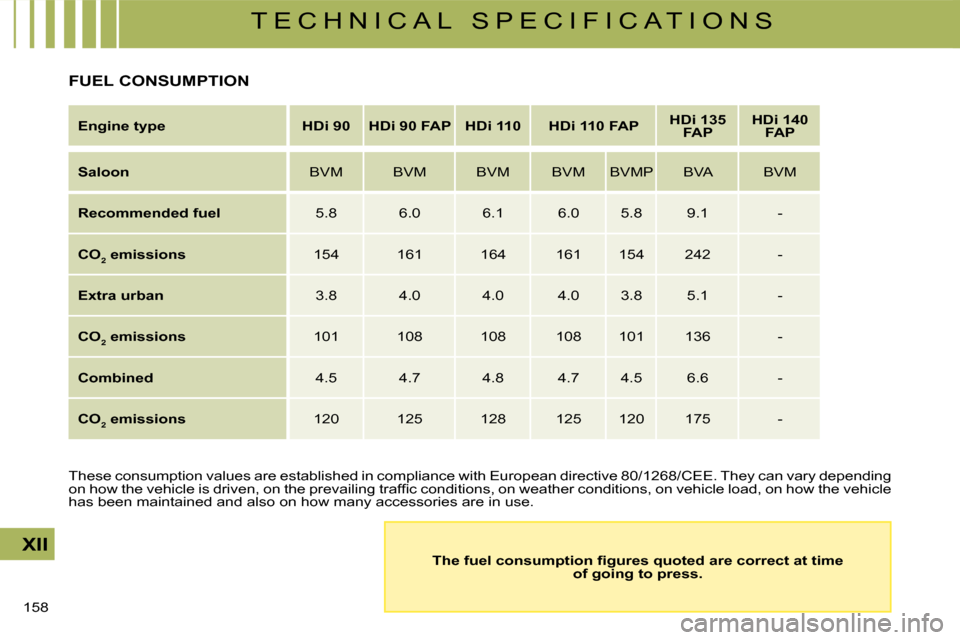

T E C H N I C A L S P E C I F I C A T I O N S
Engine typeHDi 90HDi 90 FAPHDi 110HDi 110 FAPHDi 135 FAPHDi 140 FAP
SaloonBVMBVMBVMBVMBVMPBVABVM
Recommended fuel5.86.06.16.05.89.1-
CO2 emissions154161164161154242-
Extra urban3.84.04.04.03.85.1-
CO2 emissions101108108108101136-
Combined4.54.74.84.74.56.6-
CO2 emissions120125128125120175-
FUEL CONSUMPTION
These consumption values are established in compliance with European directive 80/1268/CEE. They can vary depending on how the vehicle is driven, on the prevailing traffi c conditions, on weather conditions, on vehicle load, on how the vehicle has been maintained and also on how many accessories are in use.
The fuel consumption fi gures quoted are correct at time of going to press.

159
XII
T E C H N I C A L S P E C I F I C A T I O N S
Engine typeHDi 90HDi 110
SaloonBVMBVMP
Recommended fuel--
CO2 emissions--
Extra urban--
CO2 emissions--
Combined--
CO2 emissions--
DIESEL FUEL CONSUMPTION with "Michelin Energy Saver" tyres (15 and 16 inch wheels)
These consumption values are established in compliance with European directive 80/1268/CEE. They can vary depending on how the vehicle is driven, the prevailing traffi c conditions, weather conditions, vehicle load, how the vehicle has be en maintained and also on how many vehicle systems and accessories are in use.
The fuel consumption fi gures quoted are correct at time of going to press.

174
XIII
A U D I O
HANDS-FREE TELEPHONE
Your audio system may be Bluetooth®
compatible. It allows you to connect a mobile telephone for "hands free" use and even to use its directory.
It permits you to twin up to four telephones, to be able then to connect whichever one you choose.The Bluetooth® functions available and the content of the display are dependent on the type of mobile telephone, its settings and the type of contract you have. For this reason it is advisable to make enquiries with your telephone provider.Prior to any operation:- Your display should be lit up (key in position M).
- Your telephone’s Bluetooth®
system must be activated.
Twinning a telephone
Twinning a telephone consists of having it recognised by the Bluetooth® system on your vehicle. This then permits an instantaneous connection.Twinning can only be performed with ignition switched on, display illuminated, engine stopped. No other telephone should be connected.- The twinning must be performed with the telephone and its Bluetooth® system activated.®
Note:
Refer to the user instructions to familiarise yourself with the features of twinning.- The telephone detects the Bluetooth® system on your vehicle. ®
"C4" displays on your telephone.
You should then select "C4" on your telephone controls. Next you must choose whether or not to accept this twinning then select, on screen Cusing J, M or 8, one of the 4memories. Validate with a press on button L or 7.
Note:
You can select a memory already attributed, although the telephone twinned to this location will no longer be.- Next the telephone asks you to enter an identifi cation code: 1234.
- Validate.
Note:
This entry may be demanded earlier in the twinning sequence.The telephone is now twinned to your Bluetooth® system. For ®
immediate access to the Bluetooth®
functions, it may be necessary to make a connection (see following page "Confi guration: Connecting a twinned mobile telephone").Once the twinning is fi nished, you will be able to connect your telephone via the "Main menu".
Connecting a twinned telephone
Each time you enter the vehicle, after switching on the audio system, your telephone is detected automatically. If more than one telephone is present, the last telephone to have been connected is the fi rst to be recognised.Note:Disconnections may occur. You may have to make a new connection (see following page, "Confi guration: Connecting a twinned mobile telephone").Remarks:- In the event of a problem, it is recommended to switch your telephone off and then on again.- If you switch off your telephone within the fi eld of reception of the Bluetooth® system on your vehicle, the next connection will not be automatic. To restore automatic connection, you will have to connect your telephone manually (see following page, "Confi guration: Connecting a twinned mobile telephone").- If you are already in telephone communication when the audio system is turned on, the latter detects the telephone.- To avoid interference, you are advised not to place your mobile telephone close to your radio.
To accept an incoming call
Using button L or control 7 at the steering wheel.

179
XIII
A U D I O
QUESTIONANSWERSOLUTION
The pre-set stations do not work (no sound, 87.5 Mhz is displayed, etc.).
The waveband selected is not the correct one.Press on the button BAND AST to retrieve the wave band (AM, FM1, FM2, FMAST) where the stations have been memorised.
Traffi c Announcements (TA) is displayed, but I do not receive any road information.
The particular radio station is not in the regional traffi c information network.Change to a radio station which does broadcast traffi c information.
The reception quality of the radio station being listened to gradually deteriorates or the pre-set stations do not work (no sound, 87.5 Mhz displayed, etc.).
The vehicle is too distant from the transmitter of the station being listened to, or no transmitter is present in the geographical area you are passing through.
Activate the RDS function to allow the system to check whether a more powerful transmitter is to be found in the geographical area.
The environment (hills, high buildings, tunnels, underground car parks, etc.) is blocking reception, even in RDS mode.
This phenomenon is normal and does not imply anything wrong with the radio.
The aerial is absent or has been damaged (for example after going through a car wash or in an underground car park).
Have the aerial checked by a CITROËN dealer.Have the aerial checked by a Have the aerial checked by a
Cutting of sound for 1 or 2 seconds in radio mode.
The RDS system during this brief sound cut-off is searching for a better frequency that might offer improved reception of the station.
Deactivate the RDS function if the phenomenon occurs too frequently and always on the same journey.
When the engine is not running, the radio stops after a few minutes.
When the engine is switched off, the working time for the radio depends on the vehicle n the engine is switched off, the working n the engine is switched of
battery charge.
The interruption is normal: the radio goes into economy mode, cutting off in order to save the erruption is normal: the radio goes into erruption is normal: the radio goes into
vehicle’s battery.
You have to start the engine so as to increase the battery charge.
The message "the audio system is overheating" appears on the screen.
In order to protect the audio equipment in excessive ambient temperatures, the radio goes into an automatic thermic protection mode which results in a reduction in sound volume or stopping of the CD player.
Switch off the audio system for a few minutes in order to allow the system to cool down.
