Citroen C4 2008.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2008.5, Model line: C4, Model: Citroen C4 2008.5 1.GPages: 282, PDF Size: 12.65 MB
Page 121 of 282
102
VIII
S A F E T Y
AIR BAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e
safety of the occupants (with the
e x c e p t i o n o f t h e r e a r c e n t r e p a s -
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact, the air bags are triggered instantly
and protect the occupants of
t h e v e h i c l e ( w i t h t h e e x c e p t i o n
of the rear centre passenger);
immediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y s o t h a t t h e y
d o n o t h i n d e r v i s i b i l i t y o r t h e e x i t o f
the occupants,
- in the case of a minor or rear impact or in certain roll-over con-
ditions, the air bags will not be
triggered; the seat belt alone is
s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The air bags do not operate when
the ignition is switched off.
This equipment will only oper-
ate once. If a second impact
occurs (during the same or a sub-
sequent accident), the air bag will

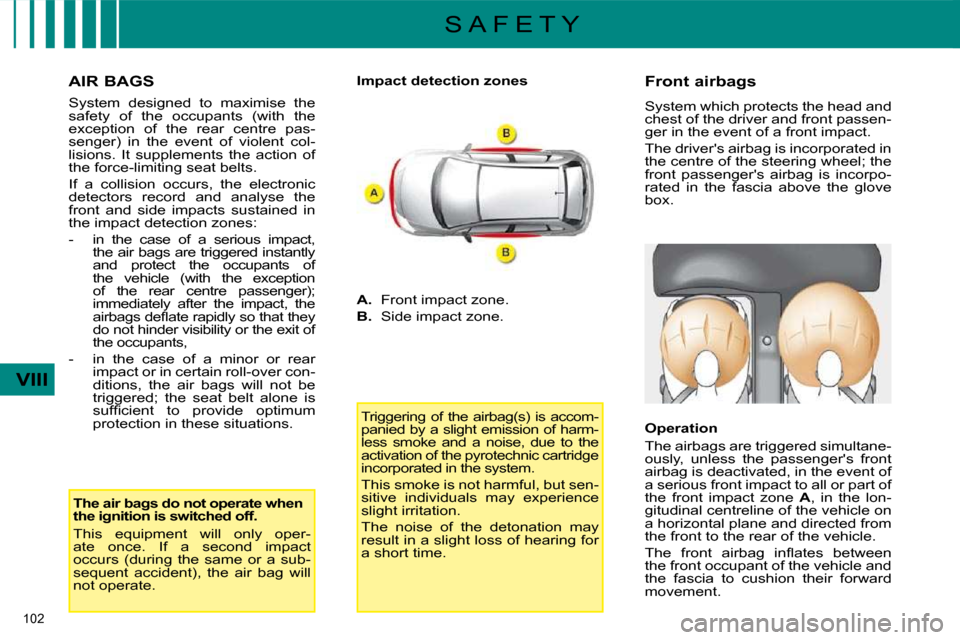

not operate. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the airbag(s) is accom-
panied by a slight emission of harm-
less smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the head and
chest of the driver and front passen-
ger in the event of a front impact.
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorpo-
rated in the fascia above the glove
b o x .
Operation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact to all or part of
the front impact zone
A , in the lon-
gitudinal centreline of the vehicle on
a horizontal plane and directed from
the front to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion their forward
movement.
Page 122 of 282
103
VIII
S A F E T Y
Deactivation
This warning lamp comes
on in the instrument panel
when the ignition is on and
until the airbag is re-armed.
To guarantee the safety of your
child, it is imperative that the pas-
senger airbag is deactivated when
you install a "rearwards-facing" child
seat on the front passenger seat.
Otherwise, the child would risk
being seriously injured or killed if
the airbag were triggered. Reactivation
When you remove the child seat,
turn switch
1 to the "ON" position to
reactivate the airbag and so guaran-
tee the safety of your front passen-
ger in the event of an impact.
Operating fault
If this warning lamp comes
on in the instrument panel,
accompanied by an audible
warning and a message on
the multifunction screen, contact a
CITROËN dealer to have the sys-
tem checked. The airbags may no
longer be triggered in the event of a
serious impact.
I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a CITROËN dealer.
If both airbag warning lamps come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Only the front passenger's airbag
can be deactivated:
with the ignition off , insert the
key in the passenger airbag de-
activation switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position.
Page 123 of 282
105
VIII
S A F E T Y

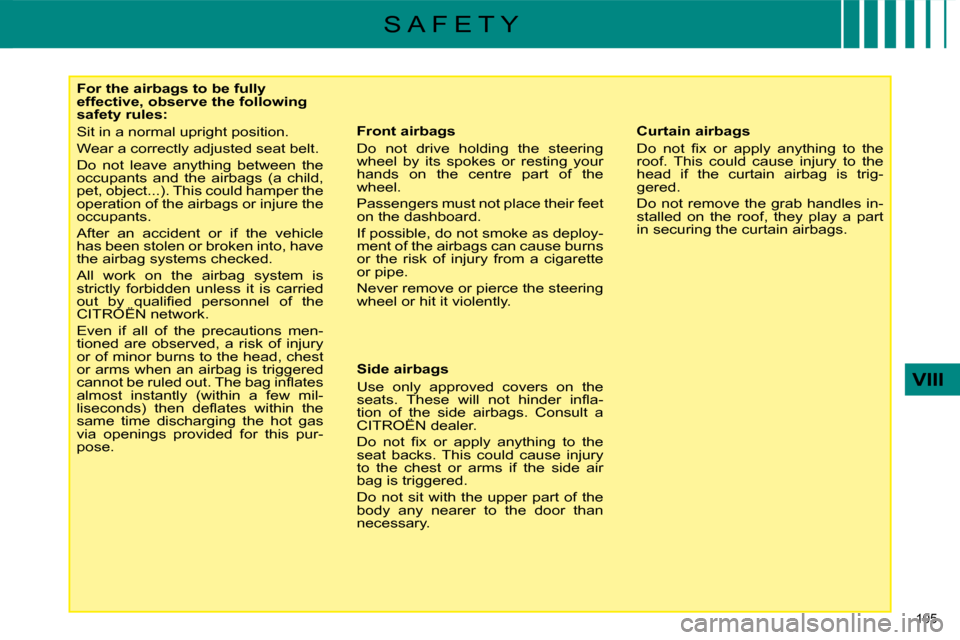

For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 124 of 282
104
VIII
S A F E T Y
* According to country.
Side airbags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
the risk of injury to the chest.
Each side airbag is incorporated in
the front seat back frame, on the
door side.
Operation
It is triggered unilaterally in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the

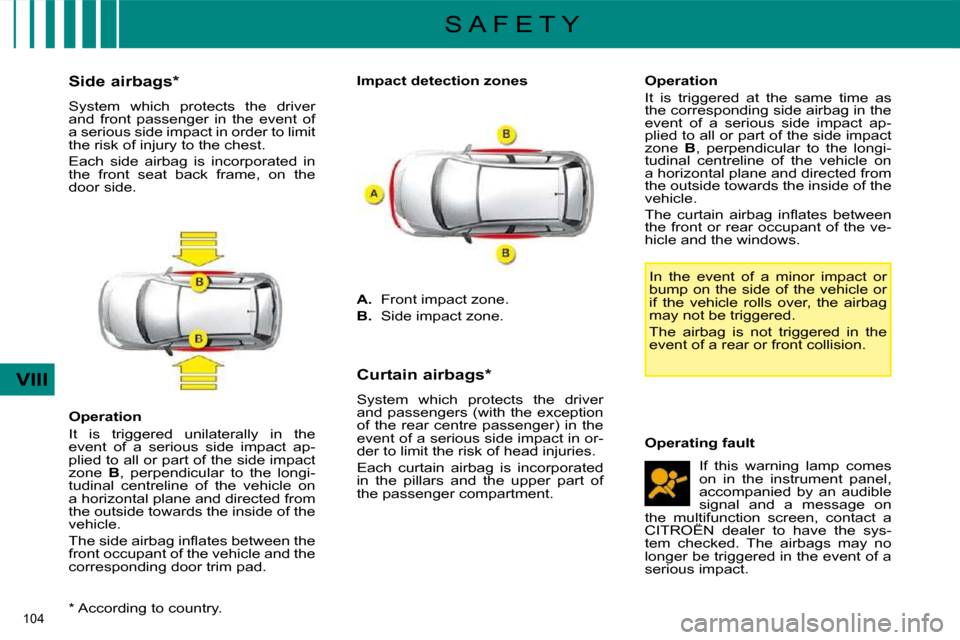

corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain airbags *
System which protects the driver
a n d p a s s e n g e r s ( w i t h t h e e x c e p t i o n
of the rear centre passenger) in the
event of a serious side impact in or-
der to limit the risk of head injuries.
Each curtain airbag is incorporated
in the pillars and the upper part of
the passenger compartment. Operation
It is triggered at the same time as
the corresponding side airbag in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the ve-
hicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
The airbag is not triggered in the
event of a rear or front collision.
Operating fault If this warning lamp comes
on in the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen, contact a
CITROËN dealer to have the sys-
tem checked. The airbags may no
longer be triggered in the event of a
serious impact.
Page 125 of 282
105
VIII
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 126 of 282
106
IX
D R I V I N G
PARKING BRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying
Pull the parking brake to immobi-
lise your vehicle.
Releasing
Pull on the handle and press
the button to release the parking
brake.
When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accompa-
nied by an audible signal and a mes-
sage on the multi-function screen,
this indicates that the parking brake
is still on or has not been properly
released.
When parking on a slope, direct your
wheels against the pavement, pull
the parking brake on and engage
a gear.
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the
key to position M and wait until
the pre-heating warning lamp
switches off if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting. Engaging reverse gear
Push the gear lever to the
right then rearwards.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Page 127 of 282
107
IX
D R I V I N G
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of two
driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
- the sequential mode for manu-
al changing of the gears by the
driver.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring A under the knob
and push the gear lever to the
left then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle. Mode selection
automatic mode: selector in po-
sition A .
manual mode: selector in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the paddles "+" or "-".
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Page 128 of 282
107
IX
D R I V I N G
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of two
driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
- the sequential mode for manu-
al changing of the gears by the
driver.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring A under the knob
and push the gear lever to the
left then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle. Mode selection
automatic mode: selector in po-
sition A .
manual mode: selector in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the paddles "+" or "-".
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Page 129 of 282
108
IX
D R I V I N G
Displays on the instrument
panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille associated with the selector al-
lows you to view the position se-
lected. Moving off
When the ignition is on, light-
ing of the service warning lamp,
accompanied by
an audible
sig-
nal and the message "Gearbox
faulty" indicates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is dif-
ferent, reposition the selec-
tor on N in order to be able to
start.
To start the engine, the selector
has to be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Operate the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and ac-
celerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure.
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to
select
reverse gear
when the vehicle is stationary.
If the vehicle is moving rapidly, if an in-
advertent attempt to engage reverse
gear is made, the warning lamp N will
fl a s h a n d y o u r v e h i c l e w i l l g o a u t o -
matically into neutral. To re-engage a
gear, you have only to reposition the
selector on A , M or R .
Reverse gear
Page 130 of 282
109
IX
D R I V I N G
Neutral
Changing to neutral
To change to neutral, move the se-
lector to N . If the vehicle is mov-
ing, do not select this position even
momentarily. Automatic mode
Changing to automatic mode
To change to automatic mode, move
the selector to A . Manual mode
Changing to manual mode
Manual mode activates when you
move the selector to M .
Pull the paddle " + " to change up
a gear.
Pull the paddle " - " to change
down a gear.
When the engine is running, before
accelerating to move the vehicle,
make sure that the position engaged
on the selector grille or in the instru-
ment panel is either: R , A or M
Do not leave the vehicle with the en-
gine running in R , A or M .
