Citroen C4 2008.5 1.G Owner's Manual

4
F A M I L I A R I S A T I O N
E X T E R I O R
Directional headlamps
This lighting function automatically im-
proves forward vision when cornering. Lane departure warning system
Above 50 mph, this system is activated
automatically if you inadvertently wander
from your lane.
Visual and audible parking
assistance, front/rear
This system warns you if an obstacle is
detected when manoeuvring the vehicle.
Guide-me-home lighting
The headlamps stay on for a short pe-
riod after switching off the ignition.
 74

 121

 73
 122

5
F A M I L I A R I S A T I O N
O P E N I N G
Remote control

A. Unfolding/folding the key.

B. Unlocking the vehicle.

C. Locking the vehicle.

 56, 57
A long press on button
C locks the
vehicle and closes the windows.
Two successive presses on button C
deadlocks the vehicle. Press once to lock the vehicle.
Press again to unlock the vehicle.

 65
Manual central locking

D. Activating/deactivating guide-me-
home lighting.

6
F A M I L I A R I S A T I O N
O P E N I N G

 Unlock the vehicle with the remote
control or the key.

 Press up on the lever and lift the
tailgate.
Tailgate Spare wheel and tools
Access to the spare wheel

 Lift the carpet, then remove the tool
holder to gain access to the wheel.

 134
Locking filler cap

 Turn the key a quarter turn to lock
and unlock the fi ller cap.
When refuelling, place the cap on the
carrier on the inside face of the fi ller
fl ap.

 68 If your spare wheel is of different di-
mensions to the wheels on the ve-
hicle, it is essential to use it only on
a temporary basis, and to not drive
above 50 mph (80 km/h).

 67 Access to the tools
The tools are located in a protective
holder in the spare wheel.

B. Removing the fi ller cap.
Fuel tank capacity: 60 litres approxi-
mately.

A. Opening the fuel fi ller fl ap.
To open the fuel fi ller fl ap, pull at its
notched edge. There is a fuel label on
the inside of the fl ap.
Fuel tank

7
F A M I L I A R I S A T I O N

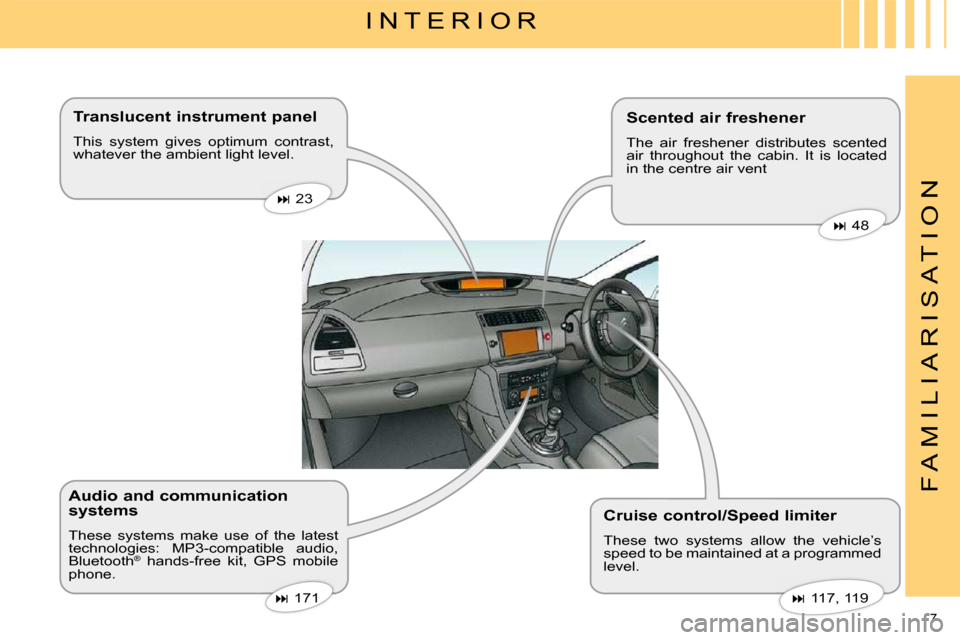

I N T E R I O R
Translucent instrument panel
This system gives optimum contrast,
whatever the ambient light level. Cruise control/Speed limiter
These two systems allow the vehicle’s
speed to be maintained at a programmed
level. Scented air freshener
The air freshener distributes scented
air throughout the cabin. It is located
in the centre air vent
Audio and communication
systems
These systems make use of the latest
technologies: MP3-compatible audio,
Bluetooth ®
hands-free kit, GPS mobile
phone.
 23

 117, 119
 48

 171

8
F A M I L I A R I S A T I O N
D A S H B O A R D

1. Controls:
- Mirrors.
- Windows.
- Child safety

2. Headlamp adjustment.

3. Controls:
- ESP.
- Parking assistance.
- Lane departure warning system.
- Anti-intrusion alarm.

4. Steering lock and ignition switch.

5. Controls:
- Windscreen wiper.
- Screen wash.
- Rear screen wiper.
- Trip computer.

6. Fixed centred controls.

7. Direction indicator warning lamps.

8. Speedometer

9. Controls:
- Trip mileage recorder reset button.
- Display lighting rheostat.
- Display of alerts and status of functions.

10. Centre air vents.

11. Driver’s airbag.

12. Horn

13. Gear lever.

14. Parking brake.

9
F A M I L I A R I S A T I O N
D A S H B O A R D

1. Bonnet release.

2. Fusebox cover.

3. Storage drawer (left and right).

4. Lateral air vent (left and right).

5. Side window demister vent (left
and right).

6. Loudspeaker (Tweeter)
(left and right).

7. Passenger’s airbag.

8. Control for central locking of doors
and boot.

9. Multifunction screen.

10. Hazard warning lamps control.

11. Scented air freshener.

12. Controls:
- Lighting.
- Direction indicators.
- Front foglamps
- Rear foglamps.

13. Steering column adjustment lever.

14. Radio-CD or NaviDrive radio
navigation.

15. Air conditioning or heating/
ventilation.

16. Cigar lighter.

17. 12-volt accessory socket
(150 W max). or USB socket.

18. Ashtray.

19. Key-operated switch:
- Passenger’s airbag activation/ deactivation.

20. Lower glovebox.
- Handbook pack storage.

10
F A M I L I A R I S A T I O N
D A S H B O A R D

Controls for speed limiter
and cruise control
Audio system
controls

Warning lamps:
lighting and
direction indicators

Function controls:
- Display lighting rheostat
- Voice recognition
- Air recirculation
- Telephone
- Personal button
Multifunction screen controls

Horn
FIXED CENTRED CONTROLS STEERING WHEEL

11
F A M I L I A R I S A T I O N
D A S H B O A R D
Controls for speed limiter and cruise control Audio system controls
See "Audio" or your Navidrive instructions

Selection of speed
limiter or cruise control
Activation of speed
limiter and Deactivation/ Reactivation of cruise
control and speed limiter
Search for higher
radio frequencies
Scrolling of
memorised stations

Decrease speed/
Activate cruise control
Increase speed/
Activate cruise control
Increase sound
volume
Reduce
sound
volume
Mute

12
F A M I L I A R I S A T I O N
D A S H B O A R D

Display
lighting
rheostat
Starting voice
recognition
(See "Audio" or your Navidrive instructions)
Access to "Main
menu" *
Scrolling in the
multifunction
screen

Telephone pick-
up/hang-up
(See "Audio" or your Navidrive instructions)
Personal button:
- Black panel (default function), or
- Interior lamp on/off, or
- Log of alerts, or
- Status of functions
Give a long press on this button to
display the personalisation menu. Selection of the type of in-
formation displayed on the
right of the screen (radio,
trip computer, navigation/
guidance…) and for screen
A, choice of activation/de-
activation of your functions
and choice of your adjust-
ments
Cancel the current opera-
tion or return to the previ-
ous screen

Air recirculation
Validation of the function selected or the
value modifi ed

Pick up/hang up (See "Audio" or your
Navigation instructions)
* In compliance with national legislation, in some cou ntries the "menu" control is deactivated when driving.

Display the
"Directory" menu
(See "Audio" or your Navidrive instructions)

13
F A M I L I A R I S A T I O N
S I T T I N G C O M F O R T A B L Y

 50
Front seats
Forwards-backwards Driver’s seat cushion height and angle
adjustment Seat back angle and lumbar adjust-
ment
Manual adjustments
Electrically operated adjustments
(driver’s seat only)
Forwards-backwards Seat cushion height and angle adjustme
nt Seat back angle and lumbar adjust-
ment
 49
