Page 23 of 282
26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and 2 or 3 bars are lit.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
c i fi c w a r n i n g l a m p .
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the
warning lamp remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d . C o n t a c t
a CITROËN dealer as soon as
possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e fl u i d l e v e l in the circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultane-
ous lighting of the ABS warning
lamp),
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been
deactivated, if this warning lamp
and the indicator lamp on the button
come on continuously, this indicates
the occurrence of a fault in the ESP/
ASR system or in the hill start as-
sistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r -
rence of a fault in the emission con-
trol system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assist-
ed braking system.
Page 28 of 282
26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and 2 or 3 bars are lit.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
c i fi c w a r n i n g l a m p .
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the
warning lamp remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d . C o n t a c t
a CITROËN dealer as soon as
possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e fl u i d l e v e l in the circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultane-
ous lighting of the ABS warning
lamp),
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been
deactivated, if this warning lamp
and the indicator lamp on the button
come on continuously, this indicates
the occurrence of a fault in the ESP/
ASR system or in the hill start as-
sistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r -
rence of a fault in the emission con-
trol system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assist-
ed braking system.
Page 69 of 282
62
IV
A C C E S S
Triggering
This is indicated by sounding of
t h e s i r e n a n d fl a s h i n g o f t h e d i r e c -
tion indicators for approximately
thirty seconds.
After it has been triggered, the alarm
is again operational.
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive. If the indicator light on button A
fl a s h e s r a p i d l y , t h i s i n d i c a t e s t h a t
the alarm was triggered during
your absence. When the ignition is
s w i t c h e d o n , t h i s fl a s h i n g s t o p s i m -
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound. Failure of the remote control
Unlock the vehicle using the key
in the driver’s door lock.
Open the door; the alarm is trig-
gered.
Switch on the ignition; the alarm
stops.
Locking the vehicle without
alarm
Lock or deadlock the vehicle us-
ing the key in the driver’s door
lock.
* According to country.
Malfunction
When the ignition is switched on,
lighting of the indicator lamp on but-
ton
A for ten seconds indicates a si-
ren fault.
Have it checked by a CITROËN
dealer. Automatic operation *
Depending on the legislation in force
in your country, one of these cases
may occur:
- 45 seconds after the vehicle is
locked using the remote control,
the alarm is armed, regardless of
the status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is
armed.
To avoid triggering the alarm
o n e n t e r i n g t h e v e h i c l e , fi r s t
press the unlocking button on
the remote control.
Page 116 of 282
97
VIII
S A F E T Y
BRAKING ASSISTANCE SYSTEMS
Group of supplementary systems
which help you to obtain optimum
braking in complete safety in emer-
gency situations:
- anti-lock braking system (ABS),
- electronic brake force distribu-tion (EBFD),
- emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the
stability and manoeuvrability of your
vehicle when braking, in particular
on poor or slippery surfaces.
Activation
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock.
Normal operation of the ABS may
make itself felt by slight vibration of
the brake pedal. Operating fault
When braking in an emergency,
p r e s s v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure. If this warning lamp comes
on, accompanied by an au-
dible signal and a message
on the multi-function screen,
it indicates a malfunction of the anti-
lock braking system which could re-
sult in loss of control of the vehicle
when braking.
If this warning light comes on,
together with the STOP and
ABS warning lamps, accom-
panied by an audible signal
and a message on the multifunction
screen, it indicates a malfunction of
the electronic brake force distribution
which could result in loss of control of
the vehicle when braking.
You MUST stop as soon as it is
safe to do so.
In both cases, contact a CITROËN
dealer.
When replacing wheels (tyres and
rims), ensure that they conform to
the manufacturer's recommenda-
tions. Emergency braking assistance
System which, in an emergency,
enables you to obtain the optimum
braking pressure more quickly, thus
reducing the stopping distance.
Activation
It is triggered by the speed at which
the brake pedal is pressed.
The effect of this is a reduction in
the resistance of the pedal and an
i n c r e a s e i n b r a k i n g e f fi c i e n c y .
When braking in an emergency,
p r e s s fi r m l y w i t h o u t r e l e a s i n g t h e
pressure.

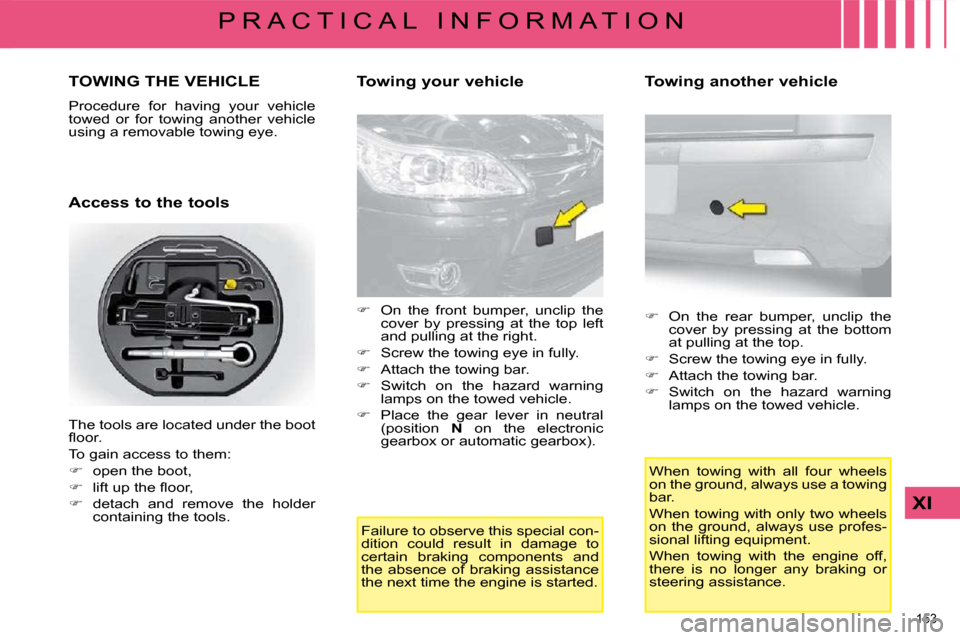

Page 177 of 282
153
XI
P R A C T I C A L I N F O R M A T I O N
TOWING THE VEHICLE
P r o c e d u r e f o r h a v i n g y o u r v e h i c l e
t o w e d o r f o r t o w i n g a n o t h e r v e h i c l e
u s i n g a r e m o v a b l e t o w i n g e y e .
Access to the tools
The tools are located under the boot
fl o o r .
To gain access to them:
open the boot,
l i f t u p t h e fl o o r ,
detach and remove the holder
c o n t a i n i n g t h e t o o l s . Towing your vehicle
On the front bumper, unclip the
c o v e r b y p r e s s i n g a t t h e t o p l e f t
a n d p u l l i n g a t t h e r i g h t .
S c r e w t h e t o w i n g e y e i n f u l l y .
A t t a c h t h e t o w i n g b a r .
S w i t c h o n t h e h a z a r d w a r n i n g
l a m p s o n t h e t o w e d v e h i c l e .
Place the gear lever in neutral
(position N on the electronic
g e a r b o x o r a u t o m a t i c g e a r b o x ) . Towing another vehicle
On the rear bumper, unclip the
c o v e r b y p r e s s i n g a t t h e b o t t o m
a t p u l l i n g a t t h e t o p .
S c r e w t h e t o w i n g e y e i n f u l l y .
A t t a c h t h e t o w i n g b a r .
S w i t c h o n t h e h a z a r d w a r n i n g
l a m p s o n t h e t o w e d v e h i c l e .
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d . W h e n t o w i n g w i t h a l l f o u r w h e e l s
o n t h e g r o u n d , a l w a y s u s e a t o w i n g
b a r .
W h e n t o w i n g w i t h o n l y t w o w h e e l s
o n t h e g r o u n d , a l w a y s u s e p r o f e s -
s i o n a l l i f t i n g e q u i p m e n t .
W h e n t o w i n g w i t h t h e e n g i n e o f f ,
t h e r e i s n o l o n g e r a n y b r a k i n g o r
s t e e r i n g a s s i s t a n c e .
Page 281 of 282
2828
QUESTION SOLUTION RESPONSE
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
