Page 86 of 282
77
V I S I B I L I T Y
V
Special position of the
windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlim- ited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 87 of 282
77
V I S I B I L I T Y
V
Special position of the
windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlim- ited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 131 of 282
110
IX
D R I V I N G
Temporary manual operation
when in automatic mode
By pulling either of the paddles " + "
or " - ", you can exercise temporary
control over the changing of gears.
The request to change gear will be
taken into account. You will still be in
automatic mode. The warning lamp
A remains lit up in the instrument
panel.
This function enables you to antici-
pate certain situations such as the
approach of a bend or the need to
overtake another vehicle.
Move the selector to position A .
The warning lamp A lights up in
t h e i n s t r u m e n t p a n e l t o c o n fi r m
the selection.
The gearbox then functions in auto-
matic mode, without any action on
your part.
It constantly selects the gear that is
best suited to the following condi-
tions:
- driving style,
- r o a d p r o fi l e ,
- optimum fuel consumption.
Operation in automatic mode
Cancellation of automatic
mode
The change from position A (driv-
ing in automatic mode) to position
M (driving in manual mode) or vice
versa can be made at any time. The
warning lamp A disappears in the in-
strument panel.
Page 136 of 282
115
IX
D R I V I N G
Manual operation
SPORT and SNOW
programmes
These two special programmes sup-
plement the automatic operation in
v e r y s p e c i fi c c o n d i t i o n s o f u s e .
Position of the selector for manual
gear changing.
T h e fl a s h i n g o f t h e w a r n i n g l a m p f o r
the position requested signals that
this position is not yet obtained.
I f t h e w a r n i n g l a m p i s o n fi x e d , t h e
p o s i t i o n i s c o n fi r m e d .
Lighting of a dash in the rev coun-
ter indicates an operating fault. In
this case:
- a marked snatching may be felt
when selecting R for reverse
gear,
- the gearbox is locked in a gear,
- do not exceed 60 mph (approx. 100 km/h).
Consult a CITROËN dealer.
- A request to change gear is ac-
cepted only if the engine speed
permits it.
- For safety reasons, depending on the engine speed, a change
up or down may be performed
automatically.
- It is possible at any time to move from position D (driving in auto-
matic mode) to position M (driv-
ing in sequential mode) or vice
versa.
- The SPORT and SNOW modes
do not operate in sequential
mode.
SPORT programme "S"
With the lever in position D and the
engine running, press button S .
The gearbox automatically favours a
dynamic style of driving.
S appears on the instrument panel.
Move the selector to position M .
Push the lever forwards to
change up a gear.
Pull the lever backwards to
change down a gear.
- If the vehicle stops or reduces speed (for example when ap-
proaching a stop sign), the gear-
box changes down automatical-
l y , t o fi r s t g e a r i f n e c e s s a r y .
- In sequential mode, it is not nec- essary to release the accelerator
during gear changes. SNOW programme "
"
With the lever in position D and
the engine running, press button
" ".
The gearbox adapts to driving on
slippery roads.
This programme facilitates starting
and traction in conditions of poor grip.
appears on the instrument panel.
Return to automatic operation
Press the button selected again
at any time to exit from the pro-
gramme engaged and return to
auto-adaptive mode.
Page 153 of 282
132
X
C H E C K S
CHECKS
Unless otherwise indicated, check
these components in accordance
with the Maintenance and Warranty
Guide and according to your en-
gine.
Otherwise, have them checked by a
CITROËN dealer.
Battery The battery does not re-
quire any maintenance.
However, check that the
terminals are clean and
correctly tightened, partic-
ularly in summer and winter.
When carrying out work on the bat-
t e r y , r e f e r t o t h e " P r a c t i c a l i n f o r -
mation" section for details of the
precautions to be taken before dis-
connecting the battery and following
its reconnection. Air filter and passenger
compartment filter
Refer to the Maintenance
and Warranty Guide for
details of the replacement
intervals for these compo-
nents.
Depending on the environment (e.g.
dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary
(refer to the "Engines" paragraph).
A c l o g g e d c a b i n fi l t e r m a y h a v e a n
adverse effect on the performance
of the air conditioning system and
generate undesirable odours.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h
time the engine oil is
changed. Particulate filter system
(Diesel)
Complementary to the catalytic
c o n v e r t e r , t h i s fi l t e r m a k e s a n a c -
tive contribution to the preservation
of air quality by the retaining of the
unburnt pollutant particles. Black
exhaust fumes are thus no longer
emitted.
After prolonged idling or driving at very
low speeds, you may occasionally no-
tice water vapour being emitted from
the exhaust when accelerating. This is
of no consequence to the running of
the vehicle or to the environment.
If there is risk of clogging, a mes-
sage appears on the multifunction
screen, accompanied by an audi-
ble signal and lighting of the serv-
ice warning lamp.
This alert tells you that the particle
fi l t e r i s s t a r t i n g t o fi l l u p ( i n c o n d i -
tions of urban driving of excep-
tionally long duration: low speeds,
t r a f fi c j a m s e t c . ) .
T o r e g e n e r a t e t h e fi l t e r , i t i s a d v i s e d
to drive as soon as possible, when
t r a f fi c c o n d i t i o n s p e r m i t , a t a s p e e d
of 40 mph (around 60 km/h) or
m o r e f o r a t l e a s t fi v e m i n u t e s ( u n t i l
the alert message disappears).
If this alert persists, consult a
CITROËN dealer.
Refer to the Maintenance and
Warranty Guide for details of
the replacement interval for this
component.
Page 162 of 282
140
XI
P R A C T I C A L I N F O R M A T I O N
If the headlamp bears this
s y m b o l , a n y o p e r a t i o n t o
change the Xenon dual-
function directional head-
l a m p ( D 1 S - 3 5 W ) m u s t b e c a r r i e d
o u t b y p r o f e s s i o n a l s ( r i s k o f e l e c -
t r o c u t i o n ) .
C o n s u l t a C I T R O Ë N d e a l e r .
It is recommended to change both
bulbs at the same time if one of
t h e m i s f a u l t y .
Dual-function Xenon headlamps
(dipped/main beam)
Additional main beams
R e m o v e t h e r u b b e r c o v e r .
Rotate the bulb-holder a quarter
t u r n a n t i - c l o c k w i s e a n d r e m o v e i t
f r o m i t s h o u s i n g .
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r b y
p u s h i n g i t i n , t i g h t e n i n g i t b y a
q u a r t e r t u r n c l o c k w i s e .
R e fi t t h e r u b b e r c o v e r . When using a high-pres-
s u r e w a s h e r o n p e r s i s t e n t
marks, do not direct at the
lamps or their outlines for too long,
so as not to damage their coating
a n d t h e i r s e a l s .
Page 200 of 282
1 7 6
11
22
33

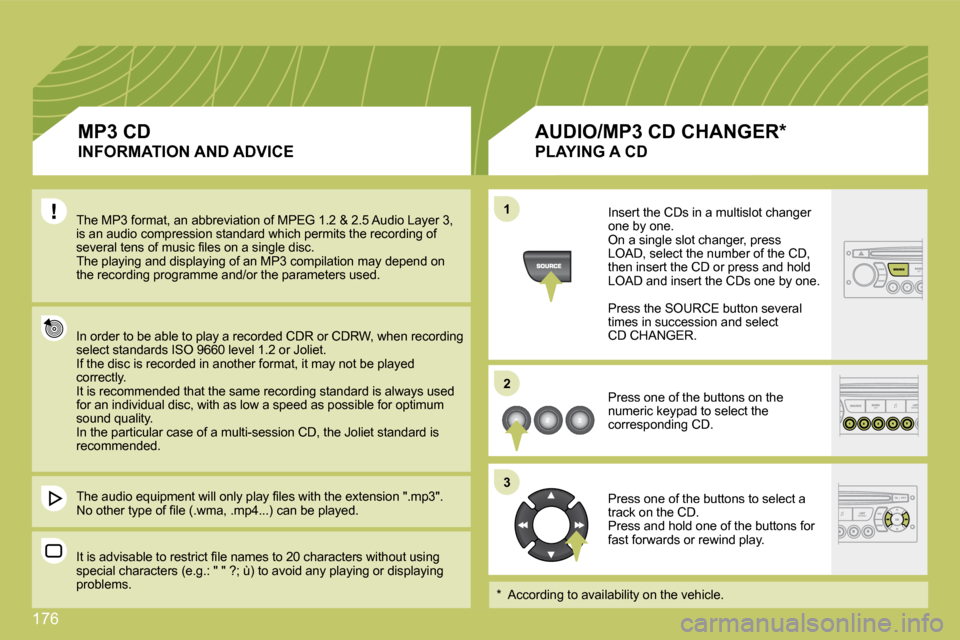

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, i s a n a u d i o c o m p r e s s i o n s t a n d a r d w h i c h p e r m i t s t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c . T h e p l a y i n g a n d d i s p l a y i n g o f a n M P 3 c o m p i l a t i o n m a y d e p e n d o n t h e r e c o r d i n g p r o g r a m m e a n d / o r t h e p a r a m e t e r s u s e d .
I n o r d e r t o b e a b l e t o p l a y a r e c o r d e d C D R o r C D R W , w h e n r e c o r d i n g s e l e c t s t a n d a r d s I S O 9 6 6 0 l e v e l 1 . 2 o r J o l i e t . If the disc is recorded in another format, it may not be played correctly. I t i s r e c o m m e n d e d t h a t t h e s a m e r e c o r d i n g s t a n d a r d i s a l w a y s u s e d for an individual disc, with as low a speed as possible for optimum sound quality. I n t h e p a r t i c u l a r c a s e o f a m u l t i - s e s s i o n C D , t h e J o l i e t s t a n d a r d i s recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y fi l e s w i t h t h e e x t e n s i o n " . m p 3 " . N o o t h e r t y p e o f fi l e ( . w m a , . m p 4 . . . ) c a n b e p l a y e d .
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s w i t h o u t u s i n g s p e c i a l c h a r a c t e r s ( e . g . : " " ? ; ù ) t o a v o i d a n y p l a y i n g o r d i s p l a y i n g problems.
I n s e r t t h e C D s i n a m u l t i s l o t c h a n g e r one by one. O n a s i n g l e s l o t c h a n g e r , p r e s s LOAD, select the number of the CD, then insert the CD or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the n u m e r i c k e y p a d t o s e l e c t t h e c o r r e s p o n d i n g C D .
Press one of the buttons to select a t r a c k o n t h e C D . Press and hold one of the buttons for fast forwards or rewind play.
MP3 CD
INFORMATION AND ADVICE
AUDIO/MP3 CD CHANGER *
PLAYING A CD
* A c c o r d i n g t o a v a i l a b i l i t y o n t h e v e h i c l e .
Page 233 of 282
23
11
2 2
11
3 3
2 2
Press the MENU button then select the CONFIGURATION function, t h e n S O U N D S , t h e n A C T I V A T E A U X I L I A R Y S O U R C E t o a c t i v a t e the audio equipment auxiliary input.
Connect the portable equipment (MP3 p l a y e r … ) t o t h e J A C K s o c k e t o r t o t h e a u d i o s o c k e t s ( w h i t e a n d r e d , R C A t y p e ) l o c a t e d i n t h e g l o v e b o x u s i n g a s u i t a b l e cable.
Press the SOURCE button several times in succession and select AUX.
T h e d i s p l a y i n g a n d m a n a g e m e n t o f t h e c o m m a n d s t a k e s p l a c e v i a the portable equipment.
I t i s n o t p o s s i b l e t o c o p y t h e fi l e s o n t o t h e h a r d d i s c f r o m t h e a u x i l i a r y input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED
AUDIO CD CHANGER
PLAYING A CD
I n s e r t t h e C D s i n a m u l t i - s l o t c h a n g e r ( n o t M P 3 c o m p a t i b l e ) o n e b y o n e . O n a s i n g l e s l o t c h a n g e r ( M P 3 c o m p a t i b l e ) , p r e s s L O A D , s e l e c t t h e number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the alphanumeric keypad to select the c o r r e s p o n d i n g C D .
Press one of the buttons to select a track on the CD.
I t i s n o t p o s s i b l e t o c o p y t h e fi l e s o n t o t h e h a r d d i s c f r o m t h e C D c h a n g e r .
CD CHANGER
