F A M I L I A R I S A T I O N
M O N I T O R I N G
Instrument panel with translucent bar
A. Speedometer.
B. Rev counter. Controls
C. Fuel gauge.
D. Lighting rheostat.
E. Warning lamps. Ignition on, the orange and red alert
warning lamps come on.
With the engine running, these same
warning lamps should go out.
If a warning lamp stays on, refer to the
relevant page.
Warning lamps
23
24
A. Deactivation of the ESP/ASR system.
98
B. Deactivation of the visual and audi-
ble parking assistance.
123

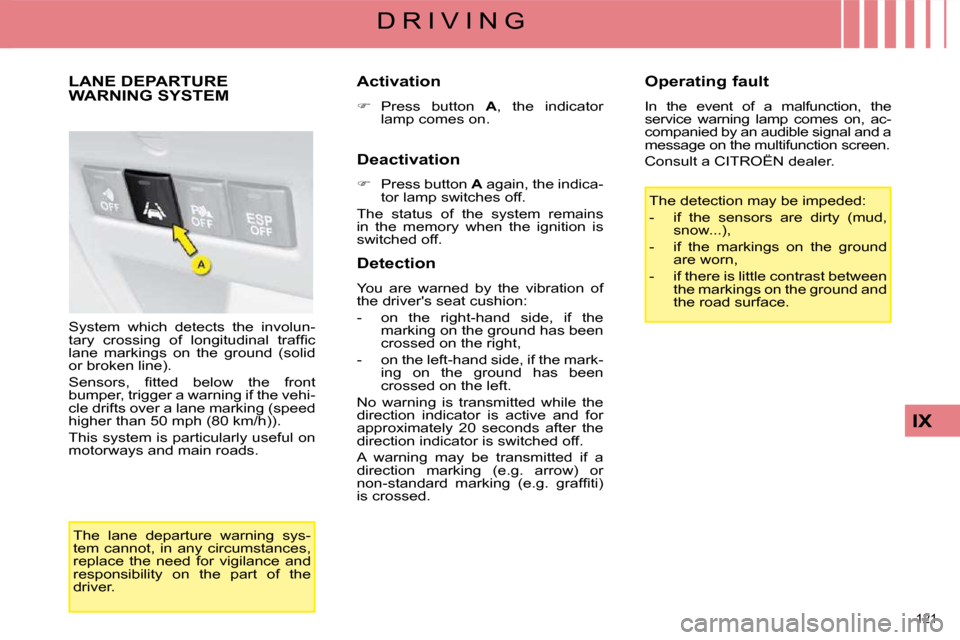

C. Deactivation of the lane departure
warning system.
121
D. Deactivation of the alarm volumetric
sensors.
61
Page 46 of 282
42
III
C O M F O R T
Air conditioning
To ensure that your system operates
correctly, it is recommended to have
it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To keep the air conditioning com-
pressor well sealed, it is essential to
operate the air conditioning at least
once in every month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If after a lengthy stop in bright sun-
light the interior temperature is ex-
cessive, ventilate the passenger
compartment by opening the win-
dows for a few moments, then close
them again.
The air conditioning operates by
using power from the engine. This
results in a slight increase in fuel
consumption.
Dust filter/Odour filter
(active carbon)
T h e r e i s a fi l t e r f o r e x c l u d i n g o d o u r s
and dust.
T h i s fi l t e r h a s t o b e c h a n g e d i n a c -
cordance with the vehicle mainte-
nance schedule (see "Maintenance
Guide").
Air circulation
Maximum comfort is obtained when
there is a good distribution of air in
the passenger compartment, both in
the front and in the rear.
F o r o p t i m u m o p e r a t i n g e f fi c i e n c y ,
take care not to obstruct the air out-
lets under the front seats.
Air vents
The face-level air vents have grilles
and thumbwheels to adjust the air
fl o w a n d d i r e c t i o n ( u p - d o w n , r i g h t -
left).
The automatic regulation of the air
conditioning, inside the cabin, uses
the sunlight sensor located on the
dashboard behind the instrument
panel.
Be careful not to obstruct it.
Sensor
Page 78 of 282
71
V I S I B I L I T Y
V

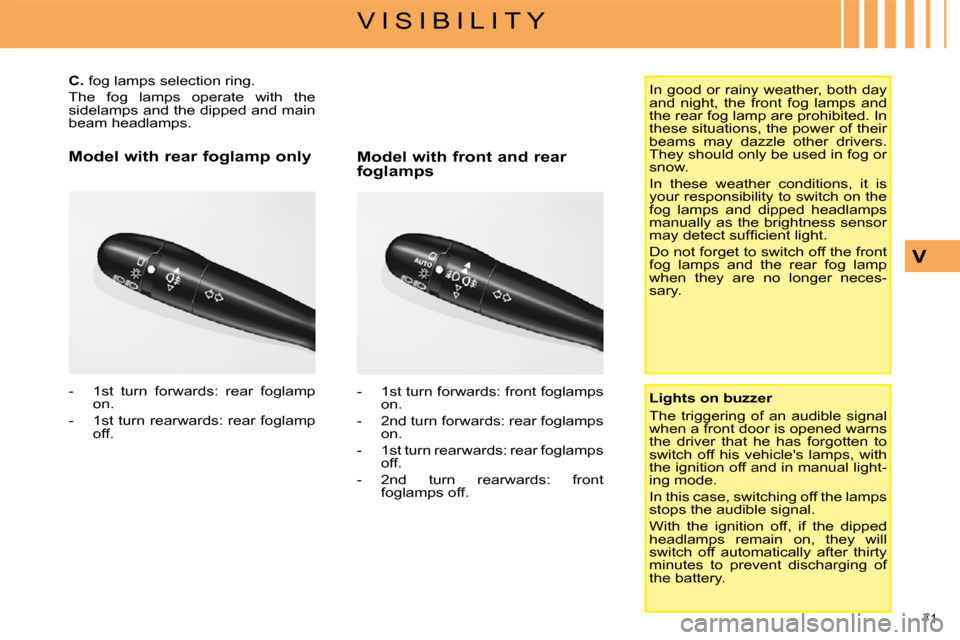

C. fog lamps selection ring.
The fog lamps operate with the
sidelamps and the dipped and main
beam headlamps.
- 1 st turn forwards: rear foglamp on.
- 1 st turn rearwards: rear foglamp off. - 1 st turn forwards: front foglamps
on.
- 2 nd turn forwards: rear foglamps on.
- 1 st turn rearwards: rear foglamps off.
- 2 nd turn rearwards: front foglamps off.
Model with rear foglamp only
Model with front and rear
foglamps In good or rainy weather, both day
and night, the front fog lamps and
the rear fog lamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
fog lamps and dipped headlamps
manually as the brightness sensor
m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
fog lamps and the rear fog lamp
when they are no longer neces-
sary.
Lights on buzzer
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle's lamps, with
the ignition off and in manual light-
ing mode.
In this case, switching off the lamps
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will
switch off automatically after thirty
minutes to prevent discharging of
the battery.
Page 80 of 282
73
V I S I B I L I T Y
V
Automatic lighting
The sidelamps and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
t o a s u f fi c i e n t l e v e l o r a f t e r t h e w i n d -
screen wipers are switched off, the
lights are switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration
for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, a message appears on the mul-
tifunction screen, accompanied by
an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the right of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum
authorised loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
Page 82 of 282
73
V I S I B I L I T Y
V
Automatic lighting
The sidelamps and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
t o a s u f fi c i e n t l e v e l o r a f t e r t h e w i n d -
screen wipers are switched off, the
lights are switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration
for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, a message appears on the mul-
tifunction screen, accompanied by
an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the right of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum
authorised loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
Page 85 of 282
76
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activat-
ed by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on ,
the headlamp washers operate at
the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by pushing stalk
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction screen.
The automatic wiping must be reac-
tivated if the ignition has been off for
more than one minute, by pushing
stalk A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.

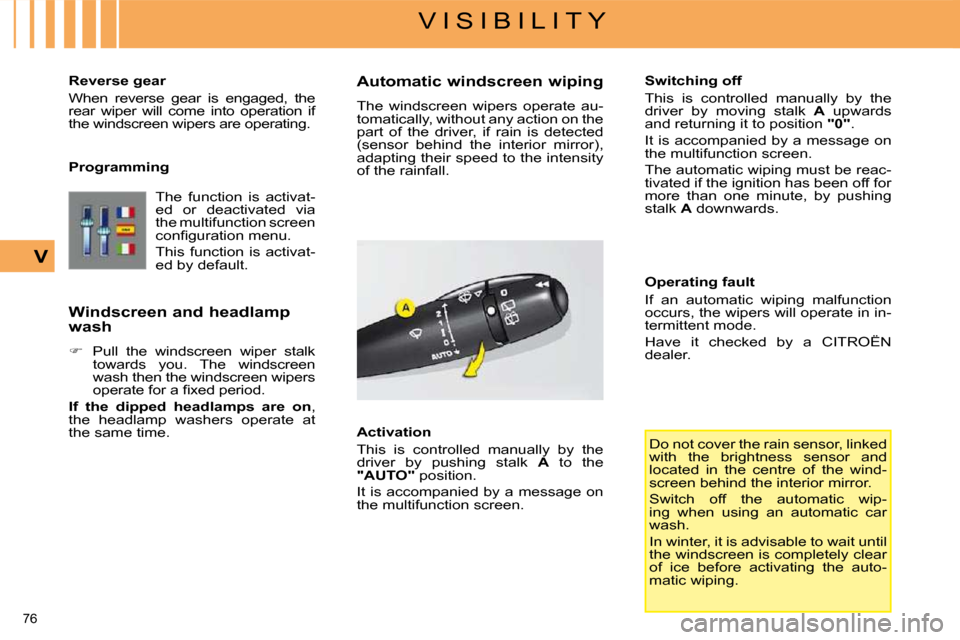

Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Page 115 of 282
96
VIII
S A F E T Y
TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).
Flat tyre T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver. Puncture
The service warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
screen locating the wheel
concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Sensor(s) not detected or faulty
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
screen locating the wheel
or wheels which are not detected or
indicating a fault in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" T e c h n i c a l d a t a - § I d e n t i fi c a t i o n
features" section) to ensure that
the optimum dynamic perform-
ance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radio-electric
emissions on a frequency close to
that used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
Page 143 of 282
121
IX
D R I V I N G
LANE DEPARTURE WARNING SYSTEM
System which detects the involun-
t a r y c r o s s i n g o f l o n g i t u d i n a l t r a f fi c
lane markings on the ground (solid
or broken line).
S e n s o r s , fi t t e d b e l o w t h e f r o n t
bumper, trigger a warning if the vehi-
cle drifts over a lane marking (speed
higher than 50 mph (80 km/h)).
This system is particularly useful on
motorways and main roads. Activation
Press button A , the indicator
lamp comes on.
Deactivation
Press button A again, the indica-
tor lamp switches off.
The status of the system remains
in the memory when the ignition is
switched off.
Detection
You are warned by the vibration of
the driver's seat cushion:
- on the right-hand side, if the marking on the ground has been
crossed on the right,
- on the left-hand side, if the mark- ing on the ground has been
crossed on the left.
No warning is transmitted while the
direction indicator is active and for
approximately 20 seconds after the
direction indicator is switched off.
A warning may be transmitted if a
direction marking (e.g. arrow) or
n o n - s t a n d a r d m a r k i n g ( e . g . g r a f fi t i )
is crossed. Operating fault
In the event of a malfunction, the
service warning lamp comes on, ac-
companied by an audible signal and a
message on the multifunction screen.
Consult a CITROËN dealer.
The lane departure warning sys-
tem cannot, in any circumstances,
replace the need for vigilance and
responsibility on the part of the
driver. The detection may be impeded:
- if the sensors are dirty (mud,
snow...),
- if the markings on the ground are worn,
- if there is little contrast between the markings on the ground and
the road surface.
Page 144 of 282
122
IX
D R I V I N G
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING ASSISTANCE
System consisting of four proximity
sensors, installed in the front and/or
rear bumper.
It detects any obstacle (person, ve-
hicle, tree, barrier...) located behind
the vehicle, however, it will not be
able to detect obstacles located im-
mediately below the bumper.
An object, such as a stake, a road-
works cone or any other similar ob-
ject may be detected at the start of
the manoeuvre but may no longer
be detected when the vehicle moves
nearer to it. The parking assistance is
switched
off :
- when you exit reverse gear,
- when the speed is higher than 6 mph (10 km/h) in forward gear,
- when the vehicle has been sta- tionary for more than three sec-
onds in forward gear.
The parking assistance system
cannot, in any circumstances, re-
place the need for vigilance and
responsibility on the part of the
driver.
The parking assistance is
switched
on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible
signal and/or displaying of the vehi-
cle on the multifunction screen.
The proximity information is indicat-
ed by:
- an audible signal which be- comes more rapid as the vehicle
approaches the obstacle,
- a diagram on the multifunction screen, with blocks which move
closer to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; front or rear and right
or left.
When the distance between the ve-
hicle and the obstacle is less than
a p p r o x i m a t e l y t w e n t y - fi v e c e n t i m e -
tres, the audible signal becomes
continuous and/or the "Danger"
symbol appears, depending on the
multifunction screen version.
Page 145 of 282
123
IX
D R I V I N G
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
Reactivation
Press button A again, the warn-
ing lamp switches off, the system
is reactivated.
Deactivation Operating fault
If an operating fault occurs, this warn-
ing lamp is displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompa-
nied by an audible signal (short beep),
when reverse gear is engaged.
Consult a CITROËN dealer.
Press button A , the warning lamp
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
CITROËN).
