Citroen C4 2011 2.G Owner's Manual

299


2
3
1

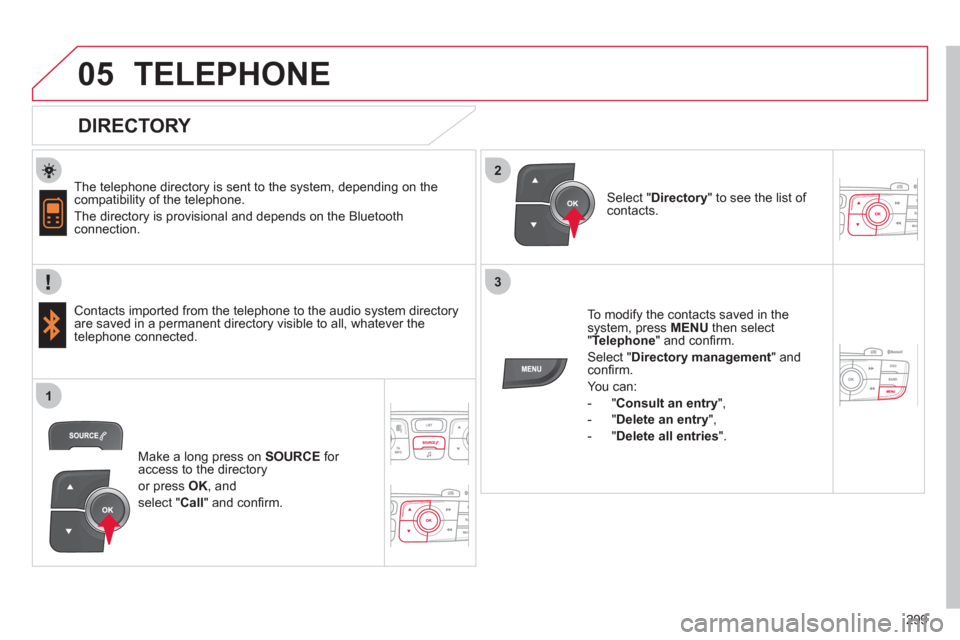

05TELEPHONE

DIRECTORY


The telephone directory is sent to the system, depending on the compatibility of the telephone.

The directory is provisional and depends on the Bluetoothconnection.

Contacts imported from the telephone to the audio s
ystem directory
are saved in a permanent directory visible to all, whatever the
telephone connected.
To modify the contacts saved in thesystem, press MENUthen select "Telephone
" and confi rm.

Select " Directory management" andconfi rm.
Y
ou can:
-
"Consult an entry ",
-
"Delete an entry ",

-
"Delete all entries ".


Select " Directory" to see the list of contacts.
Make a lon
g press on SOURCE
for access to the directory
or press OK, and

select "Call
" and confi rm.

300


1
06
2
3

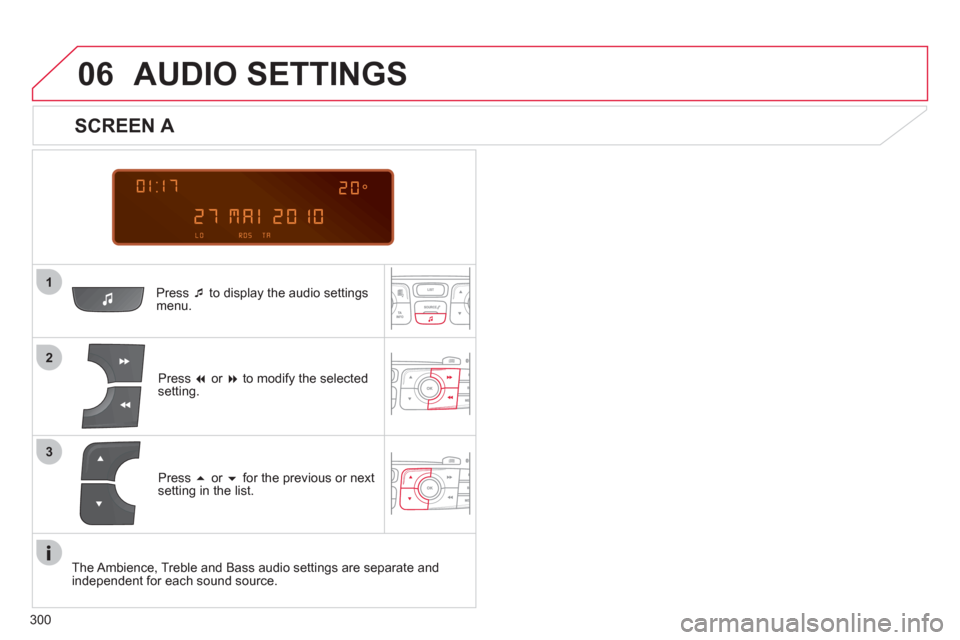

Press ‘ to display the audio settings menu.
Press or to modify the selectedsetting.
AUDIO SETTINGS


SCREEN A
Press or for the previous or next setting in the list.
The Ambience, Treble and Bass audio settin
gs are separate and
independent for each sound source.

301
1
2
06
3

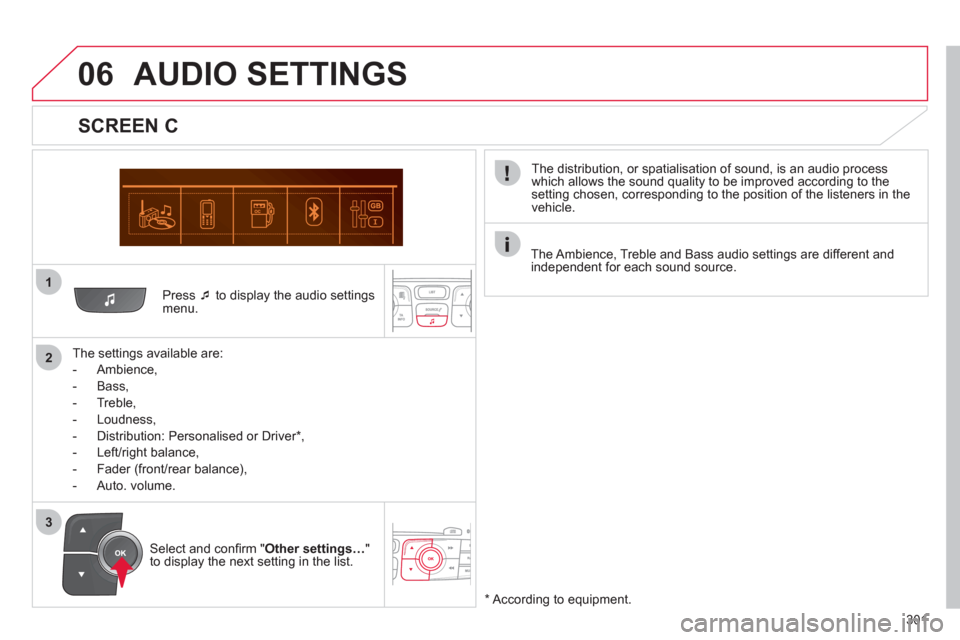

Press ‘
to display the audio settingsmenu.

The settin
gs available are:


-
Ambience,


- Bass,

-
Treble,

- Loudness,

- Distribution: Personalised or Driver
*
,

- Left/ri
ght balance,

- Fader
(front/rear balance),

-
Auto. volume.



SCREEN C


The distribution, or spatialisation of sound, is an audio process
which allows the sound quality to be improved according to the setting chosen, corresponding to the position of the listeners in the
vehicle.
AUDIO SETTINGS
*
According to equipment.
Select and confi rm " Other settings…"
to display the next setting in the list. The Ambience, Treble and Bass audio settin
gs are different andindependent for each sound source.

302
5
63
4
07
2
1

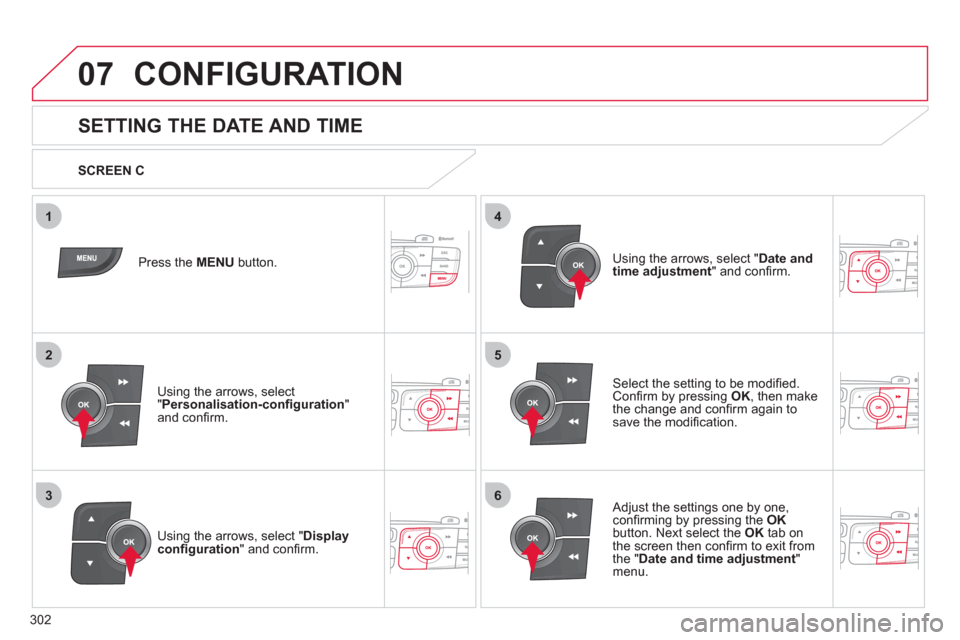

CONFIGURATION









SETTING THE DATE AND TIME
Select the setting to be modifi ed.Confi rm by pressing OK
, then make
the change and confi rm again to save the modifi cation.
Using the arrows, select "Displayconfi guration
" and confi rm.
Press the MENU button.


Usin
g the arrows, select "Personalisation-confi guration"and confi rm.
SCREEN C
Using the arrows, select "
Date and
time adjustment" and confi rm.

Ad
just the settings one by one,confi rming by pressing the OKbutton. Next select the OKtab on
the screen then confi rm to exit from
the " Date and time adjustment"menu.

303


08TRIP COMPUTER

Each press of the button, located at the end of the
wiper stalk, displays the different trip computer
information in succession, depending on the screen.


- th
e "vehicle
" tab with:
●
the ran
ge, the current fuel consumption and
the distance remaining to the destination or the Stop & Start time counter,

- the "1" tab
(trip 1) with:
●
the avera
ge speed, the average consumptionand the distance travelled calculated over trip " 1
",

- the "2" tab
(trip 2) with the same information for a
second trip.

Z
ero reset
When the required trip is displa
yed, press the control
for more than two seconds.
Range:displays the distance which can travelled with the remaining fuel
detected in the tank, based on the average fuel consumption over the last few miles (kilometres).
This displa
yed value may vary signifi cantly following a change in the
vehicle speed or the relief of the route.
When the ran
ge falls below 20 miles (30 km), dashes are displayed.After fi lling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits, contact a CITROËN dealer. ,g,

A FEW DEFINITIONS
Current fuel consumption:
only calculated and displayed above 20 mph (30 km/h).
Average fuel consumption:
this is the average fuel consumption since
the last trip computer zero reset.
Distance travelled:calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the navigation system calculates it as a current value.
Avera
ge speed: this is the average speed calculated since the last tripcomputer zero reset (ignition on).
Sto
p & Start time counter
(minutes/seconds or hours/minutes)
I
f your vehicle is fi tted with Stop & Start, a time counter calculates the
time spent in STOP mode during a journey.
It resets to zero ever
y time the ignition is switched on with the key.

304
09

RADIO

LANGUAGES
MEDIA


RDS SEARCH

TEXT INFO


TRIP COMPUTER

DIAGNOSIS*
Fran
çais

Italiano

Nederlands

Portu
gues

Portu
gues-brasil

En
glish
Deutsch

Espanol

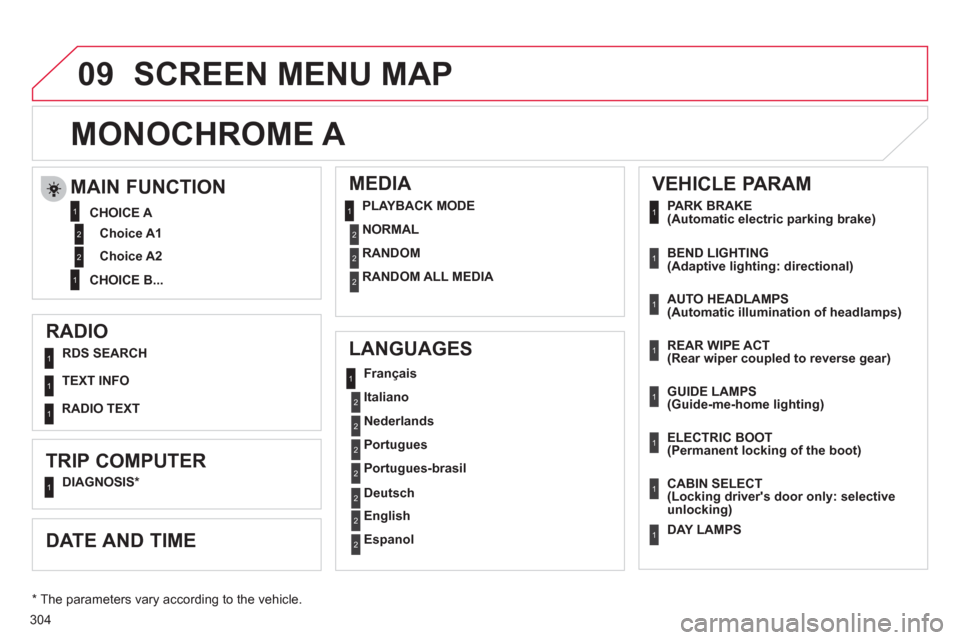

SCREEN MENU MAP
MONOCHROME A


MAIN FUNCTION
Choice A1
Choice A2
CHOICE A
CHOICE B...
PLAYBACK MODE
NORMAL
RANDOM
RANDOM ALL MEDIA

DATE AND TIME





VEHICLE PARAM
PARK BRAKE (Automatic electric parking brake)
BEND LIGHTING (Adaptive lighting: directional)

AUTO HEADLAMPS(Automatic illumination of headlamps)
REAR WIPE ACT (Rear wiper coupled to reverse gear)
GUIDE LAMPS (Guide-me-home lighting)
CABIN SELECT (Locking driver's door only: selectiveunlocking)
ELECTRIC BOOT (Permanent locking of the boot)
DAY LAMPS

RADIO TEXT

*
The parameters vary according to the vehicle.
1
11
2
2
2
2
2
2
1
2
1
2
2
1
1
2
2
2
1
1
1
1
1
1
1
1
1

305

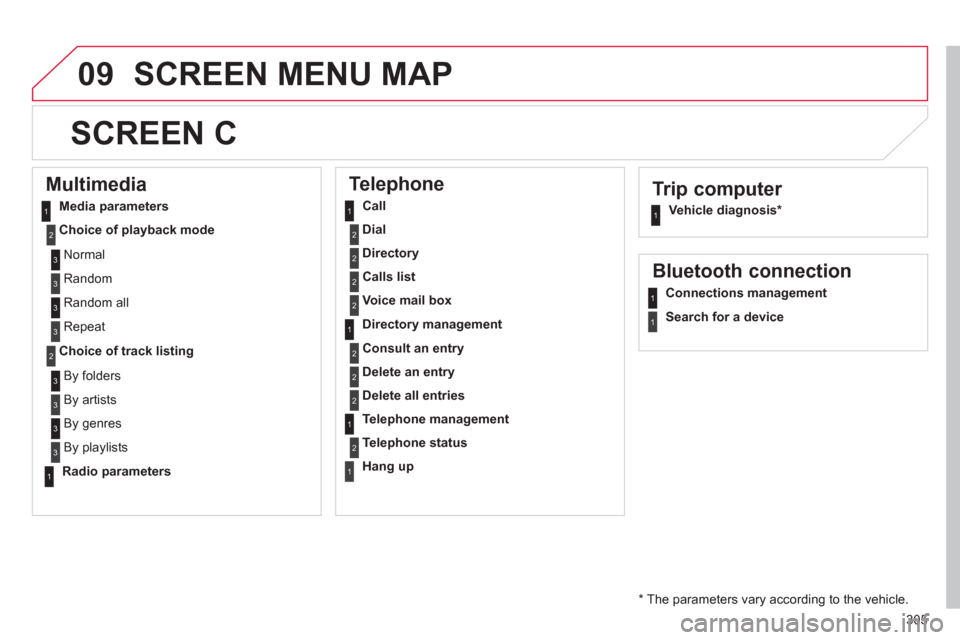

09SCREEN MENU MAP

Trip computer

Vehicle diagnosis *








SCREEN C


Multimedia
Media parameters
Choice of pla
yback mode
Choice of track listing

Telephone
Call
Dial
Directory
Calls list
Voice mail box
Directory management
Consult an entry
Delete an entry
Delete all entries
Telephone management
Telephone status
Han
g up

Bluetooth connection


Connections management

Search for a device
N
ormal
R
andom
R
andom all
Repeat
B
y folders
B
y artists

By genres

By playlists

Radio parameters
*
The parameters vary according to the vehicle.
11
2
2
1
2
2
2
2
1
2
2
2
1
2
1
1
1
3
3
3
3
3
3
3
3
1

306
09 SCREEN MENU MAP





Personalisation-configuration
Defi ne the vehicle parameters
Access to the vehicle

Plip action
Drivin
g position setting

Unlocking boot only
Driving assistance

Parking brake automatic

Rear wipe in reverse gear
S
peeds memorised
Vehicle lighting

Directional headlamps
Da
ytime lights
Interior li
ghting
Follow-me-home headlamps
Welcome li
ghting
Choice of language Displa
y confi guration
Choice of units
Date and time adjustment
Display parameters
Brightness
Choice of sounds
1
2
3
3
3
2
3
3
3
2
3
3
2
3
3
1
1
2
2
2
2
1

307

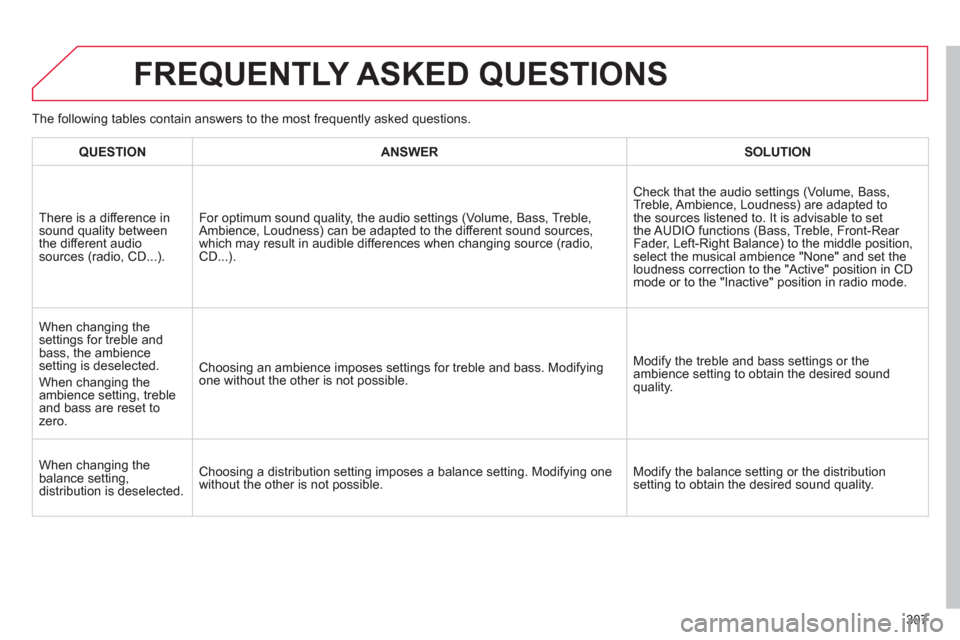

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in
sound quality between
the different audiosources (radio, CD...).
For optimum sound qualit
y, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio, CD...).Check that the audio settin
gs (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear Fader, Left-Right Balance) to the middle position, select the musical ambience "None" and set theloudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
When changing the
settings for treble and
bass, the ambience
settin
g is deselected.
When chan
ging the
ambience setting, trebleand bass are reset to
zero.
Choosing an ambience imposes settings for treble and bass. Modifying
one without the other is not possible.Modify the treble and bass settings or the ambience setting to obtain the desired sound
quality.
When chan
ging the
balance setting, distribution is deselected.
Choosing a distribution setting imposes a balance setting. Modifying one
without the other is not possible.Modify the balance setting or the distribution
setting to obtain the desired sound quality. The
following tables contain answers to the most frequently asked questions.

308

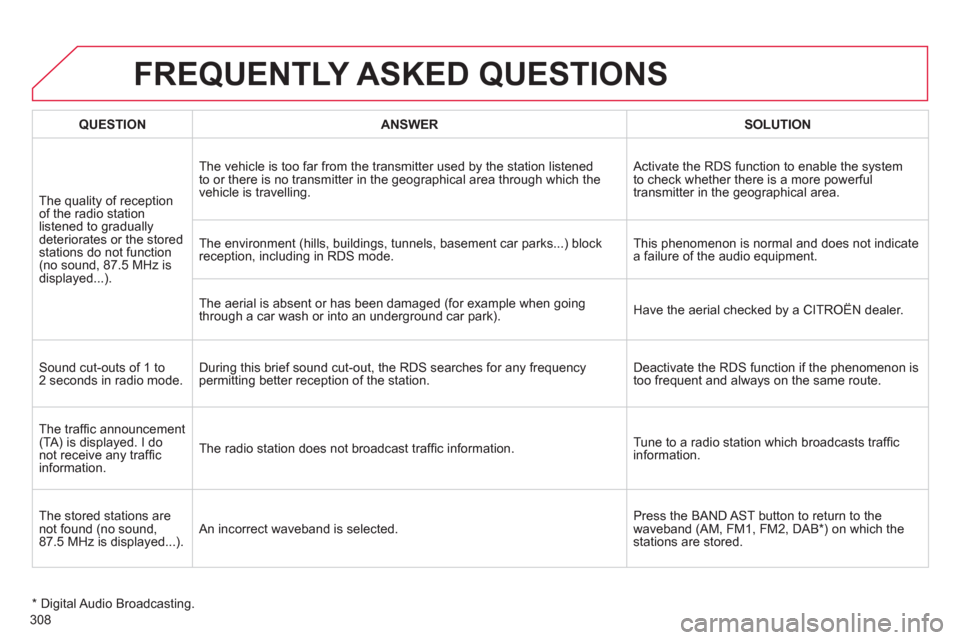

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The quality of reception of the radio stationlistened to graduallydeteriorates or the storedstations do not function (no sound, 87.5 MHz is
displayed...).The vehicle is too
far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RD
S function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicatea failure of the audio equipment.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
Th
e traffi c announcement (TA) is displayed. I do not receive any traffi cinformation.Th
e radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c
information.
The stored stations arenot found (no sound,87.5 MHz is displayed...). An incorrect waveband is selected.Press the BAND AST button to return to the
waveband (AM, FM1, FM2, DAB * ) on which thestations are stored.
* Digital Audio Broadcasting.
