technical data Citroen C4 2012 2.G User Guide

XII
219
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 62 mph (approx 100 km/h) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 138



Gearboxes


Electronic gearbox system



Automatic



Model codes:
UA... UE... UD...


RHJ-H/P



RHR-J




- Unladen weight
1 620 - 1 582 - 1 581
1 650 - 1 611 - 1 640


- Kerb weight
1 695 - 1 657 - 1 656
1 725 - 1 686 - 1 715


- Payload
700 - 558 - 559
700 - 559 - 510


- Gross vehicle weight (GVW)
2 320 - 2 140 - 2 140
2 350 - 2 170 - 2 150


- Gross train weight (GTW)

on a 12 % gradient
3 620 - 3 590 - 3 540
3 550 - 3 520 - 3 550


-
Braked trailer (within GTW limit)

on a 10 % or 12 % gradient
1 300 - 1 450 - 1 400
1 200 - 1 350 - 1 400


- Braked trailer * (with load
transfer with GTW limit)
1 500
1 500


- Unbraked trailer
750
750


- Recommended nose weight
70 - 60 - 60
60
*


The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

XII
220
TECHNICAL DATA
*

The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 62 mph (approx 100 km/h) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 150



HDi 163



Gearbox
es


Manual





Electronic gearbox system




Automatic



Type codes:
UA... UE... UD...


RHE-8



RHE-8/P



RHH-A




- Unladen weight
1 613 - 1 580 - 1 610
-
1 637 - 1 601 - 1 614


- Kerb weight
1 688 - 1 655 - 1 685
-
1 712 - 1 676 - 1 689


- Payload
695 - 685 - 520
-
688 - 689 - 536


- Gross vehicle weight (GVW)
2 308 - 2 265 - 2 130
-
2 325 - 2 290 - 2 150


- Gross train weight (GTW)

on a 12 % gradient
3 508 - 3 515 - 3 530
-
3 525 - 3 490 - 3 550


-
Braked trailer (within GTW limit)

on a 10 % or 12 % slope
1 200 - 1 250 - 1 400
-
1 200 - 1 200 - 1 400


- Braked trailer * (with load
transfer with GTW limit)
1 400 - 1 500 - 1 600
-
1 500


- Unbraked trailer
750
-
750


- Recommended nose weight
70
-
60

XII
221
TECHNICAL DATA

*
If the maximum rear axle weight is exceeded when the vehicle is towing, the maximum speed is limited to 50 mph
(80 km/h) as defi ned by point 2.7 of the EU Directive.

**
If the the gross vehicle weight is exceeded when the vehicle is towing, the maximum speed is limited to 50 mph
(80 km/h) as defi ned by point 2.7 of the EU Directive.

***
Maximum weight of the braked trailer within the GTW limit; warning, towing with a lightly loaded towing vehicle may
have an adverse effect on its road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.


WEIGHTS AND TOWED LOADS (in kg)

- COMMERCIAL VERSIONS



Petrol engines


VTi 120



THP 155



Gearboxes


Manual



Electronic gearbox system



Model codes:
UA... UD...


UA5FS-

0/CU1


UD5FS-0/CU1



UA5FV-8/PCU1


UD5FV-8/PCU1




- Unladen weight
1 560 - 1 591
1 600 - 1 590


- Kerb weight
1 635 - 1 666
1 675 - 1 665


- Payload
630 - 624
620 - 620


- Gross vehicle weight (GVW) *

2 190 - 2 215
2 220 - 2 210


- Gross train weight (GTW)


on a 12 % gradient **
3 290 - 3 415
3 420 - 3 410


-
Braked trailer (within GTW limit)

on a 10 % or 12 % gradient ***
1 100 - 1 200
1 200 - 1 200


- Braked trailer (with load
transfer within GTW limit)
-
-


- Unbraked trailer
750 - 750
750 - 750


- Recommended nose weight
70 - 60
70 - 60

XII
222
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed. *

If the maximum rear axle weight is exceeded when the vehicle is towing, the maximum speed is limited to 50 mph (80 km/h)
as defi ned by point 2.7 of the EU Directive.
**

If the the gross vehicle weight is exceeded when the vehicle is towing, the maximum speed is limited to 50 mph (80 km/h)
as defi ned by point 2.7 of the EU Directive.
***

Maximum weight of the braked trailer within the GTW limit; warning, towing with a lightly loaded towing vehicle may
have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



- COMMERCIAL VERSIONS



Diesel



engines


HDi 110



HDi 110



HDi

138



HDi 150



Gearboxes




Manual




Electronic gearbox
system



Manual



Electronic
gearbox system



Electronic
gearbox system



Manual




Model codes
UA... UD...



UA9HZ-C/CU1
UD9HZ-C/CU1


UA9HZ-H/PCU1
UD9HZ-H/PCU1



UA9HR-8/CU1
UD9HR-8/CU1


UA9HR-8/PCU1
UD9HR-8/PCU1



UARHJ-H/PCU1
UDRHJ-H/PCU1



UARHE-8/CU1
UDRHE-8/CU1




- Unladen weight

1 571 - 1 635
1 600 - 1 646
1 630 - 1 630
-
1 665 - 1 691
1 685 - 1 680



- Kerb weight

1 646 - 1 710
1 675 - 1 721
1 705 - 1705
-
1 740 - 1 766
1 760 - 1 755



- Payload

634 - 620
620 - 624
620 - 620
-
620 - 624
620 - 620



- Gross vehicle weight (GVW) *


2 205 - 2 255
2 220 - 2 270
2 250 - 2 250
-
2 285 - 2 315
2 305 - 2 300



- Gross train weight (GTW)

on a 12 % gradient **

3 125 - 3 130
3 120 - 3 130
3 150 - 3 150
-
3 585 - 3 540
3 555 - 3 550



- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient ***

920 - 875
900 - 860
900 - 900
-
1 300 - 1 225
1 250 - 1 250



- Braked trailer (with load
transfer within GTW limit)

-

-

-
-
-
-



- Unbraked trailer

750 - 750
750 - 750
750 - 750
-
750 - 750
750 - 750



- Recommended nose weight

40 - 60
40 - 60
70 - 60
-
55 - 60
70 - 60

XII
223
TECHNICAL DATA

*
Depending on suspension and roof bars.
DIMENSIONS (IN METRES)

Exterior (CITROËN Grand C4 Picasso and CITROËN C4 Picasso)


CITROËN
Grand
C4 Picasso

CITROËN

C4 Picasso



A


2.730
2.730


B


4.590
4.470


C


0.990
0.990


D


0.870
0.750


E


1.510
1.510


F


1.540
1.540


G

*

1.660 to 1.710
1.660 to 1.680


H


2.100
2.100


I


1.830
1.830

XII
224
TECHNICAL DATA


A


0.930


B


0.960/0.980


C


0.880/1.000


D


1.610/1.870

E


0.930


F


1.140


G


1.120


H


1.170


Interior (CITROËN C4 Picasso)

XII
225
TECHNICAL DATA

Interior (CITROËN Grand C4 Picasso)



E


0.880


F


1.070


G


1.160


H


1.170

A


0.920


B


0.990/1.000


C


1.030/1.160


D


1.800/2.060

XII
226
TECHNICAL DATA
IDENTIFICATION MARKINGS
Various visible markings for identifi -
cation of the vehicle.
The vehicle type and the identifi ca-
tion number are also indicated on
the registration document.
All CITROËN original replacement
parts are available exclusively within
the dealer network.
For your safety and in order to re-
main within the terms of the war-
ranty, you are advised to use only
CITROËN replacement parts.
A. Manufacturer’s label

Located on the left-hand door centre
pillar.


1.
EU type approval number.

2.

Vehicle Identifi cation Number (VIN).


3.
Gross vehicle weight.

4.
Gross train weight.

5.
Maximum weight on front axle.

6.
Maximum weight on rear axle.



B. Vehicle Identification
Number (VIN)
Located on the bodywork and be-
hind the windscreen.


C. Paint colour code
Tyre reference
Tyre pressures
Located on the driver's door front
pillar.

Use the tyre pressures recom-
mended by CITROËN.
Check the tyre pressures regularly,
when the tyres are cold.
Never reduce the pressure of a hot
tyre.
When replacing tyres, it is essen-
tial to use the tyre sizes that are
recommended for your vehicle.

341
VISUAL SEARCH

Checking levels ........................ 179-180


- oil

- brake fl uid

- power steering fl uid

- coolant

- screenwash/headlamp wash fl uid


Changing
bulbs ...................................... 190-193
Petrol engines.................................. 213
Petrol weights .................................. 214
Diesel engines .......................... 215-216
Diesel weights .......................... 217-220
Petrol/Diesel weights,
commercial versions .............. 221-222
Dimensions ............................... 223-225
Identifi cation markings ..................... 226

Bleeding the Diesel fuel fi lter ........... 175
Running out of fuel, Diesel .............. 176

Opening the bonnet ......................... 174
Under the bonnet, petrol .................. 177
Under the bonnet, Diesel ................. 178
Checking components .............. 181-182


- battery

- air/passenger compartment fi lter

- oil fi lter

- particle fi lter (Diesel)

- brake pads/discs

Fuses at the battery ......................... 202
Battery ...................................... 203-205
Energy economy mode.................... 206


Engine compartment
fuses ...................................... 200-201

TECHNICAL DATA - MAINTENANCE

345

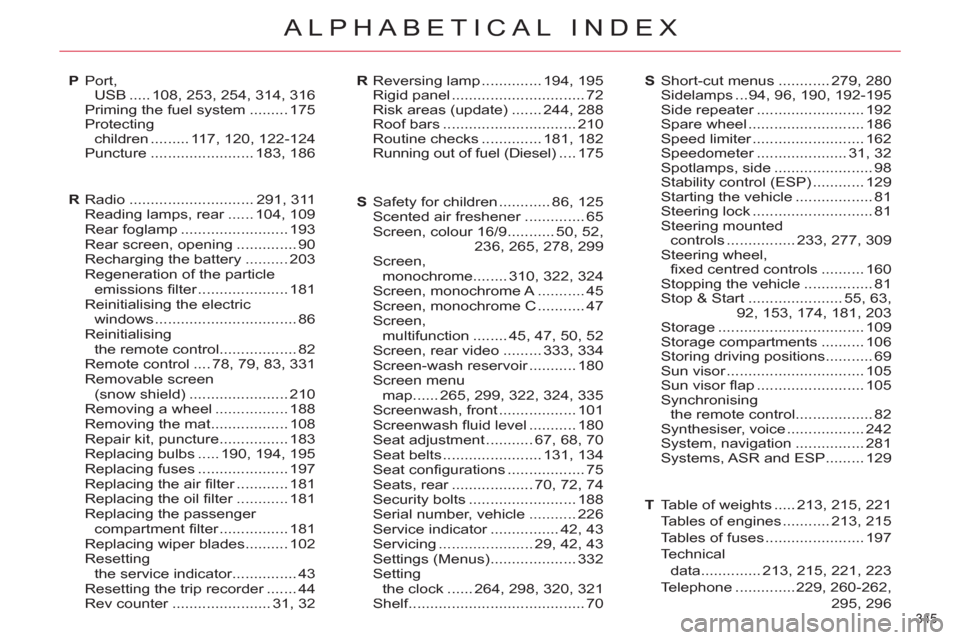

ALPHABETICAL INDEX
