technical data Citroen C4 2012 2.G User Guide

12

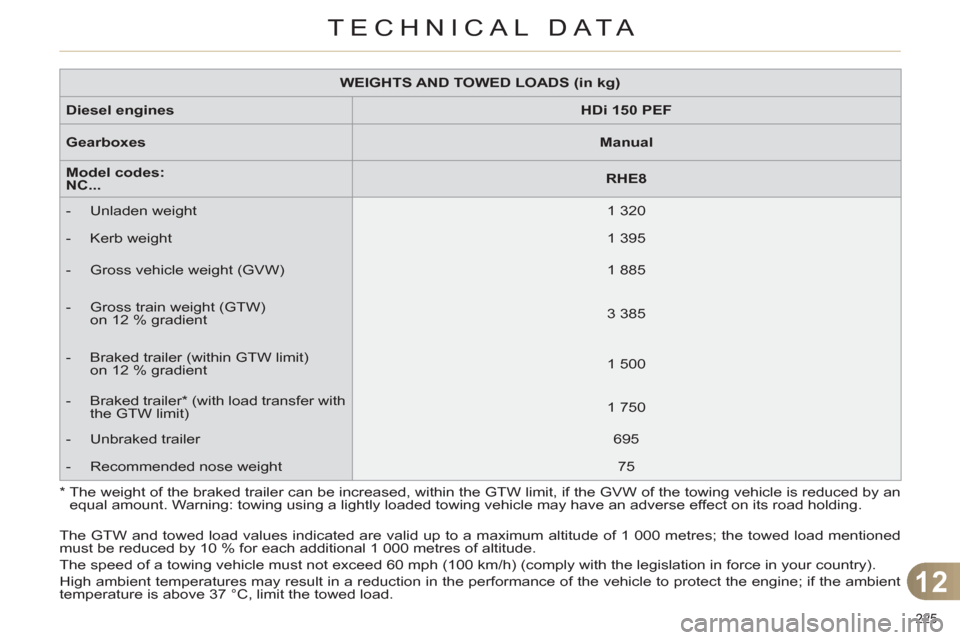

TECHNICAL DATA
225


WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 150 PEF



Gearboxes


Manual



Model codes:
NC...


RHE8




- Unladen weight
1 320


- Kerb weight
1 395


- Gross vehicle weight (GVW)
1 885


- Gross train weight (GTW)
on 12 % gradient
3 385


- Braked trailer (within GTW limit)
on 12 % gradient
1 500


- Braked trailer * (with load transfer with
the GTW limit)
1 750


- Unbraked trailer
695


- Recommended nose weight
75
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
TECHNICAL DATA
226
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg) - C4 ENTERPRISE VERSIONS (2-seat)



Diesel



engines


HDi 90 P

EF



HDi 110 PEF



Gearboxes


Manual



Manual



Model codes:
NC...


9HP0



9HR8




- Unladen weight
1 200
1 270


- Gross vehicle weight (GVW)
1 745
1 810


- Payload (including the driver)
545
540


- Gross train weight (GTW)
on a 12 % gradient
2 845
3 110


- Braked trailer (within the GTW limit)
on a 12 % gradient
1 100
1 300


- Unbraked trailer
635
670


- Recommended nose weight
75
75

12
TECHNICAL DATA
227





DIMENSIONS (IN MM)

12
TECHNICAL DATA
228

















IDENTIFICATION MARKINGS

Various visible markings for the identifi -
cation of your vehicle.

A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the body-
work near the engine mounting.
B. Vehicle identifi cation number on
the dashboard.

This number is indicated on a self-
adhesive label which is visible through
the windscreen.
D. Tyre/paint label.

This label is affi xed to the driver's front
pillar.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
Low tyre pressures increase fuel
consumption.
C. Manufacturer's label.

The VIN is indicated on a self-destroying
label affi xed to the driver's centre pillar. It bears the following information:


- the tyre pressures, for unladen and
laden conditions,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the spare tyre infl ation pressure,

- the paint colour code.
Wheels which are fi tted with
225/40 R18 tyres cannot be fi t-
ted with snow chains. For more
information, contact a CITROËN
dealer or a qualifi ed workshop.

320
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE


Running out of Diesel fuel ............. 181

Checking levels ...................... 184-185


- oil

- brake fl uid

- coolant

- power steering fl uid

- screenwash/headlamp wash fl uid

- additive (Diesel with particle
emissions fi lter)


Changing bulbs....................... 197-202


- front

- rear

Petrol engines......................... 217-220
LPG engines ........................... 221-222
Diesel engines ........................ 223-226
Dimensions .................................... 227
Identifi cation markings ................... 228

Bonnet ........................................... 175
Petrol underbonnet ........................ 182
Diesel underbonnet ....................... 183
Checking components ............ 186-187


- battery

- air fi lter/passenger compartment
fi lter

- oil fi lter

- particle emissions fi lter (Diesel)

- brake pads/discs


Battery .................................... 207-208
Energy economy mode.................. 209

Engine compartment fuses .... 203, 206

324
ALPHABETICAL INDEX
S Screen menu map ...... 274, 310-312
Screenwash, front ......................109
Seat, rear bench ...........................76
Seat adjustment .....................71, 72
Seat belts ............................140-142
Seats, electric ...............................72
Seats, rear ....................................76
Serial number, vehicle ................228
Service indicator .....................45, 47
Servicing ......................................26
Setting the clock ...................48, 273
Short-cut menus .........................236
Sidelamps ....99, 102, 197, 199, 201
Side repeater ..............................200
Ski fl ap .......................................121
Spare wheel ...............................193
Speakers (fi tting) ........................214
Speed limiter ......................170, 171
Speedometer ...........................28-31
Spotlamps, side ..................104, 200
Starting the vehicle .......83, 156, 159
Steering mounted
controls .............................234, 285
Stopping the vehicle .....83, 156, 159
Stop & Start ............... 62, 68, 70, 96,
163, 180, 186, 207, 309
Storage .........113, 114, 116-118, 122
Storage compartments ............... 116
Storage drawer ...........................120
Storage net .................................122
Storing driving positions ...............75
Stowing rings ..............................122
Sun visor .................................... 114
Synchronising the remote
control ..................................84, 85
Synthesiser, voice ......................248
System, navigation .....................238T Table of weights .........217, 221, 223
Tables of engines .......217, 221, 223
Tables of fuses ...........................203
Tank, fuel ......................................98
Technical data ............217, 221, 223
Telephone ...................254, 258, 299
Temperature control
for heated seats .........................73
Temporary tyre repair kit ............188
Ticket holder ............................... 113
Time ...........................................308
TMC (Traffi c info) .......................251
Tools ...........................................193
Torch ..........................................124
Total distance recorder .................48
Towbar ........................................213
Towed loads ...............217, 221, 223
Towing another vehicle ............... 211
Traction control (ASR) ................138
Traffi c information
(TA) ..........................252, 265, 288
Traffi c information
(TMC) ...............................251, 252
Trajectory control systems .........138
Trip computer ..........................59-62
Trip distance recorder ..................48
Tyre pressures ...........................228
Tyres ............................................26
Tyre under-infl ation
detection .............................47, 136
U Under-infl ation (detection) ..........136
Under fl oor storage ....................124
Unlocking from the inside .............87
Unlocking the boot ...........80, 81, 92
Unlocking the doors ...............80, 81
Update risk areas .......................242U Updating the date .......................273
Updating the time .................48, 273
USB Box ..................................... 115
V Vehicle
confi guration .............51, 53, 56, 57
Ventilation ................................63-65
W Warning lamps ...........33, 35, 41, 47
Wash-wipe, rear ......................... 110
Weights ......................217, 221, 223
Welcome lighting ........................104
Window controls ...........................93
Wiper, rear .................................. 110
Wiper control stalk ............... 108-110
Wipers ..........................42, 108, 109
X Xenon headlamps ......................197
