9
FAMILIARISATION
INSTRUMENTS AND CONTROLS




1.
Cruise control/speed limiter
switches.

2.
Controls for optional functions.

3.
Steering wheel adjustment control.

4.
Lighting and direction indicator
control stalk.

5.
Instrument panel.

6.
Driver's airbag.
Horn.

7.
Controls for audio and telematic
system.

8.
Controls for Bluetooth system or
telephone.

9.
Bonnet release.

10.
Door mirror controls.
Electric window controls.

11 .
Fusebox.

12.
Manual headlamp height
adjustment.
Lower side switch panel.

13.
Fuel fi ller fl ap opening button.
Upper side switch panel.

14.
Side adjustable air vent.

15.
Front side window demisting vent.

10
CHECKS
182














PETROL ENGINES

The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10
CHECKS
183
*
According to engine.














DIESEL ENGINES

The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

11
PRACTICAL INFORMATION
203




















CHANGING A FUSE

Access to the tools

The extraction tweezer is attached to
the back of the dashboard fusebox
cover.
For access to it:


)
unclip the cover by pulling at the
top right, then left

)
disengage the cover completely
and turn it over,

)
remove the carrier, on the back of
which the tweezer is fi tted.



Changing a fuse

Before changing a fuse:


)
the cause of the failure must be
identifi ed and rectifi ed,

)
all electrical consumers must be
switched off,

)
the vehicle must be immobilised
with the ignition off,

)
identify the failed fuse using the ta-
bles and diagrams in the following
pages.
Good

Failed

To replace a fuse, you must:


)
use the special tweezer to extract
the fuse from its housing and check
the condition of its fi lament.

)
always replace the failed fuse with
a fuse of the same rating (same co-
lour); the use of a fuse of different
rating fuse may cause malfunctions
(risk of fi re).
If the fault recurrs soon after replacing the
fuse, have the electrical system checked
by a CITROËN dealer or a qualifi ed work-
shop.
Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN
dealer or a qualifi ed workshop.
CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.
The replacement of a fuse not
mentioned in the tables below
may cause a serious malfunc-
tion of your vehicle. Contact a
CITROËN dealer or a qualifi ed
workshop.
Tweezer

11
PRACTICAL INFORMATION
204

Dashboard fuses

The fuseboxes are located in the lower
dashboard (left-hand side).

Access to the fuses


)
Refer to the paragraph "Access to
the tools".

Fuse tables

Fusebox 1



Fuse N°



Rating


Functions



F8



3 A

Alarm siren, alarm ECU.


F13



10 A

Cigarette lighter.


F14



10 A

12 V socket in boot.


F16



3 A

Lighting for the large multifunctional storage unit,
rear map reading lamps, glove box illumination.


F17



3 A

Sun visor illumination, front map reading lamps.


F28



15 A

Audio system, radio (after-market).


F30



20 A

Rear wiper.


F32



10 A

Hi-Fi amplifi er.

11
PRACTICAL INFORMATION
205


Fuse N°



Rating


Functions



F36



15 A

Rear 12 V socket.


F37



-

Not used.


F38



-

Not used.


F39



-

Not used.


F40



25 A

230 V/50 Hz socket.

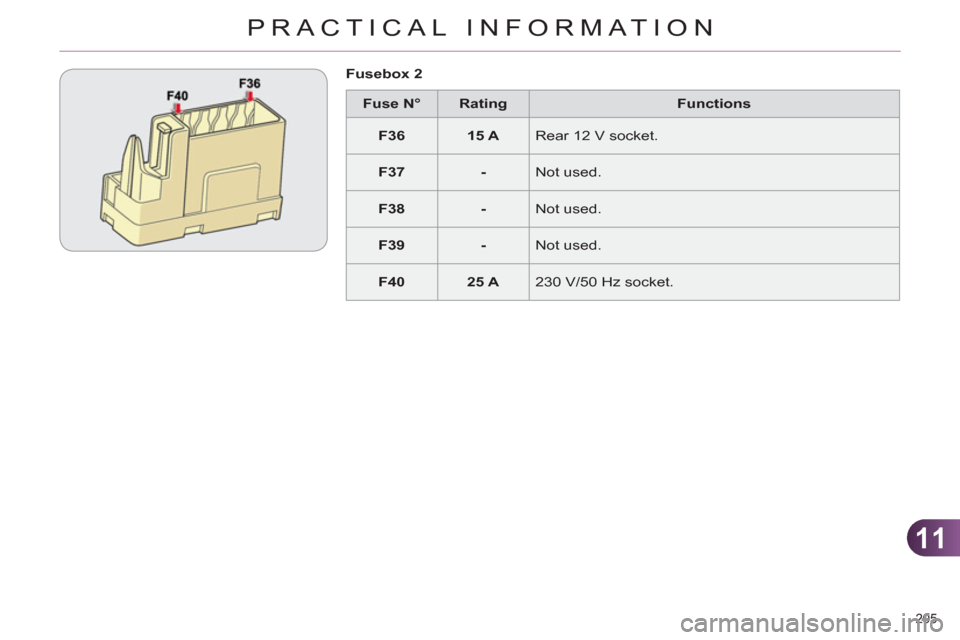

Fusebox 2

11
PRACTICAL INFORMATION
206


Fuse N°



Rating


Functions



F19



30 A

Windscreen wipers slow/fast speed.


F20



15 A

Front and rear screenwash pump.


F21



20 A

Headlamp wash pump.


F22



15 A

Horn.


F23



15 A

Right-hand main beam headlamp.


F24



15 A

Left-hand main beam headlamp.


F27



5 A

Left-hand dipped headlamp.


F28



5 A

Right-hand dipped headlamp.


Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see corresponding
paragraph).

)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table

11
PRACTICAL INFORMATION
207











BATTERY

The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior re-
lease lever, then the exterior safety
catch,

)
secure the bonnet stay,

)
remove the plastic cover to gain ac-
cess to the two terminals,

)
unclip the fuse box to remove the
battery, if necessary.



Access to the battery


Disconnecting the cables

Do not force the tab as locking
will not be possible if the clip is
not positioned correctly; start the
procedure again.





The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
12 V lead-acid battery with spe-
cial technology and specifi cation;
the involvement of a CITROËN
dealer or a qualifi ed workshop is
essential when replacing or dis-
connecting the battery.
Failure to observe this recom-
mendation may cause premature
wear of the battery. Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.

After refi tting the battery, the
Stop & Start system will only be
active after a continuous period
of immobilisation of the vehicle,
a period which depends on the
climatic conditions and the state
of charge of the battery (up to
about 8 hours).

)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to position
it correctly against the battery.

)
Lock the clip by lowering the tab 2
.

)
Raise the locking tab fully.



Reconnecting the cables

11
PRACTICAL INFORMATION
216

Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a CITROËN dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).




Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
The fi tting of electrical equipment or
accessories which are not recom-
mended by CITROËN may result in
a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution.
You are advised to contact a
CITROËN representative to be
shown the range of recommend-
ed equipment and accessories.

"Multimedia":

audio systems, steering mounted audio
controls, speakers, Hi-Fi module, Bluetooth
hands-free system, portable satellite naviga-
tion system, semi-integral support bracket for
portable navigation system, speed camera
detector, USB Box, reversing camera, por-
table video screen, portable video support
bracket, 230 V/50 Hz socket, 230 V/50 Hz
adaptor, Wi-Fi on board...


By going to a CITROËN dealer, you can
also obtain cleaning and maintenance
products (interior and exterior) - including
ecological products in the "TECHNATURE"
range -, products for topping up (screen-
wash...), touch-up pens and paint aero-
sols for the exact colour of your vehicle,
