Page 5 of 332
CONTENTS
3
Direction indicators 135
Hazard warning lamps 135
Horn 135
Tyre under-infl ation detection 136
Braking assistance systems 137
Trajectory control systems
(ESP) 138
Emergency or assistance call 139
Front seat belts 140
Airbags 143
8 - SAFETY 135 Î 146
Electric parking brake 147
Manual parking brake 154
Manual gearbox 154
Gear effi ciency indicator 155
6-speed electronic gearbox
system 156
Automatic gearbox 159
Hill start assist 162
Stop & Start 163
Lane departure warning
system 166
Blind spot sensors 167
Speed limiter 171
Cruise control 173
Parking space sensors 175
Parking sensors 177
9 - DRIVING 147 Î 178
Bonnet 180
Running out of fuel (Diesel) 181
Petrol engines 182
Diesel engines 183
Checking levels 184
Checks 186
10 - CHECKS 179 Î 187
Temporary puncture repair kit 188
Changing a wheel 193
Changing a bulb 197
Changing a fuse 203
Battery 207
Energy economy mode 209
Changing a wiper blade 209
Fitting roof bars 210
Very cold climate screen 210
Towing the vehicle 211
Towing a trailer 213
Audio pre-equipment 214
Accessories 215
11 - PRACTICAL
INFORMATION 188 Î 216
Petrol engines 217
Petrol weights 219
LPG engines 221
LPG weights 222
Diesel engines 223
Diesel weights 224
Dimensions 227
Identifi cation markings 228
12 - TECHNICAL
DATA 217 Î 228
Emergency or assistance 229
eMyWay 231
Audio system 283
AUDIO and
TELEMATICS 229 Î 316
ALPHABETICAL
INDEX 321 Î 324 VISUAL
SEARCH 317 Î 320
Page 22 of 332
20
DRIVING SAFELY
Electric parking brake
Manual application/release
Automatic application/release
Before leaving the ve-
hicle, check that the
brake warning lamp in
the instrument panel
and the P
warning lamp in the control
lever A
are on fi xed (not fl ashing)
.
Manual application
of the parking
brake is possible by pulling
the control
lever A
.
With the ignition on, manual release
of
the parking brake is possible by press-
ing the brake pedal
and pulling then
releasing
the control lever A
. Press the accelerator pedal and let the
clutch pedal up (manual gearbox), the
parking brake is released automatically
and progressively as you move off.
With the vehicle at rest, on switching off
the engine the parking brake is applied
automatically.
147
With the engine running, on
opening the driver's door there
is an audible warning; apply the
parking brake manually.
Do not leave a child alone inside
the vehicle with the ignition on;
they might release the parking
brake. If you are towing a trailer or car-
avan or if the slope might vary
(transport on a ferry, lorry, tow-
ing...) make a maximum manual
application with a long pull on
the control lever A
to immobilise
the vehicle. If this warning lamp is on in the
instrument panel, the automat-
ic application/release
is de-
activated
; apply and release
the parking brake manually.
Page 29 of 332
27
Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before mov-
ing off, particularly in winter; your ve-
hicle will warm up much faster while
driving.
As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.
Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.
At the end of winter, remove snow
tyres and refi t your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and ob-
serve the schedule of operations rec-
ommended by the manufacturer.
When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.
At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.
Page 150 of 332
9
DRIVING
148

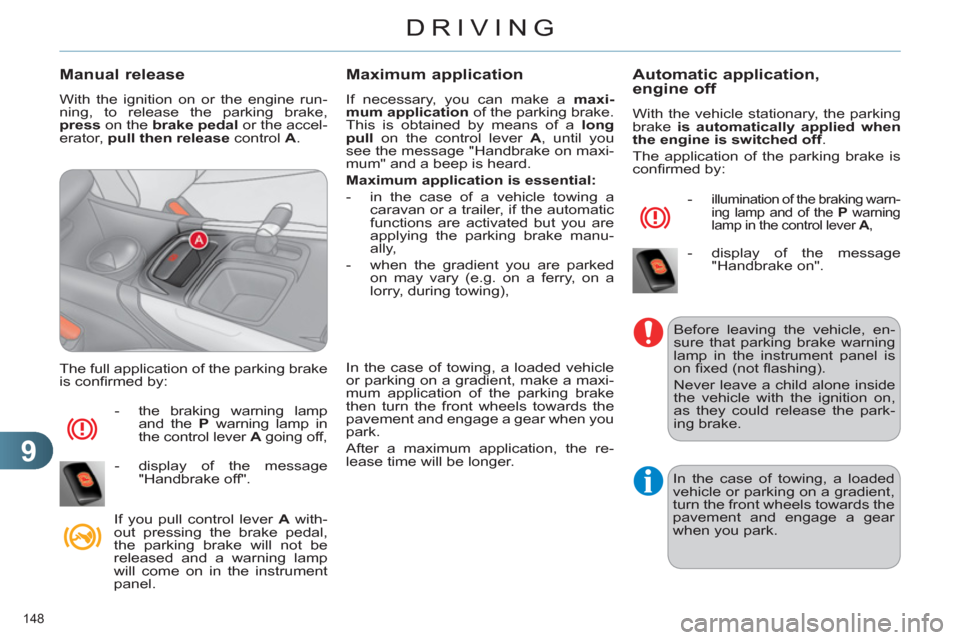

Manual release
With the ignition on or the engine run-
ning, to release the parking brake,
press
on the brake
pedal
or the accel-
erator, pull then release
control A
.
The full application of the parking brake
is confi rmed by:
- the braking warning lamp
and the P
warning lamp in
the control lever A
going off,
- display of the message
"Handbrake off".
If you pull control lever A
with-
out pressing the brake pedal,
the parking brake will not be
released and a warning lamp
will come on in the instrument
panel.
Maximum application
If necessary, you can make a maxi-
mum application
of the parking brake.
This is obtained by means of a long
pull
on the control lever A
, until you
see the message "Handbrake on maxi-
mum" and a beep is heard.
Maximum application is essential:
- in the case of a vehicle towing a
caravan or a trailer, if the automatic
functions are activated but you are
applying the parking brake manu-
ally,
- when the gradient you are parked
on may vary (e.g. on a ferry, on a
lorry, during towing),
In the case of towing, a loaded vehicle
or parking on a gradient, make a maxi-
mum application of the parking brake
then turn the front wheels towards the
pavement and engage a gear when you
park.
After a maximum application, the re-
lease time will be longer.
Automatic application,
engine off
With the vehicle stationary, the parking
brake is automatically applied when
the engine is switched off
.
The application of the parking brake is
confi rmed by:
-
illumination of the braking warn-
ing lamp and of the P
warning
lamp in the control lever A
,
- display of the message
"Handbrake on".
Before leaving the vehicle, en-
sure that parking brake warning
lamp in the instrument panel is
on fi xed (not fl ashing).
Never leave a child alone inside
the vehicle with the ignition on,
as they could release the park-
ing brake.
In the case of towing, a loaded
vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park.
Page 170 of 332
9
DRIVING
168

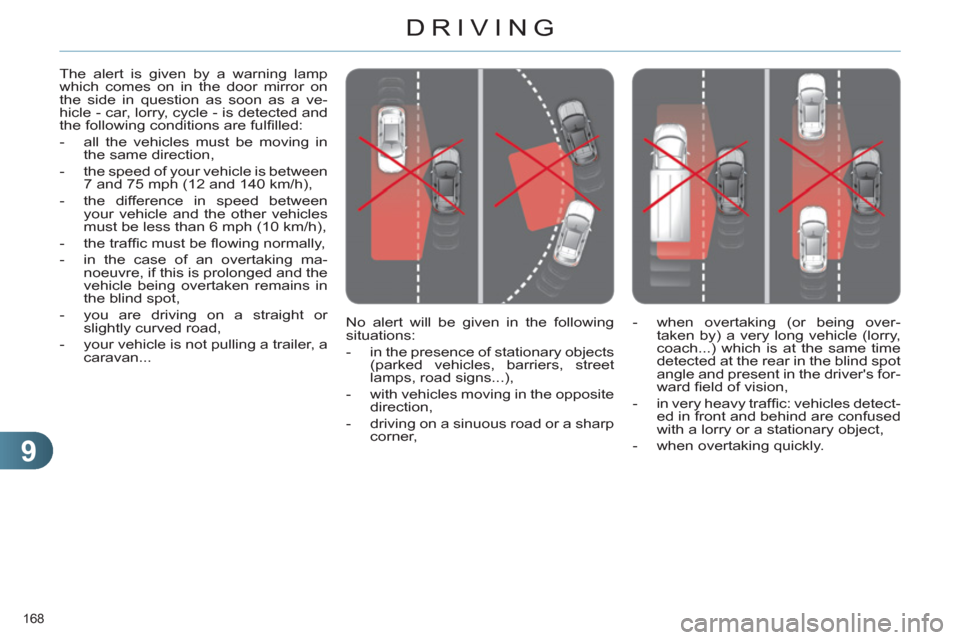

No alert will be given in the following
situations:
- in the presence of stationary objects
(parked vehicles, barriers, street
lamps, road signs...),
- with vehicles moving in the opposite
direction,
- driving on a sinuous road or a sharp
corner, The alert is given by a warning lamp
which comes on in the door mirror on
the side in question as soon as a ve-
hicle - car, lorry, cycle - is detected and
the following conditions are fulfi lled:
- all the vehicles must be moving in
the same direction,
- the speed of your vehicle is between
7 and 75 mph (12 and 140 km/h),
- the difference in speed between
your vehicle and the other vehicles
must be less than 6 mph (10 km/h),
- the traffi c must be fl owing normally,
- in the case of an overtaking ma-
noeuvre, if this is prolonged and the
vehicle being overtaken remains in
the blind spot,
- you are driving on a straight or
slightly curved road,
- your vehicle is not pulling a trailer, a
caravan...
- when overtaking (or being over-
taken by) a very long vehicle (lorry,
coach...) which is at the same time
detected at the rear in the blind spot
angle and present in the driver's for-
ward fi eld of vision,
- in very heavy traffi c: vehicles detect-
ed in front and behind are confused
with a lorry or a stationary object,
- when overtaking quickly.
Page 180 of 332
9
DRIVING
178
In addition to the rear parking sensors,
the front parking sensors are triggered
when an obstacle is detected in front
and the speed of the vehicle is still below
6 mph (10 km/h).
The front parking sensors are interrupted
if the vehicle stops for more than three
seconds in forward gear, if no further ob-
stacles are detected or when the speed
of the vehicle exceeds 6 mph (10 km/h).
Front parking sensors
Deactivation/Activation of the front
and rear parking sensors
The function is deactivated by pressing
this button. The indicator lamp in the
button comes on.
Pressing this button again reactivates
the function. The indicator lamp in the
button goes off.
Operating fault
The function will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fi t-
ted (vehicle fi tted with a towbar
or bicycle carrier recommended
by CITROËN).
In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged,
an audible signal (long beep) in-
dicates that the sensors may be
dirty.
When the vehicle is moving at a
speed below 6 mph (10 km/h),
certain sound sources (motor-
cycle, lorry, pneumatic drill, etc.)
may trigger the audible signals
of the parking sensor system.
In the event of a malfunction
of the system, when reverse
gear is engaged this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
screen, accompanied by an audible
signal (short beep).
Contact a CITROËN dealer or a qualifi ed
workshop.
The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.
Page 215 of 332
11
PRACTICAL INFORMATION
213
TOWING A TRAILER,
A CARAVAN, ETC.
We recommend the use of genu-
ine CITROËN towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle, and that
the fi tting of the towbar is en-
trusted to a CITROËN dealer or
a qualifi ed workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is impera-
tive that it is fi tted in accordance
with the vehicle manufacturer's
instructions. The rear parking sensors will
be deactivated automatically if
a genuine CITROËN towbar is
used.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
Driving advice
Distribution of loads
)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle.
Side wind
)
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
)
To lower the engine speed, reduce
your speed. The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.
)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.
Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
)
Check the electrical lighting and sig-
nalling on the trailer.
Page 221 of 332
12
TECHNICAL DATA
219
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
VTi 95
VTi 120
Gearboxes
Manual
Manual
Auto
Model codes:
NC...
8FR0
5FS0
5FS9
5FS9/D
- Unladen weight
1 200
1 205
1 270
- Kerb weight
1 275
1 280
1 345
- Gross vehicle weight (GVW)
1 720
1 765
1 755
- Gross train weight (GTW)
on a 12 % gradient
2 920
3 065
3 055
- Braked trailer (within the GTW limit)
on a 12 % gradient
1 200
1 300
1 300
- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 550
1 550
- Unbraked trailer
635
640
670
- Recommended nose weight
75
75
75
Page 222 of 332
12
TECHNICAL DATA
220
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 i 16V
THP 155
Gearboxes
Manual
Automatic
Manual
Model codes:
NC...
NFUB
NFUC
NFUE
5FV8/P
- Unladen weight
1 205
1 265
1 275
- Kerb weight
1 280
1 340
1 350
- Gross vehicle weight (GVW)
1 730
1 765
1 805
- Maximum train weight (GTW)
on a 12 % gradient
2 530
2 565
3 205
- Braked trailer (within the GTW limit)
on a 12 % gradient
800
800
1 400
- Braked trailer * (with transfer of load
within the GTW limit)
1 050
1 050
1 560
- Unbraked trailer
640
670
675
- Recommended nose weight
75
75
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 224 of 332
12
TECHNICAL DATA
222

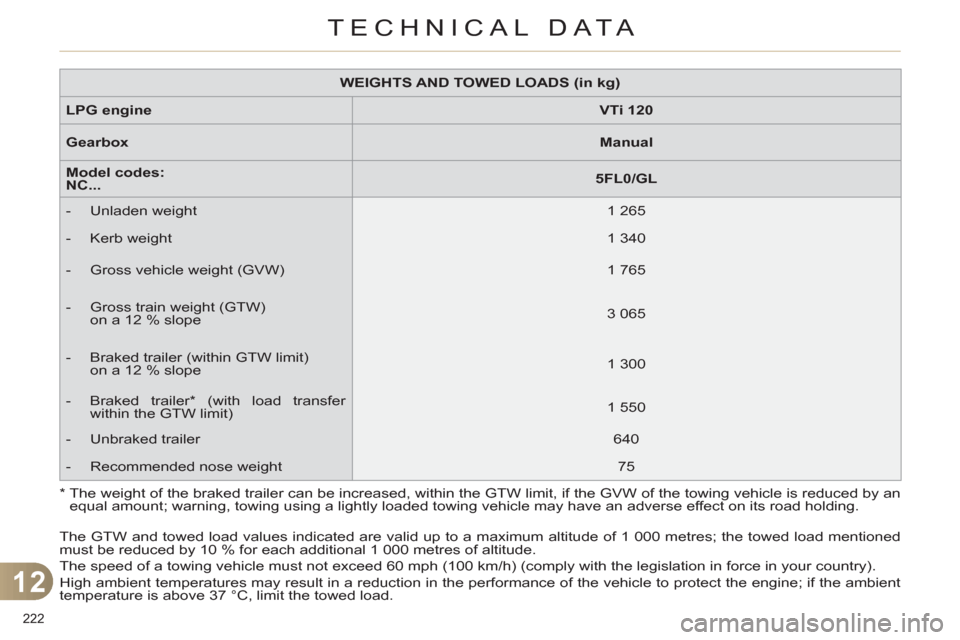

WEIGHTS AND TOWED LOADS (in kg)
LPG engine
VTi 120
Gearbox
Manual
Model codes:
NC...
5FL0/GL
- Unladen weight
1 265
- Kerb weight
1 340
- Gross vehicle weight (GVW)
1 765
- Gross train weight (GTW)
on a 12 % slope
3 065
- Braked trailer (within GTW limit)
on a 12 % slope
1 300
- Braked trailer * (with load transfer
within the GTW limit)
1 550
- Unbraked trailer
640
- Recommended nose weight
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
