display Citroen C4 2015 2.G Owner's Manual

Fittings
4
C4-2-add_en_Chap05_amenagement_ed01-2015

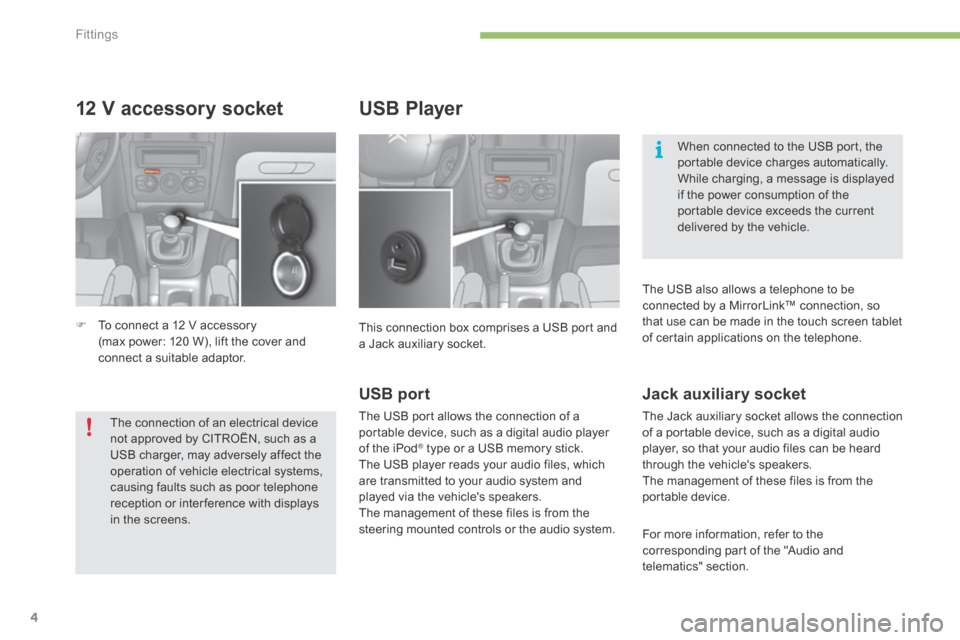

12 V accessory socket
 To connect a 12 V accessory (max power: 120 W), lift the cover and connect a suitable adaptor.
USB Player
This connection box comprises a USB port and a Jack auxiliary socket.
When connected to the USB port, the portable device charges automatically. While charging, a message is displayed if the power consumption of the portable device exceeds the current delivered by the vehicle.
The connection of an electrical device not approved by CITROËN, such as a USB charger, may adversely affect the operation of vehicle electrical systems, causing faults such as poor telephone reception or inter ference with displays in the screens.
USB port
The USB port allows the connection of a portable device, such as a digital audio player of the iPod ® type or a USB memory stick. ® type or a USB memory stick. ®
The USB player reads your audio files, which are transmitted to your audio system and played via the vehicle's speakers. The management of these files is from the steering mounted controls or the audio system.
Jack auxiliary socket
The Jack auxiliary socket allows the connection of a portable device, such as a digital audio player, so that your audio files can be heard through the vehicle's speakers. The management of these files is from the portable device.
For more information, refer to the corresponding part of the "Audio and telematics" section.
The USB also allows a telephone to be connected by a MirrorLink™ connection, so that use can be made in the touch screen tablet of certain applications on the telephone.

9
Driving7
C4-2-add_en_Chap09_conduite_ed01-2015
Going into engine START mode Special cases: START invoked automatically
The "ECO" warning lamp goes off and the engine starts automatically:
- with a manual gearbox , when you fully
depress the clutch pedal, - with an electronic gearbox : ● gear lever in position A or M , when you release the brake pedal, ● or gear lever in position N and the brake pedal released, when you place the gear lever in position A or M , ● or when you engage reverse gear. - with an automatic gearbox: ● gear lever in position D or M , when you release the brake pedal, ● or gear lever in position N and brake pedal released, when you place the gear lever in position D or M , ● or when you engage reverse gear.
For safety reasons or to ensure smooth operation, START mode is invoked automatically when: - you open the driver's door,
- you unfasten the driver's seat belt, - the speed of the vehicle exceeds 15 mph (25 km/h) with a manual gearbox (3 km/h (2 mph) with PureTech 130 petrol and BlueHDi Diesel 115 and 120 versions), 7 mph (11 km/h) with an electronic gearbox or 2 mph (3 km/h) with an automatic gearbox, - the electric parking brake is being applied, - some special conditions (battery charge, engine temperature, braking assistance, ambient temperature...) where the engine is needed to assure control of a system.
In this case the "ECO" warning lamp flashes for few seconds, then goes of f.
This operation is perfectly normal.
With a manual gearbox in STOP mode, if a gear is engaged without fully depressing the clutch pedal, a warning lamp comes on or an alert message is displayed asking you to depress the clutch pedal to restart the engine.

Driving
8
C4-2-add_en_Chap09_conduite_ed01-2015
Maintenance
In the event of a malfunction with the system, the "ECO OFF" switch warning lamp flashes, then comes on continuously. Have it checked by a CITROËN dealer or a qualified workshop.
Operating fault
This system requires a specific battery with a special specification and technology (reference numbers available from a CITROËN dealer or a qualified workshop). Fitting a battery not listed by CITROËN introduces the risk of malfunction of the system.
Before doing anything under the bonnet, deactivate the Stop & Start system to avoid any risk of injury resulting from automatic operation of START mode.
The Stop & Start system makes use of advanced technology. All work on this type of battery must be done only by a CITROËN dealer or a qualified
workshop.
In the event of a fault in STOP mode, the vehicle may stall. All of the instrument panel warning lamps come on. Depending on version, an alert message may also be displayed asking you to put the gear lever into position Nand put your foot on the brake pedal.
It is then necessary to switch off the ignition, then restart the engine using the key or the "START/STOP" button.
Reactivation
The system is reactivated automatically at every new start using the key or the "START/STOP" button.
Press the "ECO OFF" switch again. The system is active again; this is confirmed by the switch warning lamp going off and the display of a message.
Deactivation
At any time, press the "ECO OFF" switch to deactivate the system. This is confirmed by the switch warning lamp coming on accompanied by the display of a message.
If the system has been deactivated in STOP mode, the engine restarts immediately.

9
Driving9
C4-2-add_en_Chap09_conduite_ed01-2015
Memorising speeds
As a safety measure, the driver must only modify a speed setting when stationary.
This function allows speed settings to be registered which will then be offered as settings for two systems: the speed limiter (a maximum speed) and the cruise control (cruising speed). You can memorise up to six speed settings in the system, depending on version. By default, some speed settings are already memorised.
Activating the function
Modifying a speed setting
 Go to the main menu by pressing the "MENU" button:  Select the"Personalisation-configuration" menu and confirm.  Select " Vehicle parameters" menu and confirm.  Select the "Driving assistance" line and conform.  Select "Speeds memorised" line and confirm.  Select "Activation" to activate the function.  Select the speed setting to be modified and
confirm.  Modify the speed setting.  Select " OK " and confirm to save the modifications.
With your Audio system
"MEM" button
 Press this button to display the list of memorised speed settings.

9
Driving11
C4-2-add_en_Chap09_conduite_ed01-2015

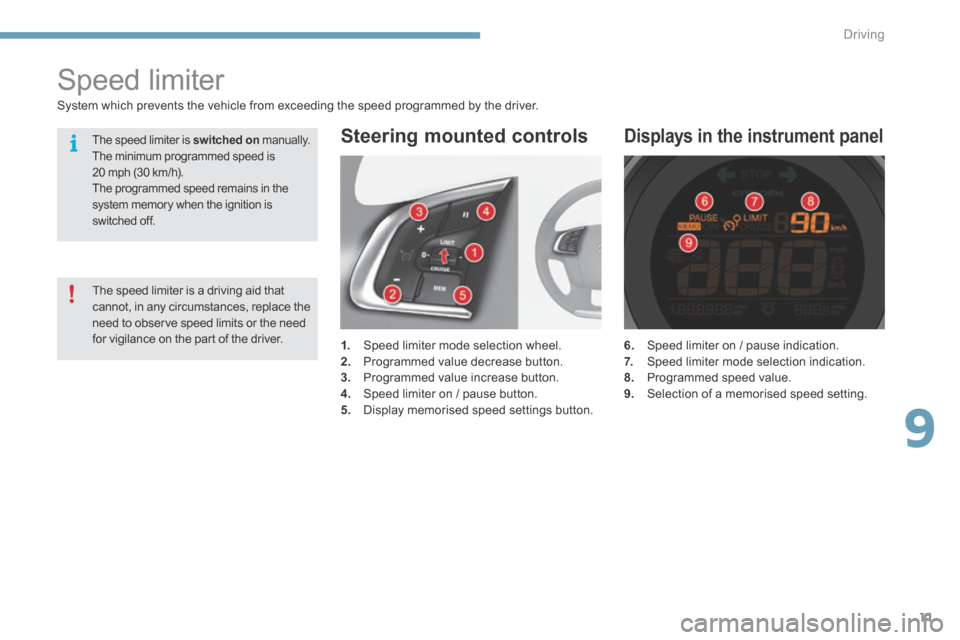

6. Speed limiter on / pause indication. 7. Speed limiter mode selection indication. 8. Programmed speed value. 9. Selection of a memorised speed setting.
Displays in the instrument panel
Speed limiter
1. Speed limiter mode selection wheel. 2. Programmed value decrease button. 3. Programmed value increase button. 4. Speed limiter on / pause button. 5. Display memorised speed settings button.
Steering mounted controls
System which prevents the vehicle from exceeding the speed programmed by the driver.
The speed limiter is a driving aid that cannot, in any circumstances, replace the need to observe speed limits or the need for vigilance on the part of the driver.
The speed limiter is switched on manually. The minimum programmed speed is 20 mph (30 km/h). The programmed speed remains in the system memory when the ignition is switched off.

Driving
12
C4-2-add_en_Chap09_conduite_ed01-2015

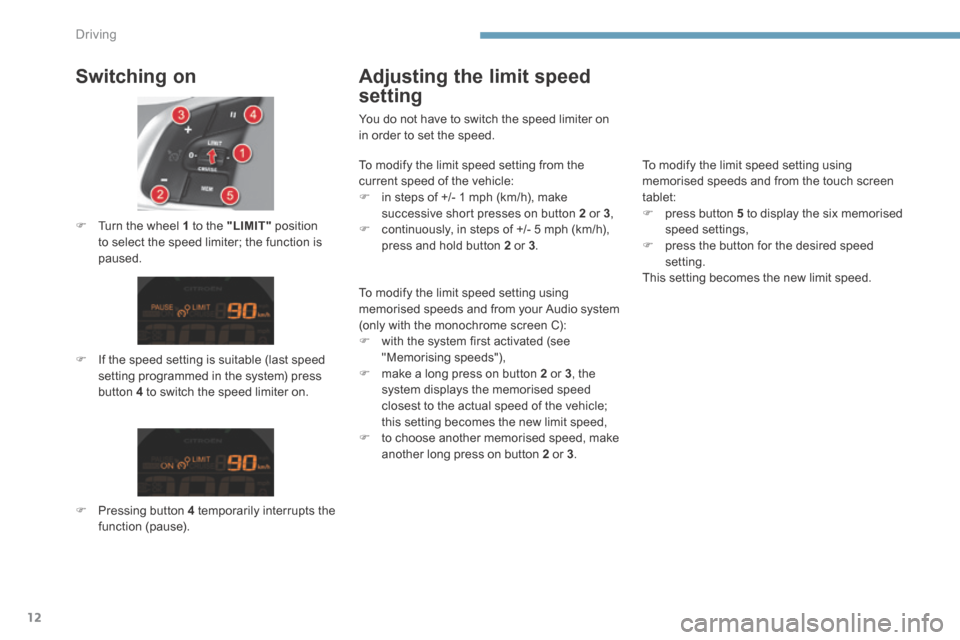

Switching on
 If the speed setting is suitable (last speed setting programmed in the system) press button 4 to switch the speed limiter on.
 Turn the wheel 1 to the "LIMIT" position to select the speed limiter; the function is paused.
 Pressing button 4 temporarily interrupts the function (pause).
Adjusting the limit speed
setting
You do not have to switch the speed limiter on in order to set the speed.
To modify the limit speed setting from the current speed of the vehicle:  in steps of +/- 1 mph (km/h), make successive short presses on button 2 or 3 ,  continuously, in steps of +/- 5 mph (km/h), press and hold button 2 or 3 .
To modify the limit speed setting using memorised speeds and from your Audio system (only with the monochrome screen C):  with the system first activated (see "Memorising speeds"),  make a long press on button 2 or 3 , the system displays the memorised speed closest to the actual speed of the vehicle; this setting becomes the new limit speed,
 to choose another memorised speed, make another long press on button 2 or 3 .
To modify the limit speed setting using memorised speeds and from the touch screen tablet:  press button 5 to display the six memorised speed settings,  press the button for the desired speed setting. This setting becomes the new limit speed.

9
Driving13
C4-2-add_en_Chap09_conduite_ed01-2015

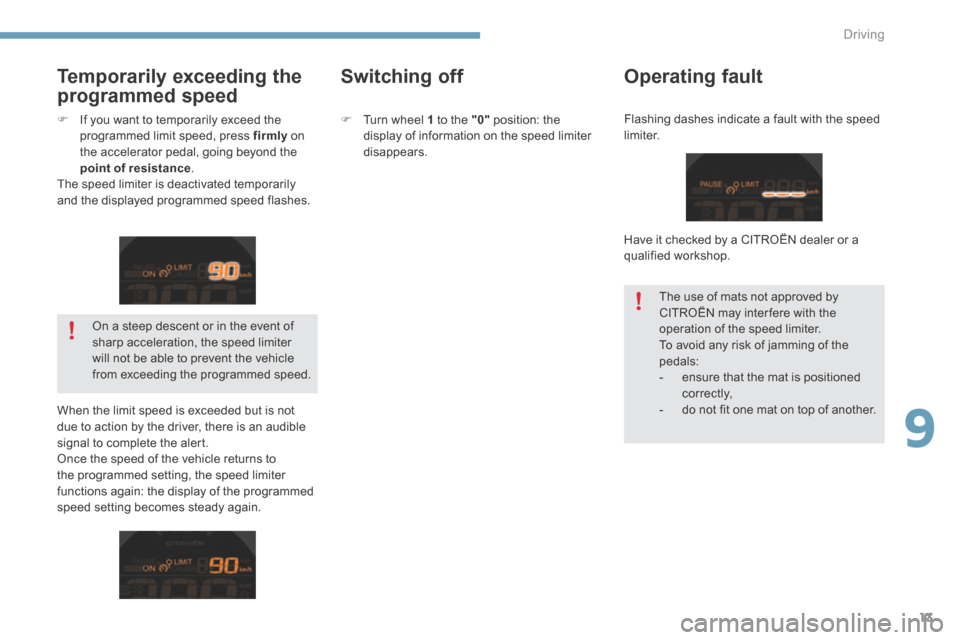

Switching off
 Turn wheel 1 to the "0" position: the display of information on the speed limiter disappears.
Operating fault
Flashing dashes indicate a fault with the speed limiter.
Have it checked by a CITROËN dealer or a qualified workshop.
The use of mats not approved by CITROËN may inter fere with the operation of the speed limiter. To avoid any risk of jamming of the pedals: - ensure that the mat is positioned c o r r e c t l y, - do not fit one mat on top of another.
On a steep descent or in the event of sharp acceleration, the speed limiter will not be able to prevent the vehicle from exceeding the programmed speed.
Temporarily exceeding the
programmed speed
 If you want to temporarily exceed the programmed limit speed, press firmly on the accelerator pedal, going beyond the point of resistance . The speed limiter is deactivated temporarily and the displayed programmed speed flashes.
When the limit speed is exceeded but is not due to action by the driver, there is an audible
signal to complete the alert. Once the speed of the vehicle returns to the programmed setting, the speed limiter functions again: the display of the programmed speed setting becomes steady again.

Driving
14
C4-2-add_en_Chap09_conduite_ed01-2015

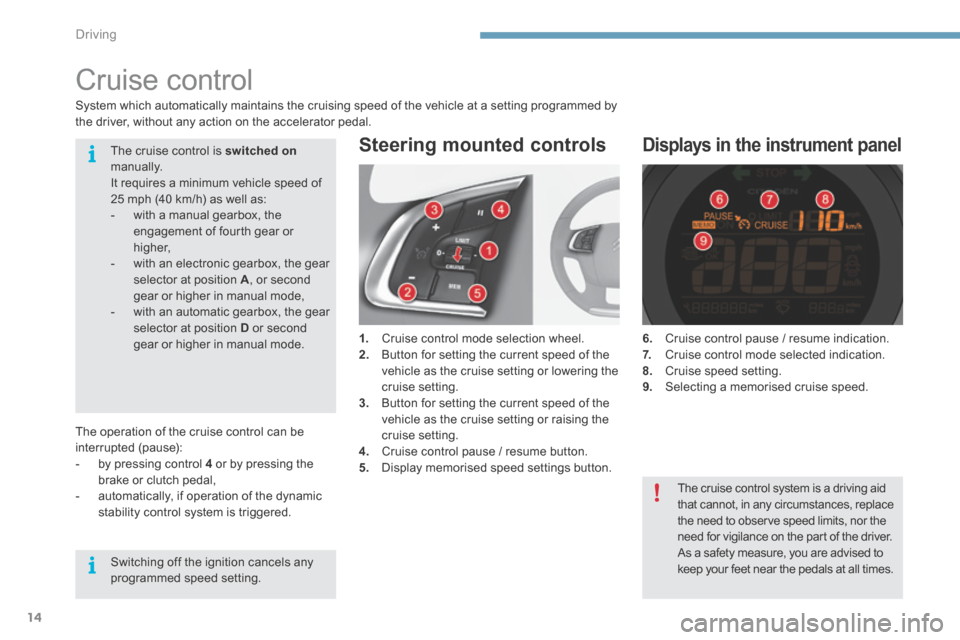

Cruise control
1. Cruise control mode selection wheel. 2. Button for setting the current speed of the vehicle as the cruise setting or lowering the cruise setting. 3. Button for setting the current speed of the vehicle as the cruise setting or raising the cruise setting. 4. Cruise control pause / resume button. 5. Display memorised speed settings button.
Steering mounted controls
6. Cruise control pause / resume indication. 7. Cruise control mode selected indication. 8. Cruise speed setting. 9. Selecting a memorised cruise speed.
Displays in the instrument panel
System which automatically maintains the cruising speed of the vehicle at a setting programmed by the driver, without any action on the accelerator pedal.
The operation of the cruise control can be interrupted (pause): - by pressing control 4 or by pressing the brake or clutch pedal, - automatically, if operation of the dynamic stability control system is triggered.
The cruise control is switched onmanually. It requires a minimum vehicle speed of 25 mph (40 km/h) as well as: - with a manual gearbox, the engagement of fourth gear or higher, - with an electronic gearbox, the gear selector at position A , or second gear or higher in manual mode, - with an automatic gearbox, the gear selector at position D or second gear or higher in manual mode.
Switching off the ignition cancels any programmed speed setting.
The cruise control system is a driving aid that cannot, in any circumstances, replace the need to observe speed limits, nor the
need for vigilance on the part of the driver. As a safety measure, you are advised to keep your feet near the pedals at all times.

9
Driving15
C4-2-add_en_Chap09_conduite_ed01-2015

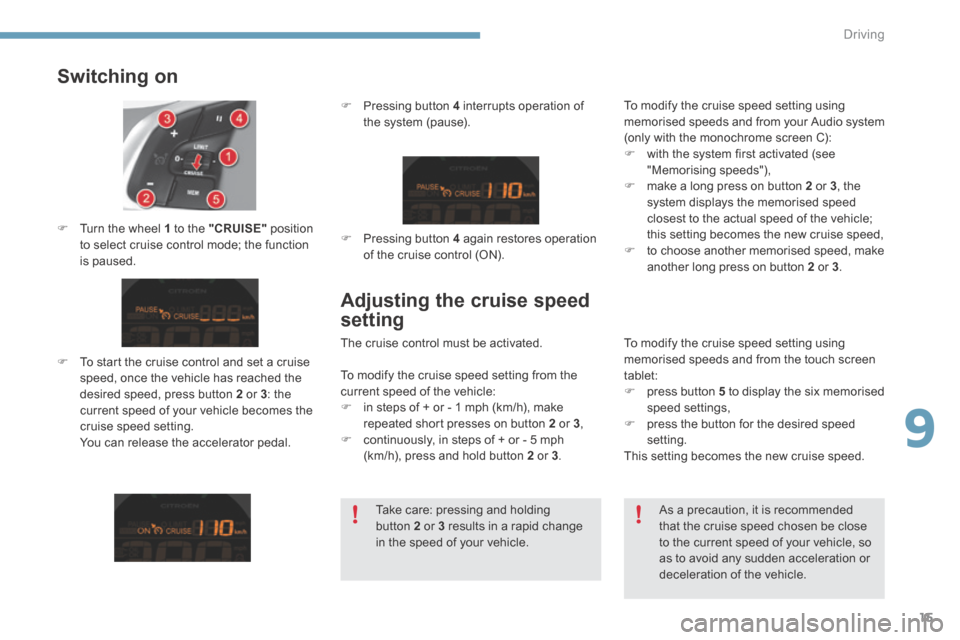

Switching on
 Turn the wheel 1 to the "CRUISE" position to select cruise control mode; the function is paused.
Adjusting the cruise speed
setting
The cruise control must be activated.
 To start the cruise control and set a cruise speed, once the vehicle has reached the desired speed, press button 2 or 3 : the current speed of your vehicle becomes the cruise speed setting. You can release the accelerator pedal.
 Pressing button 4 interrupts operation of the system (pause).
 Pressing button 4 again restores operation of the cruise control (ON).
As a precaution, it is recommended that the cruise speed chosen be close to the current speed of your vehicle, so as to avoid any sudden acceleration or deceleration of the vehicle.
Take care: pressing and holding button 2 or 3 results in a rapid change in the speed of your vehicle.
To modify the cruise speed setting from the current speed of the vehicle:  in steps of + or - 1 mph (km/h), make repeated short presses on button 2 or 3 ,  continuously, in steps of + or - 5 mph (km/h), press and hold button 2 or 3 .
To modify the cruise speed setting using memorised speeds and from your Audio system (only with the monochrome screen C):  with the system first activated (see "Memorising speeds"),  make a long press on button 2 or 3 , the system displays the memorised speed closest to the actual speed of the vehicle; this setting becomes the new cruise speed,  to choose another memorised speed, make another long press on button 2 or 3 .
To modify the cruise speed setting using memorised speeds and from the touch screen tablet:  press button 5 to display the six memorised speed settings,  press the button for the desired speed setting. This setting becomes the new cruise speed.

Driving
16
C4-2-add_en_Chap09_conduite_ed01-2015

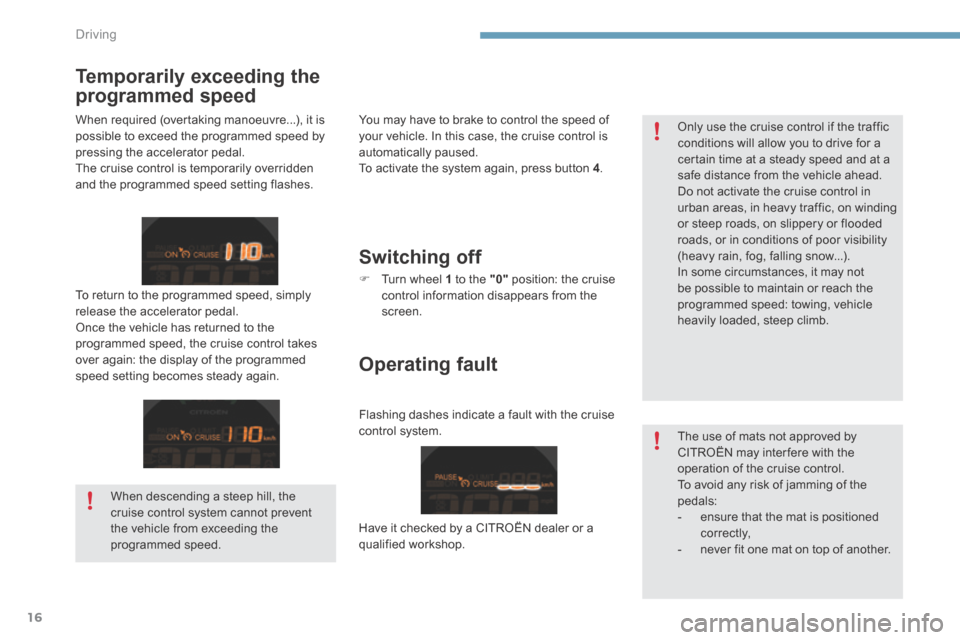

The use of mats not approved by CITROËN may inter fere with the operation of the cruise control. To avoid any risk of jamming of the pedals: - ensure that the mat is positioned
c o r r e c t l y, - never fit one mat on top of another.
Temporarily exceeding the
programmed speed
When required (overtaking manoeuvre...), it is possible to exceed the programmed speed by pressing the accelerator pedal. The cruise control is temporarily overridden and the programmed speed setting flashes.
To return to the programmed speed, simply release the accelerator pedal. Once the vehicle has returned to the programmed speed, the cruise control takes over again: the display of the programmed speed setting becomes steady again.
Only use the cruise control if the traffic conditions will allow you to drive for a certain time at a steady speed and at a safe distance from the vehicle ahead. Do not activate the cruise control in urban areas, in heavy traffic, on winding or steep roads, on slippery or flooded roads, or in conditions of poor visibility (heavy rain, fog, falling snow...). In some circumstances, it may not be possible to maintain or reach the programmed speed: towing, vehicle heavily loaded, steep climb.
When descending a steep hill, the cruise control system cannot prevent the vehicle from exceeding the
programmed speed.
You may have to brake to control the speed of your vehicle. In this case, the cruise control is automatically paused. To activate the system again, press button 4 .
Switching off
 Turn wheel 1 to the "0" position: the cruise control information disappears from the screen.
Operating fault
Flashing dashes indicate a fault with the cruise control system.
Have it checked by a CITROËN dealer or a qualified workshop.
