display Citroen C4 2015 2.G Owner's Manual

.
Audio and Telematics 73
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.
The ability of the system to connect with only one profile depends on the telephone. The two profiles may both connect by default.
Visit www.citroen.co.uk for more information (compatibility, additional help, ...).
The recognised telephone appears in the list.
Depending on your telephone, you may be asked to accept automatic connection every time the ignition is switched on.
On return to the vehicle, if the last telephone connected is present again, it is reconnected automatically and within around 30 seconds after switching on the ignition the pairing is done without any action on your part, with (Bluetooth activated). To modify the automatic connection mode, select the telephone in the list then select the desired profile.
Depending on the type of telephone, the system will ask you to accept or not the transfer of your contacts.
If not, select " Update ".
Connecting a Bluetooth ® Connecting a Bluetooth ® Connecting a Bluetooth
peripheral device
Automatic reconnection
On switching on the ignition, the telephone connected when the ignition was last switched off is automatically reconnected, if this connection mode had been activated during the pairing procedure.
The connection is confirmed by the display of a message and the name of the telephone.
Manual connection
Press on Telephone to display the primary page.
Press on the secondary page.
Select " Bluetooth " to display the list of paired peripherals.
Select the peripheral to connect.
Press on " Search ".
The connection is confirmed by the display of a message and the name of the telephone.

Audio and Telematics
74
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Managing paired
telephones
This function allows the connection or disconnection of a peripheral device as well as the deletion of a pairing.
Using the telephone is not recommended while driving. Park the vehicle. Make the call using the steering mounted controls. Press on Telephone to display the primary page.
Press on the secondary page.
Select " Bluetooth " to display the list of paired peripheral devices.
Select the peripheral in the list.
Select " Search for devices "
Or
" Connect / Disconnect " to start or end the Bluetooth connection with the selected device.
Or " Delete " to delete the pairing.
Receiving a call
An incoming call is announced by a ring and a superimposed display in the screen.
Make a short press on the steering mounted TEL button to accept an incoming call.
Make a long press
on the steering mounted TEL button to reject the call.
Or
Select " End call ".
Making a call
Calling a new number
Press on Telephone to display the primary page.
Enter the phone number using the digital keypad. Press " Call " to start the call.
Calling a contact
Press on Telephone to display the primary page.
Or make a long press
on the steering mounted TEL button.

.
Audio and Telematics 75
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

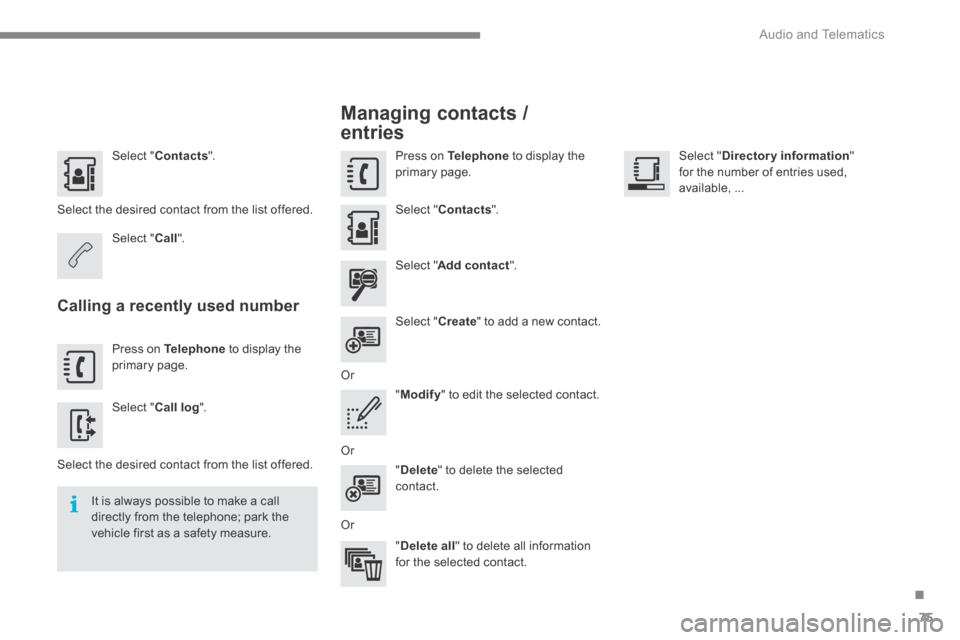

Select " Contacts ".
Select the desired contact from the list offered.
Select " Call ".
Calling a recently used number
Press on Telephone to display the primary page.
Select " Call log ".
Select the desired contact from the list offered.
It is always possible to make a call directly from the telephone; park the
vehicle first as a safety measure.
Managing contacts /
entries
Press on Telephone to display the primary page.
Select " Contacts ".
Select " Add contact ".
Select " Create " to add a new contact.
Or
" Modify " to edit the selected contact.
Or
" Delete " to delete the selected contact.
Or
" Delete all " to delete all information for the selected contact.
Select " Directory information " for the number of entries used, available, ...

.
Audio and Telematics 77
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

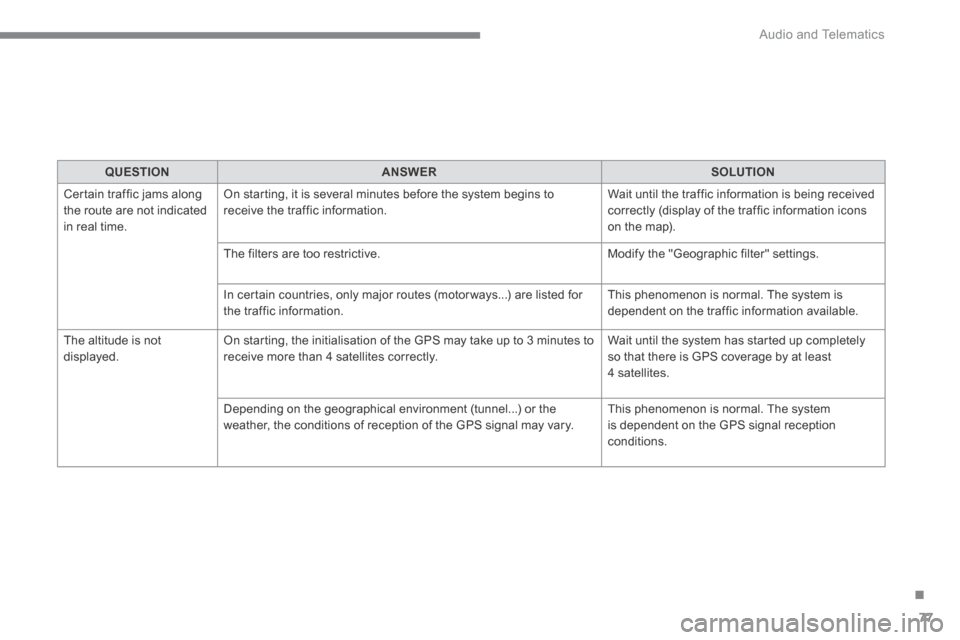

QUESTIONANSWERSOLUTION
Certain traffic jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the traffic information. Wait until the traffic information is being received correctly (display of the traffic information icons on the map).
The filters are too restrictive. Modify the "Geographic filter" settings.
In certain countries, only major routes (motor ways...) are listed for the traffic information. This phenomenon is normal. The system is dependent on the traffic information available.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 4 satellites correctly. Wait until the system has started up completely so that there is GPS coverage by at least 4 satellites.
Depending on the geographical environment (tunnel...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the GPS signal reception
conditions.

Audio and Telematics
78
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Radio
QUESTIONANSWERSOLUTION
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the "RDS" function by means of the short-cut menu to enable the system to check whether there is a more power ful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate a fault with the audio system.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
I cannot find some radio stations in the list of stations received.
The station is not received or its name has changed in the list.
Some radio stations send other information in place of their name (the title of the song for example). The system interprets this information as the name of the station. The name of the radio
station changes.

Audio and Telematics
80
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
QUESTIONANSWERSOLUTION
The CD player sound is p o o r. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
Some characters in the media information are not displayed correctly while playing.
The audio system does not display some types of characters. Use standard characters to name tracks and folders.
Playing of streaming files does not start. The peripheral device connected does not support automatic play. Start the playback from the device.
The names of tracks and the track length are not displayed on the screen when streaming audio.
The Bluetooth profile does not allow the transfer of this information.

.
Audio and Telematics 83
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Telephone
QUESTIONANSWERSOLUTION
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone may not be visible. - Check that your telephone's Bluetooth function is switched on. - Check in the telephone settings that it is "visible to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your telephone at www.citroen.co.uk (services).
The volume of the telephone connected in Bluetooth mode is inaudible.
The volume depends both on the system and on the telephone. Increase the volume of the audio system, to maximum if required, and increase the volume of the telephone if necessary.
The ambient noise level has an influence on the quality of telephone communication. Reduce the ambient noise level (close the windows, reduce the booster fan speed, slow down, ...).
Some contacts are duplicated in the list. The options for synchronizing contacts are synchronizing the contacts on the SIM card, the contacts on the telephone, or both. When both synchronizations are selected, some contacts may be duplicated.
Select "Display SIM card contacts" or "Display telephone contacts".
Contacts are not shown in alphabetical order. Some telephones offer display options. Depending on the settings chosen, contacts can be transferred in a specific order. Modify the display setting in the telephone di r e c to r y.
The system does not receive SMS text messages. The Bluetooth mode does not permit sending SMS text messages to the system.

.
Audio and Telematics
3
Internet browser


Authentication for Internet browsing via
a smartphone is done using the Dial-Up
Networking (DUN) standard.
Press on " Internet browser
" to
displays the browser's home page;
first connect your smartphone by
Bluetooth, option "Internet", see the
" Te l e p h o n e
" section.

Some smartphones of the latest
generation do not support this
standard.







Press on Connected services
to
display the primary page.

.
Audio and Telematics
5

Level 1

Level 2

Comments


Connected
services



Secondary page



Bluetooth
connection

Search
Start the search for a device to connect.

Connect / Disconnect
Start or end the Bluetooth connection to the
selected device.

Update
Import contacts from the selected telephone to
save them in the audio system.

Delete
Delete the selected telephone.

Confirm
Save the settings.

Connected
services



Secondary page



Tr a n s f e r r a t e

Reset

Reset the usage monitor, them confirm.

Confirm


Connected
services



Secondary page



WiFi connection

All
Display all Wi-Fi networks.

Secure
Display secure Wi-Fi networks.

Stored
Memorise the selected Wi-Fi network(s).

Add
Add a new Wi-Fi network.

Off/
On
Activate or deactivate a Wi-Fi network.

Connect
Select a Wi-Fi network found by the system and
connect to it.

.
Audio and Telematics
7

As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary
.

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink
TM technology to be displayed
in the vehicle's screen.
As the principles and standards are
constantly evolving, it is recommended
that you update the operating system of
your smartphone.
For the list of eligible smar tphones,
connect to the brand's internet website
in your country.
Please note:


- if your smartphone is supported, to
make it "MirrorLink
TM " compatible,
some phone manufacturers
nevertheless invite you to first
download a dedicated application.

- iPhone
®
is not supported yet; an
Apple ® application, "CarPlay ®
", is
being developed.



When connecting a smartphone to
the system, it is recommended that
Bluetooth
® be started on the smartphone


Start the application on the
smartphone (optional, depending
on the smartphone and operating
system).
Access to the different audio sources remains
accessible in the margin of the MirrorLink
TM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons

If the smartphone is locked,
communication with the system is only
by USB cable.
During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press " MirrorLink

TM
" to start
the application in the system.
Once connection is established, an
" Applications
" page is displayed with the
list of applications already downloaded to
your smartphone and adapted to MirrorLink
TM
technology.
If only one application has been downloaded to
the smartphone, it starts automatically.



MirrorLink TM
smartphone
connection

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.
Voice recognition requires a compatible
smartphone connected to the vehicle by
Bluetooth.








Voice recognition


As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
From the system, press " Connected
services
" to display the primary
page.
