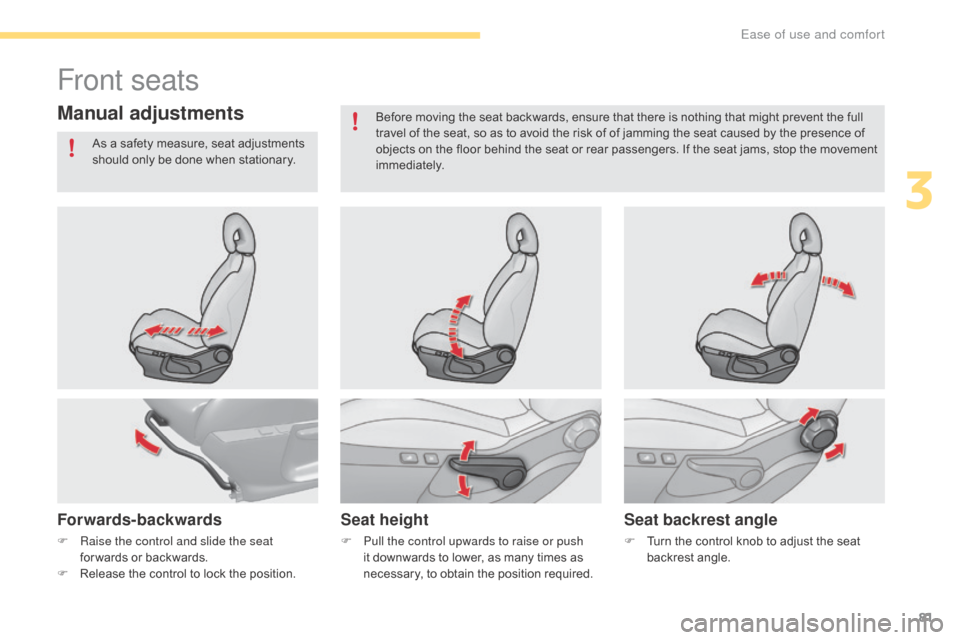

Front seats
Manual adjustments
Forwards-backwardsSeat heightSeat backrest angle
F Raise the control and slide the seat
for wards   or   backwards.
F

R
elease   the   control   to   lock   the   position.F
P ull the control upwards to raise or push
it   downwards   to   lower,   as   many   times   as
n

ecessary,   to   obtain   the   position   required.F
 T urn   the   control   knob   to   adjust   the   seat  b
ackrest   angle.
As
  a   safety   measure,   seat   adjustments
s

hould   only   be   done   when   stationary.
Before   moving   the   seat   backwards,   ensure   that   there   is   nothing   that   might   prevent   the   full
t

ravel   of   the   seat,   so   as   to   avoid   the   risk   of   of   jamming   the   seat   caused   by   the   presence   of
o

bjects   on   the   floor   behind   the   seat   or   rear   passengers.   If   the   seat   jams,   stop   the   movement
i

mmediately.
3
Ease of use and comfort

82
C4-2_en_Chap03_ergonomie-et-confort_ed02-2015

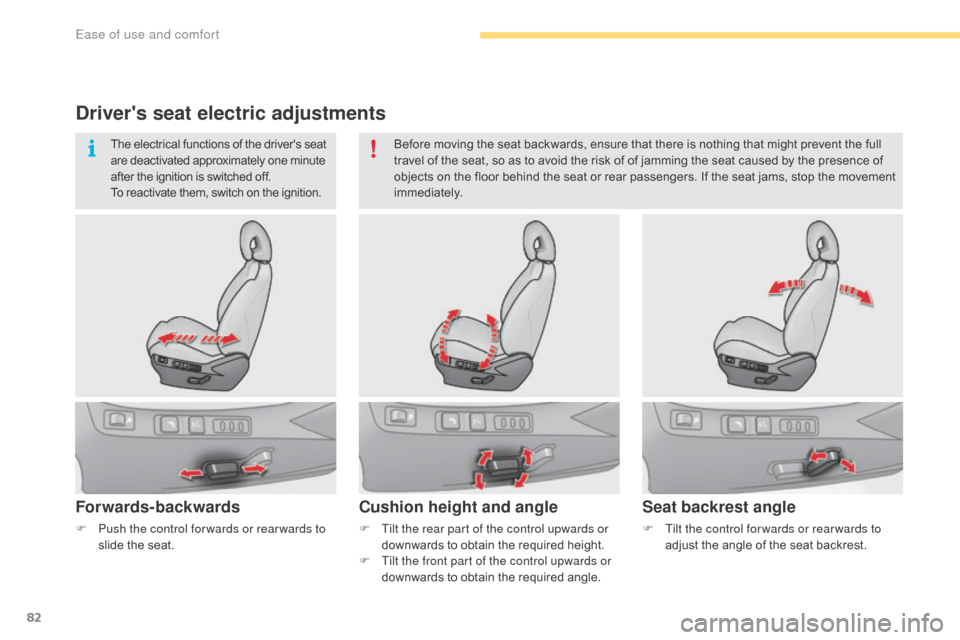

Driver's seat electric adjustments
Forwards-backwards
F Tilt the rear part of the control upwards or downwards   to   obtain   the   required   height.
F

T
ilt the front part of the control upwards or
downwards
  to   obtain   the   required   angle.
Cushion height and angle
F Tilt the control for wards or rear wards to adjust   the   angle   of   the   seat   backrest.
Seat backrest angle
F Push the control for wards or rear wards to slide   the   seat. Before
  moving   the   seat   backwards,   ensure   that   there   is   nothing   that   might   prevent   the   full
t

ravel   of   the   seat,   so   as   to   avoid   the   risk   of   of   jamming   the   seat   caused   by   the   presence   of
o

bjects   on   the   floor   behind   the   seat   or   rear   passengers.   If   the   seat   jams,   stop   the   movement
i

mmediately.
The   electrical   functions   of   the   driver's   seat
 a

re   deactivated   approximately   one   minute
 a

fter   the   ignition   is   switched   off.
To   reactivate   them,   switch   on   the   ignition.
Ease of use and comfort

83
C4-2_en_Chap03_ergonomie-et-confort_ed02-2015
Additional adjustments
Head restraint height and angle
F To  raise   a   head   restraint,   pull   it   upwards.
F  T o   lower   the   head   restraint,   press   the   lug   A
and
  the   head   restraint   at   the   same   time.
F

T
o   adjust   the   angle   of   the   head   restraint,   tilt
i

ts   lower   part   for wards   or   rear wards.
Heated seats control
With the engine running, the front seats can be heated s eparately.
F

U
se   the   adjustment   dial,   placed   on   the   side
o

f each front seat, to switch on and select
the
  level   of   heating   required:
0:

  Off.
1:

  Low.
2:

  Medium.
3:

  High.
Removing a head restraint
F To  remove   the   head   restraint,   press   the  l
ug A   and   pull   the   head   restraint   upwards.
F

T
o   put   the   head   restraint   back   in   place,
e

ngage   the   head   restraint   stems   in   the
o

penings   keeping   them   in   line   with   the   seat
b

ack   and   press   the   lug   A   at   the   same   time.
The

head

restraint

is

fitted

with

a

frame

w

ith

notches

which

prevents

it

from

l

owering;

this

is

a

safety

device

in

case

o

f

impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head. Never drive with the head restraints
removed;
  they   must   be   in   place   and
adj

usted
 c
orrectly.
3
Ease of use and comfort

86
C4-2_en_Chap03_ergonomie-et-confort_ed02-2015

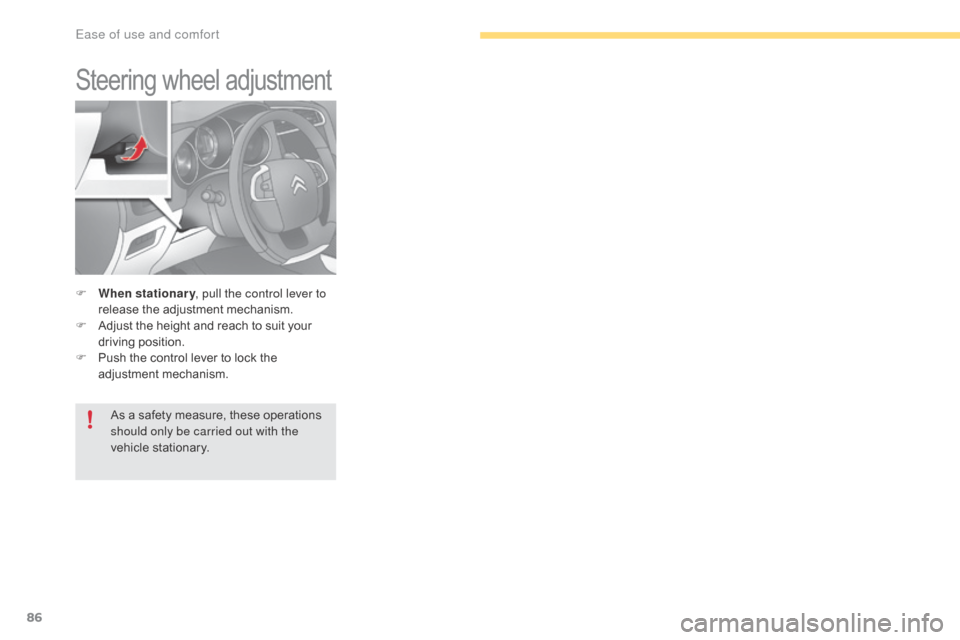

Steering wheel adjustment
F When stationary , pull the control lever to
release   the   adjustment   mechanism.
F

A
djust   the   height   and   reach   to   suit   your
d

riving   position.
F

P
ush   the   control   lever   to   lock   the
a

djustment
 m
echanism.
As
  a   safety   measure,   these   operations
s

hould only be carried out with the
vehicle
  stationary.
Ease of use and comfort

110
C4-2_en_Chap03_ergonomie-et-confort_ed02-2015

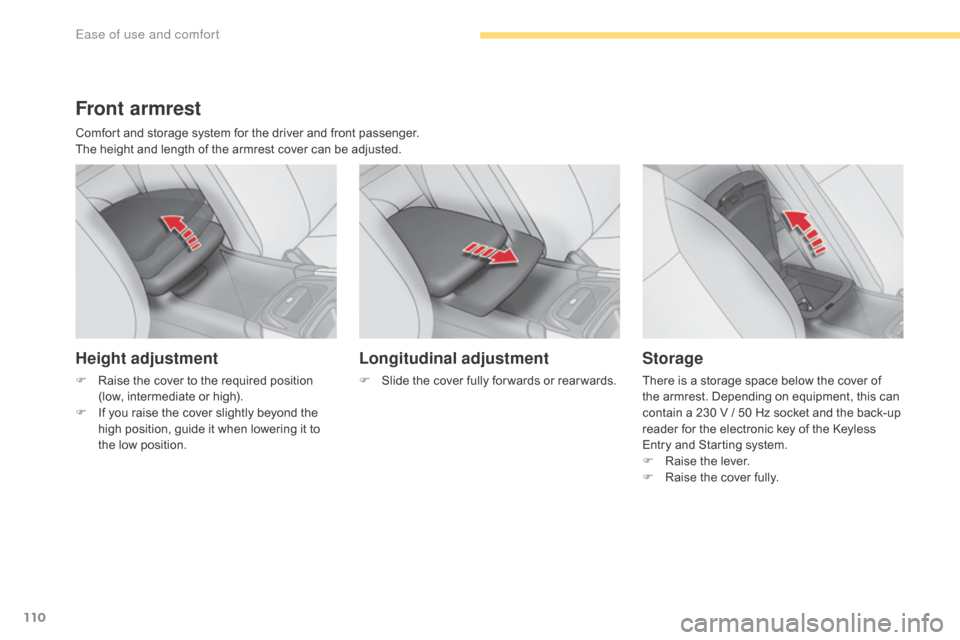

Front armrest
Comfort and storage system for the driver and front passenger.
T he   height   and   length   of   the   armrest   cover   can   be   adjusted.
Height adjustment
F Raise  the   cover   to   the   required   position  (
low,   intermediate   or   high).
F

I
f   you   raise   the   cover   slightly   beyond   the
h

igh   position,   guide   it   when   lowering   it   to
t

he   low   position.
Longitudinal adjustment
F Slide  the   cover   fully   for wards   or   rear wards.
Storage
There is a storage space below the cover of t
he   armrest.   Depending   on   equipment,   this   can
c

ontain   a   230   V   /   50   Hz   socket   and   the   back-up
r

eader   for   the   electronic   key   of   the   Keyless
E

ntry   and   Starting   system.
F

Ra
ise
 t
he
 l
ever.
F

R
aise   the   cover   fully.
Ease of use and comfort

132
