display Citroen C4 AIRCROSS 2012 1.G Owner's Guide

1
57
Monitoring

System screen
Once in the "Settings" menu, select "System" to modify the time zone, the units, or the display
language (English, Dutch, Swedish, French,
Portuguese, Italian, German, Spanish or
Danish) and adjust other settings.

Equipment screen
Once in the "Settings" menu, select
"Equipment" to activate or deactivate certain
drivin
g and comfor t systems, or to adjust settings.

"Settings" menu
On the control panel, press the SETbutton toopen the menu.
Remotecontrol:- operation of the direction indicators whenlocking and unlocking the vehicle.
Keyless Entry and Star ting system:
- operation of the direction indicators whenlocking and unlocking the vehicle,
- operation of the Keyless Entry and Starting system (only for unlocking, only for star ting,
or both).
Wi
pers:
- intermittent operation of the windscreen
wipers,
- operation of the front screenwash
associated with the wipers,
- ad
just the frequency of rear wiper
operation,
- continuous operation of the rear wiper,
- wiper linked to reverse gear.
Interior
/ exterior lighting:- sensitivity of the sensor for automatic
illumination of headlamps,
- guide-me-home lighting (activation/deactivation),
- welcome lighting (activation/deactivation),
Electric windows
:


- operating period after switching off the
ignition.
Direction indicators:

- motorway function.
Central lockin
g :


- selective unlocking.

- automatic door unlocking,

- timin
g of the automatic re-locking of the
vehicle after unlocking,

- deadlocking (activation/deactivation).
Other
s:

- automatic folding of the door mirrors,

- automatic cut of power supply to accessories.

- alarm (adjustment of sensor sensitivity,
activation/deactivation).


- operatin
g period for courtesy lamps after closing a door,

- automatic headlamp dipping (activation/deactivation),

- timin
g before automatic cour tesy lampsgo off,

- automatic lighting linked to the wipers.

58
Monitoring
The digital clock is set automatically.yThis mode enables the system to set the local
time automatically using the signal from theRDS stations. )On the control panel, press button A(SET)
to access the "Settings"
menu.
)
On the touch screen, press button B
toaccess the "System"menu.
The system settings screen is displayed.

You must deactivate automaticadjustment (RDS Auto Correct) to change the time zone and summer time settings. On each screen, you can return to theprevious screen by pressing button D"Back".
)
Press button C
to access the "Time"
menu.
1.RDS Auto Correct: Activate / deactivate automatic adjustment. 2.GMT / GMT+1 / GMT+2
Select the time zone. 3.Summer Time: Summer time On / Off.)Press button Dto confirm and return to theprevious menu.
Once this menu has been selected, you can
access the following functions:

108
Driving

For Diesel vehicles, when the engine is cold star ting does not take place until thepre-heater warning lamp has gone off.


If one of the star ting conditions is not met, a reminder message appears inthe instrument panel screen. In somecircumstances, it is necessary toturn the steering wheel slightly whilepressing the "START/STOP" buttonto assist unlocking of the steering; a message warns you when this isneeded.
The presence of the electronic keyin the defined zone is essential. For
reasons of safety, do not leave this area when the engine is running.


Switching off using the
electronic key


If the vehicle is not immobilised, theengine will not stop.
This message is displayedwhen the driver's door isopened and the vehicle is not
in "OFF" mode.
)Press the "STA R T/STOP" button again to change to "OFF" mode.
)Immobilise the vehicle.
)Place the gear lever in neutral for vehicles fitted with a manual gearbox , or on Pfor
vehicles fitted with a CVT gearbox . )With the electronic key inside the vehicle, press the " START/STOP
" button.
The engine stops.
The steering locks when a door is opened or on
locking the vehicle. Each attempt at star tin
g takes around
15 seconds. If the en
gine does not star t, press
the "START/STOP
" button once more to tryagain.
The presence of the electronic key inthe vehicle is essential for switching on the ignition and star ting only. Oncethe engine has started, make surethat the electronic key remains with the vehicle until the end of the journey: other wise you would not be able to lock the vehicle.

109
4
Driving
Once the engine has started, you can remove the electronic key from itshousing A
and close the glove box.


Back-up starting with the
electronic key
The message is displayed
when you open the driver's
door and the electronic keyhas not been removed fromits location A. Remember to take the electronic key with you when you leave the vehicle.
) Press the brake pedal on vehicles fitted
with a CVT gearbox or depress the clutch
pedal fully on vehicles with a manual gearbox.
) Press the "STA R T/STOP
" button.

When the electronic ke
y is in the defined zone
and your vehicle does not star t after pressingthe "START/STOP" button: )Open the glove box. )Inser t the electronic key in the location A.


Emergency stop with the
electronic key

During an emergency stop, the braking servo assistance and steering power assistance functions are no longer provided. Take great care.
In the event of an emergency only, theyengine can be stopped without any conditions.
To do this, press and hold the "STA R T/STOP " button for about 3 seconds or make 3
successive presses on the button.
The engine stops and the vehicle goes into
"ACC" mode.

116
Driving
Manual gear changing
In the automated mode, you can take over
control temporarily at any time using thesteering mounted controls.
The use of these controls permits manualselection of the gears in situations whichrequire a faster change down than that offered
in automated mode (arrival at a roundabout, exit from a car park with a steep gradient,
over taking...).
The gearbox engages the gear requested if
the engine speed permits it. The gear engaged appears.
To return to the automated mode, do one of thefollowing:
- press the back of the "+/OFF"steering mounted control 3for approximately2 seconds,
- move the gear lever quickly towardsposition +/-
and then return it to position D ,
- stop the vehicle.


Stopping the vehicle
Operating fault

With the ignition on, if the message "Slow
down"
or "Service required"
appears in
the instrument panel screen, this indicates a
gearbox malfunction.
When a message is displayed, carry out thefollowing operations:


- slow down and stop your vehicle in a safe place,

- place the lever in position P
and let the engine run,

- open the bonnet to allow the engine to cool.
If the message disappears for a long period, you can set off again.
If the message remains displayed or appears
frequently, contact a CITROËN dealer or aqualified workshop without delay. Before switchin
g off the engine, you must place
the gear lever in position P.P You must apply the parking brake to immobilise
the vehicle.

122
Driving

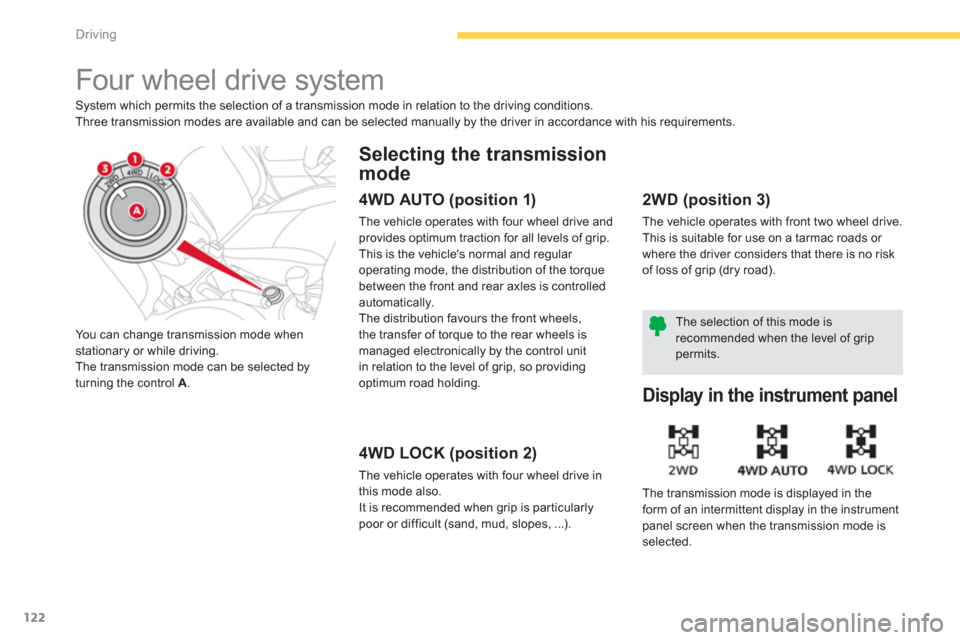

Four wheel drive system
System which permits the selection of a transmission mode in relation to the driving conditions.
Three transmission modes are available and can be selected manually by the driver in accordance with his requirements.
You can chan
ge transmission mode when stationary or while driving.
The transmission mode can be selected byturning the control A .

Selecting the transmission
mode


4WD AUTO (position 1)

The vehicle operates with four wheel drive and
provides optimum traction for all levels of grip.
This is the vehicle's normal and regular
operating mode, the distribution of the torque between the front and rear axles is controlled
automatically.
The distribution favours the front wheels,
the transfer of torque to the rear wheels is
mana
ged electronically by the control unit
in relation to the level of grip, so providing
optimum road holding.


4WD LOCK (position 2)

The vehicle operates with four wheel drive in
this mode also.
It is recommended when grip is par ticularly
poor or di
fficult (sand, mud, slopes, ...).


2WD (position 3)

The vehicle operates with front two wheel drive.
This is suitable for use on a tarmac roads or
where the driver considers that there is no riskof loss of grip (dry road).
Display in the instrument panel
The transmission mode is displayed in the
form of an intermittent display in the instrumentpanel screen when the transmission mode is
selected.
The selection of this mode isrecommended when the level of grippermits.

123
4
Driving
As the engine torque is applied to all four wheels, the condition of the tyres
has a considerable impact on theperformance of the vehicle. Ensure that all four tyres are in good condition. Avoid driving the vehicle in sandy or muddy areas or in other areas in whichthe wheels could spin. Spinning the wheels places thetransmission components under pressure and could cause a seriousmalfunction. Do not drive the vehicle through deep water. Avoid driving over excessively uneventerrain (risk of scraping under the body or of grounding on crossing a bridge).


Operating faults

If the selected transmission mode display flashes, the vehicle switches automatically to front "2WD"
transmission mode.
It is then no longer possible to select the
transmission mode using the control A
.
If the message "SLOW DOWN" is displayed on
the instrument panel, let the transmission cool
down then wait for the displa
y to clear beforesetting off again.
If "4WD" and "LOCK" are displayed alternatelyand if "SERVICE REQUIRED" is displayed in
the instrument panel, the system has failed and
the safety system has been activated.
Contact a CITROËN dealer or a qualified
workshop without dela
y.
Have your vehicle towed on a flatbed. The vehicle must not be towed with the front or rear wheels on the ground evenif it is in front "2WD" (2 wheel drive)mode.

124
Driving

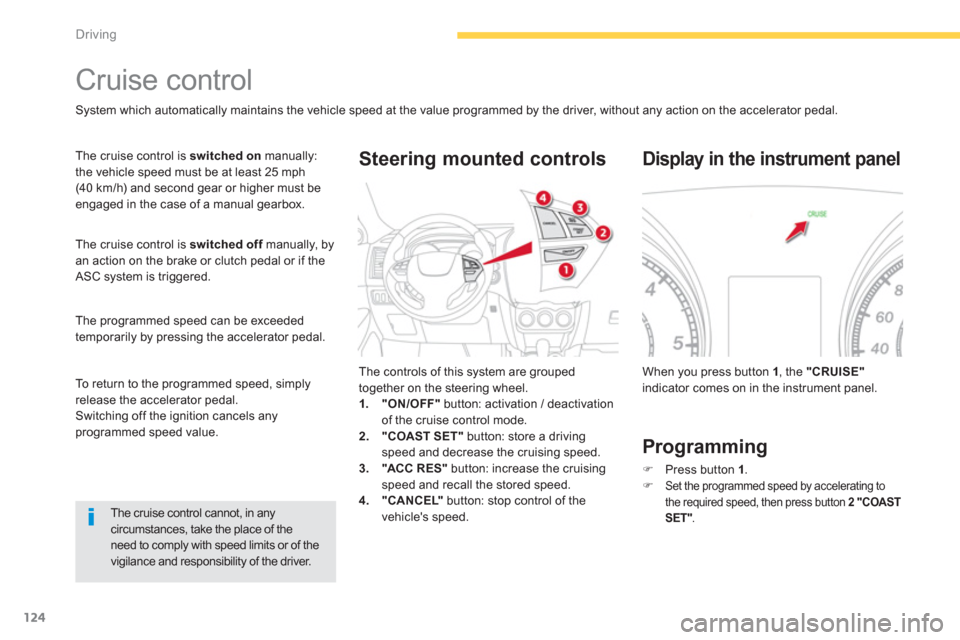

Cruise control
System which automatically maintains the vehicle speed at the value programmed by the driver, without any action on the accelerator pedal.
The cruise control is switched on
manually:
the vehicle speed must be at least 25 mph(40 km/h) and second gear or higher must be engaged in the case of a manual gearbox.
Th
e cruise control is switched offmanually, byfan action on the brake or clutch pedal or if theASC system is triggered.
The pro
grammed speed can be exceeded
temporarily by pressing the accelerator pedal.
The cruise control cannot, in any circumstances, take the place of the need to comply with speed limits or of the vigilance and responsibility of the driver. The controls o
f this system are grouped
together on the steering wheel.1."ON/OFF"
button: activation / deactivation of the cruise control mode.
2
."COAST SET"button: store a drivingspeed and decrease the cruising speed. 3."ACC RES"
button: increase the cruising speed and recall the stored speed.4."CANCEL"button: stop control of the
vehicle's speed.

Steering mounted controls
When you press button 1, the "CRUISE"indicator comes on in the instrument panel.

Display in the instrument panel


Programming
)Press button 1.)Set the programmed speed by accelerating to
the required speed, then press button 2 "COAST SET".
To return to the programmed speed, simply release the accelerator pedal.
Switching off the ignition cancels any programmed speed value.

129
4
Driving

Visual assistance
Front par king sensors
Deactivation / Activation of thefront and rear parking sensors
The function is deactivated by pressing this
button. The indicator lamp in the button goes
off.
Pressing this button again reactivates the
function. The indicator lamp in the button
comes on.

Operating fault

The front parking sensors are triggered when
an obstacle is detected in front, a gear isengaged (position Dfor vehicles with a CVT gearbox) and the speed of the vehicle remains
below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than five seconds
in for ward
gear, if no fur ther obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
Remember to deactivate the system if towing a trailer or caravan.



In bad weather or in winter, ensure thatthe sensors are not covered with mud, ice or snow. When the vehicle is moving at a speed below 6 mph (10 km/h), cer tain soundsources (motorcycle, lorry, pneumatic drill, etc.) may trigger the audible signals of the parking sensor system.
In the event o
f an problem, when reverse gear
is engaged this lamp in the button flashes,
accompanied by an audible signal.This supplements the audiblesignal by displaying bars in the screen, in front of or behind the
vehicle.If one of the sensors is fault
y, it
flashes in the instrument panel
screen.
Contact a CITROËN dealer or a
qualified
workshop. Th
ese bars flash at the start of the manoeuvrethen become fixed from a certain distance between the vehicle and the obstacle.

132
Visibility
Model without AUTO lighting
Model with AUTO lighting

Manual controls
The lighting is controlled directly by the driver by means of the ring A
and the stalk B
.
Lamps o
ff.
Automatic illumination of headlamps.
Sidelamps.
Dipped headlamps or main beam headlamps.


Displays

Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.
A. Main lighting mode selection ring: turn it
to position the symbol required facing the
mark.
B. Stalk for switching headlamps: pull the stalk
towards you to switch the lighting betweendipped and main beam headlamps.
In the lamps o
ff and sidelamps modes, thedriver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a pull on the stalk.
