Citroen C4 AIRCROSS 2015 1.G Owner's Manual

04
319
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014
RADIO
The "Radio Data System" (R d S) function on the FM waveband
permits:
-

access to the display of information, such as the name of the
station, ...
-


listening to the same station while travelling through dif
ferent
regions,
-

temporary tuning to traffic information announcements.
Most FM stations use RDS.

These stations transmit non-audible
data in addition to their programmes.
The data transmitted in this way allows you access to various
functions, mainly displaying of the name of the station, automatic
retuning to alternative frequencies or temporary retuning to traffic
information announcements.
RDS allows you to continue listening to the same station by means
of alternative frequencies that carry the same station. However, in
certain conditions, RDS alternative frequencies may not be provided
throughout the country. Radio stations do not cover the whole
country, which explains the loss of reception of the station during a
journey. "AF" alternative frequencies
Your radio automatically checks and selects the best frequency for
the radio station to which it is tuned (if the station broadcasts on
several transmitters or frequencies).
The frequency of a radio station covers approximately 30 miles
(50 km). The change from one frequency to another explains the
temporary loss of reception during a journey.
If the station to which you are listening does not have several
frequencies in the region in which you are currently located, you can
deactivate alternative frequencies.
Some stations are organised in a network.
In different regions, they broadcast different or shared programmes
depending on the time of day.
You can follow:
-

a regional station only
,
-

the entire network, with the possibility that you will be listening
to a dif

ferent programme.
REG regional mode
On long distance journeys, when the stored station becomes weak,
the radio searches first for another frequency for the same station
(AF). Then, if this fails, it searches for a frequency broadcasting the
regional programme (REG). If this also fails, the radio returns to the
stored station.
RDS
Press the MENU button.
Press the SEL knob repeatedly to
select the RDS mode: "AF", "REG"
and "TP" then turn the knob to select
the desired value.

04
320
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014
RADIO

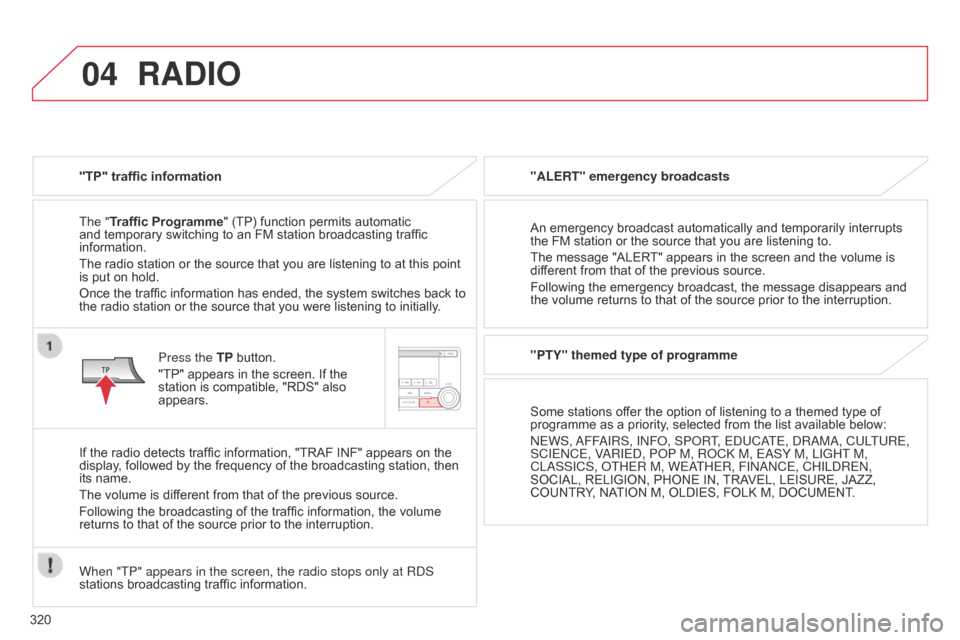

"TP" traffic information
The "Traffic Programme" (TP) function permits automatic
and temporary switching to an FM station broadcasting traffic
information.
The radio station or the source that you are listening to at this point
is put on hold.
Once the traffic information has ended, the system switches back to
the radio station or the source that you were listening to initially.
Press the TP button.
"TP" appears in the screen. If the
station is compatible, "RDS" also
appears.
If the radio detects traffic information, "TRAF INF" appears on the
display, followed by the frequency of the broadcasting station, then
its name.
The volume is different from that of the previous source.
Following the broadcasting of the traffic information, the volume
returns to that of the source prior to the interruption.
When "TP" appears in the screen, the radio stops only at R
d S
stations broadcasting traffic information. "ALERT" emergency broadcasts
An emergency broadcast automatically and temporarily interrupts
the FM station or the source that you are listening to.
The message "ALERT" appears in the screen and the volume is
different from that of the previous source.
Following the emergency broadcast, the message disappears and
the volume returns to that of the source prior to the interruption.
"PTY" themed type of programme
Some stations offer the option of listening to a themed type of
programme as a priority, selected from the list available below:
n

EWS, AFFAIRS, I n F o , SP o RT, E d UCATE, d RAMA, CULTURE,
SCIE
n CE, VARIE d , P o P

M, R o C k M, EASY

M, LIGHT

M,
CLASSICS,
o THER M, WEATHER, FI n A n CE, CHIL d RE n ,
SOCIAL, RELIGION, PHONE
IN, TRAVEL, LEISURE, JAZZ,
COUNTRY, NATION
M, OLDIES, FOLK M, DOCUMENT.

04

321
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014
RADIO
Search for a "PTY" broadcastPress the PTY/SCAN button.
Ten seconds after reception, the PTY mode is cancelled. Press one of the six buttons "1" to "6" for more than
two seconds.
The sound cuts out then becomes audible again
when the programme has been stored.
The number of the button and the associated PTY
programme appear in the screen. Presetting a "PTY" programme
You can preset up to six PTY programmes.
Each new programme stored replaces the previous one.
Turn the SEL knob to select PTY
mode; the symbol flashes and an
automatic search is made.
o

nce the station has been found, its
name appears in the screen.
Press the "9" or ":" buttons to find
another station. Press the PTY/SCAN button.
Turn the SEL knob to select PTY
mode, then press one of the six
buttons "1" to "6" to define the preset
location.

04
322
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014
RADIO
Changing the display language of the "PTY" programmeFunctions setting mode
This permits activation or deactivation
of the functions below.
Press the SEL knob repeatedly; the
setting mode for the functions changes
in the following order
: GRACENOTE
DB / AF / REG / TP-S / PI-S / PTY
(languages) / PH setting / CT


/ OFF.
The functions setting mode is deactivated after approximately
10 seconds without any action.
Press the MENU button.
Press the SEL knob repeatedly to
select the PTY lang mode.
Turn the SEL knob to select the
language (ENGLISH, FRANCAIS,
d

EUTSCH, SVE n S k , ESPAG no L,
ITALIANO). Press then MENU button.
Turn the SEL knob to the left to
deactivate the function ("
o FF") or to
the right to activate it ("ON").

05
323
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014
MUSIC MEDIA PLAYERS
This can play audio CDs (CD-DA, CD-Text, CD-R/RW) or
MP3
CDs. Ejecting a disc
CD player
Selecting CD mode
If the player already contains a disc,
press the MEDIA button.
"MEDIA", the track number and the
playing time appear in the screen.
Insert circular compact discs only.
8 cm compact discs must be inserted in the centre of the player slot. After inserting a disc, printed face upwards, the player starts
automatically. Press this button to remove the
disc from the player. The system
automatically switches to radio mode.
Once ejected, if the compact disc is not removed within
fifteen
seconds, it is reloaded into the player.

05

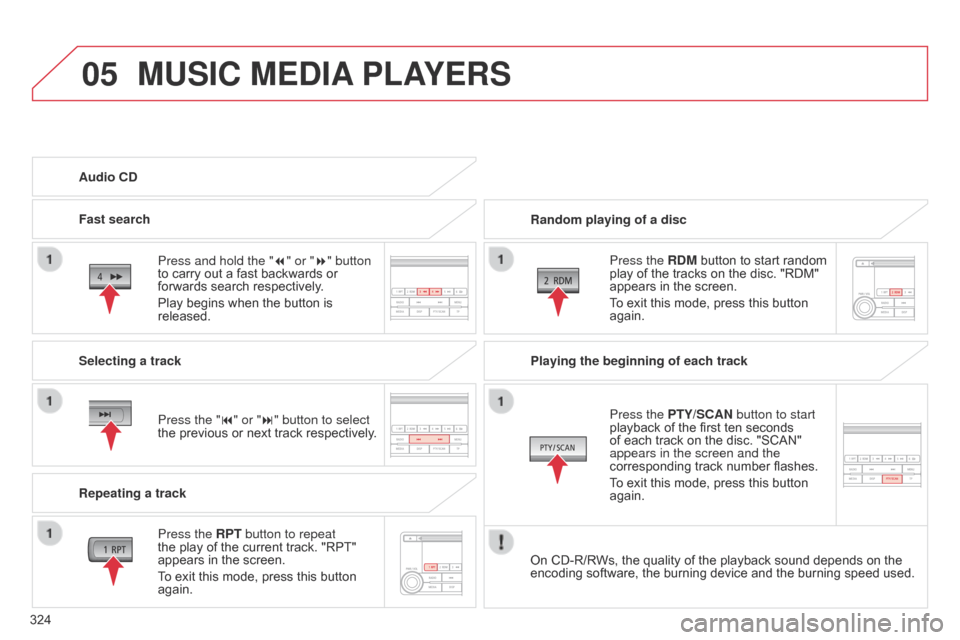

324
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014
MUSIC MEDIA PLAYERS
Random playing of a disc
Press the RDM button to start random
play of the tracks on the disc. "RDM"
appears in the screen.
To exit this mode, press this button
again.
Audio CD
Press and hold the " 7" or "8" button
to carry out a fast backwards or
forwards search respectively.
Play begins when the button is
released.
Fast search
Press the "9" or ":" button to select
the previous or next track respectively.
Selecting a track
Press the RPT button to repeat
the play of the current track. "RPT"
appears in the screen.
To exit this mode, press this button
again.
Repeating a track Playing the beginning of each track
Press the PTY/SCAN button to start
playback of the first ten seconds
of each track on the disc. "SCAN"
appears in the screen and the
corresponding track number flashes.
To exit this mode, press this button
again.
On CD-R/RWs, the quality of the playback sound depends on the
encoding software, the burning device and the burning speed used.

05
325
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014

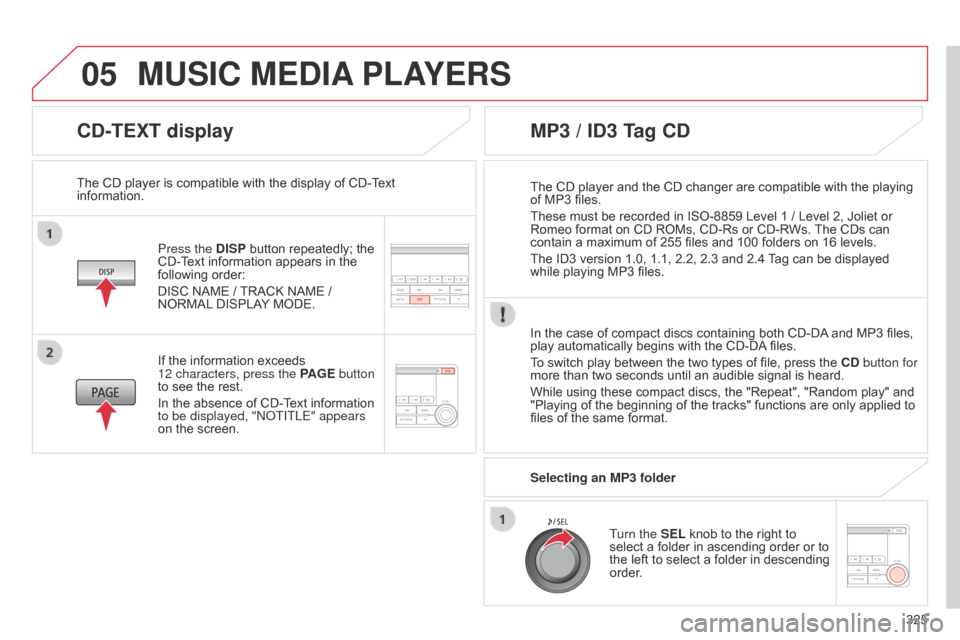

CD-TEXT display
Press the DISP button repeatedly; the
CD-Text information appears in the
following order:
DISC NAME / TRACK NAME /
NORMAL DISPLAY MODE.
The CD player is compatible with the display of CD-Text
information.
In the case of compact discs containing both CD-DA and MP3 files,
play automatically begins with the CD-DA files.
To switch play between the two types of file, press the CD button for
more than two seconds until an audible signal is heard.
While using these compact discs, the "Repeat", "Random play" and
"Playing of the beginning of the tracks" functions are only applied to
files of the same format.
If the information exceeds
12
characters, press the PAGE button
to see the rest.
In the absence of CD-Text information
to be displayed, "
no TITLE" appears
on the screen.
MP3 / ID3 Tag CD
Selecting an MP3 folder
Turn the SEL knob to the right to
select a folder in ascending order or to
the left to select a folder in descending
order.
The CD player and the CD changer are compatible with the playing
of MP3 files.
These must be recorded in ISO-8859 Level 1
/ Level 2, Joliet or
Romeo format on CD ROMs, CD-Rs or CD-RWs. The CDs can
contain a maximum of 255 files and 100 folders on 16 levels.
The ID3 version 1.0, 1.1, 2.2, 2.3 and 2.4 Tag can be displayed
while playing MP3 files.
MUSIC MEDIA PLAYERS

05
326
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014
MUSIC MEDIA PLAYERS
Repeating the tracks in a folder
Press the RPT button for more than
two seconds to repeat the playing of
the tracks contained in the current
folder. "D-RPT" appears in the screen.
To exit this mode, press this button
again.
Press the RDM button to start random
playing of the tracks in the current
folder. "RDM" appears in the screen.
To exit this mode, press this button
again. Playing the beginning of each track
MP3 / ID3 Tag display
Press the DISP button repeatedly;
the MP3 information appears in the
following order:
FOLDER NAME
/ TRACK NAME /
NORMAL DISPLAY MODE.
Press the PTY/SCAN button to start
playing the first ten seconds of each
track in all of the folders. "SCAN"
appears in the screen and the
corresponding track number flashes.
To exit this mode, press this button
again.
Random playing of a folder
Random playing of a disc Press the RDM button for more than
two seconds to start random playing of
the tracks in all of the folders. "D-RDM"
appears in the screen.
To exit this mode, press this button
again. When play begins, "READING" appears in the screen then
disappears to make way for the folder number, the track number,
the playing time and "MP3".

05
327
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014

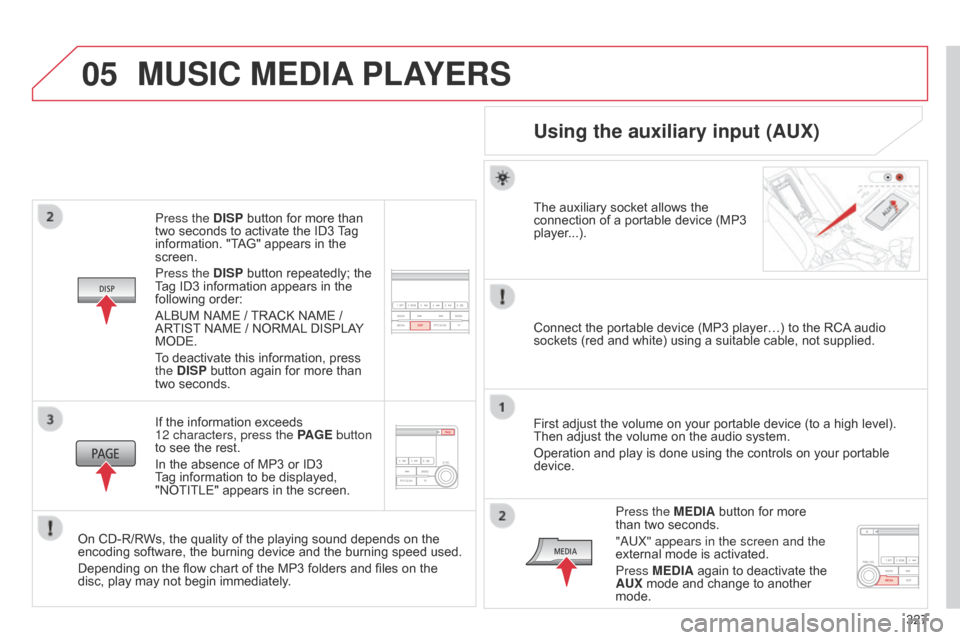

Press the DISP button for more than
two seconds to activate the ID3 Tag
information. "TAG" appears in the
screen.
Press the DISP button repeatedly; the
Tag ID3 information appears in the
following order:
ALBUM NAME / TRACK NAME /
ARTIST NAME
/ NORMAL DISPLAY
MODE.
To deactivate this information, press
the DISP button again for more than
two seconds.
If the information exceeds
12
characters, press the PAGE button
to see the rest.
In the absence of MP3 or ID3
Tag information to be displayed,
"NOTITLE" appears in the screen.
On CD-R/RWs, the quality of the playing sound depends on the
encoding software, the burning device and the burning speed used.
Depending on the flow chart of the MP3 folders and files on the
disc, play may not begin immediately.
MUSIC MEDIA PLAYERS
Using the auxiliary input (AUX)
The auxiliary socket allows the
connection of a portable device (MP3
player...).
Connect the portable device (MP3 player…) to the RCA audio
sockets (red and white) using a suitable cable, not supplied.
First adjust the volume on your portable device (to a high level).
Then adjust the volume on the audio system.
Operation and play is done using the controls on your portable
device.
Press the MEDIA button for more
than two seconds.
"AUX" appears in the screen and the
external mode is activated.
Press MEDIA again to deactivate the
AUX mode and change to another
mode.

06
328
C4-Aircross_en_Chap10d_Mitsu4_ed01-2014

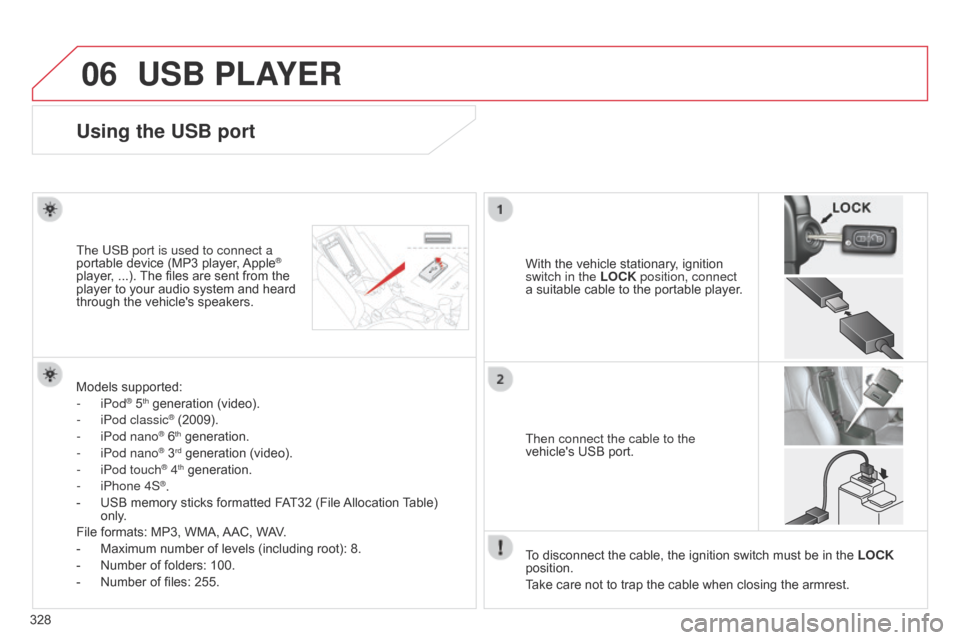

USB PLAYER
Using the USB port
With the vehicle stationary, ignition
switch in the LOCK position, connect
a suitable cable to the portable player.
The US
b
port is used to connect a
portable device (MP3 player, Apple®
player, ...). The files are sent from the
player to your audio system and heard
through the vehicle's speakers.
Then connect the cable to the
vehicle's USB port.
Models supported:
-

iPod
® 5th generation (video).
-

iPod classic® (2009).
-

iPod nano® 6th generation.
-

iPod nano® 3rd generation (video).
-

iPod touch® 4th generation.
-

iPhone 4S®.
-

USB memory sticks formatted F
AT32 (File Allocation Table)
only.
File formats: MP3, WMA, AAC, WAV.
-

Maximum number of levels (including root): 8.
-


Number of folders: 100.
-


Number of files: 255. T

o disconnect the cable, the ignition switch must be in the LOCK
position.
Take care not to trap the cable when closing the armrest.
