Safety

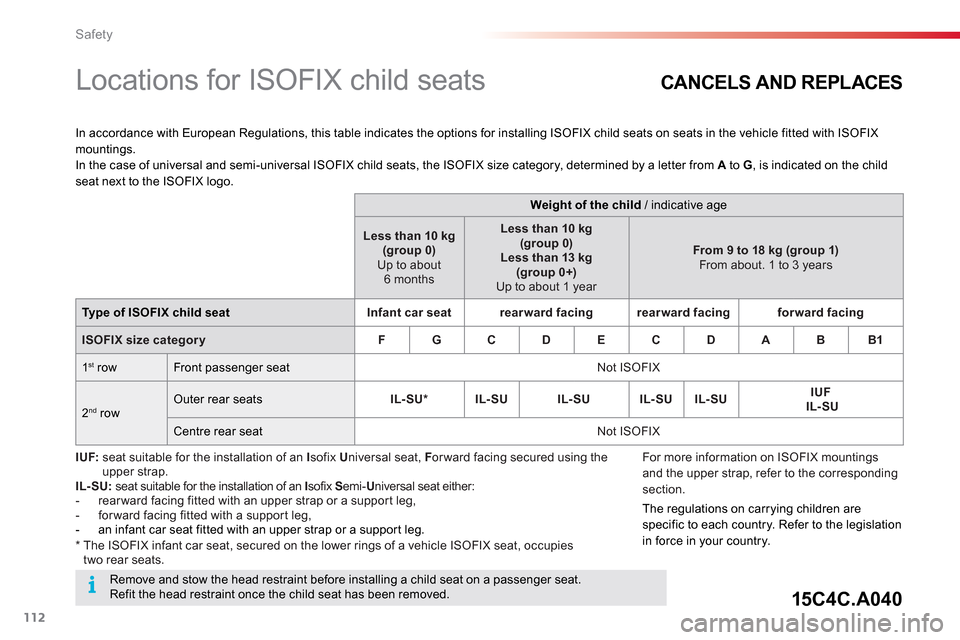

Locations for ISOFIX child seats


In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
, is indicated on the child
seat next to the ISOFIX logo.






IUF:
seat suitable for the installation of an I
sofix U
niversal seat, F
or ward facing secured using the
upper strap.

IL-SU:
seat suitable for the installation of an I
sofix S
emi- U
niversal seat either:


- rear ward facing fitted with an upper strap or a support leg,

- for ward facing fitted with a support leg,


- an infant car seat fitted with an upper strap or a support leg.







Weight of the child
/ indicative age


Less than 10 kg
(group 0)
Up to about
6 months



Less than 10 kg

(group 0)
Less than 13 kg
(group 0+)




Up to about 1 year


From 9 to 18 kg (group 1)

From about. 1 to 3 years


Type of ISOFIX child seat



Infant car seat



rearward facing



rearward facing



forward facing




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




1 st
row
Front passenger seat

Not ISOFIX


2
nd
row
Outer rear seats


IL-SU*



IL-SU



IL-SU



IL-SU



IL-SU



IUF

IL-SU




Centre rear seat

Not ISOFIX


Remove and stow the head restraint before installing a child seat on a passenger seat.
Refit the head restraint once the child seat has been removed.


For more information on ISOFIX mountings
and the upper strap, refer to the corresponding
section.
The regulations on carrying children are
specific to each country. Refer to the legislation
in force in your country.
15C 4 C. A0 4 0 CANCELS AND REPLACES
* The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies
two rear seats.
