CITROEN C4 CACTUS 2023 Owners Manual

169
CITROËN Connect Nav
11The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►
Press the "Update list" button in the "Radio
stations” secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►

Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
The CD is systematically ejected or is not
played.
The CD is upside down, cannot be read, does
not contain audio files or contains audio files of a
format not recognised by the audio system. ►


Check that the CD is inserted in the player
the right way up.
►

Check the condition of the CD: the CD cannot
be played if it is too badly damaged.
The CD has been burned in a format that is not
compatible with the player (udf, etc.).
►

Check the content if it is a burned CD:
consult the advice in the "AUDIO" section.
►

The audio system CD player does not play
DVDs.
The CD is protected by an anti-pirating system
not recognised by the audio system.
►

Due to poor quality
, certain burned CDs will
not be played by the audio system.
There is a long waiting period following the
insertion of a CD or connection of a USB
memory stick.
The system reads a variety of data (folder, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
The CD audio quality is poor.
The CD is scratched or of poor quality.
►

Insert good quality CDs and store them in
suitable conditions.
The audio settings (bass, treble, ambience) are
unsuitable.
►


Return bass and treble settings to 0, without
selecting an ambience.
Some characters in the information about
the media

currently being played are not
displayed correctly. The audio system is unable to process certain
types of character.
►

Use standard characters to name tracks and
folders.
Playback of files in audio streaming mode
does not start.
The connected device does not automatically
start playback.
►

Start playback from the device.
The names of tracks and playing times
are not displayed on the screen in audio
streaming mode.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the telephone may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telphone’
s
Bluetooth function.
The Bluetooth telephone is not compatible with
the system.
►

Y
ou can check that your telephone is
compatible on the Brand's website (services).
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.

170
CITROËN Connect Nav
► Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
►

Reduce the ambient noise level (close
windows, reduce ventilation, slow down, etc.).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.
►


Select "Display SIM card contacts" or
"Display telephone contacts".
The contacts are not listed in alphabetical
order

.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
The system does not receive SMS.
SMS text messages cannot be sent to the
system in Bluetooth mode.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa. ►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►

Modify the balance setting or the distribution
setting to obtain the desired sound quality
.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►
Check that the sound settings are appropriate
to the sources listened to. W
e recommend
setting the sound functions (Bass:, Treble:,
Balance) to the middle position, setting the
musical ambience to "None", setting loudness
correction to "Active" in USB mode and "Inactive"
in Radio mode.
►
In all cases, after applying sound settings,
adjust the volume level on the portable device (to
a high level) first.
Then adjust the volume level
on the audio system.
When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery. The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.
The date and time cannot be set.
Setting of the date and time is only available
if the synchronisation with the satellites is
deactivated.
►
Settings menu / Options /
Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).

171
Alphabetical index
A
ABS 52
Accessories
49
Active Safety Brake

85–87
AdBlue®

12, 104
AdBlue® tank

105
Additive, Diesel

102–103
Adjusting headlamps

44
Adjusting head restraints

28
Adjusting seat

27
Adjusting the air distribution

33–34
Adjusting the air flow

33–34
Adjusting the date

143, 167
Adjusting the height of the steering wheel

29
Adjusting the lumbar support

27
Adjusting the seat angle

27
Adjusting the temperature

33–34
Adjusting the time

143, 167
Advice on care and maintenance

37, 106–107
Advice on driving

6, 67
Airbags

55, 57, 59
Airbags, curtain

56–57
Airbags, front

56–57, 60
Airbags, lateral

56–57
Air conditioning

32, 34
Air conditioning, automatic

33–34
Air conditioning, manual

32, 34
Air intake

33–34
Air vents

31
Alarm

24
Anti-lock braking system (ABS)

52
Antitheft / Immobiliser 18
Apple CarPlay connection
139, 157
Armrest, front

37, 39
Assistance call

50
Assistance, emergency braking

52, 87
Audible warning

50
Audio streaming (Bluetooth)

138, 161–162
B
Battery 97–98, 121–122
Battery, 12 V
102, 122–124
Battery, charging

122–123
Battery, remote control

21–22
Blanking screen (snow shield)

96
Blind spot sensors

89
BlueHDi

12, 102, 108
Bluetooth (hands-free)

140–141, 163
Bluetooth (telephone)

140–141, 163–164
Bodywork

106
Bonnet

99–100
Boot

23–24, 37, 40
Brake discs

103
Brake lamps

11 7
Brakes

103
Braking assistance system

52
Braking, automatic emergency

85–87
Brightness

142
Bulbs

11 5
Bulbs (changing)

115–117
C
Cable, audio 161
Cable, Jack
161
Capacity, fuel tank

94–95
Cap, fuel filler

94–95
Care of the bodywork

106
CD

138, 161
CD, MP3

138, 161
Central locking

18–20
Changing a bulb

115–118
Changing a fuse

119–121
Changing a wheel

109, 111–112
Changing a wiper blade

46–47
Changing the remote control battery

22
Checking the engine oil level

11–12
Checking the levels

100–102
Checking tyre pressures
(using the kit)

108–109, 111
Checks

100, 102–103
Checks, routine

102–103
Child lock

65–66
Children

54, 60, 63–64, 65
Children (safety)

65–66
Child seats

54, 57–60
Child seats, conventional

60
Child seats, i-Size

65
Child seats, ISOFIX

62–63, 65
Cleaning (advice)

106
Closing the boot

23–24
Closing the doors

19–20
Coat hanger

39

172
Alphabetical index
Collision Risk Alert 85–86
Configuration, vehicle
13–14
Connection,
Bluetooth

140–141, 158–159, 163–164
Connection, MirrorLink

139–140, 157
Connection, Wi-Fi network

159
Container, AdBlue®

105
Control, electric windows

25
Control, emergency boot release

24
Control, emergency door

21–22
Control, heated seats

28
Control stalk, lighting

42–43
Control stalk, wipers

45–46, 48
Courtesy lamp

36, 118
Courtesy lamps

36
Cover, load space

41
Cruise control

81, 83–85
Cruise control by speed limit recognition

81
Cruise control, dynamic with Stop function

81
Cup holder

37
D
DAB (Digital Audio Broadcasting) -
Digital radio
137, 161
Date (setting)

143, 167
Daytime running lamps

44
Daytime running lamps, LED

11 6
Deactivating the passenger airbag

56, 59–60
Deadlocking

18, 20
Defrosting

35–36
Defrosting, front 35
Demisting
35
Demisting, front

35
Dimensions

130
Dipstick

11–12, 101
Direction indicators

43, 116–117
Doors

23
Driver’s attention warning

88
Driving

67
Driving aids camera (warnings)

79
Driving aids (recommendations)

78
Driving economically

6
Dynamic stability control (DSC)

52
E
EBFD 52
Eco-driving (advice)
6
Economy mode

97–98
Electric windows

25
Electronic brake force distribution (EBFD)

52
Emergency braking assistance (EBA)

52
Emergency call

50
Emergency switching off

71
Emergency warning lamps

49, 108
Emissions control system, SCR

13, 104
Energy economy mode

97–98
Engine compartment

100
Engine, Diesel

94, 100, 108, 129
Engine, petrol

100, 128
Engines

127–129
Environment 6, 22
ESC (electronic stability control)
52
F
Fatigue detection 88
Filling the AdBlue® tank
102, 105
Filling the fuel tank

94–95
Filter, air

103
Filter, oil

103
Filter, particle

102–103
Filter, passenger compartment

32, 102
Fitting a wheel

113–114
Fitting roof bars

98–99
Fittings, boot

40–41
Fittings, interior

37–38
Flap, fuel filler

94–95
Flashing indicators

43, 116–117
Fluid, brake

101
Fluid, engine coolant

101
Foglamp, rear

42, 117
Foglamps, front

42, 45, 116–117
Foglamps, rear

42
Frequency (radio)

160
Fuel

6, 94
Fuel consumption

6
Fuel tank

94–95
Fusebox, dashboard

119
Fusebox, engine compartment

119, 121
Fuses

119–121

173

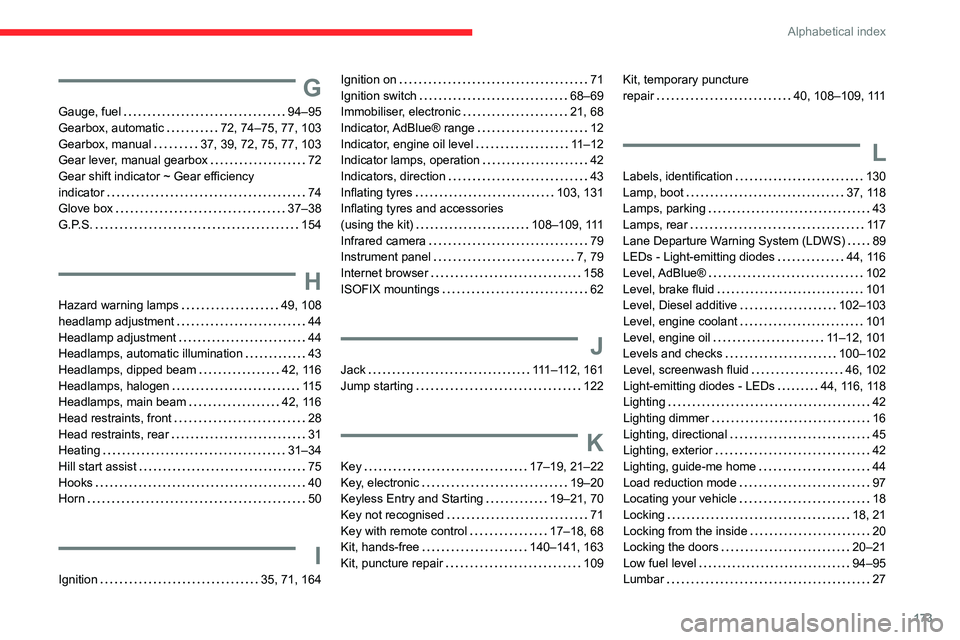

Alphabetical index
G
Gauge, fuel 94–95
Gearbox, automatic
72, 74–75, 77, 103
Gearbox, manual

37, 39, 72, 75, 77, 103
Gear lever, manual gearbox

72
Gear shift indicator ~ Gear efficiency
indicator

74
Glove box

37–38
G.P.S.

154
H
Hazard warning lamps 49, 108
headlamp adjustment
44
Headlamp adjustment

44
Headlamps, automatic illumination

43
Headlamps, dipped beam

42, 116
Headlamps, halogen

11 5
Headlamps, main beam

42, 116
Head restraints, front

28
Head restraints, rear

31
Heating

31–34
Hill start assist

75
Hooks

40
Horn

50
I
Ignition 35, 71, 164
Ignition on 71
Ignition switch
68–69
Immobiliser, electronic

21, 68
Indicator, AdBlue® range

12
Indicator, engine oil level

11–12
Indicator lamps, operation

42
Indicators, direction

43
Inflating tyres

103, 131
Inflating tyres and accessories
(using the kit)

108–109, 111
Infrared camera

79
Instrument panel

7, 79
Internet browser

158
ISOFIX mountings

62
J
Jack 111–112, 161
Jump starting
122
K
Key 17–19, 21–22
Key, electronic
19–20
Keyless Entry and Starting

19–21, 70
Key not recognised

71
Key with remote control

17–18, 68
Kit, hands-free

140–141, 163
Kit, puncture repair

109
Kit, temporary puncture
repair
40, 108–109, 111
L
Labels, identification 130
Lamp, boot
37, 118
Lamps, parking

43
Lamps, rear

11 7
Lane Departure Warning System (LDWS)

89
LEDs - Light-emitting diodes

44, 116
Level, AdBlue®

102
Level, brake fluid

101
Level, Diesel additive

102–103
Level, engine coolant

101
Level, engine oil

11–12, 101
Levels and checks

100–102
Level, screenwash fluid

46, 102
Light-emitting diodes - LEDs

44, 116, 118
Lighting

42
Lighting dimmer

16
Lighting, directional

45
Lighting, exterior

42
Lighting, guide-me home

44
Load reduction mode

97
Locating your vehicle

18
Locking

18, 21
Locking from the inside

20
Locking the doors

20–21
Low fuel level

94–95
Lumbar

27

174
Alphabetical index
M
Maintenance (advice) 106
Maintenance, routine
79, 102
Manoeuvring aids (recommendations)

78
Map reading lamps

36
Markings, identification

130
Mat

37, 39, 79
Menu

139
Menus (audio)

134–135, 148–149
Messages

165
Messages, quick

165
Mirror, rear view

30
Mirrors, door

29, 89
Misfuel prevention

95
Mountings, ISOFIX

62
N
Number plate lamps 11 8
O
Obstacle detection 91
Oil change
101
Oil consumption

101
OIl, engine

101
On-board tools

109
Opening the bonnet

99
Opening the boot

19, 23–24
Opening the doors 19, 23
P
Pads, brake 103
Paint
106, 130
Paint colour code

130
Panoramic glass sunroof

37
Parcel shelf, rear

40–41
Parking brake

72, 103
Parking sensors, audible and visual

91
Parking sensors, front

91
Parking sensors, rear

91
Plates, identification

130
Player, Apple®

138, 162
Player, MP3 CD

161
Player, USB

137, 161
Port, USB

37–38, 137, 161
Pressures, tyres

103, 111, 131
Pre-tensioning seat belts

54
Priming the fuel system

108
Profiles

142, 166
Protecting children

56–60, 63–64, 65
Puncture

108–109, 111
R
Radar (warnings) 78
Radio
135–136, 138, 159–161
Radio, digital (Digital Audio
Broadcasting - DAB)
137, 161
Range, AdBlue

12, 102
RDS

136, 160
Rear screen, demisting

36
Recharging the battery

122–123
Recirculation, air

33–34
Recovery

125
Reduction of electrical load

97
Regeneration of the particle filter

103
Reinitialisation of the under-inflation
detection system

76
Reinitialising the remote control

22
Reminder, key in ignition

69
Reminder, lighting on

43
Remote control

17–21
Removing a wheel

113–114
Removing the mat

39
Replacing bulbs

115–117
Replacing fuses

119–120
Replacing the air filter

103
Replacing the oil filter

103
Replacing the passenger compartment
filter

102
Reservoir, screenwash

102
Resetting the trip recorder

15–16
Reversing camera

79, 92
Reversing lamp

11 7
Reversing lamps

11 7
Roof bars

98–99
Running out of fuel (Diesel)

108

175
Alphabetical index
S
Safety, children 56–60, 63–64, 65
Saturation of the particle filter (Diesel)
103
Screen, cold climate

96
Screen menu map

139
Screenwash, front

46
Screenwash, rear

46
SCR (Selective Catalytic Reduction)

13, 104
Seat angle

27
Seat belts

53–54, 60
Seat, rear bench

30–31
Seats, front

27
Seats, heated

28
Seats, rear

30–31, 58
Sensors (warnings)

79
Serial number, vehicle

130
Service indicator

11
Servicing

11, 102
Settings, equipment

13–14
Settings, system

142, 166
Sidelamps

42–44, 116–117
Snow chains

76, 96
Socket, 12 V accessory

37–38
Socket, auxiliary

138, 161
Socket, Jack

161
Speed limiter

81–83
Speed limit recognition

80
Speedometer

79
Stability control (ESC)

52
Starting a Diesel engine

94
Starting the engine

68
Starting the vehicle 68–70
Starting using another battery
71, 122
Station, radio

135–136, 159–160
Stay, bonnet

99–100
Steering mounted controls, audio

133, 147
Steering wheel, adjustment

29
Stopping the vehicle

68–70
Stop & Start

15, 32, 35, 77–78, 94, 99, 102, 124
Storage

38–39
Sunshine sensor

32
Sun visor

37
Switching off the engine

68
Synchronising the remote control

22
T
Tables of engines 128–129
Tables of fuses
119–121
Tank, fuel

94–95
Technical data

128–129
Telephone

140–142, 163–165
Three flashes (direction indicators)

43
Time (setting)

143, 167
TMC (Traffic info)

154
Tools

111 , 111 – 11 2
Topping-up AdBlue®

105
Total distance recorder

15–16
Touch screen

13–14
Touch screen tablet

13–14
Towbar

97
Towed loads 127
Towing another vehicle
125–126
Towing eye

40
Traction control (ASR)

52
Traffic information (TMC)

154
Trailer

97
Trajectory control systems

52
Triangle, warning

40, 108
Trip computer

14–15
Trip distance recorder

15–16
Tyres

103, 131
Tyre under-inflation detection

75–76, 111
U
Under floor storage 40
Under-inflation (detection)
75
Unlocking

17–19
Unlocking from the inside

20
Unlocking the boot

18
Unlocking the doors

18, 20–21
Updating the date

143, 167
Updating the time

143, 167
USB

137–138, 161
V
Ventilation 31–32, 34
Visibility
35
Voice commands

149–152

176
Alphabetical index
W
Warning and indicator lamps 7
Warning lamp, driver''s seat belt
not fastened

54
Warning lamps

7
Warning lamp, seat belts

54
Warnings and indicators

7
Washing

79
Washing (advice)

106
Weights

127
Wheel, spare

76, 103, 109, 111–112
Window controls

25
Windows, rear doors

26, 107
Windows, rear quarter

107
Windscreen wipers

45
Wiper blades (changing)

46–47
Wiper, rear

46
Wipers

45, 48
Wipers, automatic rain sensitive

45, 48
