navigation Citroen C4 CACTUS RHD 2015 1.G Owner's Guide

05
270

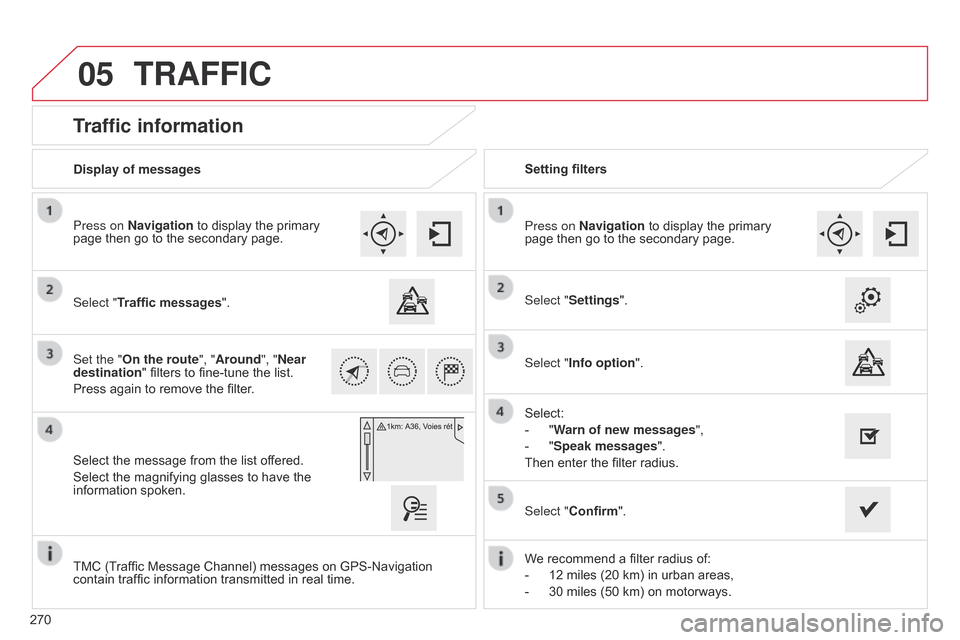

Traffic information
Select "Traffic messages".
Press on Navigation   to   display   the   primary
page

  then   go   to   the   secondary   page.
Select   the   message   from   the   list   offered.
Select
  the   magnifying   glasses   to   have   the
information

  spoken.
Set the "On the route
", "Around", "Near
destination "
  filters   to   fine-tune   the   list.
Press
  again   to   remove   the   filter. Select "Settings".
Select:
-

"
Warn of new messages",
-

"
Speak messages".
Then
  enter   the   filter   radius.
Press on Navigation
  to   display   the   primary
page

  then   go   to   the   secondary   page.
Display of messages
Setting filters
We
  recommend   a   filter   radius   of:
-

12
  miles   (20   km)   in   urban   areas,
-

30
  miles   (50   km)   on   motorways.
TMC
  (Traffic   Message   Channel)   messages   on   GPS-Navigation
contain

  traffic   information   transmitted   in   real   time.Select "Confirm".
TRAFFIC
Select "Info option
".

05
271
Red

and

yellow

triangle:

traffic

information,

for

example:
Modified

signs
Risk

of

explosion
Narrow

carriageway
Road

closed
Slippery surface
Demonstration Accident
Danger
d

elay
n

o entry
Roadworks
Traffic

jam

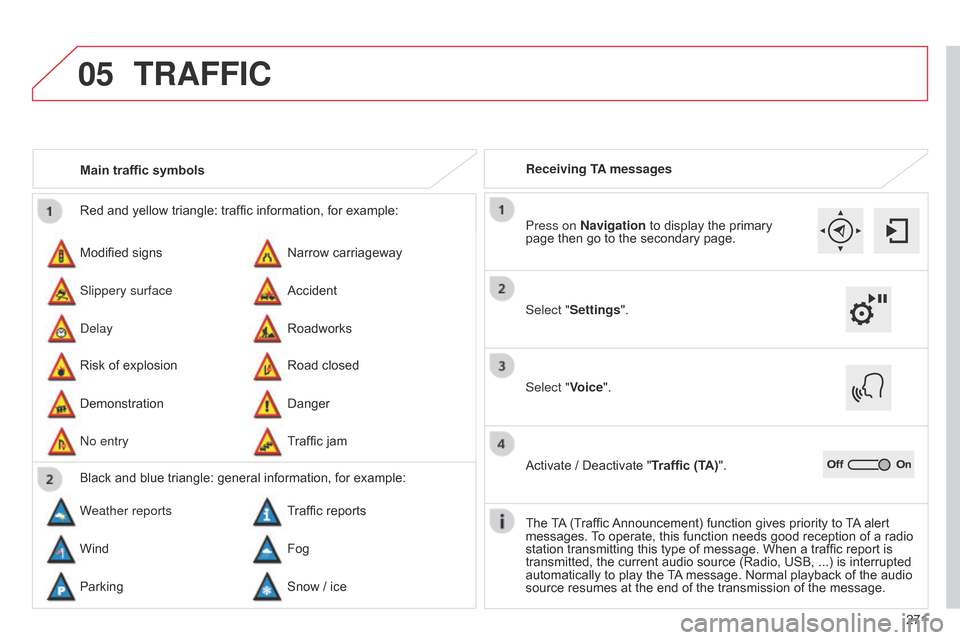

Main traffic symbols
Black

and

blue

triangle:

general

information,

for

example:
Weather reports Traffic

reports
Wind Fog
Parking Snow

/

ice Receiving TA messages
TRAFFIC
Select "Settings". Press on Navigation
  to   display   the   primary
page

  then   go   to   the   secondary   page.
Select "Voice".
Activate
  /   Deactivate   "Traffic (TA)".
The

T
A

(Traffic
Announcement)
  function   gives   priority   to
T
A

alert
messages.


T
o   operate,   this   function   needs   good   reception   of   a   radio
station

  transmitting   this   type   of   message.   When   a   traffic   report   is
transmitted,

  the   current   audio   source   (Radio,   USB,   ...)   is   interrupted
automatically

  to   play   the
T
A

message.   Normal   playback   of   the   audio
source

  resumes   at   the   end   of   the   transmission   of   the   message.

05

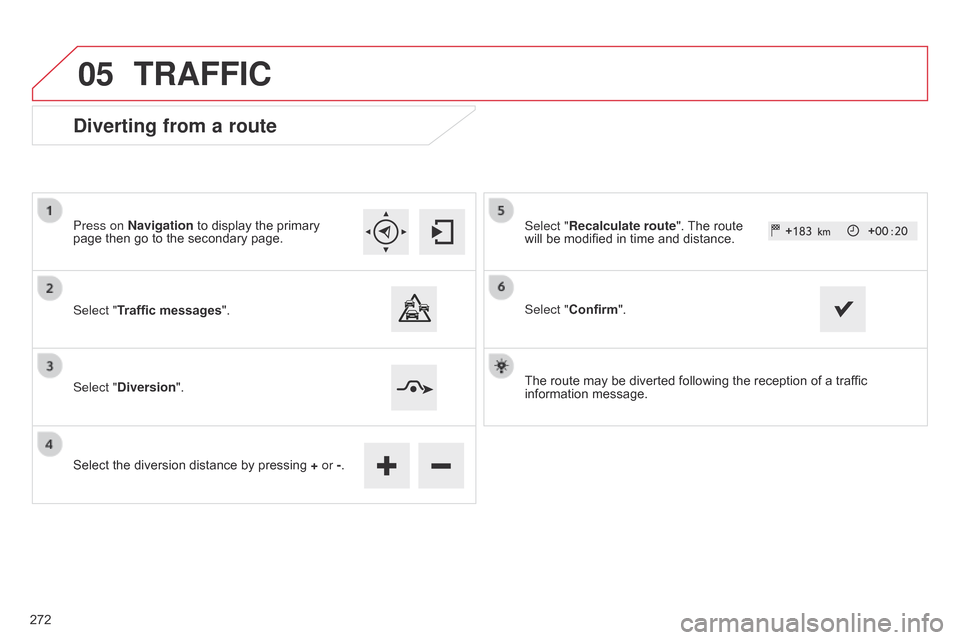

Diverting from a route
Press on Navigation to display the primary page  then   go   to   the   secondary   page.
Select "Traffic messages ".
Select "Diversion".
Select
  the   diversion   distance   by   pressing
+
or -.Select "Recalculate route".
 The   route  will
  be   modified   in   time   and   distance.
Select "Confirm".
The
  route   may   be   diverted   following   the   reception   of   a   traffic
information

  message.
TRAFFIC
272

05
273

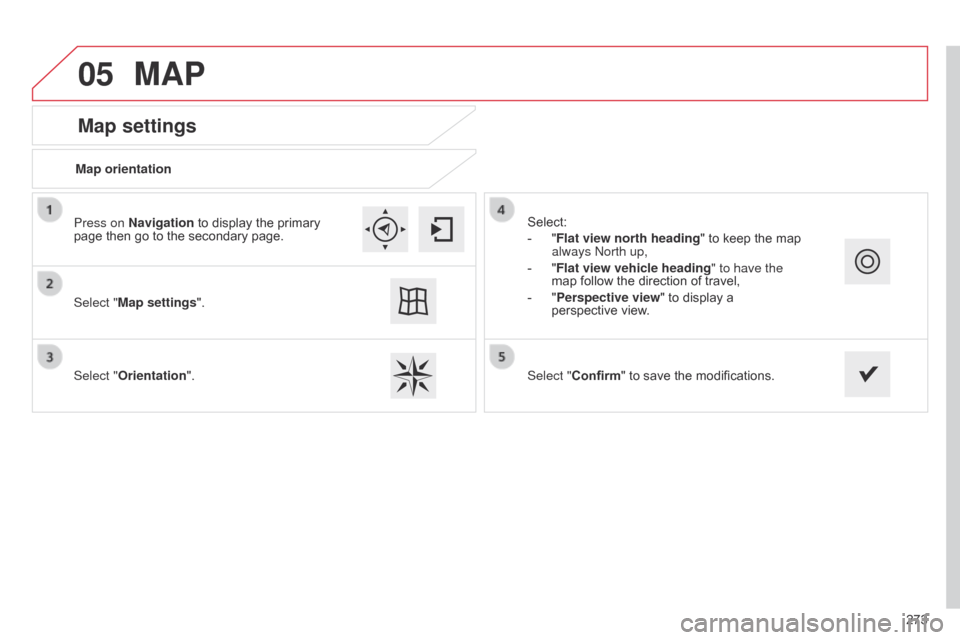

Map settings
MAP
Map orientation
Select "Map settings".
Select "Orientation". Select:
-

"
Flat view north heading"
  to   keep   the   map
always

n orth up,
-

"
Flat view vehicle heading" to have the
map
  follow   the   direction   of   travel,
-

"
Perspective view"   to   display   a
perspective

  view.
Press on Navigation
  to   display   the   primary
page

  then   go   to   the   secondary   page.
Select "Confirm"
  to   save   the   modifications.

05
Street names are visible on the map from the 100 m scale.
Configure
Select "
Aspect". Select:
-
"
"Day" map colour"   to   have   the   map
always

  in   day   mode.
-
"
"Night" map colour
"   to   have   the   map
always

  in   night   mode.
-
"
Automatic day/night
" to have
the   brightness   of   the   map   adjusted
automatically

  according   to   the   ambient   light
level.
 This

  mode   makes   use   of   the   vehicle's
sunshine

  sensor   or   by   manual   operation   of
the

  vehicle's   lighting.
Select "Map settings". Press on Navigation

to

display

the

primary

page


then

go

to

the

secondary

page.
MAP
Then "Confirm" to save the modifications.
274

05
275

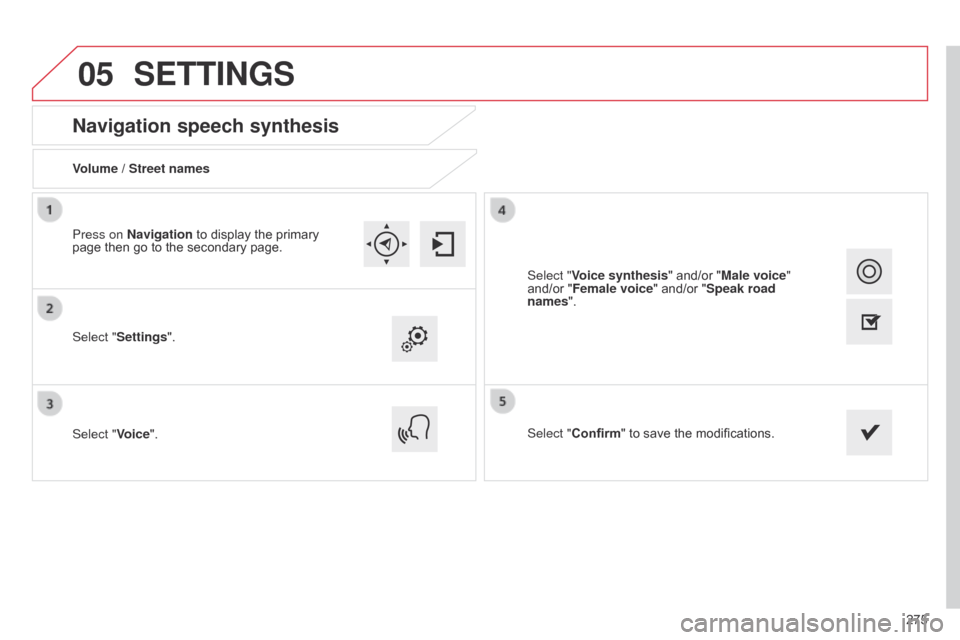

Navigation speech synthesis
Volume / Street names
Select "Settings".
Select "Voice".Select "Confirm"
  to   save   the   modifications.
Press on Navigation
  to   display   the   primary
page

  then   go   to   the   secondary   page.
SETTINGS
Select "Voice synthesis" and/or "Male voice"
and/or   "Female voice"   and/or   "Speak road
names".

277277

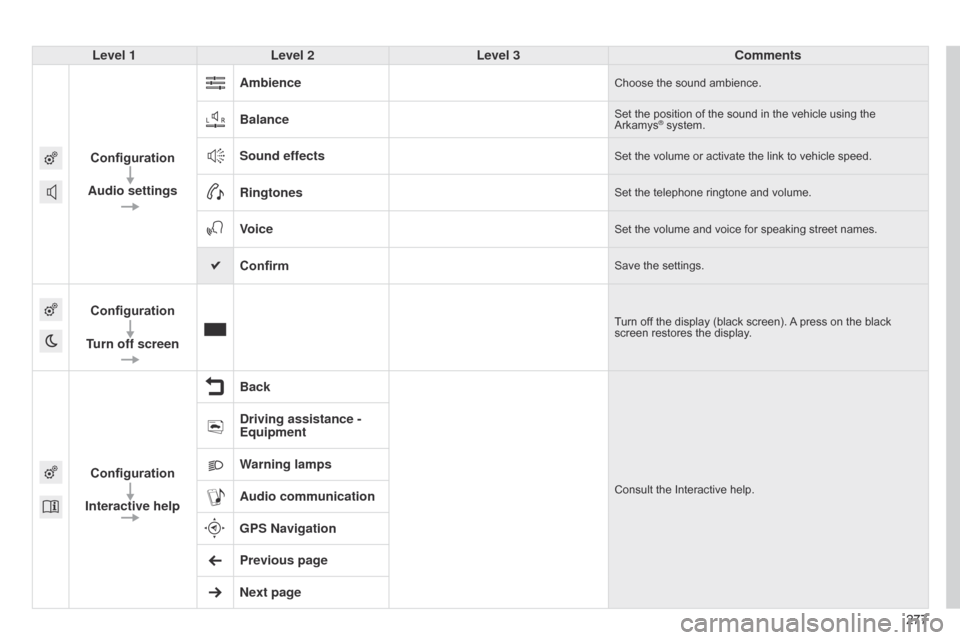

Level 1
Level 2 Level 3 Comments
Configuration
Audio settings Ambience
Choose the sound ambience.
BalanceSet the position of the sound in the vehicle using the Arkamys® system.
Sound effectsSet the volume or activate the link to vehicle speed.
RingtonesSet the telephone ringtone and volume.
VoiceSet the volume and voice for speaking street names.
ConfirmSave the settings.
Configuration
Turn off screenTurn off the display (black screen). A  press   on   the   black  screen
  restores   the   display.
Configuration
Interactive help BackConsult the Interactive help.
Driving assistance -
Equipment
Warning lamps
Audio communication
GPS Navigation
Previous page
Next page

07
286
CONNECTED SERVICES
286Level 1
Level 2
"Connected services"
Primary page
Driving
  assistance
applications,

  see   following
page

  on   "CITROËN
MUL

TICITY

CONNECT"*. Identification
DUN connection settings Transfer rate It
  may   be   that   certain   new
generation

  smartphones
are

  not   compatible   with   this
standard.
Secondary page


Internet   navigation   via
Bluetooth

  telephone   Dial-Up
Networking

  (DUN).
*

Depending   on   country.

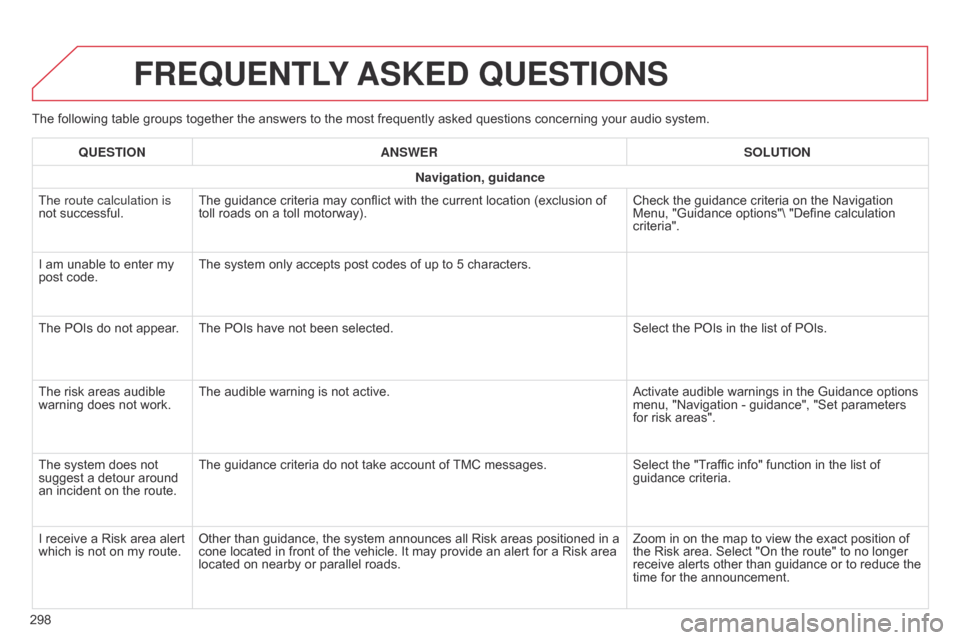

The following table groups together the answers to the most frequently asked questions concerning your audio system.
FREqUENTLY ASKED q UESTIONS
298
q
UESTION
ANSWER SOLUTION
Navigation, guidance
The route calculation is
not   successful.
The   guidance   criteria   may   conflict   with   the   current   location   (exclusion   of
toll

  roads   on   a   toll   motorway).
Check   the   guidance   criteria   on   the   Navigation
Menu,

  "Guidance   options"\   "Define   calculation
criteria".
I
  am   unable   to   enter   my
post

  code.
The   system   only   accepts   post   codes   of   up   to   5   characters.
The   POIs   do   not   appear. The   POIs   have   not   been   selected.
Select   the   POIs   in   the   list   of   POIs.
The   risk   areas   audible
warning

  does   not   work.
The   audible   warning   is   not   active.
Activate   audible   warnings   in   the   Guidance   options
menu,

  "Navigation   -   guidance",   "Set   parameters
for

  risk   areas".
The   system   does   not
suggest

  a   detour   around
an

  incident   on   the   route.
The   guidance   criteria   do   not   take   account   of
TMC
  messages.
Select   the   "Traffic   info"   function   in   the   list   of
guidance

  criteria.
I   receive   a   Risk   area   alert
which

  is   not   on   my   route.
Other   than   guidance,   the   system   announces   all   Risk   areas   positioned   in   a
cone

  located   in   front   of   the   vehicle.   It   may   provide   an   alert   for   a   Risk   area
located

  on   nearby   or   parallel   roads.
Zoom   in   on   the   map   to   view   the   exact   position   of
the

  Risk   area.   Select   "On   the   route"   to   no   longer
receive

  alerts   other   than   guidance   or   to   reduce   the
time

  for   the   announcement.
